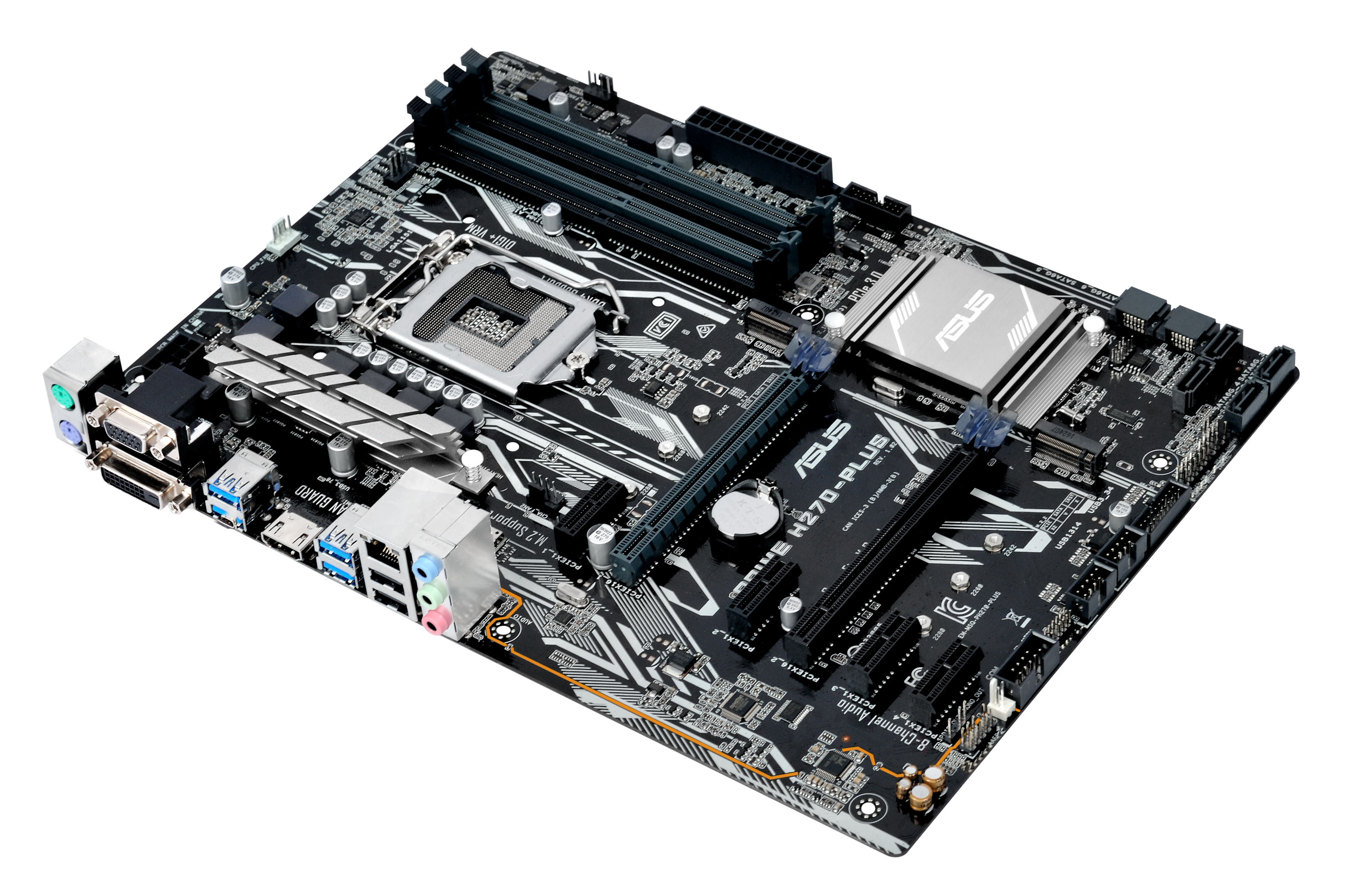

ASUS Prime H270-Plus, Socket-1151

Artikelnummer: 1080337 / Tillverkarens artikelnummer: PRIME H270-PLUS

More pictures from

ASUS Prime H270-Plus

Intel LGA-1151 ATX motherboard with LED lighting, DDR4 2400MHz, dual M.2, Intel Optane memory ready, HDMI, SATA 6Gb/s, USB 3.0

  • 5X Protection III: Multiple hardware safeguards for all-round protection
  • LED illumination: Lighting control for PCIe slot
  • Dual native M.2 support: Lightning-fast storage speeds
  • Intel®Optane™ memory ready: Exploit the latest high-speed storage technology

Prime

ASUS Prime is the next evolution of the ASUS motherboard, born of a pedigree that stretches back to 1989. Our team of world-class engineers are passionate about empowering everyone to enjoy the benefits of customization and tuning, and the driving force behind the development of Prime is to make advanced enthusiast controls easily accessible — maximizing performance, stability and compatibility for the very best DIY PC experiences. Simply stated: it's time for Prime.


Built to Last

ASUS is the world's foremost motherboard manufacturer, renowned for our unique Design Thinking approach. Our exhaustive testing exceeds industry standards, supported by high-quality components for exceptional real-world protection. Our motherboards are proven to be compatible with more than 1,000 components and devices, and each new model undergoes a minimum of 8,000 hours of strict validation. ASUS gives you the peace of mind of knowing that your motherboard is fit for all environments and applications. By choosing ASUS, you also gain the freedom to select outstanding component options, for trouble-free DIY experiences.

5X

Protection III

Hardware safeguards to ensure long-term durability.

5x

520+

DDR4 Compatibility

Industry-leading DDR4 memory compatibility for best flexibility and reassurance.

520+

1000+

Compatible Devices

Compatibility with a range of CPUs, memory modules, graphics cards and more.

1000+

8000+

Validation Hours

Extensive testing with latest components for enhanced reliability, compatibility and safety.

8000+


Brighten Up Your Build

LED-illuminated control for PCIe slot

Built-in LED lighting options illuminate your build in a variety of eye-catching styles.


Native M.2/NVMe PCIe RAID Support for

Lightning Fast Storage Speed

Not satisfied with single-storage device read/write speeds? Then join the fast lane and build a RAID 0 array using two PCIe storage drives to enjoy data transfers at lightning speeds

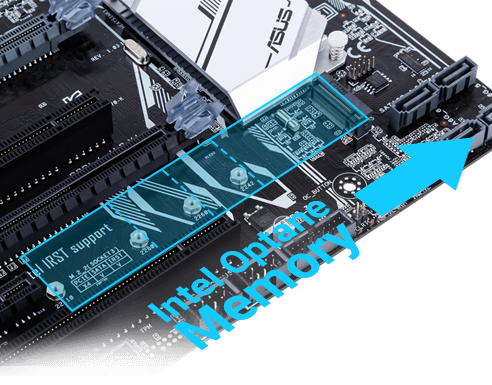

Intel Optane Memory Ready

Intel® Optane™ Memory* is a revolutionary (non-volatile memory) technology supported by Prime 200-series motherboards. Intel Optane Memory modules accelerate attached storage to reduce boot and load times, so everything feels faster and more responsive.

*Supports 7th Generation Intel® processors. Requires driver and BIOS update.


Intel CPU and Chipset Features

Intel® H270 Chipset

Intel® H270 is a single-chipset design that supports 7th & 6th generation Intel LGA1151 Core™ i7 / Core i5 / Core i3 / Pentium® / Celeron® processors

Ready for 7th Generation and 6th Generation Intel LGA1151 Core i7/Core i5/Core i3/Pentium/Celeron processors

The ASUS Prime 200 series motherboard supports 7th Generation and 6th Generation Intel Core™ i7/Core i5/Core i3/Pentium®/Celeron® processors in the LGA1151 package.

Allmänt
Producentens garanti (månader) 36
Typ av produkt Moderkort - ATX
Kretstyp Intel H270
Processor-socket LGA1151 Socket
Maximalt antal processorer 1
Kompatibla processorer Pentium, Celeron, Core i5, Core i3, Core i7 (stöd för 6:e och 7:e generationens Intel Core i3/i5/i7/Pentium/Celeron)
RAM som stöds
Maximal storlek 64 GB
Teknik DDR4
Bussklocka 2400 MHz, 2133 MHz
Stöder Ram Integrity Check Icke ECC
Registrerad eller buffrad Ej buffrad
Egenskaper Minnesarkitektur med dubbel kanal, Intel Extreme Memory Profiles (XMP)
Grafik
Max tilldelad RAM-storlek 1 GB
Ljud
Typ HD-ljud (8 kanaler)
Audio Codec Realtek ALC887
Standarder som följs HD-ljud
LAN
Nätverksstyrenhet Realtek RTL8111H
Nätverksgränssnitt Gigabit Ethernet
Expansion/Anslutning
Expansionskortplatser 1 x CPU
4 x DIMM 288-stift
1 x PCIe 3.0 x16
1 x PCIe 3.0 x16 (x4-läge)
4 x PCIe 3.0 x1
Lagringsgränssnitt SATA-600 -kontakter: 6 x 7 pin seriell ATA - RAID 0 / RAID 1 / RAID 10 / RAID 5
SATA-600 / PCIe 3.0 -kontakter: 2 x M.2
Gränssnitt 1 x HDMI
1 x VGA
1 x LAN (Gigabit Ethernet)
1 x PS/2-mus
4 x USB 3.0
2 x USB 2.0
1 x PS/2-tangentbord
1 x ljudingång - mini-jack
1 x ljudutgång - mini-jack
1 x mikrofon - mini-jack
1 x DVI-D
Interna gränssnitt 4 x USB 2.0 - header
4 x USB 3.0 - header
1 x seriell - header
1 x SPDIF-ut - header
2 x ljud - header
Strömkontakter 24-pin kontakt för huvudström, 8-pin ATX12V-kontakt
Egenskaper
BIOS-typ AMI
BIOS-egenskaper WfM 2.0 support, Flerspråks-BIOS, ASUS Quiet Thermal Solution, UEFI BIOS, ASUS EZ Flash 3, DMI 3,0 stöd, stöd för SMBIOS 3,0, stöd för ACPI 6,0
Viloläge/väckning Wake on LAN (WOL), wake on PME
Hårdvaruegenskaper Automatisk enhets-igenkänning, ASUS Q-Design, ESD Guards, Q-DIMM, ASUS EZ DIY, Q-Slot, CrashFree BIOS 3, detekteringsteknik för ljudjack, ASUS EPU (Energy Processing Unit), Intel Extreme Memory Profile-stöd (XMP), Intel Turbo Boost-teknologi 2.0, ASUS DIGI+ VRM, Intel Clear Video HD-teknologi, kylfläns med fläktlös design, AMD CrossFireX-tekniksupport, Intel InTru 3D-teknologi, Intel Insider, Intel Quick Sync Video, ASUS Enhanced DRAM överspänningsskydd, Preboot eXecution Environment (PXE), ASUS Stainless Steel Back I/O, ASUS Fan Xpert 2+, LANGuard, ASUS överspänningsskydd, Lighting Control, Intel Optane Memory Ready, ASUS 5X Protection III, ASUS SafeSlot Core
Diverse
Inkluderade tillbehör Bakre I/O-hölje, 2 x M.2-skruvar
Medföljande kablar 2 x Seriell ATA-kabel
Medföljande programvara ASUS AI Charger, ASUS AI Suite III
Standarder som följs Plug and Play
