Zyxel WAC6303D-S Aksesspunkt
AC1600, MU-MIMO, PoE+
Of
ZYXEL
Artikelnummer:
1133458
/ Tillverkarens artikelnummer:
WAC6303D-S-EU0101F
Produktinfo
Zyxel WAC6303D-S Access Point
Ultimate wireless experience for high-density with true flexibility
The WAC6303D-S has been designed with Smart Antenna technology, to provide clients with the ultimate wireless experience, especially in high-density environment.
Additionally the WAC6303D-S supports NebulaFlexTM Pro which includes three years of Professional pack and triple mode functionality (standalone, hardware controller and Nebula).
MU-MIMO, New Definition of Wi-Fi
Stepping up from 802.11ac, the second generation Wave 2 technology introduces Multi-User MIMO (MU-MIMO). This is an important WiFi development that enables an AP to communicate with multiple clients at a time offering 300% performance for a 3x3 AP.

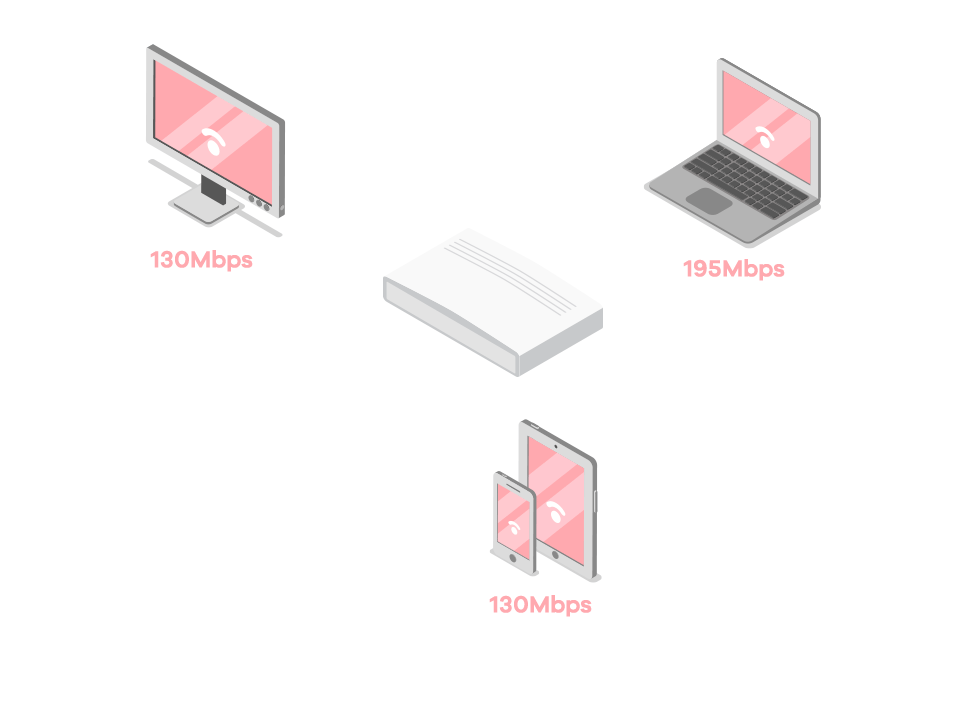

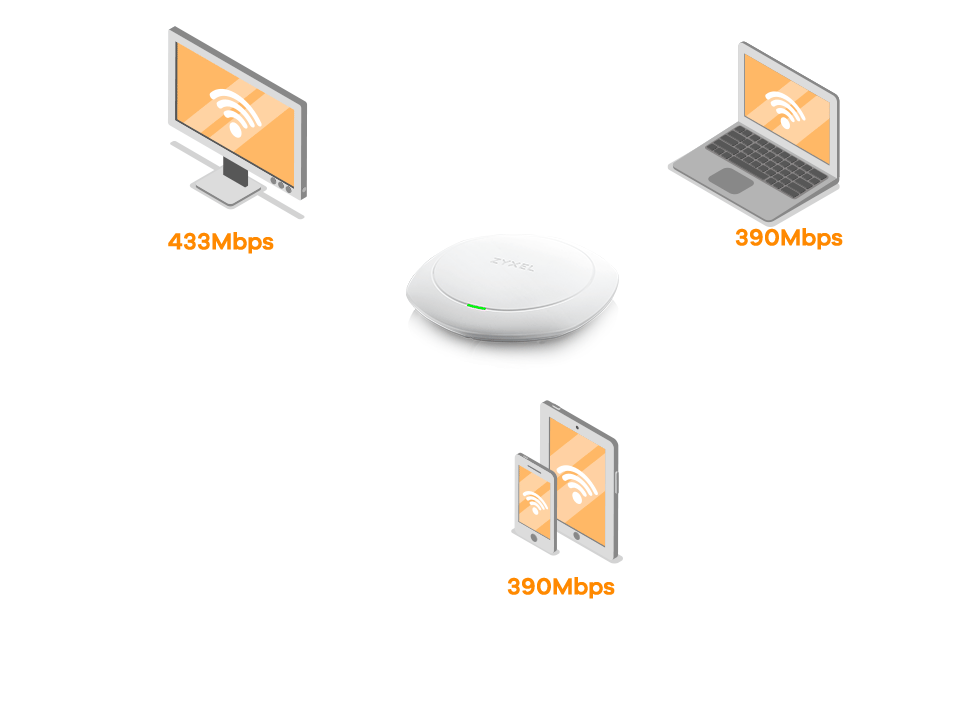

Next Generation Transmit Beamforming benefits overall networking
Transmit Beamforming (TxBF) technology is another key to implement reliable high-density Wi-Fi connection. It increases overall network transmission data rates, which benefits not only MU-MIMO clients but also all existing clients.
Optimal Wireless Experience
WAC6303D-S features Smart antenna technology which is proven able to mitigate co-channel interference, and adaptively adjust antenna patterns to fit in high-density application.
Built for Superior performance
The WAC6303D-S is built with a high-efficiency antenna module, premium power amplifiers and low-noise elements delivering superior wireless performance over other Wave 2 access points on the market.
Optimized wireless experience with advanced features
To provide outstanding performance in crowded environment, WAC6303D-S features 3G/4G interference immunity, excellent receive sensitivity and DCS, which enlarge its service coverage for more clients and better quality of connection.
Most flexible management
The WAC6303D-S series featuring NebulaFlex Pro can be run by standalone, controller or Nebula Control Center to meet whatever your business need. For a straightforward network it can run in standalone mode, and for a complex one needed advanced features it can run with on-premises controller. And Nebula is designed to satisfy all situation with great scalability, feature-rich, and central management.
Tekniska specifikationer
| Producentens garanti (månader) | 60 |
|---|---|
| Typ av enhet | Trådlös åtkomstpunkt |
| Bredd | 21.1 cm |
| Djup | 22.3 cm |
| Höjd | 3.9 cm |
| Vikt | 800 g |
| Formfaktor | Monterbar i vägg/tak |
|---|---|
| Anslutningsteknik | Trådlös |
| Dataöverföringshastighet | 1300 Mbps |
| Linjekodningsformat | DBPSK, DQPSK, CCK, 64 QAM, 256 QAM, BPSK, QPSK, 16 QAM |
| Datalänkprotokoll | IEEE 802.11b, IEEE 802.11a, IEEE 802.11g, IEEE 802.11n, IEEE 802.11ac Wave 2 |
| Protokoll för administration på distans | SNMP 3, SNMP 2c, CLI |
| Frekvensband | 2.4 GHz, 5 GHz |
| Prestanda | WLAN-genomströmning: 1,6 Gbit/s |
| Kapacitet | Maximalt antal konfigurerade SSID:er: 16 |
| Funktioner | VLAN-stöd, Stöd för DiffServ, övervakningsbar, MAC-adressfiltrering, stöd för IPv6, stöd för Wi-Fi Multimedia, Quality of Service (QoS), 2T2R MIMO-teknik, Maximum Ratio Combining (MRC), 3T3R MIMO-teknik, Low Density Parity Check (LDPC), TxBF-förberedd (Transmit Beam-forming), vild åtkomstpunktdetektering, plenummärkt, DHCP-klient, Cyclic Delay Diversity (CDD), Maximum Likelihood Demodulation (MLD), uttag för säkerhetslås (kabellås säljs separat), ZyXEL One Network (ZON), MU-MIMO-teknik, Unscheduled Automatic Power Save Delivery (U-APSD), stråleformingsteknologi, Pre-Authentication, paketaggregering A-MPDU, paketaggregering A-MSDU, MAC adressautentisering, Smart Connect, PMK-cachning, low end sensitivity improvements (LESI), kanalutjämning för tidsdomän, Layer 2-isolering |
| Krypteringsalgoritm | WPA-PSK, WPA2-PSK, WPA-Enterprise, WPA2-Enterprise |
| Verifieringsmetod | RADIUS, LDAP, Extensible Authentication Protocol (EAP) |
| Standarder som följs | IEEE 802.3, IEEE 802.3u, IEEE 802.11b, IEEE 802.11a, IEEE 802.3af, IEEE 802.11g, IEEE 802.1x, IEEE 802.11n, IEEE 802.3at, IEEE 802.3az, IEEE 802.11ac Wave 2, IEEE 802.3au, IEEE 802.11ab |
| Antenn | Inbyggd |
|---|---|
| Förstärkningsnivå | 4 dBi |
| Gränssnitt | 2 x 1000Base-T (PoE+) - RJ-45 1 x konsol |
|---|
| Inkluderade tillbehör | Platta för vägg-/takmontering |
|---|---|
| MTBF (genomsnittstid mellan fel) | 3,960,217 timmar |
| Standarder som följs | EN 61000-3-2, EN 61000-3-3, EN55024, FCC Part 15 B, FCC Part 15 C, IEC 60950-1, EN 60950-1, FCC Part 15 E, BSMI CNS 13438, EN 60601-1-2, BSMI CNS 14336-1, EN 301 489-1, LP0002, ETSI EN 300 328, EN 301 893, EN 55032, EN 301 489-17 |
| Stöd för PoE (Power Over Ethernet) | PoE+ |
|---|---|
| Nätdel | Extern strömadapter |
| Nätspänning | AC 120/230 V (50/60 Hz) |
| Emballagets bredd | 25.1 cm |
|---|---|
| Emballagets djup | 24.7 cm |
| Emballagets höjd | 5.5 cm |
| Emballagets vikt | 1.04 kg |
| Min temperatur vid drift | -20 °C |
|---|---|
| Max temperatur vid drift | 60 °C |
| Luftfuktighet vid drift | 10 - 90 % (icke-kondenserade) |
