Seasonic Focus GX 550 550W PSU

ATX 12V, 80 PLUS Gold, Modular, 2x 6+2pin PCIe, 1x CPU, 10x SATA

Artikelnummer: 1136576 / Tillverkarens artikelnummer: FOCUS-GX-550

More pictures from Seasonic Focus GX 550 550W PSU

949:-
Fri frakt
eller
med ditt lagrade kort
med avgiftsfri faktura Se villkor för faktura
100+ st i lager (2-3 vardagar leveranstid)
60 dagar öppet köp & fri retur
Fri frakt t.om. 19 Juli
Rättningslinjer för produktrecensioner

Seasonic Focus GX

The newly upgraded FOCUS PX and GX series are the successor to the FOCUS PLUS Series, which became an instant the top seller in the power supply market after its launch in 2017. In 2019, Seasonic engineers have made improvements on the popular series, removing the inline capacitors on the supplied cables.

Cable-Free connection design

Seasonic’s engineers have implemented a new design feature, where instead of cables; the back panel and the PCB (Printed Circuit Board) are connected by a copper plate. This breakthrough solution not only lowers the chance of production errors during manual insertion but it also improves output power quality.

Hybrid silent fan control

The industry’s first, Seasonic patented, advanced three-phased thermal control achieves optimal between silence and cooling. This Hybrid Silent Fan Control functions in three operational stages: Fanless Mode, Silent Mode, and Cooling Mode.

Benefits

  • Reduced noise without increase in temperature;
  • Extended fan life due to the reduced number of fan rotations;
  • Optimized heat dissipation at all times;
  • Unsurpassed silent performance in Fanless Mode.

Additionally, there is a switch at the back of the power supply which allows users to customize their cooling needs by selecting between the Seasonic S2FC (fan control without Fanless Mode) and the S3FC (fan control including Fanless Mode).

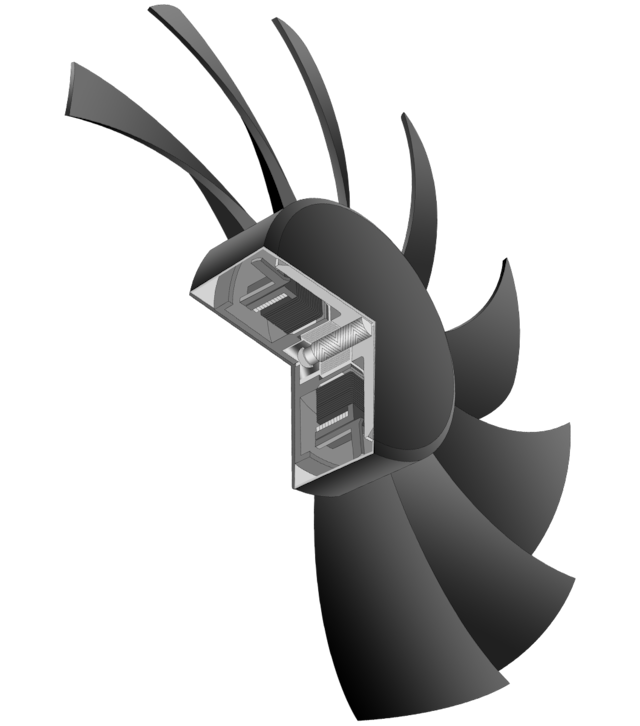

Fluid dynamic fan bearing

High performance Fluid Dynamic Bearing (FDB) fans are designed to take advantage of the impact absorbance effects of oil. They are extremely reliable and generate considerably less operating noise and heat than ball bearing fans. The lubrication of the bearing surface reduces friction and vibration and therefore lowers overall power consumption. Due to the effortless, quieter rotations and its robust construction, this reliable fan technology also greatly increases the lifespan of the fan.

80 PLUS GOLD

The FOCUS GX achieves 80 PLUS®Gold certification with its 90 % efficiency at 50 % system load.

Allmänt
Producentens garanti (månader) 120
Typ av enhet Nätaggregat - intern
Specifikationer ATX12V / EPS12V
PSU-formfaktor ATX
Nätdel
Inspänning AC 100-240 V
Erforderlig frekvens 50 - 60 Hz
Kontaktdetaljer för uteffekt 1 x ström 24-stifts ATX med avtagbar sektion på 4 stift
2 x ström 8-stifts +12V med avtagbar sektion på 4 stift
2 x 8-stifts PCI Express-ström med avtagbar sektion på 2 stift
12 x 15-stifts seriell ATA-ström
3 x 4 pin intern effekt
Utspänning +3.3, +5, ±12 V
Effektkapacitet 550 Watt
Utmatningsström +3.3V - 20 A
+5V - 20 A
+12V - 45 A
-12V - 0.3 A
+5VSB - 3 A
Effektivitet 90%
Modulär kabelhantering Ja
80 PLUS-certifiering 80 PLUS Gold
Diverse
MTBF (genomsnittstid mellan fel) 100,000 timmar
Kylsystem 120 mm fläkt
Egenskaper Överhettningsskydd, guldpläterade terminaler, överspänningsskydd, överspänningsskydd, överströmskydd, underspänningsskydd, kortslutningsskydd, Multi-GPU Technologies Supported, fläkthastighetskontroll, kylfläkt med vätskedynamiskt lager, Premium Hybrid Fan Control, helt modulär, Seasonic S3FC fan Control
Standarder som följs TUV, BSMI, CB, CCC, RoHS, WEEE, cTUVus, REACH, EAC, Energy-Related Products (ErP) Lot 7
Miljöstandarder
ENERGY STAR Ja
Miljöparametrar
Min temperatur vid drift 0 °C
Max temperatur vid drift 50 °C
Mått och vikt
Bredd 15 cm
Djup 14 cm
Höjd 8.6 cm
