Den här produkten finns inte längre i vårt sortiment, men kontakta oss gärna på 031-710 20 00 eller så hjälper vi dig hitta ett bra alternativ.

ASUS PRO WS C621-64L SAGE Moderkort

Artikelnummer: 1139635 / Tillverkarens artikelnummer: 90SW00R0-M0EAY0

More pictures from

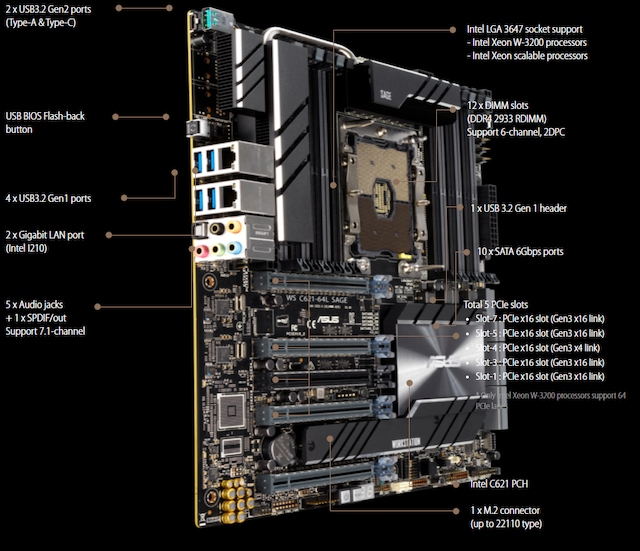

Intel LGA 3647 CEB workstation motherboard with support for 4 GPUs, 12 DIMMs, 10 SATAs, M.2, Intel Gigabit LAN, USB 3.2 Gen 2 and ASUS Control Center

  • Single-socket motherboard is designed for Intel® Xeon® W-3200 processors and Intel Xeon Scalable processors
  • Fits up to four double-decked actively or passively cooled graphics cards with true PCIe® Gen 3 x16 link bandwidth, and supports NVIDIA® Tesla and Quadro®
  • Supports up to 12 DIMMs for up to 1.5 TBof memory with Error-correcting code (ECC) for increased accuracy in designsand simulations and system reliability
  • Ultra-efficient VRM heatsink: Metal-fin-array design maximizes surface area for heat dissipation to enable unthrottled performance
  • Features ASUS Control Center (ACC), a centralized and integrated IT management platform
  • Next-gen transfer speeds with an up to 32 Gbps M.2, plus an up to 10 Gbps USB 3.2 Gen 2 Type-A and Type-C™


ASUS Pro Workstation motherboards are designed for professionals working in AI, deep learning, animation, 3D rendering or media production. Featuring expandable graphics, extensive storage, impressive connectivity and exceptional overall performance and reliability, Pro Workstation motherboards are the ideal solution for creative professionals. Each motherboard includes centralized management software with support for out-of-band management, so they're also an efficient and cost-effective option for IT administrators

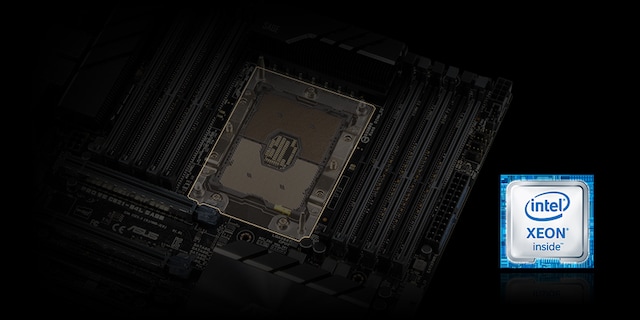

Breakthrough performance in a single-socket solution

Built for advanced workstation professionals, Pro WS C621-64L SAGE is powered by the latest Intel® Xeon® W-3200 processors that support up to 28 cores, 56 threads and 64 PCIe 3.0 in a single socket. Designed for faster visualizations, simulations and rendering capabilities across demanding applications of all types, Pro WS C621-64L SAGE also supports Intel® Xeon® Scalable processors, which utilize the same six-channel LGA3647 socket as the Intel Xeon® W-3200 processors.

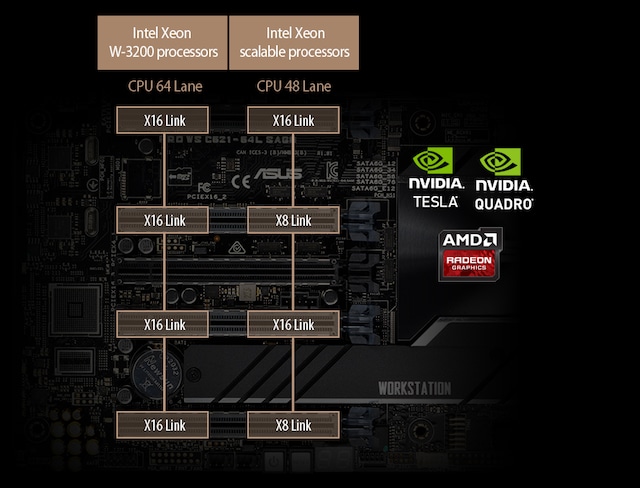

Four GPUs support, faster bandwidth

Pro WS C621-64L SAGE fits up to four double-decked actively or passively cooled graphics cards, which each support PCIe Gen 3 x16 link bandwidth to ensure fast and fluid animations and model rendering. It also supports the latest NVIDIA® Tesla® and Quadro® graphics cards to deliver the horsepower needed to run design, modeling, medical research, and processing-intensive simulations and rendering applications.

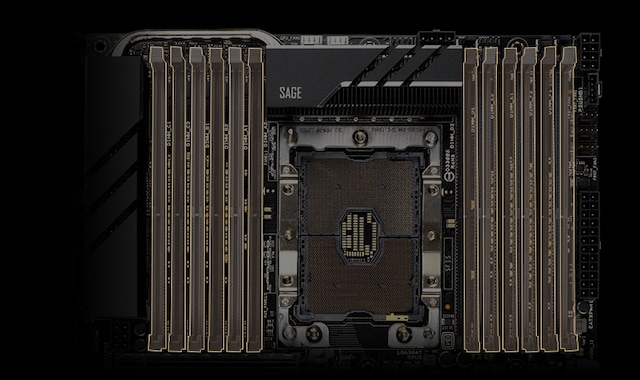

Make your memory faster and reliable

Along with 12 DIMM for up to 1.5 TB of memory, Pro WS C621-64L SAGE supports Error-correcting code (ECC) to eliminate application or system crashes by automatically detecting and repairing single-bit memory errors.

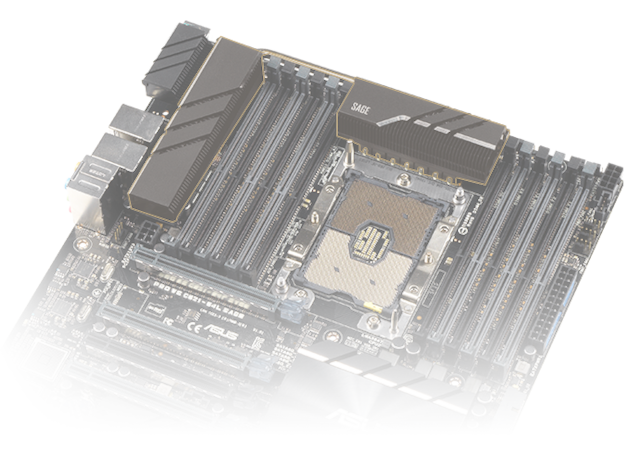

Multiple ultra-efficient heatsinks

A header to keep ahead

Pro WS C621-64L SAGE features a thoughtful thermal design to ensure maximum performance with no CPU throttling. Its ultra-efficient VRM heatsink with a metal fin array maximizes surface area for heat dissipation, and its heatsinks and a connecting heat-pipe that's situated in the direct path of airflow combine to ensure optimal cooling performance — even under the most demanding workloads.

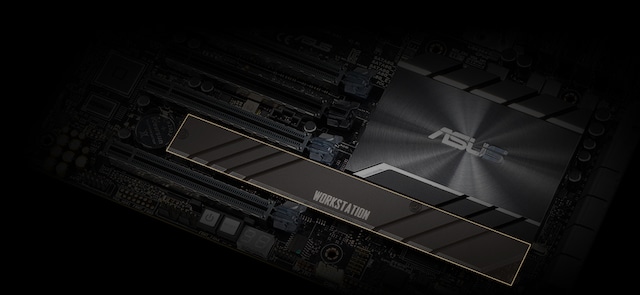

M.2 heatsink

Keep your SSD cooler

Pro WS C621-64L SAGE features an ultra-efficient heatsink to reduce M.2 SSD temperatures for optimal storage performance and improved SSD longevity.

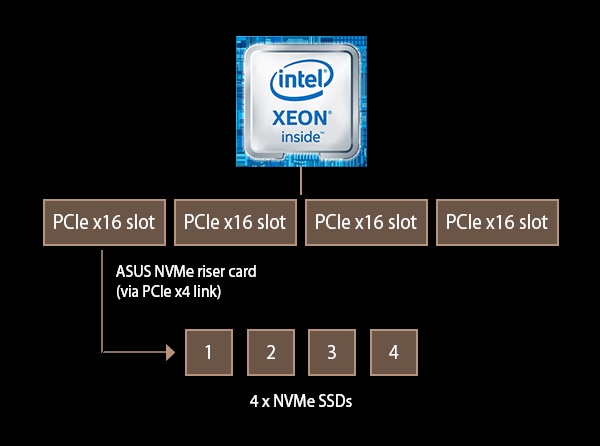

Intel VROC

Combining the performance and flexibility that designers want and need, Pro WS C621-64L SAGE supports an ASUS NVMe® riser card to expand to up to four NVMe SSDs, and it utilizes Intel® Virtual RAID on CPU (VROC) to directly attach NVMe SSDs to the CPU PCIe lanes to unleash NVMe RAID performance.

* Intel® VROC is supported via RSTe, VROC_HW_Key are to be purchased separately. NVMe RAID type and function will depend on Intel® VROC_HW_ key installed.

ASUS Control Center

The ASUS Control Center (ACC) is a centralized and integrated IT management platform for monitoring and controlling ASUS commercial products, including servers, workstations and digital signage. ACC enables remote BIOS updates, monitoring of multiple systems via mobile devices, and one-click software updates and dispatching, allowing easier server management for any IT infrastructure.


Protect your graphics card investment

SafeSlot is the PCIe slot reinvented by ASUS and engineered to provide superior retention and shearing resistance. Manufactured in a single step using an insert-molding process, SafeSlot integrates the slot with fortifying metal for an inherently stronger slot, which is then firmly anchored to the PCB through additional solder points.

Ready for Intel® Xeon® W-3200 Processors

The Intel®Xeon®W-3200 processors are purpose built and optimized for advanced workstation professionals in a single-socket solution. These processors are designed for heavily and lightly threaded, I/O-intensive workloads across architecture, engineering, and construction (AEC), media and entertainment (M&E), artificial intelligence (AI), oil & gas, and data sciences.

Ready for Intel® Xeon® Scalable Processors

Drive actionable insight, count on hardware-based security, and deploy dynamic service delivery with Intel® Xeon® Scalable processors. Support your hybrid cloud infrastructure and most demanding applications – including in-memory analytics, artificial intelligence, autonomous driving, high performance computing (HPC), and network transformation.

Producentens garanti (månader) 36
Typ av produkt Moderkort - SSI CEB
Kretstyp Intel C621
Processor-socket Socket P
Maximalt antal processorer 1
Kompatibla processorer Xeon, Xeon W-3200 (stöder 1:a och 2:a generationens Intel Xeon skalbar processor)
EAN 4718017390002
RAM som stöds
Maximal storlek 1536 GB
Teknik DDR4
Bussklocka 2666 MHz, 2933 MHz
Stöder Ram Integrity Check ECC
Registrerad eller buffrad Registrerad, Load-Reduced
Egenskaper 6 kanalers minnesarkitektur
Typ HD-ljud (8 kanaler)
Audio Codec Realtek ALCS1220A
Standarder som följs HD-ljud
Nätverksstyrenhet 2 x Intel I210AT
Nätverksgränssnitt 2 x Gigabit Ethernet
Expansionskortplatser 1 x CPU
12 x DIMM 288-stift
4 x PCIe 3.0 x16
1 x PCIe 3.0 x16 (x4-läge)
Lagringsgränssnitt Intel C621: SATA-600 -kontakter: 8 x 7 pin seriell ATA - RAID 0 / RAID 1 / RAID 10 / RAID 5
SATA-600 -kontakter: 2 x 7 pin seriell ATA
SATA-600 / PCIe 3.0 -kontakter: 1 x M.2
Gränssnitt 2 x LAN (Gigabit Ethernet)
1 x USB 3.2 Gen 2
1 x USB-C Gen2
4 x USB 3.2 Gen 1
1 x mikrofon - mini-jack
1 x ljudingång - mini-jack
1 x ljudutgång - mini-jack
1 x ljudutgång (center/subwoofer) - mini-jack
1 x ljudutgång (bakre) - mini-jack
Interna gränssnitt 2 x USB 2.0 - header
2 x USB 3.2 Gen 1 - header
1 x ljud - header
1 x seriell - header
1 x USB 3.2 Gen 2 - header
Strömkontakter 24-pin kontakt för huvudström, 2 x 8-stifts ATX12V-kontakter
Viloläge/väckning Wake on LAN (WOL)
Hårdvaruegenskaper NVIDIA 4-way SLI Technology Support, AMD 4-way CrossFireX-tekniksupport, Preboot eXecution Environment (PXE), Intel VROC support, M.2 kylfläns
Medföljande programvara ASUS Control Center
Bredd 30.5 cm
Djup 27.7 cm
