MSI Creator X299, Socket-2066

Moderkort, ATX, X299, DDR4, 4x PCIe-x16, SLI/CFX, 3x M.2

Artikelnummer: 1146646 / Tillverkarens artikelnummer: CREATOR X299

More pictures from MSI Creator X299, Socket-2066

5 399:-
Fri frakt
eller
med ditt lagrade kort
med avgiftsfri faktura Se villkor för faktura
2 st i lager (2-3 vardagar leveranstid)
60 dagar öppet köp & fri retur
Betala med
Fri frakt över 500 kr
Rättningslinjer för produktrecensioner

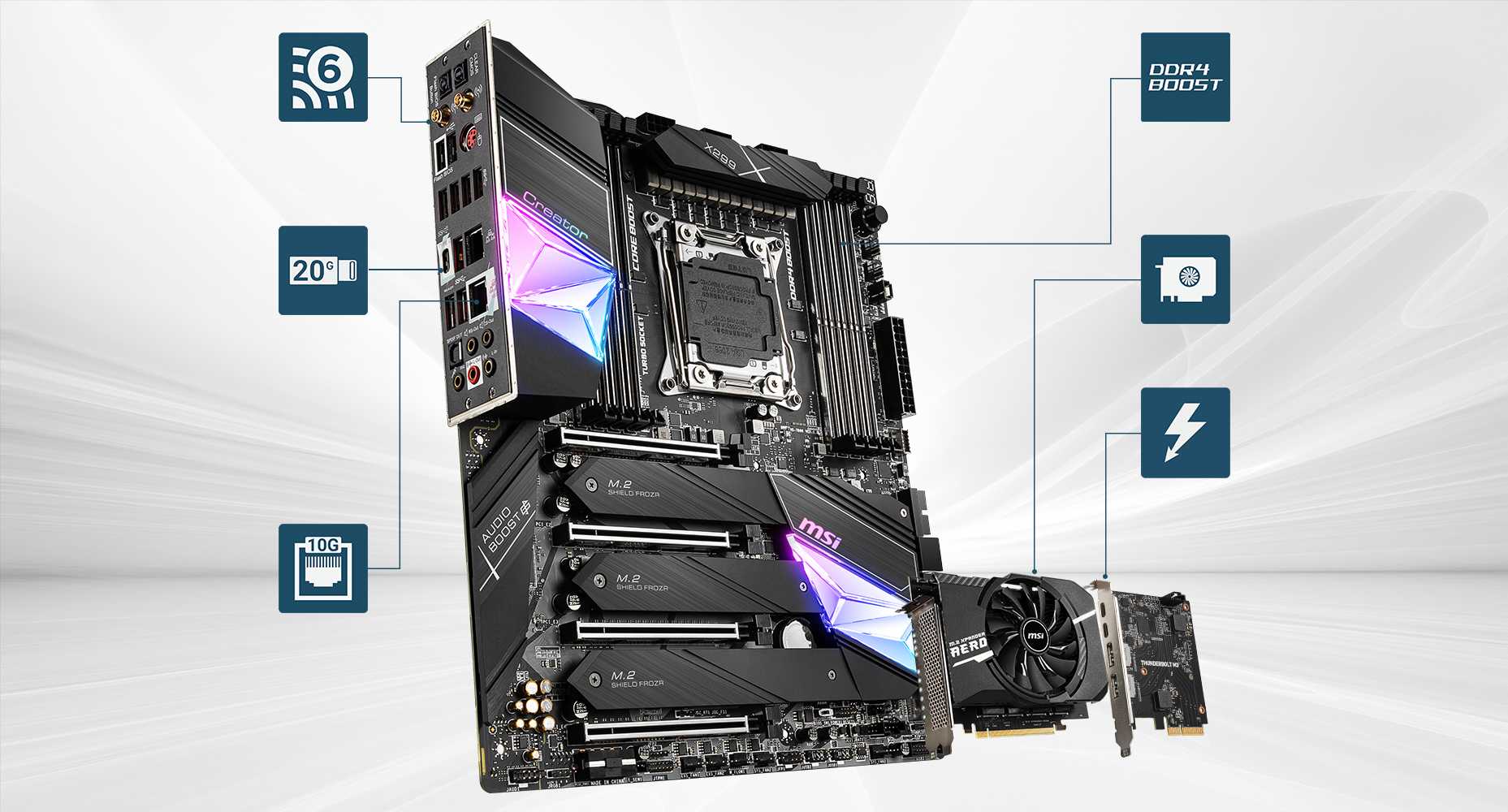

MSI Creator X299

Core Boost Technology

Combining triple 8 pin power connectors and premium layout design, the Creator is ready for unleashing the maximum performance.

PCIe Steel Armor

Protecting VGA cards against bending and EMI for better performance, stability and strength.

Digital Power

Highest quality components with 12 phases 90A digital power, DrMOS and titanium chock II make sure your system runs smoothly under the most extreme conditions.

Latest Wi-Fi 6 Solution

The latest wireless solution supports MU-MIMO and BSS color technology, delivering speeds up to 2400Mbps.

DDR4 Boost with Steel Armor

The Fully isolated and shielded DIMM slots to deliver pure data signals for the best gaming and overclocking performance.

Lightning USB 20G

Powered by ASMedia ASM3242 USB 3.2 Gen2x2 controller, offers the fastest USB speeds with stability.

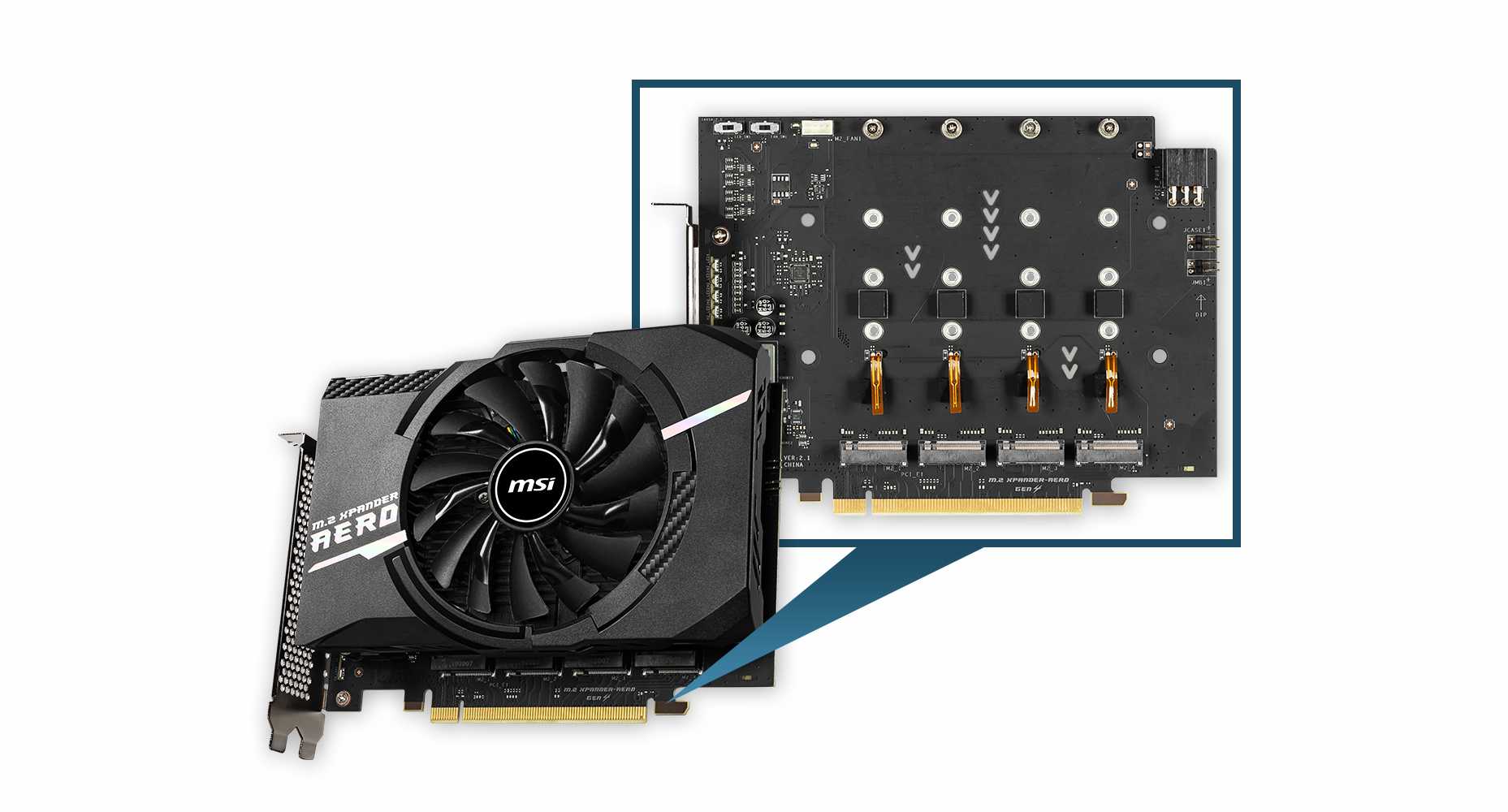

M.2 XPANDER-AERO

Offers four extra Turbo M.2 Gen 3 x4 slots and features graphics card level thermal design to increase your storage capacity.

10G Super LAN

Next level network speed, secure networking with fastest data throughput to improve efficiency.

ThunderboltM3

Offers a connection with state-of-art speed to 40Gb/s.

Extended Heatsink

All-metal extended heatsink cover ensures even high-end processors to run in full speed.

M.2 Shield Frozr

M.2 thermal accessory. Keeps M.2 SSDs safe while preventing throttling making them run faster.

All Aluminum Design

Enlarges the heatsink size and contains more surface to cool down CPU.

More Powerful than Enough

  • Dedicate 12 phases 90A digital power
  • EXTENDED HEATSINK with heat-pipe design
  • Triple 8 pin power connectors

More Efficiency for Data Transfer

  • 10G LAN + Intel® Gigabit LAN + Intel® WIFI6
  • Bandwidth management
  • Thunderbolt 3 ready

More Compatibility for Storage

  • 7 x TURBO M.2 with M.2 XPANDER-AERO
  • 8 x SATA + 1x TURBO U.2
  • 19 x total USB ports support
  • LIGHTNING USB 20G
  • Front USB TYPE-C

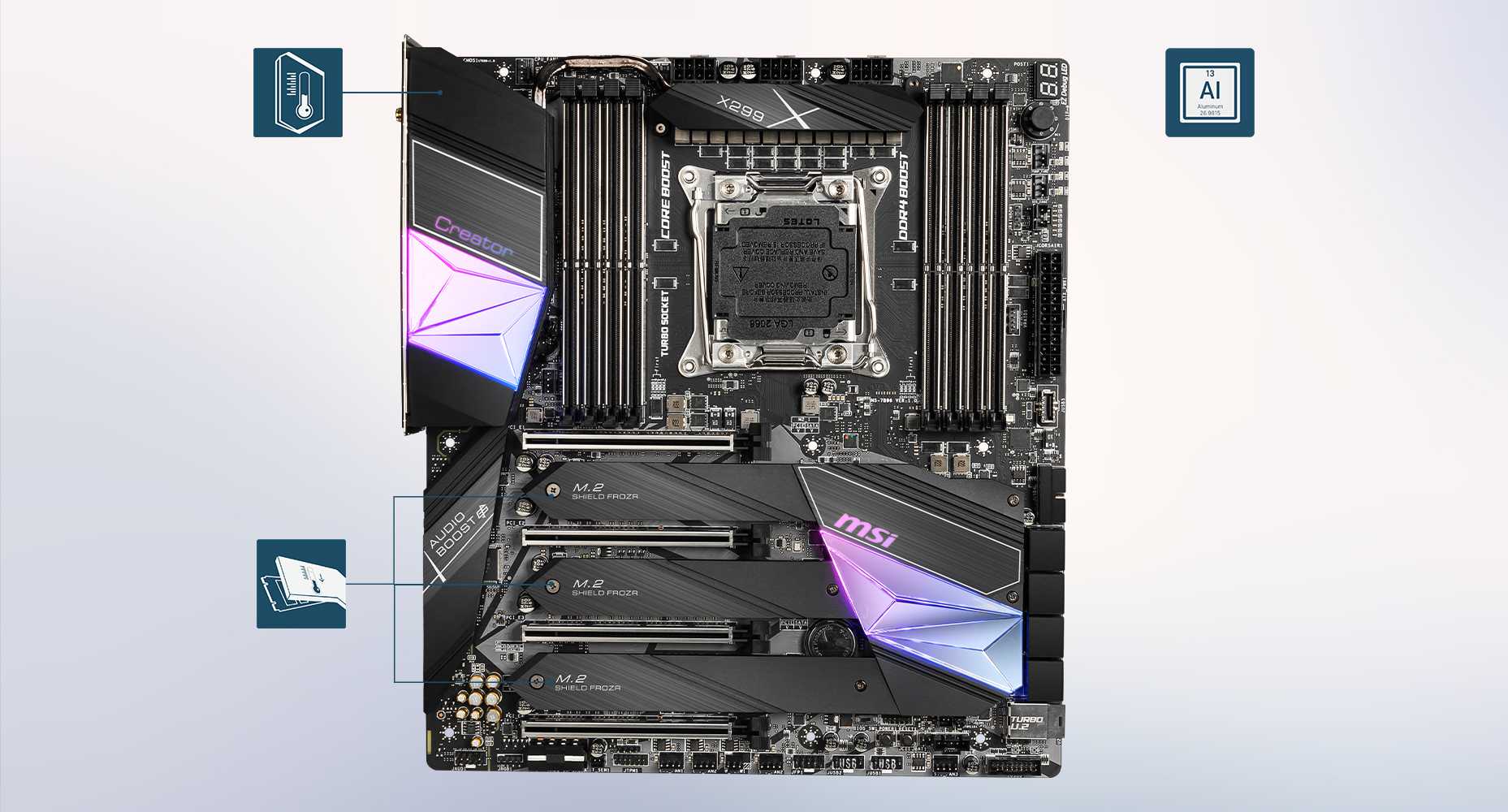

More Flexibility for Temperature Control

  • 8x PWM fan headers
  • 1x dedicated thermal sensors
  • 3x M.2 SHIELD FROZ

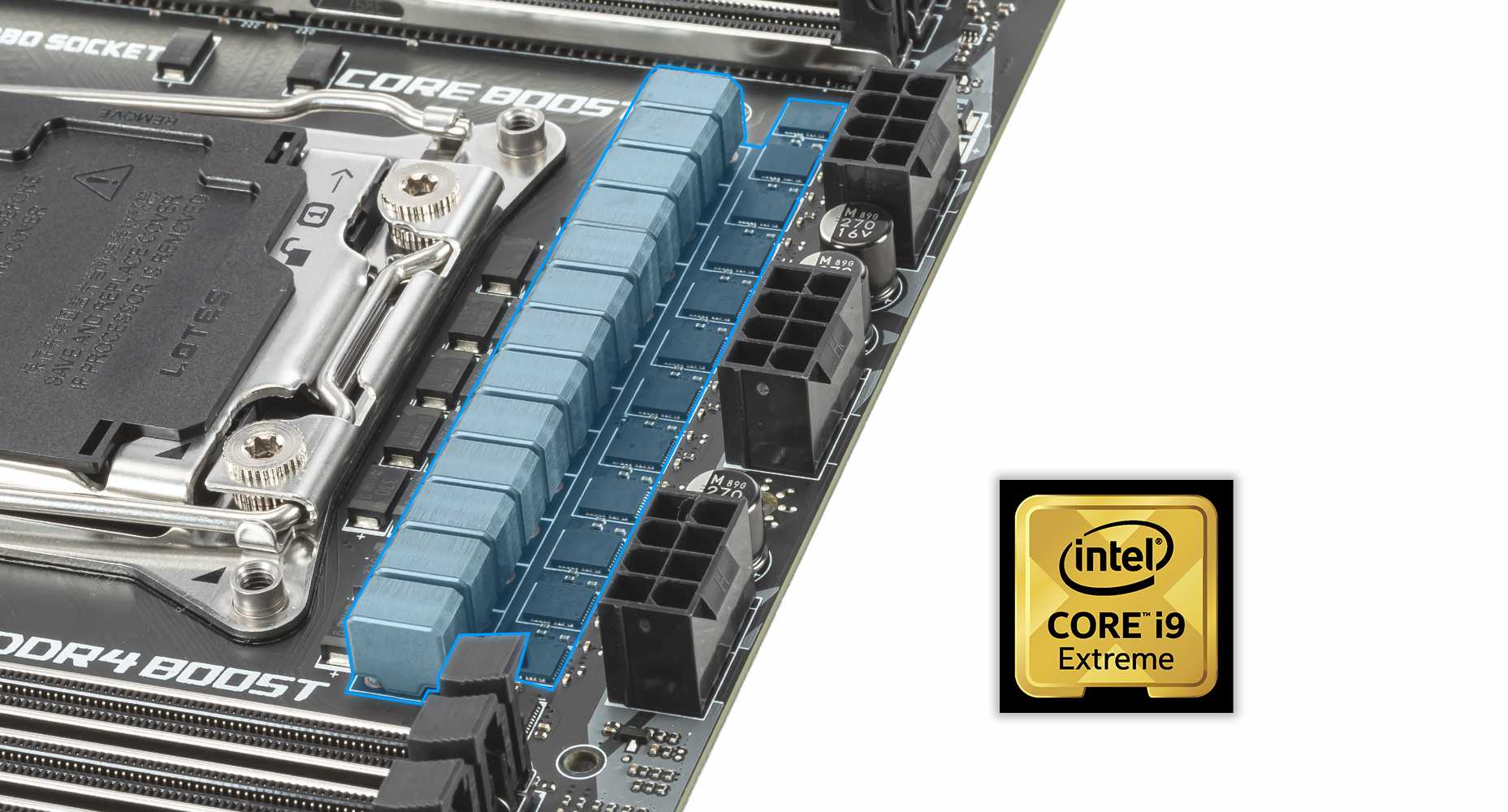

13+1 Phases Digital Power With All Aluminum Design

Providing a stable and reliable condition for designer is the most important thing. Creator X299 features incredible direct 12 phases 90A digital power to CPU for the heavy workload. Combining premium PCB design with Extended Heatsink Design to provide your system the best performance stably.

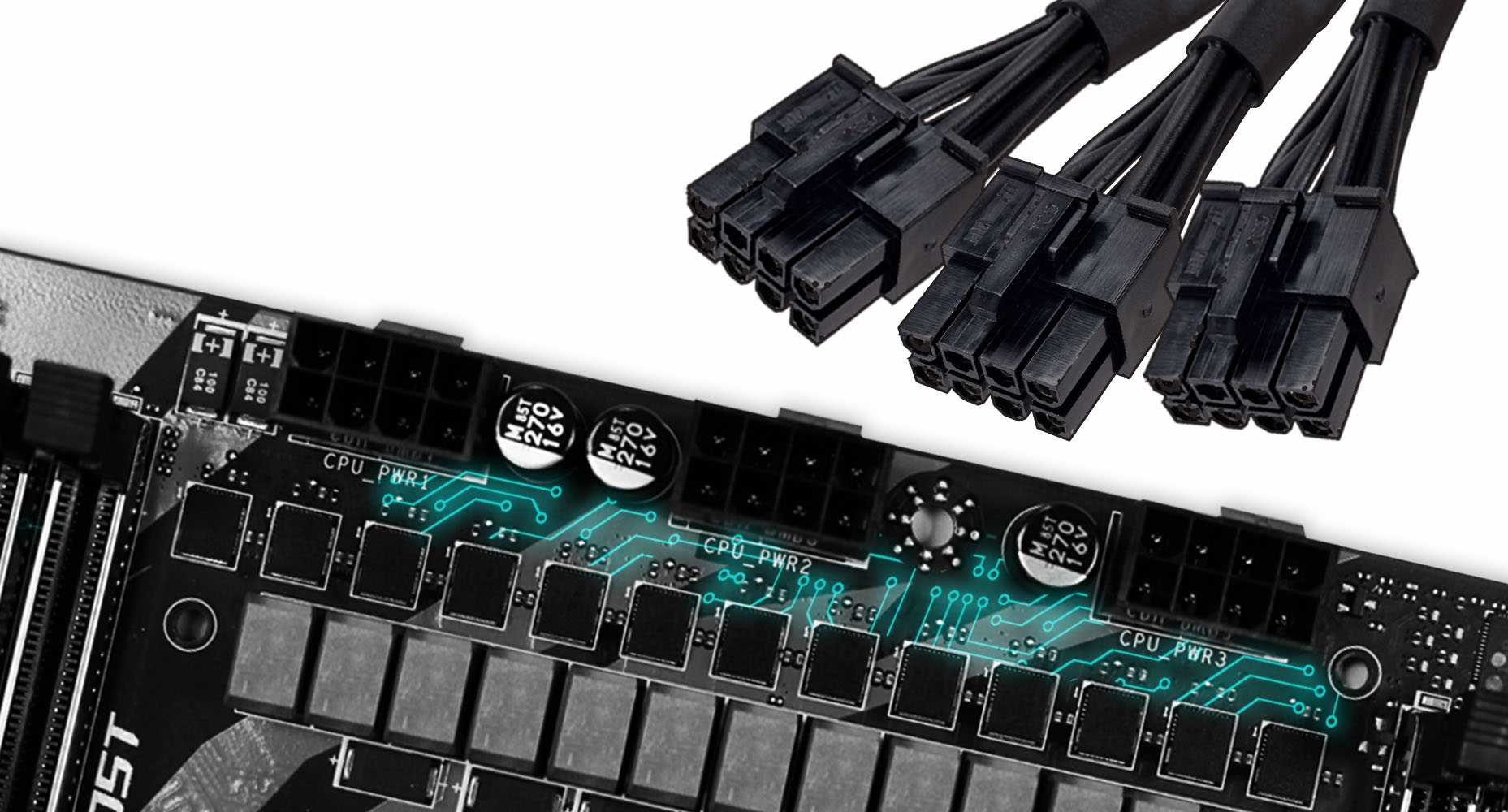

Triple 8 Pin Power Connectors

Triple power connectors delivering adequate power supply for multi-core CPU, unleash the ultimate performance with the most reliable motherboard for best user experience and extreme overclocking.
3 * 8 pin
90A / 1080W maximum power

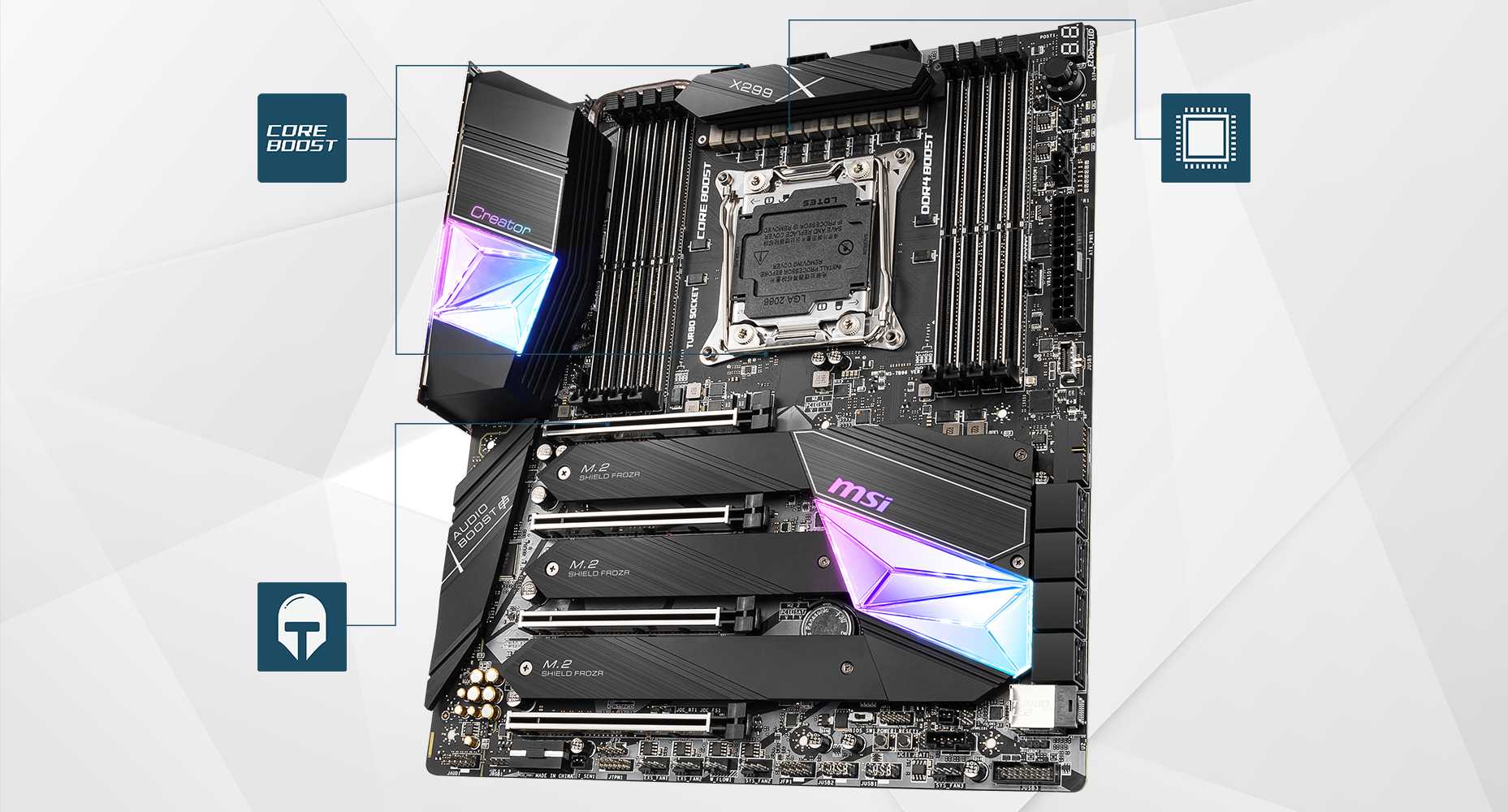

Core Boost

Core Boost technology combines MSI’s premium layout and digital power design which allows for faster and undistorted current delivery to the CPU at pin-point precision. Not only supporting multi-core CPU, but creating the perfect conditions for your CPU overclocking.

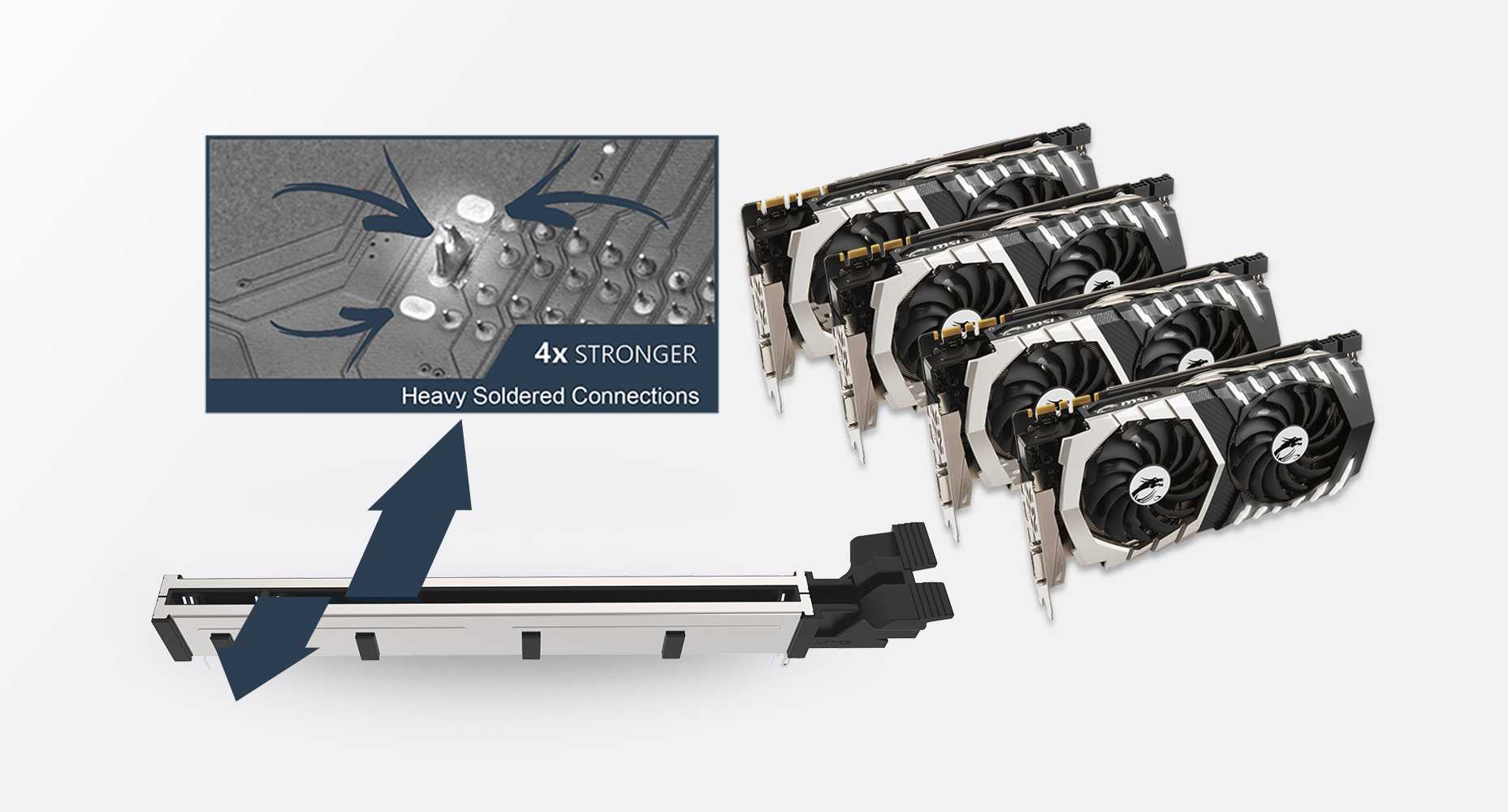

Multiple GPU Supports and Steel Armor

Creator X299 supports multiple GPU solution. Optimal PCI-Express slot placement allows for better fitting and airflow. That way, you can enjoy the best graphics at the highest framerate jumping from your screen when running an NVIDIA® SLI™ or AMD® CrossFire™ setup

Steel Armor has more solder points on the PCB for more strength and protects the PCI-Express signals against electromagnetic interference for a stutter-free user experience.

More Capacity of High Speed NVMe M.2

Triple Turbo M.2 with M.2 Shield FROZR you can find out on Creator X299. Furthermore, another exclusive accessory in the packing, the M.2 XPANDER-AERO increases your system storage speed and capacity with the exclusive active thermal solution.

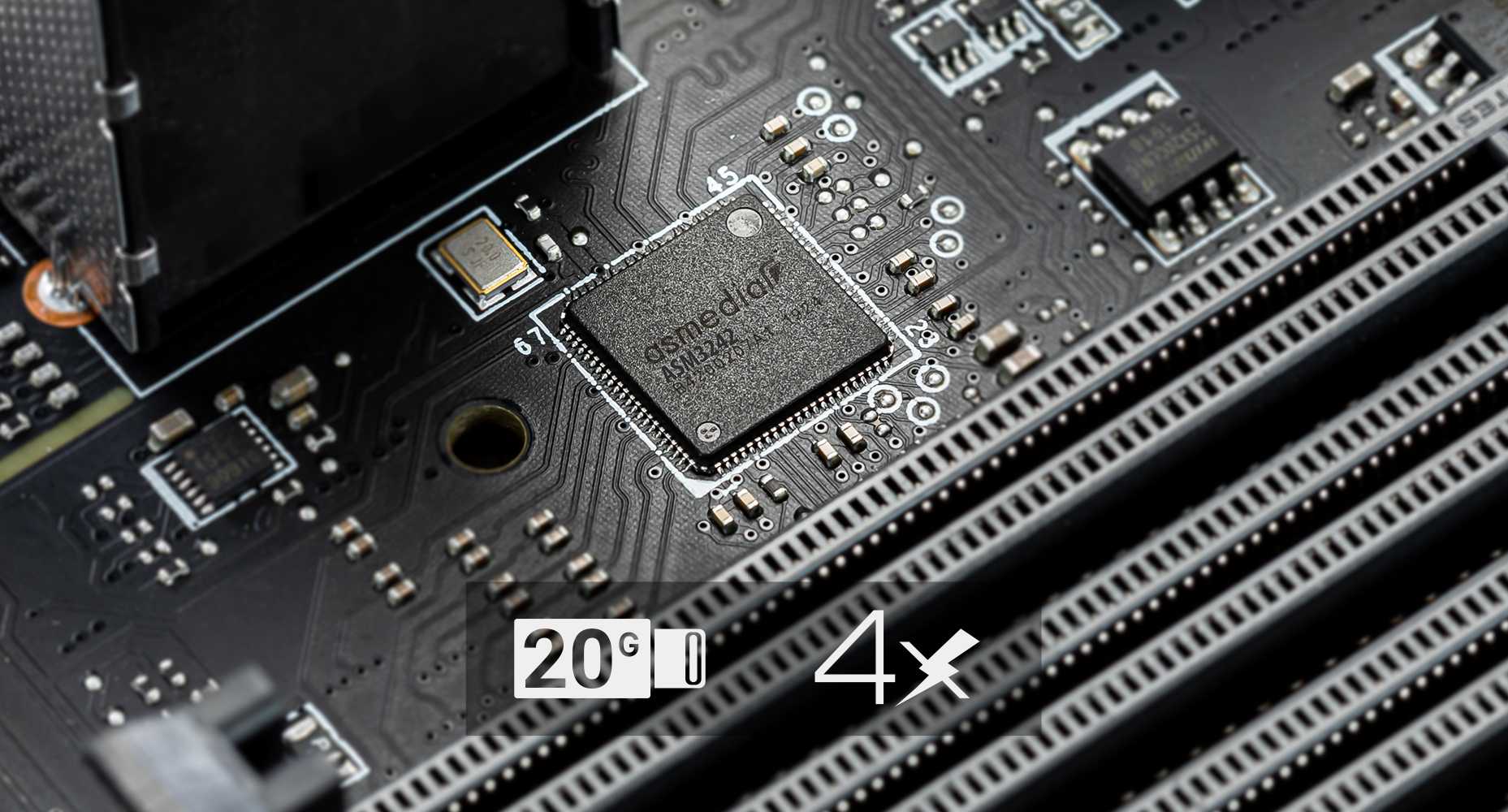

4X Faster Lightning USB 20G

Large data and files transfer is always troublesome for designers, editors, animators and other prosumers. The transmission speed of the latest USB 3.2 Gen2x2 is 4 times faster than USB 3.2 Gen1 solution. Powered by ASMedia 3242 chip, Creator X299 provides stable high speed transmission to save time on backup and other essential data transfer processes.

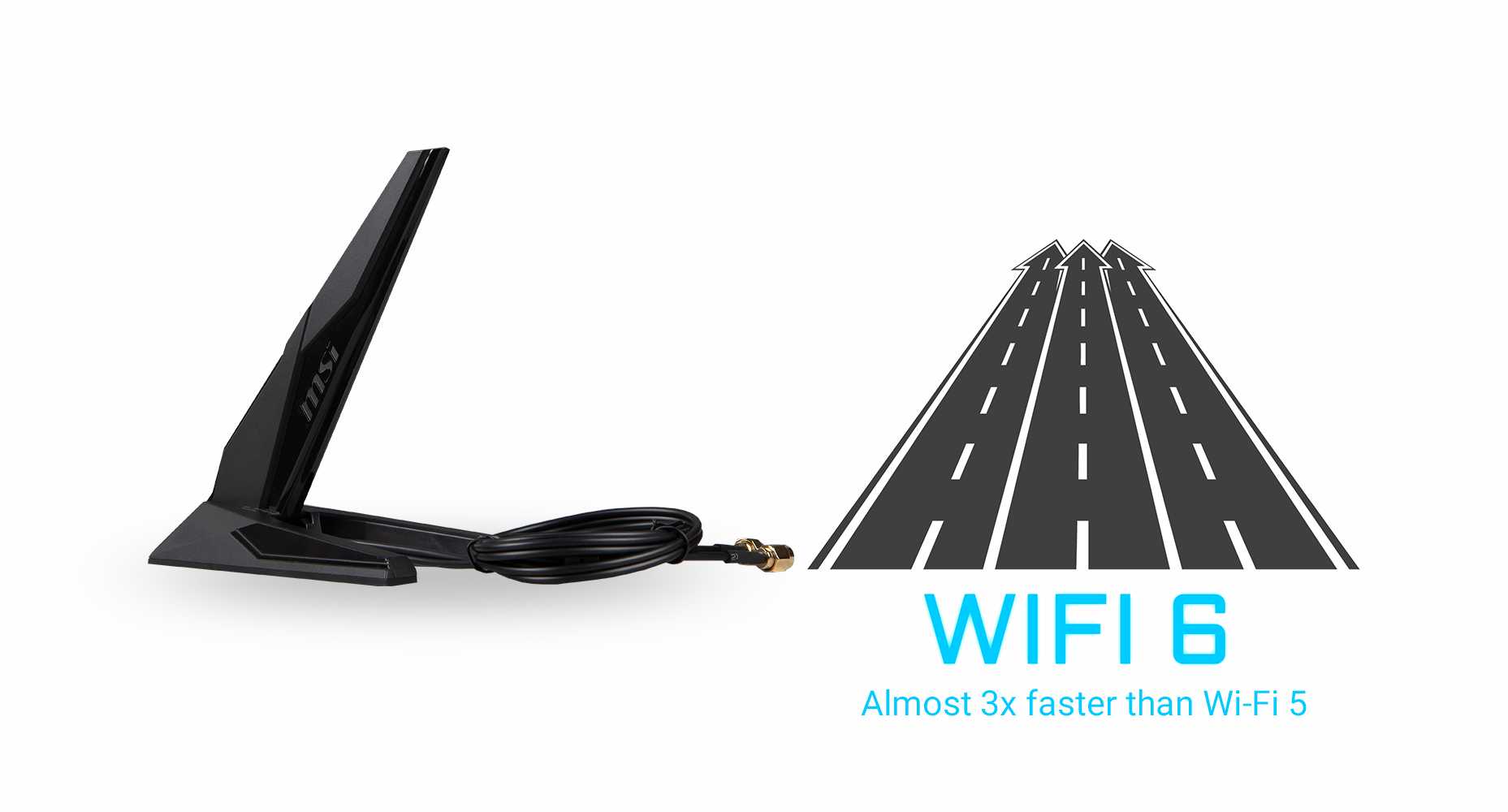

WI-FI 6 & BLUETOOTH

Use your LAN port for online gaming while using WiFi for other online applications. The Wi-Fi 6 adopts latest OFDMA and two-way MU-MIMO technologies, delivering wireless transmission speeds up to 2.4Gbps.

Audio Boost 4 With Nahimic 3

Audio Boost 4 lets you enjoy the purest sound quality in both stereo and surround sound. A dedicated Hi-Def ALC1220 audio processor delivers 32-bit/120dB HIFI sound quality, to make sure you experience studio grade audio quality. For sound designer, there is no distortion cause you are using the widespread high quality audio chipset.

Allmänt
Producentens garanti (månader) 36
Typ av produkt Moderkort - utökad ATX
Kretstyp Intel X299
Processor-socket LGA2066 Socket
Maximalt antal processorer 1
Kompatibla processorer Core X
RAM som stöds
Maximal storlek 256 GB
Teknik DDR4
Bussklocka 2400 MHz, 2133 MHz, 2667 MHz, 2933 MHz, 3000 MHz (O.C.), 3200 MHz (O.C.), 3300 MHz (O.C.), 3400 MHz (O.C.), 3333 MHz (O.C.), 3466 MHz (O.C.), 3733 MHz (O.C.), 3600 MHz (O.C.), 3866 MHz (O.C.), 4000 MHz (O.C.), 4133 MHz (O.C.), 4266 MHz (O.C.)
Egenskaper Intel Extreme Memory Profiles (XMP), fyrdubbel kanalminnesarkitektur
Ljud
Typ HD-ljud (8 kanaler)
Audio Codec Realtek ALC1220
Standarder som följs HD-ljud
LAN
Nätverksstyrenhet Intel I219V / Aquantia AQC107 / Intel AX 200
Nätverksgränssnitt Bluetooth, 10 Gigabit Ethernet, Gigabit Ethernet, 802.11a/b/g/n/ac/ax
Expansion/Anslutning
Expansionskortplatser 1 x CPU
8 x DIMM 288-stift
4 x PCIe 3.0 x16 (48-spårig processor (lägen x16/x0/x16/x8, x8/x8/x16/x8), 44-spårig processor (lägen x16/x0/x16/x8, x8/x8/x16/x8), 28-spårig processor (lägen x16/x0/x8/x0, x8/x8/x8/x0))
Lagringsgränssnitt SATA-600 -kontakter: 8 x 7 pin seriell ATA - RAID 0 / RAID 1 / RAID 10 / RAID 5
SATA-600 / PCIe 3.0 -kontakter: 1 x M.2
PCIe 3.0 -kontakter: 2 x M.2 - RAID 0 / RAID 1
PCIe 3.0 -kontakter: 1 x U.2
Gränssnitt 1 x LAN (Gigabit Ethernet)
7 x USB 3.2 Gen 1
2 x USB 2.0
1 x USB-C Gen2x2
1 x TOSLINK
1 x ljudutgång - mini-jack
1 x mikrofon - mini-jack
1 x ljudutgång (center/subwoofer) - mini-jack
1 x ljudutgång (bakre) - mini-jack
1 x ljudingång - mini-jack
1 x PS/2-tangentbord/mus
1 x LAN (10Gigabit Ethernet)
Interna gränssnitt 4 x USB 2.0 - header
4 x USB 3.2 Gen 1 - header
1 x USB-C Gen2 - header
1 x ljud - header
1 x Thunderbolt - header
Strömkontakter 4-pin ATX12V-kontakt, 24-pin kontakt för huvudström, 3 x 8-stifts ATX12V-kontakter
Egenskaper
BIOS-egenskaper M-Flash, Dual BIOS, MSI ClickBIOS 5
Hårdvaruegenskaper Intel Smart Response-teknologi, NVIDIA 4-way SLI Technology Support, Intel Rapid Start-teknologi, AMD 4-way CrossFireX-tekniksupport, Clear CMOS-knapp, Debug LED, Turbo M.2, Dr.MOS MOSFET, MSI Mystic Light, MSI Steel Armor, Intel Optane Memory Ready, MSI Audio Boost 4, M.2 Shield FROZR, förmonterat I/O-skydd, Nahimic 3 Sound Technology, MSI Core Boost, MSI PCIe Steel Slot, 12+1 Phase Power Design, Secure Erase+
Diverse
Inkluderade tillbehör MSI M.2 XPANDER-AERO, Thunderbolt M3-kort
Bredd 30.5 cm
Djup 27.2 cm
