AM4, mITX, B550, DDR4, 2x M.2, PCIe 4.0, WiFi 6

Artikelnummer: 1161237 / Tillverkarens artikelnummer: MPG B550I GAMING EDGE WIFI

More pictures from MSI MPG B550I GAMING EDGE WIFI moderkort

2 249:-
Fri frakt
med ditt lagrade kort
med avgiftsfri faktura Se villkor för faktura
4 st i lager (2-3 vardagar leveranstid)
60 dagar öppet köp & fri retur
Fri frakt över 500 kr
Rättningslinjer för produktrecensioner

AMD’s B550 chipset enables PCIe 4.0 compatibility for NVMe storage and graphics on mainstream motherboards, giving you confidence that your system won’t go obsolete before its time.

All motherboards with AMD’s 500 Series chipsets are built to support today’s advanced 3rd Gen Ryzen processors based on the ‘Zen 2’ architecture, but that’s not all. You’re also covered with planned support for future Ryzen processors based on the “Zen 3” architecture, so your system can keep you on the cutting edge with future upgrades.



The MPG series brings out the best in gamers by allowing full expression in color with advanced RGB lighting control and synchronization. Experiment on another level of personalization with a front LED strip that provides convenient in-game and real time notifications. With the MPG series, transform your equipment into the center of attention and top leaderboards in style.


Core Boost Technology

With premium layout design, that is ready for unleashing the maximum performance.

8 layer PCB with 2oz Thickened Copper

8 layer PCB with 2oz thickened copper provides higher performance and long-lasting system stability without any compromise.

Digital PWM

Highest quality component digital power IC makes sure your system smoothly under the most extreme conditions.

PCIe Steel Armor

Protecting VGA cards agains bending and EMI for better performance, stability and strength.

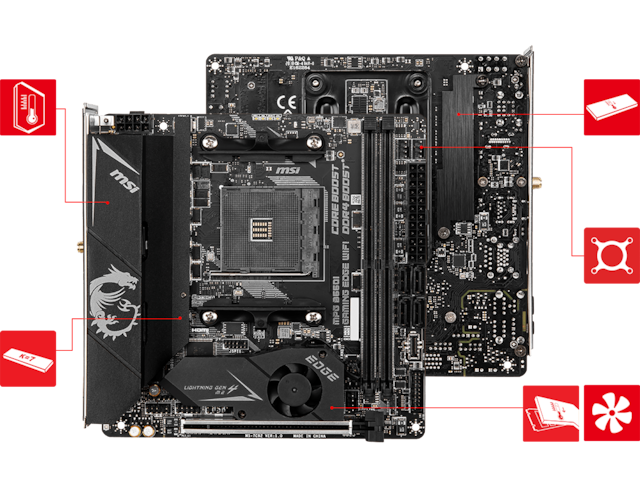

Extended Heatsink

MSI extended heatsink and enhanced circuit design ensures even high-end processors to run in full speen

M.2 Shield Frozr

Strengthened built-in M.2 thermal solution. Keeps M.2 SSDs safe while preventing throttling, making them run faster.

MOSFET Baseplate

Baseplate on the back to keep MOSFET in lower temperature, ensuring better heat dissipation effect.

Pump Fan Support

Control watercooling pump speeds for best flow and noise control.

M.2 Shield Frozr with Frozr Heatsinks design

With double ball bearings fan to keep M.2 SSDs safe while preventing throttling, making them run faster.

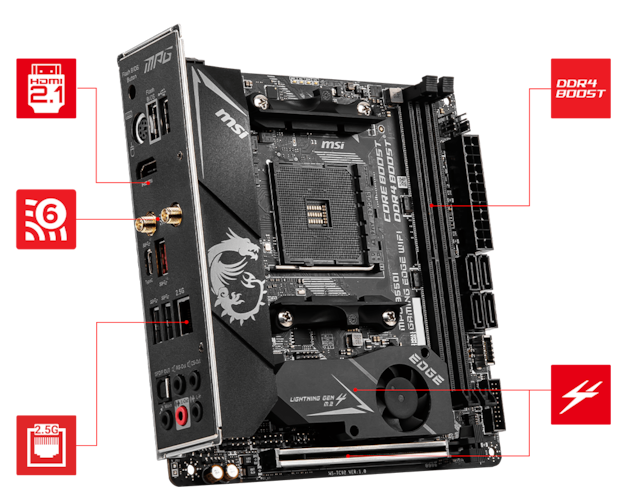

HDMI 2.1

Support the latest HDMI 2.1 port to provide 4K display with up to 4096x2160@60Hz

2.5G LAN

Featuring 2.5G LAN with LAN manager delivers better network experience.

Intel Wi-Fi 6

The latest wireless solution support MU-MIMO and BSS color technology. Delivering speeds up to 2400Mbps.

DDR4 Boost

The fully isolated DDR circuit to deliver pure data signals for the best gaming and overcklocking performance.

Lightning Gen 4 Solution

The latest Gen 4 PCI-E and M.2 solution with up to 64GB/s bandwidth for maximum transfer speed.

Producentens garanti (månader) 36
Typ av produkt Moderkort - mini ITX
Kretstyp AMD B550 / Nuvoton NCT6687
Processor-socket Socket AM4
Maximalt antal processorer 1
Kompatibla processorer Ryzen (stöder 3:e generationens Ryzen och nya generationens Ryzen med Radeon Graphics)
RAM som stöds
Maximal storlek 64 GB
Teknik DDR4
Bussklocka 2400 MHz, 1866 MHz, 2133 MHz, 2800 MHz, 3000 MHz, 2666 MHz, 2933 MHz, 3466 MHz (O.C.), 3733 MHz (O.C.), 3600 MHz (O.C.), 3866 MHz (O.C.), 4000 MHz (O.C.), 4133 MHz (O.C.), 4400 MHz (O.C.), 4266 MHz (O.C.), 4600 MHz (O.C.), 4533 MHz (O.C.), 3200 MHz, 3066 MHz, 4466 MHz (O.C.)
Stöder Ram Integrity Check Icke ECC
Registrerad eller buffrad Ej buffrad
Egenskaper Minnesarkitektur med dubbel kanal, A-XMP support
Max tilldelad RAM-storlek 2 GB
Typ HD-ljud (8 kanaler)
Audio Codec Realtek ALC1220
Standarder som följs HD-ljud
Nätverksstyrenhet Realtek RTL8125B / Intel AX200
Nätverksgränssnitt 2.5 Gigabit Ethernet, 802.11a/b/g/n/ac/ax, Bluetooth 5.1
Expansionskortplatser 1 x CPU
2 x DIMM 288-stift
1 x PCIe 4.0 x16
Lagringsgränssnitt SATA-600 -kontakter: 4 x 7 pin Seriell ATA - RAID 0 / RAID 1 / RAID 10
SATA-600 / PCIe 4.0 -kontakter: 1 x M.2 - RAID 0 / RAID 1
PCIe 3.0 -kontakter: 1 x M.2 - RAID 0 / RAID 1
Gränssnitt 1 x LAN (2.5Gigabit Ethernet)
1 x ljudingång - mini-jack
1 x ljudutgång - mini-jack
1 x mikrofon - mini-jack
2 x USB 3.2 Gen 1
1 x USB 3.2 Gen 2
1 x ljudutgång (center/subwoofer) - mini-jack
1 x ljudutgång (bakre) - mini-jack
1 x USB-C Gen2
1 x PS/2-tangentbord/mus
2 x USB 2.0
1 x HDMI
Interna gränssnitt 2 x USB 2.0 - header
2 x USB 3.2 Gen 1 - header
1 x USB-C Gen 1 - header
1 x ljud - header
Strömkontakter 24-pin kontakt för huvudström, 8-pin ATX12V-kontakt
Hårdvaruegenskaper MSI Audio Boost, Debug LED, M.2 Shield FROZR, förmonterat I/O-skydd, MSI Core Boost, MSI PCIe Steel Slot, 8+2+1 Phase Power Design
Medföljande kablar 2 x Seriell ATA-kabel
Medföljande programvara Drivrutiner och hjälpprogram
Bredd 17 cm
Djup 17 cm
