MSI MAG B550M MORTAR moderkort
AM4, mATX, B550, DDR4, 2x M.2, PCIe 4.0
Of
MSI
Artikelnummer:
1161246
/ Tillverkarens artikelnummer:
MAG B550M MORTAR
4719072727697
Produktinfo
AMD’s B550 chipset enables PCIe 4.0 compatibility for NVMe storage and graphics on mainstream motherboards, giving you confidence that your system won’t go obsolete before its time.
All motherboards with AMD’s 500 Series chipsets are built to support today’s advanced 3rd Gen Ryzen processors based on the ‘Zen 2’ architecture, but that’s not all. You’re also covered with planned support for future Ryzen processors based on the “Zen 3” architecture, so your system can keep you on the cutting edge with future upgrades.
MSI MAG B550M MORTAR
The MAG series was born through rigorous quality testing and designed to be a symbol of sturdiness and durability. Focused on providing the best user experience, the MAG series has a simple installation process coupled with a friendly user interface making it the best choice for entry level gamers.

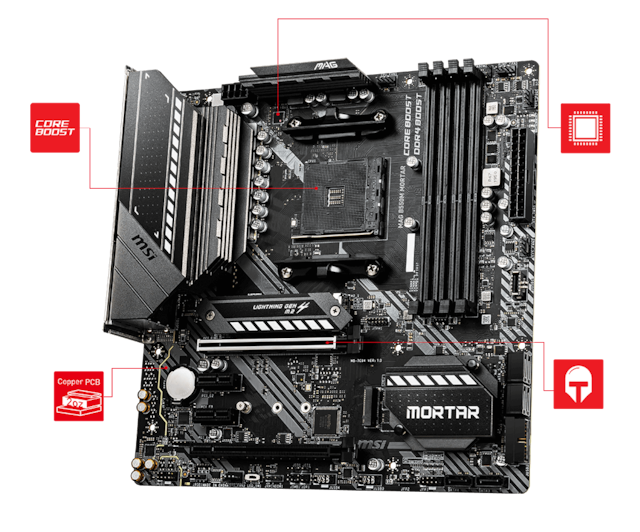

Core Boost Technology
With premium layout design, that is ready for unleashing the maximum performance.
2oz Thickened Copper
4 layer PCB with 2oz thickened copper provides higher performance and long-lasting system stability without any compromise.
Digital PWM
Highest quality component digital power IC makes sure your system smoothly under the most extreme conditions.
PCIe Steel Armor
Protecting VGA cards agains bending and EMI for better performance, stability and strength.

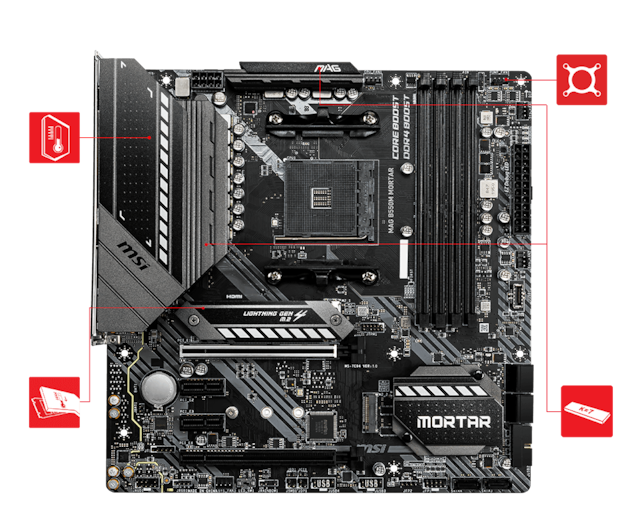

Extended Heatsink
MSI extended heatsink and enhanced circuit design ensures even high-end processors to run in full speen
M.2 Shield Frozr
Strengthened built-in M.2 thermal solution. Keeps M.2 SSDs safe while preventing throttling, making them run faster.
Pump Fan Support
Control watercooling pump speeds for best flow and noise control.
Heatsinks with 7W/mK Thermal Pad
7W/mK thermal pad provides better heat transfer to the heatsink.

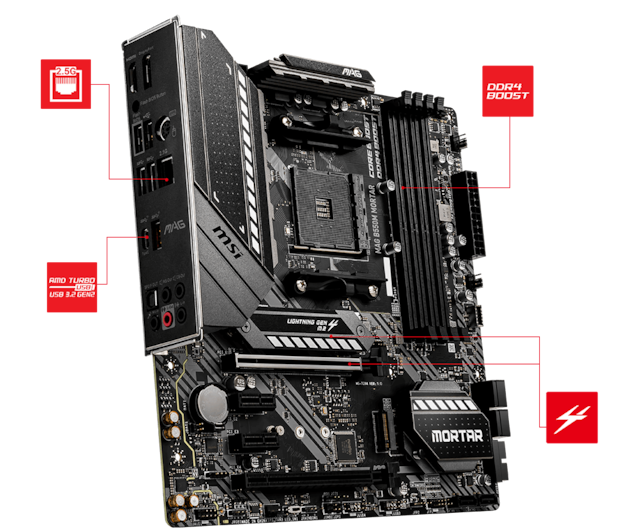

2.5G LAN
Featuring 2.5G LAN with LAN manager delivers better network experience.
Turbo USB
Featuring the Turbo USB 3.2 Gen 2 10Gbps with reversible Type-C connector.
DDR4 Boost
The fully isolated DDR circuit to deliver pure data signals for the best gaming and overcklocking performance.
Lightning Gen 4 Solution
The latest Gen 4 PCI-E and M.2 solution with up to 64GB/s bandwidth for maximum transfer speed.
Tekniska specifikationer
| Producentens garanti (månader) | 36 |
|---|---|
| Typ av produkt | Moderkort - micro ATX |
| Kretstyp | AMD B550 |
| Processor-socket | Socket AM4 |
| Maximalt antal processorer | 1 |
| Kompatibla processorer | Ryzen (stöder 3:e generationens Ryzen och nya generationens Ryzen med Radeon Graphics) |
| Maximal storlek | 128 GB |
|---|---|
| Teknik | DDR4 |
| Bussklocka | 2400 MHz, 1866 MHz, 2133 MHz, 2800 MHz, 3000 MHz, 2666 MHz, 2933 MHz, 3466 MHz (O.C.), 3733 MHz (O.C.), 3600 MHz (O.C.), 3866 MHz (O.C.), 4000 MHz (O.C.), 4133 MHz (O.C.), 4400 MHz (O.C.), 4266 MHz (O.C.), 3200 MHz, 3066 MHz |
| Stöder Ram Integrity Check | Icke ECC, ECC (kör i icke-ECC-läge) |
| Registrerad eller buffrad | Ej buffrad |
| Egenskaper | Minnesarkitektur med dubbel kanal, stödda ECC-moduler körs i icke-ECC-läge, A-XMP support |
| Typ | HD-ljud (8 kanaler) |
|---|---|
| Audio Codec | Realtek ALC892 |
| Standarder som följs | HD-ljud |
| Nätverksstyrenhet | Realtek RTL8125B |
|---|---|
| Nätverksgränssnitt | 2.5 Gigabit Ethernet |
| Expansionskortplatser | 1 x CPU 4 x DIMM 288-stift 1 x PCIe 4.0 x16 1 x PCIe 3.0 x16 (x4-läge) 2 x PCIe 3.0 x1 |
|---|---|
| Lagringsgränssnitt | SATA-600 -kontakter: 6 x 7 pin seriell ATA - RAID 0 / RAID 1 / RAID 10 SATA-600 / PCIe 4.0 -kontakter: 1 x M.2 - RAID 0 / RAID 1 PCIe 3.0 -kontakter: 1 x M.2 - RAID 0 / RAID 1 |
| Gränssnitt | 1 x LAN (Gigabit Ethernet) 1 x ljudingång - mini-jack 1 x ljudutgång - mini-jack 1 x mikrofon - mini-jack 1 x TOSLINK 2 x USB 3.2 Gen 1 1 x USB 3.2 Gen 2 1 x ljudutgång (center/subwoofer) - mini-jack 1 x ljudutgång (bakre) - mini-jack 1 x USB-C Gen2 1 x PS/2-tangentbord/mus 2 x USB 2.0 1 x HDMI 1 x DisplayPort |
| Interna gränssnitt | 4 x USB 2.0 - header 2 x USB 3.2 Gen 1 - header 1 x USB-C Gen 1 - header 1 x ljud - header |
| Strömkontakter | 24-pin kontakt för huvudström, 8-pin ATX12V-kontakt |
| Hårdvaruövervakning | CPU kärntemperatur, chassistemperatur, varvräknare för CPU-fläkt, varvräknare för chassifläkt |
|---|---|
| Hårdvaruegenskaper | AMD CrossFireX-tekniksupport, MSI Audio Boost, M.2 Shield FROZR, förmonterat I/O-skydd, MSI Core Boost, MSI PCIe Steel Slot, 8+2+1 Phase Power Design |
| Inkluderade tillbehör | Fodralemblem |
|---|---|
| Medföljande kablar | 2 x Seriell ATA-kabel |
| Medföljande programvara | Drivrutiner och hjälpprogram |
| Bredd | 24.4 cm |
| Djup | 24.4 cm |
