MSI PRO DP21 11M

Artikelnummer: 1193293 / Tillverkarens artikelnummer: PRO DP21 11M-016EU

More pictures from

MSI PRO DP21 11M Mini Desktop

READY FOR VARIOUS SCENARIOS

We always focus on how to improve the efficiency, stability and flexibility for users in any kinds of situations.

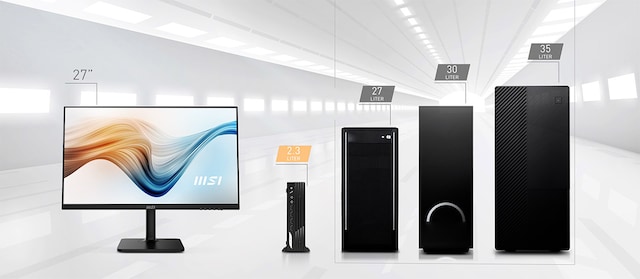

TINY YET POWERFUL

Take a huge leap in performance and experience a boosted and faster rendering for the applications in this tiny yet powerful business center that you work everyday.

OPPORTUNITY TO THE WORLD FOR YOUR E-COMMERCE / M-COMMERCE

It is indispensable to have a stable data & information platform for your growing E-commerce/ M-commerce.
- Up to 64GB Dual Channel DDR4
- Support Windows 10 Pro (Free upgrade to Windows 11 when available)

SUPPORT UP TO 4K RESOLUTION

PRO DP21 allows you to enjoy the best experience of watching movie with your family or attending online conference call while working from home or learning professional tasks at home.

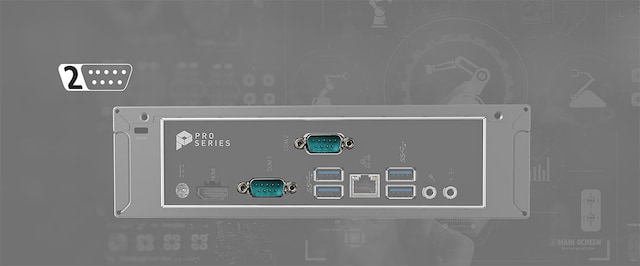

2 COM PORTS DESIGN

With multiple COM and USB ports it will let you fully connect to your POS devices such as barcode scanners, receipt printers and many more. Its COM ports can also communicate with the programmable logic controllers (PLCs) or with other modules such as operator/HMI, motor controllers, a robot or vision system in the intelligent factory.

FW TPM SUPPORT

FW TPM (Trusted Platform Module) technology is designed to provide hardware-based, security-related functions. You can store your sensitive data & passwords by encryption keys for advanced security.

WI-FI 6 TECHNOLOGY

Featuring the latest Wi-Fi 6 802.11ax with Bluetooth 5.2 version, and speed up to 2.4Gbps, which is 3x times faster than the Ethernet LAN. The latency is also 75% lower than the previous generation. With Wi-Fi 6 technology, the connectivity to the world will be unlimited.

-3X Faster Processor
-75% Latency
-Up to 2.4 Gbps

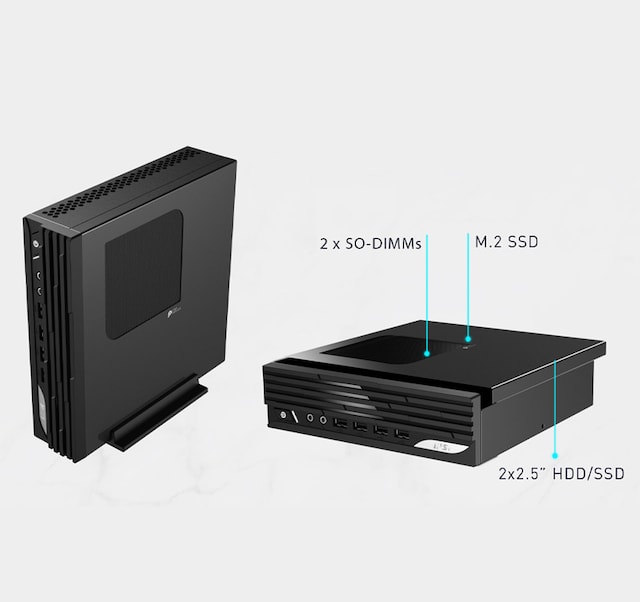

EASY MAINTENANCE

Users can easily upgrade one M.2 SSD, two 2.5” HDD/SSD and two DIMMs of memory by disassembling the side covers. Make PRO DP21 an even flexible desktop and also reduce the time wasting on upgrading.

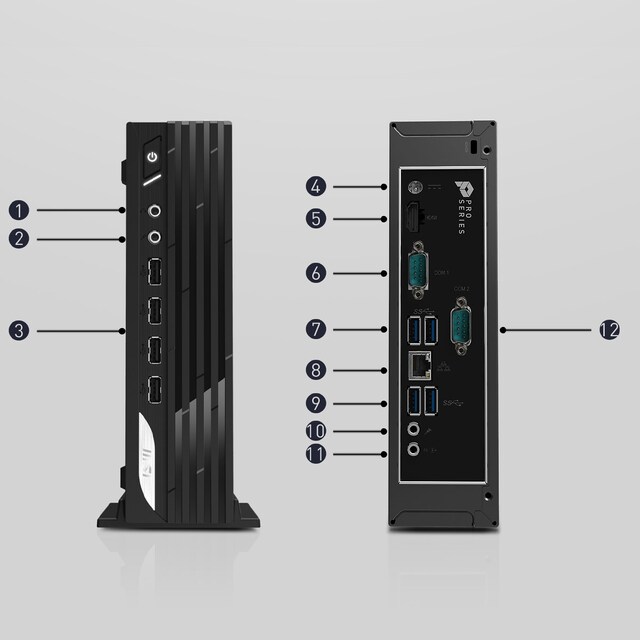

VARIOUS IO PORTS

With a various array of I/O ports, it can connect all devices you need at the same time so you can multi-task with those devises to make you work more efficiently.

FRONT :
1. 1x Headphone-out
2. 1x Mic-in
3. 4x USB 2.0 Type A

Rear :
4. 1x DC Jack
5. 1x HDMI out
6. 1x COM Port
7. 2x USB 3.2 Gen1 Type A
8. 1x RJ45
9. 2x USB 3.2 Gen1 Type A
10. 1x Mic-in
11. 1x Line-out
12. 1x COM Port

Allmänt
Producentens garanti (månader) 24
Typ PC
Formfaktor för produkt Liten formfaktor
Färg Svart
EAN 4719072840914
Processor / Chipuppsättning
CPU Intel Core i3 10:e gen. 10105
Klockfrekvens 3.7 GHz
Max. turbohastighet 4.4 GHz
Antal kärnor Fyrkärnig
Antal CPU 1
Max. CPU-antal 1
CPU-kortplats LGA1200-uttag
Kretstyp Intel H510
Moderkortets namn MSI MS-B0A41
RAM
Installerad storlek 8 GB / 64 GB (max)
Teknik DDR4 SDRAM
Effektiv minneshastighet 3200 MHz
Minneshastighet 3200 MHz
Formfaktor SO DIMM 260-pin
Kortplatser 2 (Total) / 1 (tom)
Konfigurationsegenskaper 1 x 8 GB
Hårddisk
Typ SSD - M.2 2280
Kapacitet 1 x 256 GB
Typ av gränssnitt PCI Express 3.0 x4
Egenskaper NVM Express (NVMe)
Kontrollerkort
Typ 1 x SATA
Optisk lagring
Typ Ingen optisk drivenhet
Bildskärm
Bildskärmstyp Ingen.
Grafikstyrenhet
Grafikprocessor Intel UHD Graphics 630
Ljudutgång
Ljudutgångsläge 5.1-kanals surround
Standarder som följs HD-ljud
Nätverk
Ethernet-styrenhet Realtek RTL8111H
Stöd för Wireless LAN Ja
Trådlöst NIC Intel Wireless-AC 9462
Datalänkprotokoll Ethernet, Fast Ethernet, Gigabit Ethernet, IEEE 802.11b, IEEE 802.11a, IEEE 802.11g, IEEE 802.11n, IEEE 802.11ac, Bluetooth 5.0
Expansion/Anslutning
Fack 2 (totalt)/ 2 (ledig) x intern 2.5"
Kortplatser 1 (totalt)/ 0 (ledig) x M.2 Card
Gränssnitt 1 x hörlurar (1 på framsidan)
2 x mikrofon (1 på framsidan, 1 på baksidan)
4 x USB 2.0 (4 på framsidan)
4 x USB 3.2 Gen 1
1 x HDMI
1 x LAN (Gigabit Ethernet)
2 x seriell
1 x ljudutgång
Diverse
VESA-infästningsgränssnitt 100 x 100 mm
Standarder som följs FCC Klass B-certifierade, BSMI, CB, UL/cUL
Strömtillförsel
Typ av enhet Strömadapter
Effekt 120 Watt
Operativsystem / Programvara
Medföljande OS Windows 10 Home
Miljöparametrar
Min temperatur vid drift 0 °C
Max temperatur vid drift 35 °C
Luftfuktighet vid drift 0 - 85%
