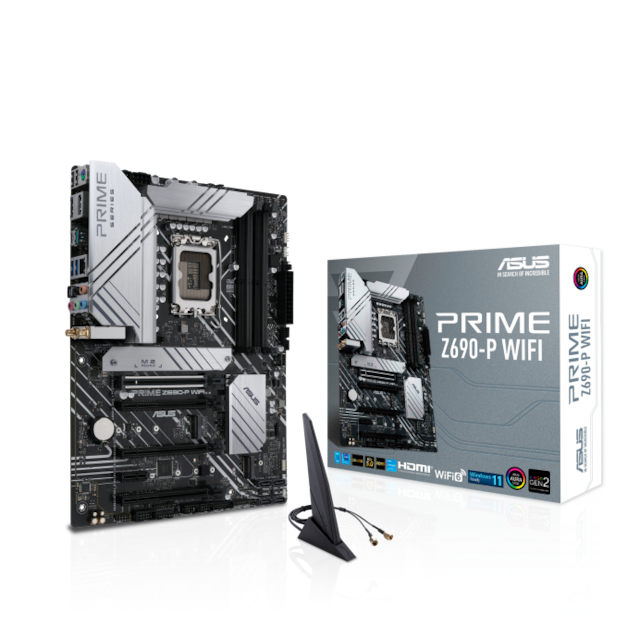

ASUS PRIME Z690-P WIFI, LGA1700 moderkort

Moderkort, ATX, DDR5, 1 x PCIe 5.0/4.0/3.0 x16, 3x m.2, 4xUSB 3.2, WIFI 6, Bluet

Artikelnummer: 1198165 / Tillverkarens artikelnummer: PRIME Z690-P WIFI

More pictures from ASUS PRIME Z690-P WIFI, LGA1700 moderkort

Rättningslinjer för produktrecensioner

ASUS PRIME Z690-P WIFI, LGA1700 Motherboard


PRIME SERIES
ASUS Prime series motherboards are expertly engineered to unleash the full potential of 12th Generation Intel® processors. Boasting a robust power design, comprehensive cooling solutions and intelligent tuning options, Prime Z690-P WIFI provides users and PC DIY builders a range of performance tuning options via intuitive software and firmware features. ASUS Prime Z690-P WIFI offers a sleek, futuristic-looking build with a black and white finish, space-shuttle-inspired design elements, metallic nameplate and PCB cover.

DDR5 Performance Enhancement
Prime Z690-P WIFI enhances DDR5 performance by providing overclocking options for not only high-speed kits, but even entry-level memory modules that have a locked power management IC (PMIC).

  • A dedicated circuit on the motherboard safely circumvents DDR5 memory PMIC restrictions, allowing you to step past the default 1.1-volt limit and push frequency and timings to the max.
  • Ordinarily, a restricted PMIC that has been unlocked requires the system to be fully power-cycled each time memory voltage is adjusted. Prime Z690-P WIFI leverages onboard hardware and firmware to cleverly work around this irksome limitation, enabling voltage adjustments to be applied through the same soft system-reset process employed for previous generations of DDR memory.

For users new to memory overclocking, Prime Z690-P WIFI includes the exclusive ASUS Enhanced Memory Profile (AEMP) firmware feature for PMIC-restricted memory modules. AEMP automatically detects the memory chips on your kit and then presents optimized frequency, timing and voltage profiles that you can effortlessly apply to unleash performance.

• Intel® LGA 1700 socket: Ready for 12th gen Intel® processors
• Enhanced power solution: 14+1 DrMOS, 8+4 pin ProCool connector, alloy chokes and durable capacitors for stable power delivery
• Comprehensive cooling: Large VRM heatsinks, M.2 heatsink, PCH heatsink, hybrid fan headers and Fan Xpert 4
• ASUS OptiMem II: Careful routing of traces and vias, plus ground layer optimizations to preserve signal integrity for improved memory overclocking
• Next-gen connectivity: DDR5, PCIe® 5.0, Intel® WiFi 6, 2.5 Gb Ethernet, USB 3.2 Gen 2x2 Type-C®, front panel USB 3.2 Gen 1 Type-C®, Thunderbolt™ 4 header support

Allmänt
Producentens garanti (månader) 36
Typ av produkt Moderkort - ATX
Kretstyp Intel Z690
Processor-socket LGA1700-uttag
Maximalt antal processorer 1
Kompatibla processorer (stöder 12:e generationens Intel Core/Pentium Gold/Celeron)
RAM som stöds
Maximal storlek 128 GB
Teknik DDR5
Bussklocka 5000 MHz (O.C.), 5200 MHz (O.C.), 5400 MHz (O.C.), 5600 MHz (O.C.), 5800 MHz (O.C.), 6000 MHz (O.C.), 4800 MHz
Stöder Ram Integrity Check Icke ECC
Registrerad eller buffrad Ej buffrad
Egenskaper Minnesarkitektur med dubbel kanal, Intel Extreme Memory Profiles (XMP)
Ljud
Typ HD-ljud (8 kanaler)
Standarder som följs HD-ljud
LAN
Nätverksgränssnitt 2.5 Gigabit Ethernet, 802.11a/b/g/n/ac/ax, Bluetooth 5.2
Expansion/Anslutning
Expansionskortplatser 1 x CPU
4 x DIMM 288-stift
1 x PCIe 5.0 x16
1 x PCIe 4.0 x16 (x4-läge)
1 x PCIe 3.0 x1
2 x PCIe 3.0 x16 (x4-läge)
Lagringsgränssnitt SATA-600 -kontakter: 4 x 7 pin Seriell ATA - RAID 0 / RAID 1 / RAID 10 / RAID 5
PCIe 4.0 -kontakter: 2 x M.2 - RAID 0 / RAID 1 / RAID 5
SATA-600 / PCIe 4.0 -kontakter: 1 x M.2 - RAID 0 / RAID 1 / RAID 5
RAID-egenskaper Intel Rapid Storage Technology
Gränssnitt 1 x DisplayPort
1 x HDMI
1 x USB-C Gen2x2
1 x USB 3.2 Gen 2
2 x USB 3.2 Gen 1
1 x ljudingång - mini-jack
1 x ljudutgång (center/subwoofer) - mini-jack
1 x ljudutgång (bakre) - mini-jack
1 x ljudutgång - mini-jack
1 x mikrofon - mini-jack
1 x TOSLINK
2 x USB 2.0
1 x LAN (2.5Gigabit Ethernet)
1 x PS/2-tangentbord/mus
Interna gränssnitt 4 x USB 2.0 - header
1 x USB-C Gen 1 - header
4 x USB 3.2 Gen 1 - header
1 x ljud - header
1 x SPI - header
1 x seriell - header
1 x Thunderbolt - header
Strömkontakter 4-pin ATX12V-kontakt, 24-pin kontakt för huvudström, 8-pin ATX12V-kontakt
Egenskaper
BIOS-typ AMI
BIOS-egenskaper UEFI BIOS, ASUS EZ Flash 3
Viloläge/väckning Wake on LAN (WOL), wake on PME
Hårdvaruegenskaper ASUS Q-Design, ASUS TurboV EVO, Q-DIMM, ASUS EZ DIY, Q-Slot, CrashFree BIOS 3, ASUS EPU (Energy Processing Unit), Intel Turbo Boost-teknologi 2.0, ASUS DIGI+ VRM, Preboot eXecution Environment (PXE), ASUS Stainless Steel Back I/O, LANGuard, ASUS överspänningsskydd, ASUS Fan Xpert 4, ASUS SafeSlot, Intel Optane Memory Ready, ASUS 5X Protection III, M.2 kylfläns, ASUS ProCool, Intel Turbo Boost Max Technology 3.0, ASUS Aura Sync, ASUS OptiMem II, Armoury Crate, 14+1 DrMOS-kraftsteg, Q-LED Core
Diverse
Inkluderade tillbehör I/O-bakpanel, 2 x M.2-skruvar, 1 st. M.2-gummipaket
Medföljande kablar 2 x Seriell ATA-kabel
Medföljande programvara Drivrutiner och hjälpprogram, ASUS TurboV EVO Utility, ASUS CPU-Z, ASUS AI Suite III, WinRAR, Norton AntiVirus (Trial)
Bredd 30.5 cm
Djup 23.4 cm
