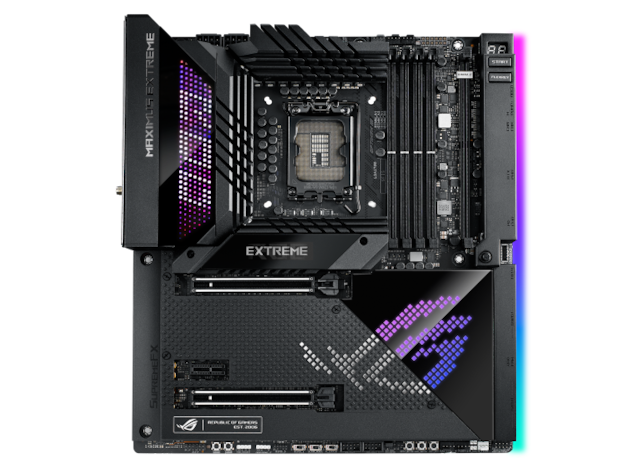

ASUS ROG MAXIMUS Z690 EXTREME, LGA1700 Moderkort

Moderkort, EATX, DDR5, 2 x PCIe 5.0 x16, 5x m.2, 9xUSB 3.2, WIFI 6E, Bluetooth v

Artikelnummer: 1198175 / Tillverkarens artikelnummer: ROG MAXIMUS Z690 EXTREME

More pictures from ASUS ROG MAXIMUS Z690 EXTREME, LGA1700 Moderkort

12 590:-
Fri frakt
3 st i lager (2-3 vardagar leveranstid)
Rättningslinjer för produktrecensioner
Recommended

ASUS ROG MAXIMUS Z690 EXTREME, LGA1700 motherboard


ROG Maximus Z690Extreme
ROG Maximus Z690 Extreme represents the ultimate in enthusiast motherboard design for those who want the best possible option that excels at both air and liquid cooling for 12th Gen Intel® Core™ CPUs. And this platform is packed with the most features that you will find on a ROG Z690 motherboard, including heavy-duty 24+1 power stages, ASUS Enhanced Memory Profiles for top-notch DDR5 speeds, multiple PCIe 5.0 slots, and the exclusive AniMe Matrix™ LED Display.

INTELLIGENT MOTHERBOARD - Intelligent software solutions help ensure that your system performs at its best. The latest ASUS AI-powered enhancements span four pillars of performance, including overclocking, cooling, networking, and onboard audio, making advanced tweaks and optimization accessible to new recruits and savvy PC DIY veterans alike.

PERFORMANCE - ROG Maximus Z690 Extreme is the kind of motherboard that uses stock clock speeds merely as a reference point. With its piles of teamed power stages working alongside high-grade capacitors and chokes, you get performance that can take high-powered processors like a 12th Gen Intel Alder Lake CPU and leave all competition in the dust.

COOLING - ROG Maximus Z690 Extreme features unparalleled flexibility for either air or liquid cooling, thanks to a diverse array of heavyweight heat dissipation that keeps power delivery, M.2 drives and onboard components running cool under load, regardless of the available airflow.

CONNECTIVITY - ROG Maximus Z690 Extreme features the latest and greatest in connectivity, including the fastest GPU and storage device transfer speeds with PCIe® 5.0, the smoothest online gameplay with WiFi 6E and 10 Gb Ethernet, a host of rapid-fire file transfers with Thunderbolt™ 4.

OPTIMIZATION - ROG Maximus Z690 Extreme features best-in-class automatic and interactive performance optimization, including the TurboV Processing Unit, digitally controlled voltage regulators, Fan Xpert 4 and core-specific application assignment.

PERSONALIZATION - In addition to Aura Sync RGB customization, the ROG Maximus Z690 Extreme’s VRMs and I/O cover are graced with a new ASUS-exclusive design known as the AniMe Matrix Display, while a 2-inch OLED LiveDash can show live system information or user-customizable graphics.

• Socket LGA1700 for 12th Gen Intel® Core™, Pentium® Gold and Celeron® Processors
• Intelligent Control: ASUS-exclusive tools including AI Overclocking, AI Cooling, AI Networking and Two-Way AI Noise-Cancelation for easy configuration
• Robust Power Solution: 24+1 teamed power stages rated for 105 A, ProCool II power connectors, MicroFine alloy chokes and premium metallic capacitors
• Optimized Thermal Design: Cold forged heatsink, enlarged VRM heatsinks plus integrated aluminum I/O cover, high-conductivity thermal pad, penta M.2 heatsinks and dual with embedded backplates and ROG Water-Cooling Zone
• High Performance Networking: Onboard Wi-Fi 6E, Marvell® AQtion 10Gb, Intel® 2.5Gb Ethernet, and ASUS LANGuard
• Fastest Gaming Connectivity: PCIe® 5.0, Gen 5 M.2 slots, USB 3.2 Gen 2x2 front-panel connector with Thunderbolt™ 4 support, rear triple USB Type-C® ports
• Industry Leading Immersive Audio: ROG SupremeFX ALC4082 codec with ESS® ES9018Q2C DAC for high-fidelity audio
• Unmatched Personalization: AniMe Matrix™ LED display, 2” LiveDash OLED, ASUS-exclusive Aura Sync RGB lighting, including one RGB header and three addressable Gen 2 RGB headers
• DIY Friendly Design: Pre-mounted I/O shield, PCIe slot Q-release, V-Latch switch, BIOS FlashBack™, Q-Code, FlexKey, Q-Connector, M.2 Q-Latch, SafeSlot, ROG Glavis and ROG graphics card holder
• Renowned Software: Bundled 1-year AIDA64 Extreme subscription and intuitive UEFI BIOS dashboard with integrated MemTest86

Allmänt
Producentens garanti (månader) 36
Typ av produkt Moderkort - utökad ATX
Kretstyp Intel Z690
Processor-socket LGA1700-uttag
Maximalt antal processorer 1
Kompatibla processorer (stöder 12:e generationens Intel Core/Pentium Gold/Celeron)
RAM som stöds
Maximal storlek 128 GB
Teknik DDR5
Bussklocka 5000 MHz (O.C.), 5200 MHz (O.C.), 5400 MHz (O.C.), 5600 MHz (O.C.), 5800 MHz (O.C.), 6000 MHz (O.C.), 4800 MHz, 6200 MHz (O.C.), 6400 MHz (O.C.)
Stöder Ram Integrity Check Icke ECC
Registrerad eller buffrad Ej buffrad
Egenskaper Minnesarkitektur med dubbel kanal
Ljud
Typ HD-ljud (8 kanaler)
Audio Codec SupremeFX (ALC4082)
Standarder som följs HD-ljud, DTS Sound Unbound
LAN
Nätverksgränssnitt 10 Gigabit Ethernet, 2.5 Gigabit Ethernet, 802.11a/b/g/n/ac/ax, Bluetooth 5.2
Expansion/Anslutning
Expansionskortplatser 1 x CPU
4 x DIMM 288-stift
2 x PCIe 5.0 x16 (dubbelt x8-läge, enkelt kort: x16-läge)
1 x PCIe 3.0 x1
Lagringsgränssnitt SATA-600 -kontakter: 4 x 7 pin Seriell ATA - RAID 0 / RAID 1 / RAID 10 / RAID 5
PCIe 4.0 -kontakter: 3 x M.2 - RAID 0 / RAID 1 / RAID 5
SATA-600 / PCIe 4.0 -kontakter: 1 x M.2 - RAID 0 / RAID 1 / RAID 5
SATA-600 -kontakter: 2 x 7 pin seriell ATA
PCIe 5.0 -kontakter: 1 x M.2 - RAID 0 / RAID 1 / RAID 5
RAID-egenskaper Intel Rapid Storage Technology
Gränssnitt 1 x Thunderbolt 4/USB4
1 x HDMI
7 x USB 3.2 Gen 2
1 x USB-C Gen2
1 x ljudingång - mini-jack
1 x ljudutgång (center/subwoofer) - mini-jack
1 x ljudutgång (bakre) - mini-jack
1 x ljudutgång - mini-jack
1 x mikrofon - mini-jack
1 x TOSLINK
1 x LAN (10Gigabit Ethernet)
1 x USB-C Gen2x2
1 x LAN (2.5Gigabit Ethernet)
Interna gränssnitt 4 x USB 2.0 - header
1 x USB-C Gen 2x2 - header
4 x USB 3.2 Gen 1 - header
1 x Thunderbolt 4 - header
1 x ljud - header
Strömkontakter 24-pin kontakt för huvudström, 6-stifts ATX12V-kontakt, 2 x 8-stifts ATX12V-kontakter
Egenskaper
BIOS-typ AMI
BIOS-egenskaper BIOS FlashBack, UEFI BIOS, Dual BIOS, ASUS EZ Flash 3, MemTest86
Viloläge/väckning Wake on LAN (WOL), wake on PME
Hårdvaruegenskaper Automatisk enhets-igenkänning, ASUS Q-Design, Q-DIMM, ASUS EZ DIY, Q-LED, Q-Slot, ASUS Extreme Engine Digi+, CrashFree BIOS 3, ASUS Q-Connector, detekteringsteknik för ljudjack, ASUS EPU (Energy Processing Unit), Intel Turbo Boost-teknologi 2.0, ASUS TPU (TurboV Processing Unit), ASUS DIGI+ VRM, Q-Code, ASUS DIGI+ Power Control, Preboot eXecution Environment (PXE), Clear CMOS-knapp, LANGuard, ASUS Fan Xpert 4, ASUS SafeSlot, Sonic Radar III, Sonic Studio III, M.2 kylfläns, förmonterat I/O-skydd, Intel Turbo Boost Max Technology 3.0, ASUS Aura Sync, Armoury Crate, ASUS OptiMem III, DIY Friendly Design, FlexKey-knapp, ASUS ProCool II, GameFirst VI, ASUS HYDRANODE, M.2 Q-Latch, SafeDIMM, ESS SABRE9018Q2C DAC/AMP, ReTry button, Start button, PCIe Slot Q-Release, CPU Socket lever protector, Quick Charge 4+, ASUS 2" LiveDash OLED, Safe boot button, AniMe Matrix LED display, 24+1 power stages
Diverse
Inkluderade tillbehör 1 x M.2 skruv, ROG fläktklistermärken, RGB (RGBW) förlängningskabel till LED-remsa, ROG VGA-hållare, ROG tackkort, ROG DIMM.2 expansionskort med heatsink, skruvmejsel, termisk platta fär M.2 SSD, Q-Connector, ROG-nyckelring, ASUS Wi-Fi rörlig antenn, 1 till 3 ARGB LED-delarkabel, ROG Fan Controller, ROG CLAVIS DAC, 1 till 2 ARGB LED-delarkabel, 2 x 1 to 4 fan splitter cable, 3 in 1 thermistor cables pack, ROG True Voltician
Medföljande kablar 7 x Seriell ATA-kabel
Medföljande programvara Drivrutiner och hjälpprogram, ROG CPU-Z, ASUS AI Suite III, ASUS Turbo App, WinRAR, Sonic Studio Virtual Mixer, BullGuard Internet Security (1 års licens), ROG GameFirst VI, ASUS AURA Creator, AIDA64 Extreme (1 års licens), Sonic Suite Companion, MyAsus, ROG True Voltician
Bredd 30.5 cm
Djup 27.7 cm
