MSI PRO B660-A D4 Moderkort

LGA 1700, ATX, DDR4 (4800mhz max), PCIe 4.0, M.2

Artikelnummer: 1206442 / Tillverkarens artikelnummer: PRO B660-A DDR4

More pictures from MSI PRO B660-A D4 Moderkort

1 999:-
Fri frakt
Köp nu - betala om 3 månader!
Delbetala från 248:- per mån se priser
17 st i lager (2-3 vardagar leveranstid)

MSI PRO B660-A D4

PRO Series

PRO series helps users work smarter by delivering an efficient and productive experience. Featuring stable functionality and high-quality assembly, PRO series motherboards provide not only optimized professional workflows but also less troubleshooting and longevity.

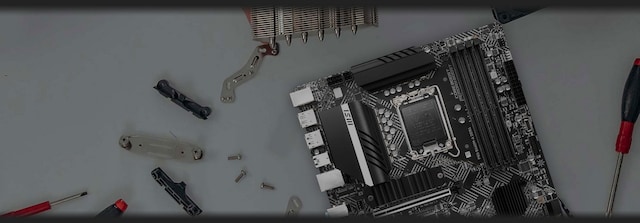

USER FRIENDLY DESIGN

MSI motherboards feature tons of convenient and smart design for DIY users, countless system tuning and troubleshooting tools are at your disposal to push your system to new heights and satisfy even the most demanding tweaker. Makes it so easy to install your own motherboard without any issue.

COOLING

M.2 SHIELD FROZR

World’s fastest SSDs can start to lower performance when getting hot. Part of the motherboards heatsink design, M.2 SHIELD FROZR is the next generation M.2 thermal solution to avoid this by offering the best thermal protection to make sure that SSD maintains maximum performance.

FROZR AI COOLING

Detecting CPU & GPU temperatures and automatically adjusting fan duty of system fans to a proper value by adopting MSI AI ENGINE.

FULLY CONTROLLABLE IN BIOS AND SOFTWARE

MSI motherboards let you manage speeds and temperatures for all your system and CPU fans. Total Fan Control allows you check your primary system characteristics in a simplified graphical interface. You can also set up to 4 temperature targets for CPU and motherboard, which will adjust the fan speeds automatically.

OPTIMIZED FOR WATER COOLING

Designed to support the most popular All-In-One & customized water cooling solutions on the market. A dedicated water pump PIN header supports up to 3 amp, giving you full control of the water pump speed. A clearly marked ‘keep-out-zone’ allows for easy and safe installation and a perfect fit.

DESIGN

EZ DEBUG LED

Ran into trouble? Onboard LEDs for key components will indicate the source of the problem so you know exactly where to look to get it up and running again.

XL CLIP

The enlarged PCI-E clip helps you swap or remove your devices easier. Keep the PCI-E slot stronger and safer.

KEEP OUT ZONE

MSI motherboards circuitry ensure the case standoff keep out zones are pure and clean, preventing any component contact or damage to the motherboard.

Protective paint is printed around each screw hole to prevent parts from being scratched.

COMPATABILITY

  • 12th processors support
  • Extreme stability & compatability testing for memory.
  • Windows 11 Certified

RELIABLE COMPONENTS

STEEL ARMOR

FORTIFY YOUR SYSTEM WITH PCI-E STEEL ARMOR. PCI Express Steel Armor slots are secured to the motherboard with extra solder points and support the weight of heavy graphics cards. When every advantage in games counts, Steel Armor shields the point of contact from electromagnetic interference.

DOUBLE ESD PROTECTION

Double ESD protection doubles up the grounding layer around the mounting holes, preventing static discharge surges from damaging the motherboard.

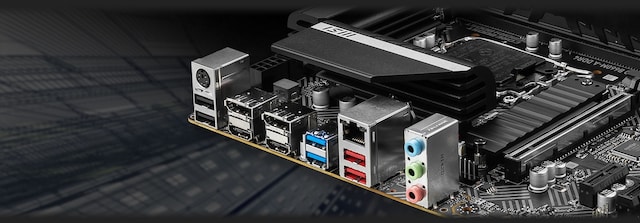

CONNECTIVITY

The most important thing of DIY is expandability. MSI PRO series motherboards feature plenty possibility for prosumers’ need. Stable LAN, faster storage and USB transfer speed and other expandable connectors are ready to enlarge your flexibility.

LAN

HIGH-BANDWIDTH AND LOW-LATENCY NETWORK

2.5Gbps LAN provides incredible data transfer speed faster than general Gigabit LAN. This is a premium solution for demanding users.

OPTIMIZE NETWORK FOR LOWER LATENCY!

MSI LAN Manager automatically classifies and prioritizes the latency-sensitive applications, giving you the best online experience with low latency.

MSI LAN MANAGER
Allows you to change applications' traffic priority
Allows you to customize bandwidth for each application

LIGHTNING GEN 4

FAST AND FUTURE-READY STORAGE

MSI PRO series motherboards support all the latest storage standards, which allows users to connect any ultra-fast storage device. Higher efficiency makes your work easier.

USB

USB FRONT TYPE-C

MSI motherboards support USB Front Type-C that allows gamers to connect with the latest USB devices. Built up a system with MSI PC case to have the most convenient experience.devices.

OTHER EXPANSION

EXTEND YOUR RGB EXPERIENCE WITH EASE

Add more color if you want! Mystic Light Extension pin header provides an intuitive way to control additional RGB strips and other RGB peripherals added to a system, without needing a separate RGB controller.

Wireless devices are also controllable by using MSI Center. Ambient Link perfectly synchronizes MSI Mystic Light products with on-screen gaming and scenarios, as well as the compatible lighting accessories. Bringing you the most immersive and realistic experience.

EXPERIENCE MORE

MSI PRO series motherboards are designed to satisfy any professional workflow. Elevate your listening pleasure and enjoy extreme sound quality. Moreover, with years of experience in creating performance enhancing tools that are easy to use, only the highest quality applications are at your disposal. The extensive features let you fine-tune your system to deliver reliable maximum performance.

PERFORMANCE

A HUGE STEP OF DDR PERFORMANCE

MSI OC LAB does not merely work hard on extreme overclocking. The XMP memory profile has great improvement on performance and efficiency for B660 . Easy to enable XMP profile with auto power settings to get the best memory speed and stability.

CORE BOOST

Core Boost technology combines MSI's premium layout and optimized power design which allows for faster and undistorted current delivery to the CPU at pin-point precision. Not only supporting multi-core CPU, also creating the perfect conditions for your CPU overclocking.

AUDIO

DEDICATED HIGH DEFINITION AUDIO PROCESSOR

Make sure you enjoy the purest sound quality in both stereo and surround sound.

HIGH QUALITY AUDIO CAPACITORS

A high fidelity sound experience with exceptional acoustics and realism for studio level headphones is ensured.

HD AUDIO CONNECTORS

Keep you sound perfect by transmit your aduio with pure digital signal.

ISOLATED AUDIO SIGNAL

ISOLATED AUDIO DESIGN

Like a dedicated sound card, audio components and circuits have been laid on a reserved motherboard section and electrically isolated.

SEPARATED AUDIO LAYERS FOR CLEAN LEFT & RIGHT CHANNELS

Using separated layers in the PCB ensures equally pristine sound quality for both left and right audio channels.

BIOS & SOFTWARE

MSI brand new MSI Center unifies a suite of MSI software utilities into a single centralized application. Take control of advanced motherboards features and unleash endless possibilities.

True Color
Optimized monitor’s brightness and color in several modes for different situation, you can also customize by yourself.

Live Update
Never miss out on important updates. MSI Live Update automatically downloads and installs the latest drivers, BIOS and software so you can focus on your work.

User Scenario
One click for setting your computer, even customize own profile as your preference.

Hardware Monitoring
Get immediate access to your critical hardware information in real-time.

Profile Setting
Tune select motherboard settings in the Profile Setting menu, where options to boost core performance and optimize system cooling are presented in an intuitive interface.

Fan Center
Assume complete control of your fans with Fan Center. Set up to four CPU temperature targets and the motherboard will adjust fan speeds automatically.

Mystic Light
Create your own colorful masterpiece with ease. Splash any color you want with just a few clicks!

System Diagnosis
Restore and backup your MSI storage devices in one click to provide stable system usage, you can even monitor the storage status to prevent system crash or data missing.

CLICK BIOS 5

Get more from a loaded BIOS designed for ease of use. Fine-tune the motherboard for gaming performance, efficiency, or overclocking world records!

CREATOR GENIE

Quickly overclock your CPU with a single button for more performance.

XMP

Choose from a preset XMP profile and automatically overclock compatible DDR memory.

M-FLASH

Conveniently flash or upgrade the BIOS in a few minutes from the CMOS Setup Utility.

HARDWARE MONITOR

Get immediate access to your critical hardware information in real-time including temperature, memory capacity, clock speed, and voltage.

MEMORY TRY IT

Get extreme speed out of your system memory and get more performance.

SEARCH & FAVORITES

A permanent search & favorite option in the top right corner moves you through the BIOS menus quickly.

RESIZABLE BAR (RE-SIZE BAR)

Resizable BAR (Re-Size BAR) is an advanced PCI Express feature that enables the CPU to access the entire GPU frame buffer at once and improve performance.

*Function may differ due to version change. Please update the latest VBIOS/BIOS/Driver through MSI official website or consult service center.

PRO B660M-A DDR4

  • Supports 12th Gen Intel® Core™, Pentium® Gold and Celeron® processors for LGA 1700 socket
  • Supports DDR4 Memory, up to 4800+(OC) MHz
  • Core Boost : With premium layout and digital power design to support more cores and provide better performance
  • Memory Boost: Advanced technology to deliver pure data signals for the best performance, stability and compatibility
  • Lightning Fast Experience: PCIe 4.0, Lightning Gen4 x4 M.2 with M.2 Shield Frozr
  • Premium Thermal Solution: 7W/mK pad, additional choke thermal pad and M.2 Shield Frozr are built for high performance system and non-stop works
  • 2.5G LAN: Upgraded network solution for professional and multimedia use. Delivers a secure, stable and fast network connection
  • Audio Boost: Reward your ears with studio grade sound quality
Allmänt
Producentens garanti (månader) 36
Typ av produkt Moderkort - ATX
Kretstyp Intel B660
Processor-socket LGA1700-uttag
Maximalt antal processorer 1
Kompatibla processorer (stöder 12:e generationens Intel Core/Pentium/Celeron)
EAN 4719072912451
RAM som stöds
Teknik DDR4
Bussklocka 4800 MHz (O.C.)
Egenskaper Minnesarkitektur med dubbel kanal
Ljud
Typ HD-ljud (8 kanaler)
Standarder som följs HD-ljud
LAN
Nätverksstyrenhet Realtek RTL8125BG
Nätverksgränssnitt 2.5 Gigabit Ethernet
Expansion/Anslutning
Expansionskortplatser 1 x CPU
4 x DIMM 288-stift
1 x PCIe 4.0 x16
1 x PCIe 3.0 x16
3 x PCIe 3.0 x1
1 x M.2 socket (Key E)
Lagringsgränssnitt SATA-600 -kontakter: 4 x 7 pin Seriell ATA - RAID 0 / RAID 1 / RAID 10 / RAID 5
PCIe 4.0 -kontakter: 2 x M.2
Gränssnitt 1 x HDMI
1 x DisplayPort
2 x USB 3.2 Gen 2
1 x USB-C Gen2
4 x USB 2.0
1 x ljudutgång - mini-jack
1 x mikrofon - mini-jack
1 x ljudingång - mini-jack
1 x ljudutgång (center/subwoofer) - mini-jack
1 x ljudutgång (bakre) - mini-jack
1 x TOSLINK
1 x LAN (2.5Gigabit Ethernet)
1 x PS/2-tangentbord/mus
1 x VGA
Interna gränssnitt 2 x USB 2.0 - header
2 x USB 3.2 Gen 1 - header
1 x USB-C Gen 1 - header
1 x ljud - header
Strömkontakter 4-pin ATX12V-kontakt, 24-pin kontakt för huvudström, 8-pin ATX12V-kontakt
Egenskaper
Hårdvaruegenskaper Debug LED, 2oz Copper PCB, M.2 Shield FROZR, MSI Core Boost
