ASRock H610M-HDV/M.2 Moderkort

mATX, DDR4 (3200mhz max), PCie 4.0 x16

Artikelnummer: 1206892 / Tillverkarens artikelnummer: H610M-HDV/M.2

More pictures from ASRock H610M-HDV/M.2 Moderkort

1 249:-
Fri frakt
Köp nu - betala om 3 månader!
Delbetala från 178:- per mån se priser
38 st i lager (2-3 vardagar leveranstid)

ASRock LGA1700 H610M-HDV/M.2 Hovedkort

Digi Power

Unlike traditional motherboards that use analog power, this motherboard uses a next generation digital PWM (Pulse-Width Modulation) design, which provides CPU Vcore voltage more efficiently and smoothly, so that the stability and lifespan of the motherboard is greatly enhanced.

Ultra M.2 32Gb/s (PCIe Gen3 x4 & SATA3)

The PCIe Gen3 x4 Ultra M.2 interface pushes data transfer speeds up to 32Gb/s. In addition, it also supports SATA3 6Gb/s M.2 modules.

Intel® Gigabit LAN

Intel® LAN provides the best throughput performance, lower CPU utilization, enhanced stability and is able to deliver ultimate network experience to users!

M.2 (KEY E) For WiFi

Besides the onboard LAN port, users may also choose 802.11ac wireless connections by M.2 (Key E) slot.

3 Graphics Outputs

Complete with all three types of most used connectors! Packed with a D-Sub + DisplayPort + HDMI combo.

Super Alloy Motherboard

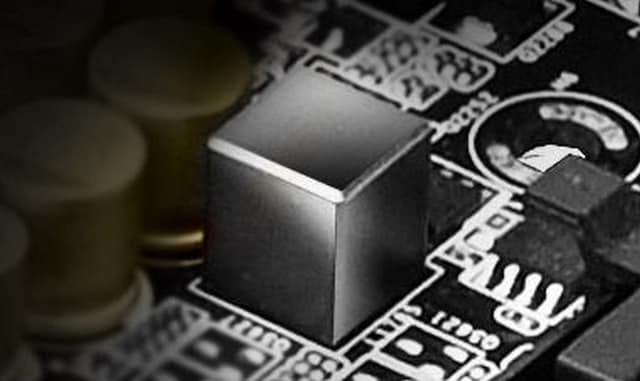

Premium Power Choke

Compared to traditional chokes, ASRock’s premium power chokes effectively make the saturation current up to three times better, thus providing enhanced and improved Vcore voltage to the motherboard.

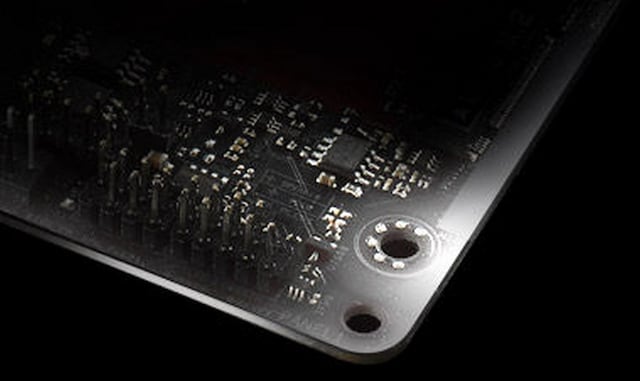

Sapphire Black PCB

Pure black PCB appearance. The new Sapphire Black PCB represents rock-solid quality and gives the motherboard a more mysterious touch.

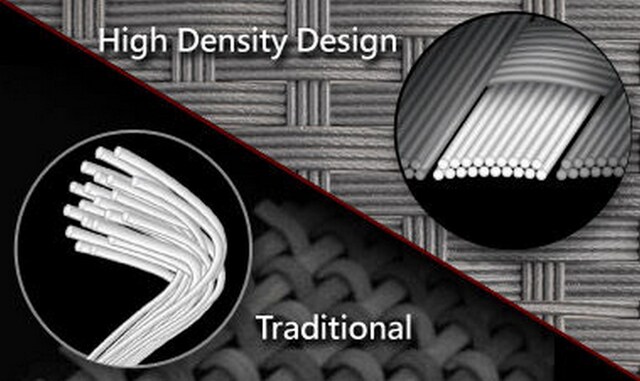

High Density Glass Fabric PCB

High Density Glass Fabric PCB design that reduces the gaps between the PCB layers to protect the motherboard against electrical shorts caused by humidity.

Full Spike Protection

Some sensitive digital components on the motherboard are vulnerable to power surges, the excessive current may cause your system to malfunction immediately. ASRock Full Spike Protection includes various technologies to prevent your motherboard’s components from being damaged by these unexpected voltage spikes.

Allmänt
Producentens garanti (månader) 24
Typ av produkt Moderkort - micro ATX
Kretstyp Intel H610
Processor-socket LGA1700-uttag
Maximalt antal processorer 1
Kompatibla processorer (stöder 12:e generationens Intel Core)
EAN 4710483936517
RAM som stöds
Maximal storlek 64 GB
Teknik DDR4
Bussklocka 3200 MHz
Stöder Ram Integrity Check Icke ECC, ECC (kör i icke-ECC-läge)
Registrerad eller buffrad Ej buffrad
Egenskaper Minnesarkitektur med dubbel kanal, Intel Extreme Memory Profiles (XMP) 2.0, stödda ECC-moduler körs i icke-ECC-läge
Ljud
Typ HD-ljud (8 kanaler)
Audio Codec Realtek ALC887/ALC897
Standarder som följs HD-ljud
LAN
Nätverksstyrenhet Intel I219V
Nätverksgränssnitt Gigabit Ethernet
Expansion/Anslutning
Expansionskortplatser 1 x CPU
2 x DIMM 288-stift
1 x PCIe 4.0 x16
2 x PCIe 3.0 x1
1 x M.2 socket (Key E)
Lagringsgränssnitt SATA-600 -kontakter: 4 x 7 pin Seriell ATA
SATA-600 / PCIe 3.0 -kontakter: 1 x M.2
Gränssnitt 1 x PS/2-tangentbord/mus
1 x ljudingång - mini-jack
1 x ljudutgång - mini-jack
1 x mikrofon - mini-jack
2 x USB 3.2 Gen 1
2 x USB 2.0
1 x HDMI
1 x VGA
1 x DisplayPort
1 x LAN (Gigabit Ethernet)
Interna gränssnitt 1 x ljud - header
3 x USB 2.0 - header
2 x USB 3.2 Gen 1 - header
1 x seriell - header
Strömkontakter 24-pin kontakt för huvudström, 8-pin ATX12V-kontakt
Egenskaper
BIOS-typ AMI
BIOS-egenskaper Flerspråks-BIOS, UEFI BIOS, SMBIOS 2.7-support, stöd för ACPI 6,0
Hårdvaruövervakning CPU kärntemperatur, chassistemperatur, varvräknare för CPU-fläkt, varvräknare för chassifläkt, systemspänning, CPU-ledarspänning, hastighetsmätare för nätaggregatfläkt
Viloläge/väckning Wake on LAN (WOL)
Hårdvaruegenskaper ASRock Instant Flash, HDCP-kompatibel, 6 Phase Power Design, ASRock Internet Flash, Digi Power Design, ESD Protection, Energy Efficient Ethernet 802.3az, Preboot eXecution Environment (PXE), ASRock Full Spike Protection, ASRock APP Shop, ASRock Super Alloy, High Density Glass Fabric PCB, ASRock Full HD UEFI, ASRock My Favorites in UEFI, ASRock Easy RAID Installer, Sapphire Black PCB, ASRock Live Update, ASRock EZ Mode, ASRock Ultra M.2, Premium Power Choke, Intel Turbo Boost Max Technology 3.0, Intel Hybrid Technology
Diverse
Inkluderade tillbehör I/O-bakpanel, 2 x M.2-skruvar
Medföljande kablar 2 x Seriell ATA-kabel
Medföljande programvara Drivrutiner och hjälpprogram, ASRock A-Tuning, Antivirus (provversion), ASRock XFast LAN
Standarder som följs FCC, EuP Ready, ErP Ready, DisplayPort 1.4, HDCP 2.3
Bredd 24.4 cm
Djup 20.1 cm
