ASUS B250 Mining Expert, Socket-1151

Moderkort, ATX, B250, DDR4, 19xPCIe (1xPCIe-x16 + 18xPCIe-x1), 4xSATA

Artikelnummer: 953780 / Tillverkarens artikelnummer: B250 MINING EXPERT

More pictures from ASUS B250 Mining Expert, Socket-1151

Ord. pris 899:-
349:-
+ frakt från 59:-
Erbjudandet gäller t.o.m. 31 december eller så länge lagret räcker!
eller
med ditt lagrade kort
med avgiftsfri faktura Se villkor för faktura
29 st i lager (1-3 vardagar leveranstid)
60 dagar öppet köp & fri retur
Fri frakt över 500:-
Average rating (4 reviews)
Rättningslinjer för produktrecensioner

ASUS B250 Mining Expert, Socket-1151 motherboard

Intel LGA-1151 ATX mining motherboard with 19 PCIe slots, Triple-ATX12V power delivery, voltage-stabilization capacitors, and mining mode design

  • World’s first 19-slot motherboard for multi-GPU mining
  • Exclusive triple-ATX12V design and 19 decoupling capacitors for stable power delivery
  • ASUS PCIe Slot State Detection indicates the status of each GPU connection for easy management and debugging
  • Unique Mining Mode for hassle-free setup of your mining rig — no BIOS tweaks required
  • Intel LAN and LANGuard for the best network performance

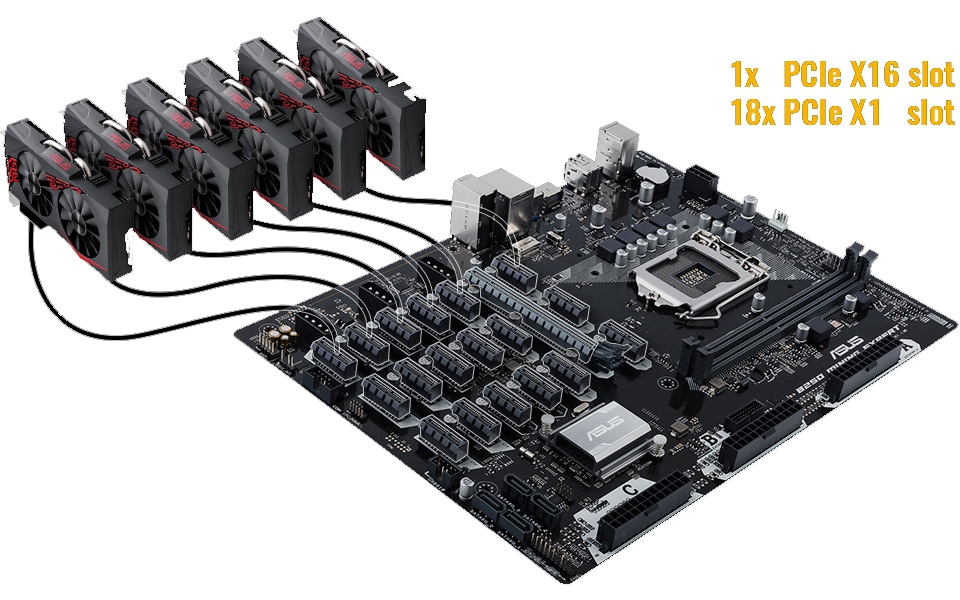

World's First 19-Slot Mining Motherboard

Max out your megahash rates!

ASUS B250 Mining Expert is the world's first mining motherboard to feature 19 PCI Express®(PCIe®) slots. With 18 PCIe x1 and one PCIe x16 slots on board, plus three zoned ATX12V power connectors, B250 Mining Expert lets you run up to 19 NVIDIA or AMD GPUs* in parallel to max out your megahash rates!

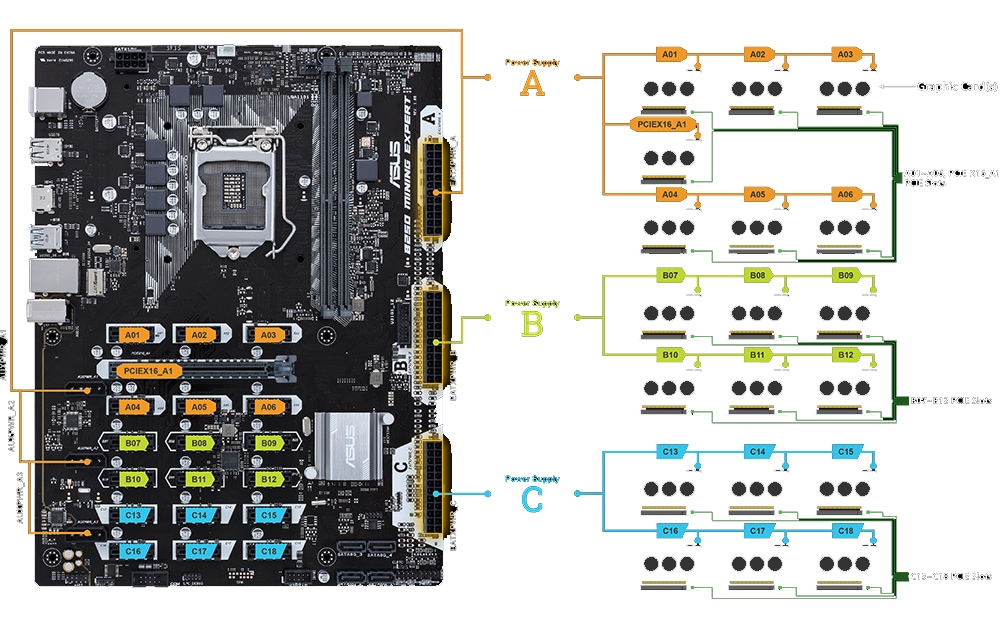

Triple-ATX12V Power Delivery

Engineered to deliver the power your graphics cards need

B250 Mining Expert has been engineered to provide all the power your GPUs demand, cleanly and efficiently. The 19 PCIe slots are grouped into three distinct zones, each powered by its own, dedicated 24-pin ATX12V power connector — reducing wiring complexity and ensuring ample power delivery to all PCIe slots.

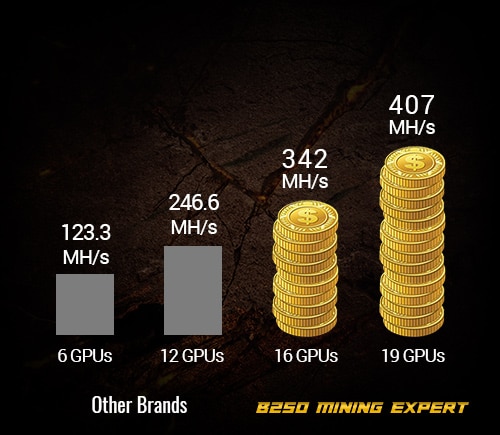

Higher hash rates

With so many slots available, B250 Mining Expert gives you the means to push for higher hash rates. With 16 slots occupied our laboratory tests generated results of up to 342MH/s* — and up to 407MH/s* with 19 GPUs in operation!

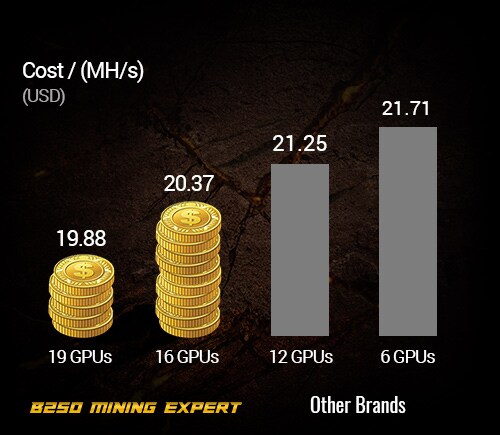

Lower TCO

More hashes means more cryptocurrency creation — and that means more money from your mining operation. Compared to some 6-slot motherboards B250 Mining Expert delivers a TCO saving of up to US$1.83* per megahash-generation potential.
Allmänt
Producentens garanti (månader) 36
Typ av produkt Moderkort - ATX
Kretstyp Intel B250 Express
Processor-socket LGA1151 Socket
Maximalt antal processorer 1
Kompatibla processorer Pentium, Celeron, Core i5, Core i3, Core i7 (stöd för 6:e och 7:e generationens Intel Core i3/i5/i7/Pentium/Celeron)
RAM som stöds
Maximal storlek 32 GB
Teknik DDR4
Bussklocka 2400 MHz, 2133 MHz
Stöder Ram Integrity Check Icke ECC
Registrerad eller buffrad Ej buffrad
Egenskaper Intel Extreme Memory Profiles (XMP)
Grafik
Max tilldelad RAM-storlek 1 GB
Ljud
Typ HD-ljud (8 kanaler)
Audio Codec Realtek ALC887
Standarder som följs HD-ljud
LAN
Nätverksstyrenhet Intel I219V
Nätverksgränssnitt Gigabit Ethernet
Expansion/Anslutning
Expansionskortplatser 1 x CPU
2 x DIMM 288-stift
1 x PCIe x16
18 x PCIe x1
Lagringsgränssnitt SATA-600 -kontakter: 4 x 7 pin Seriell ATA
Gränssnitt 1 x LAN (Gigabit Ethernet)
4 x USB 3.1 Gen 1
2 x USB 2.0
1 x PS/2-tangentbord
1 x ljudingång - mini-jack
1 x ljudutgång - mini-jack
1 x mikrofon - mini-jack
1 x PS/2-mus
1 x HDMI
Interna gränssnitt 2 x USB 2.0 - header
2 x USB 3.1 Gen 1 - header
1 x seriell - header
1 x SPDIF-ut - header
1 x ljud - header
Strömkontakter 8-pin ATX12V-kontakt, 3 x 24-stifts huvudströmkontakter, 3 x 4-stifts extra strömanslutningar
Egenskaper
BIOS-typ AMI
BIOS-egenskaper WfM 2.0 support, UEFI BIOS, ASUS EZ Flash 3, DMI 3,0 stöd, stöd för SMBIOS 3,0, stöd för ACPI 6,0
Viloläge/väckning Wake on LAN (WOL), wake on PME
Hårdvaruegenskaper Intel Extreme Memory Profile-stöd (XMP), Intel Turbo Boost-teknologi 2.0, ASUS DIGI+ VRM, Preboot eXecution Environment (PXE), ASUS Stainless Steel Back I/O, LANGuard, ASUS överspänningsskydd, ASUS 5X Protection III, ASUS SafeSlot Core
Diverse
Inkluderade tillbehör Bakre I/O-hölje
Medföljande kablar 2 x Seriell ATA-kabel
Medföljande programvara Drivrutiner och hjälpprogram
Standarder som följs Plug and Play
Bredd 30.5 cm
Djup 23.1 cm
