Artikelnummer: 1198161 / Tillverkarens artikelnummer: 90MB18M0-M0EAY0

1 / 10

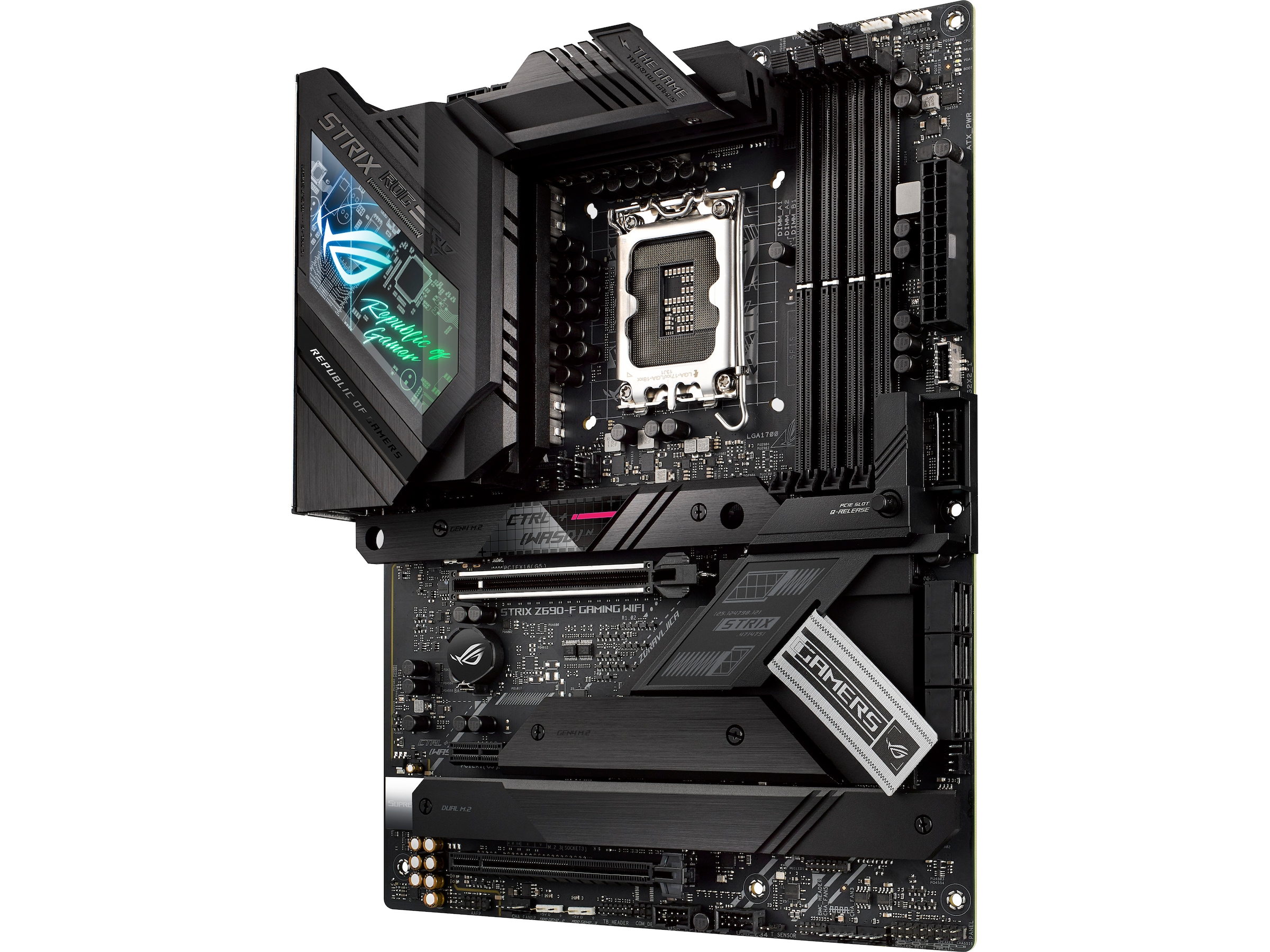

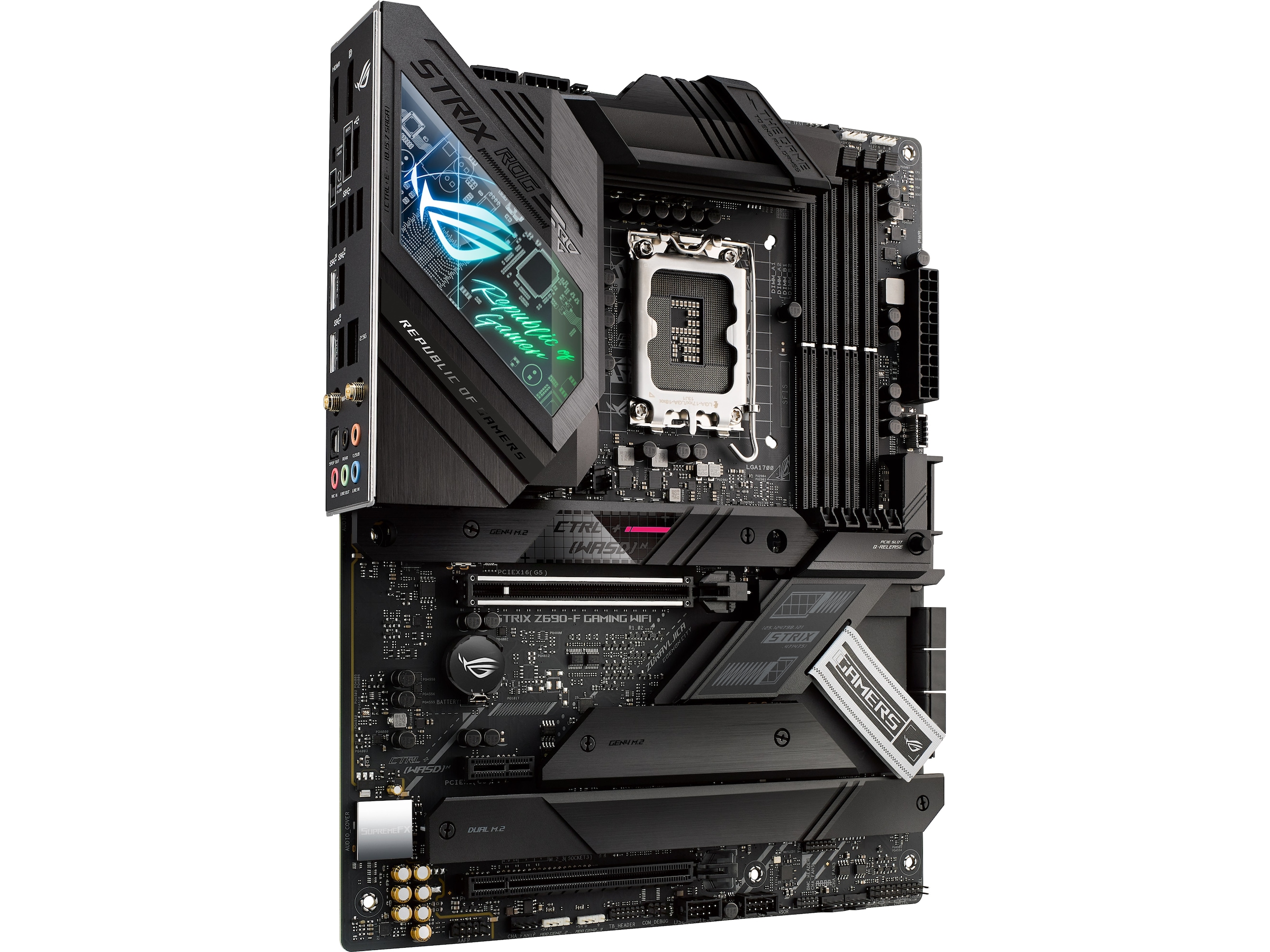

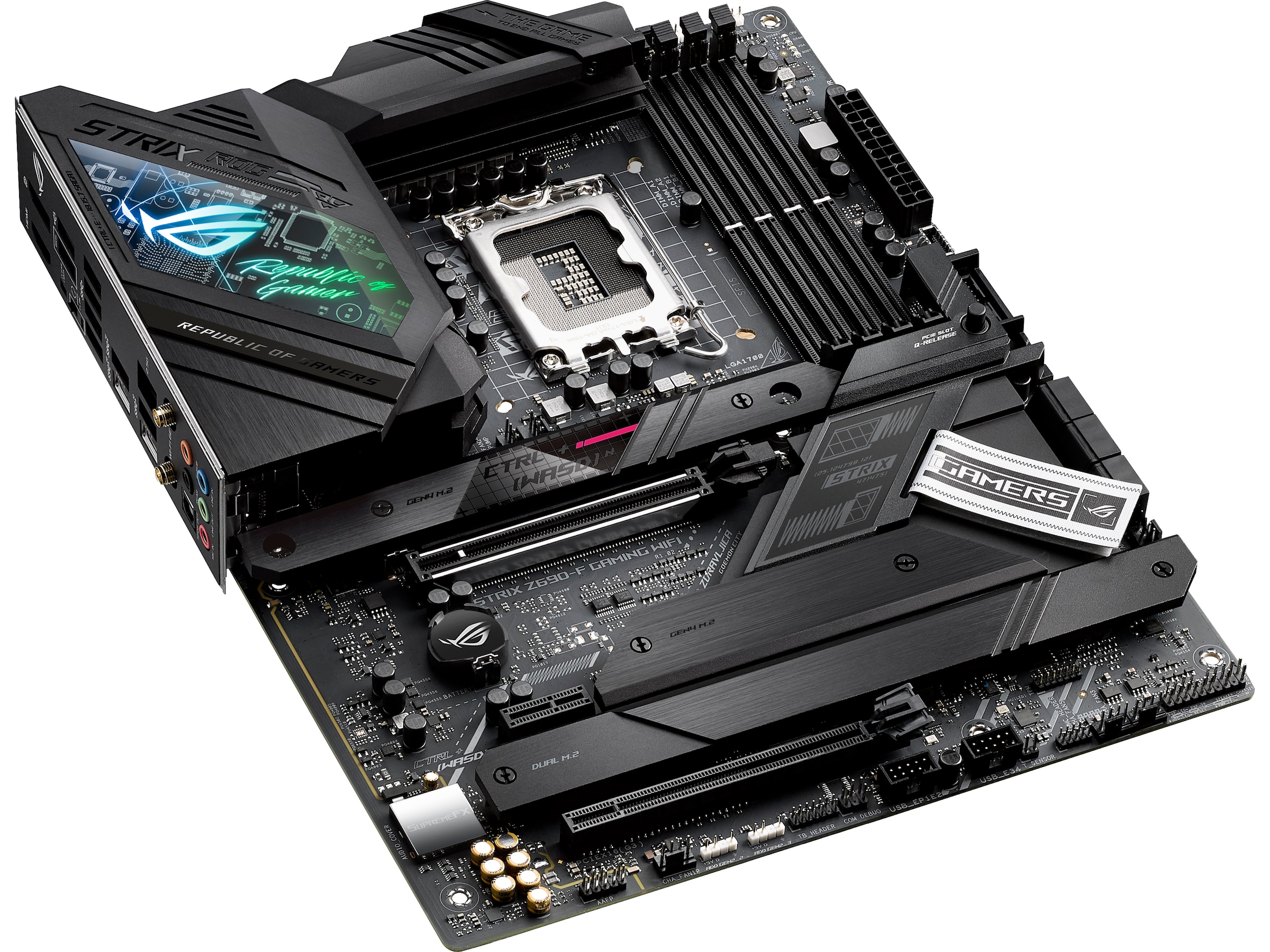

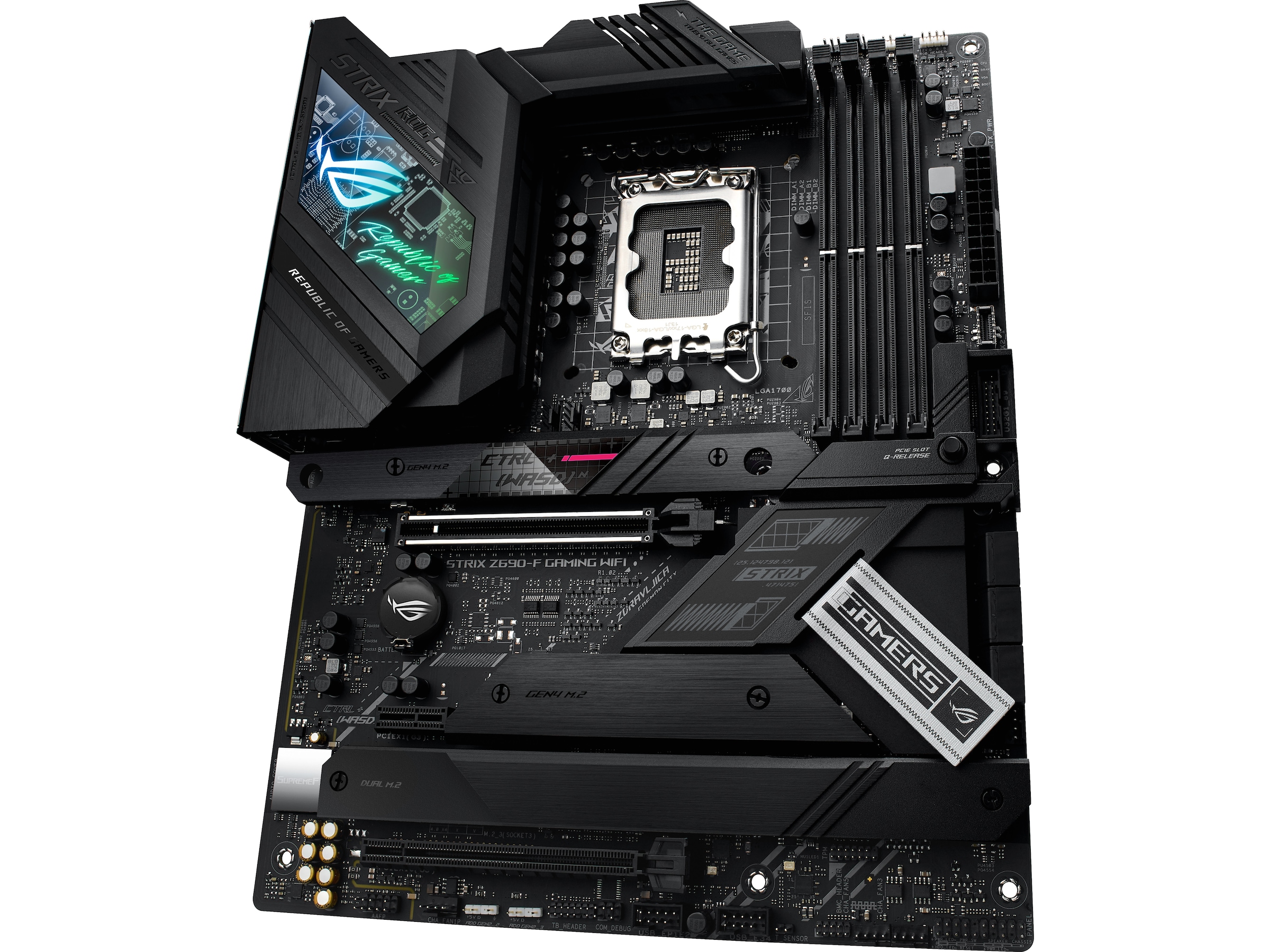

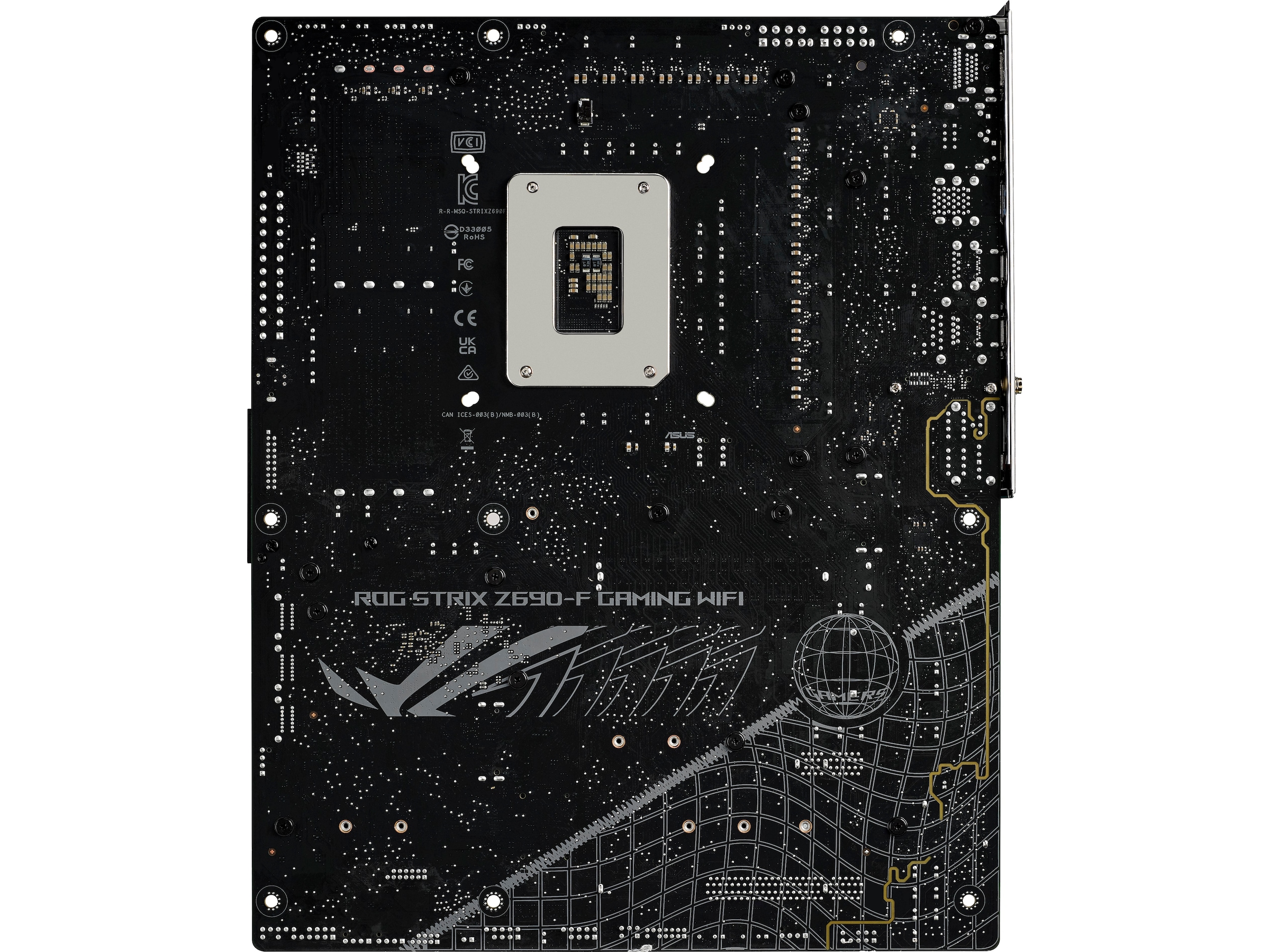

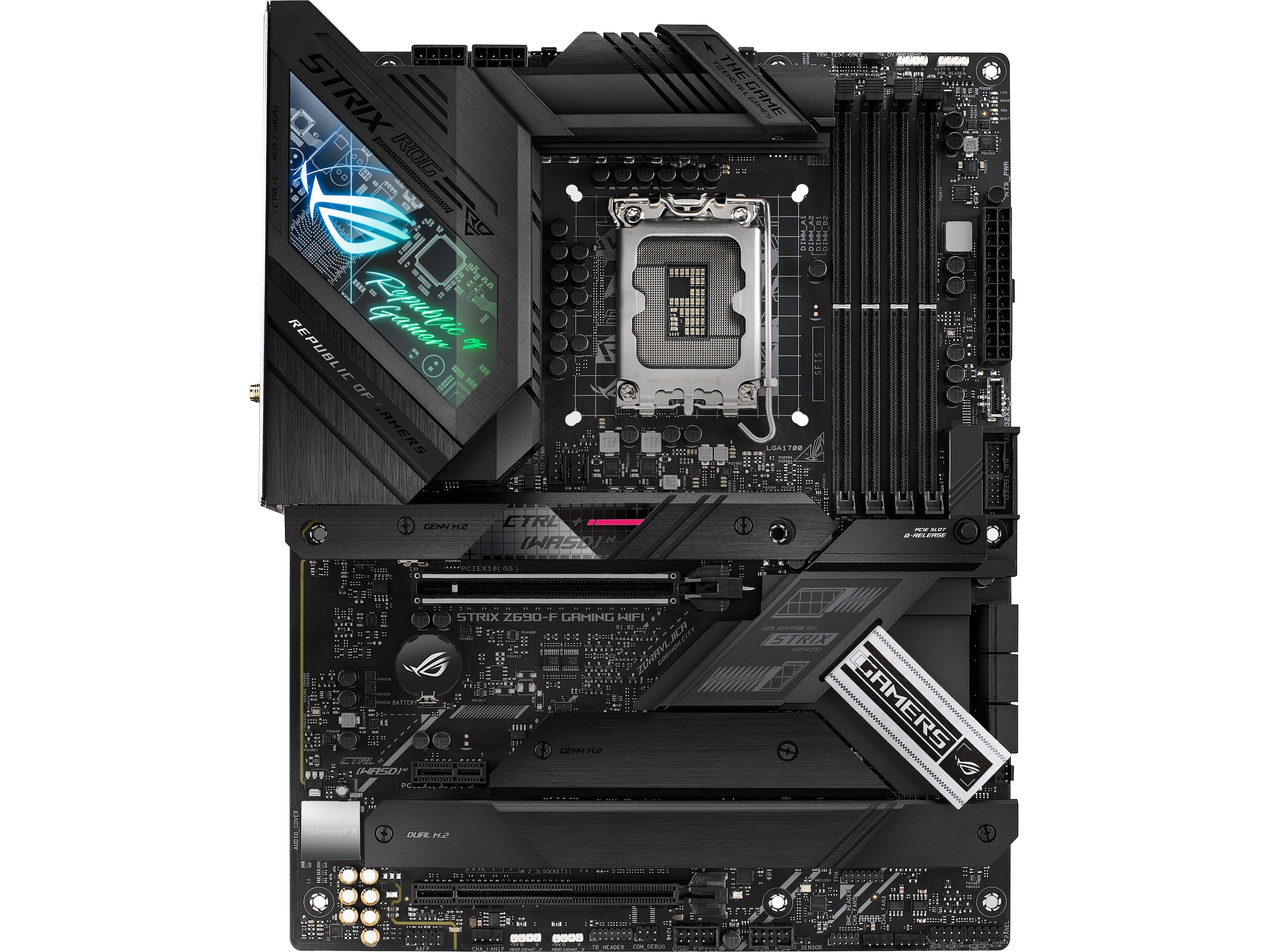

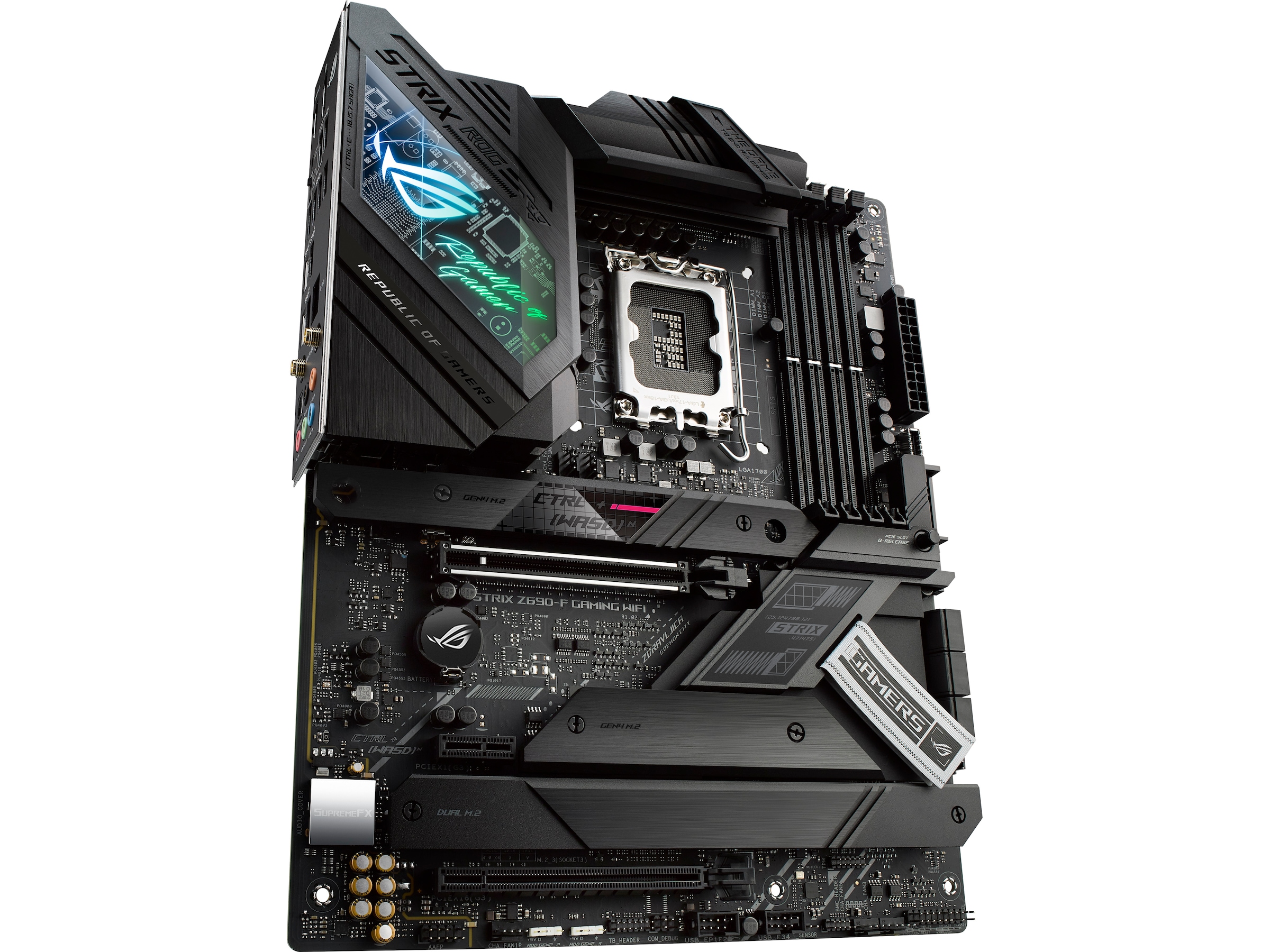

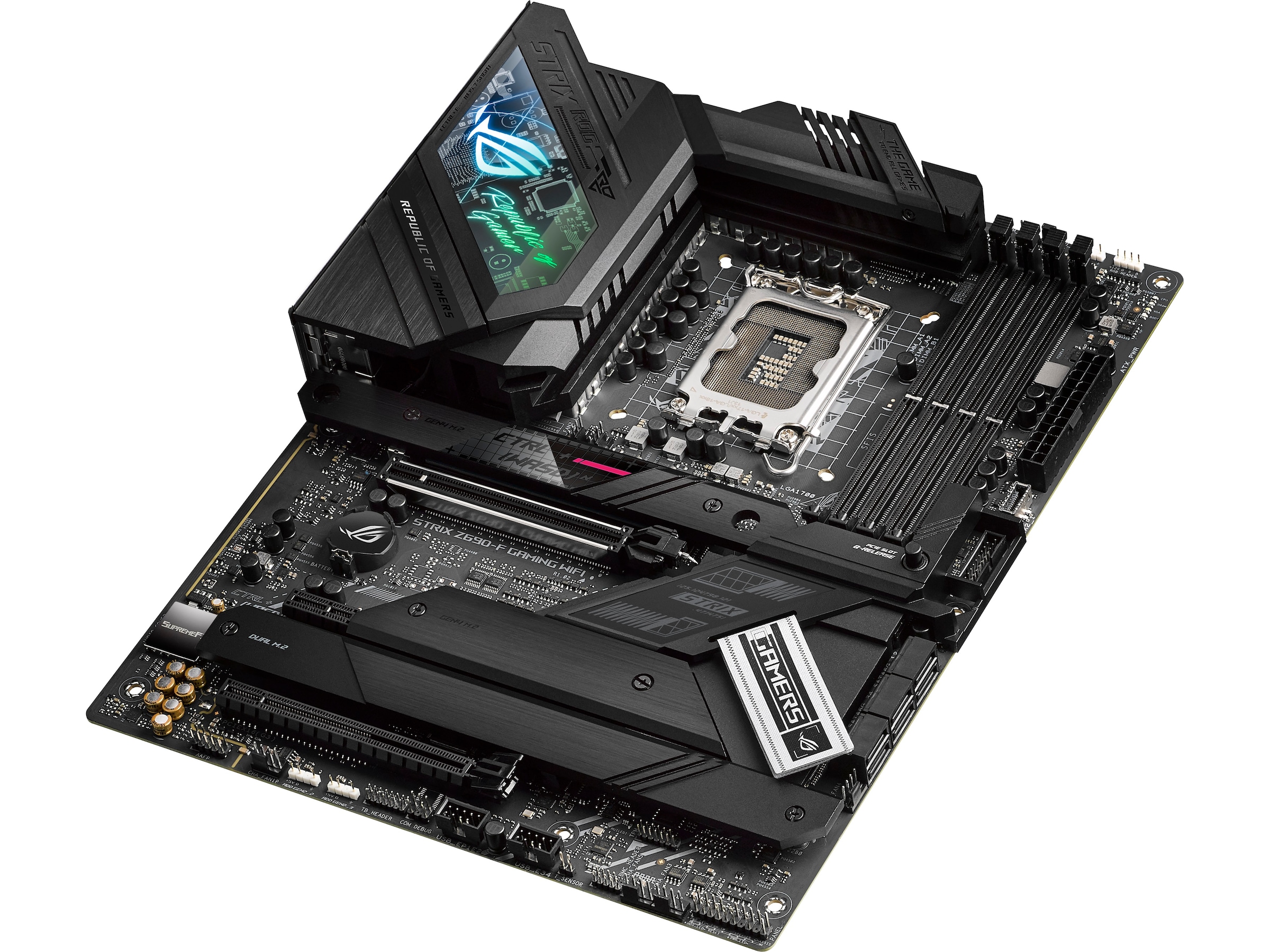

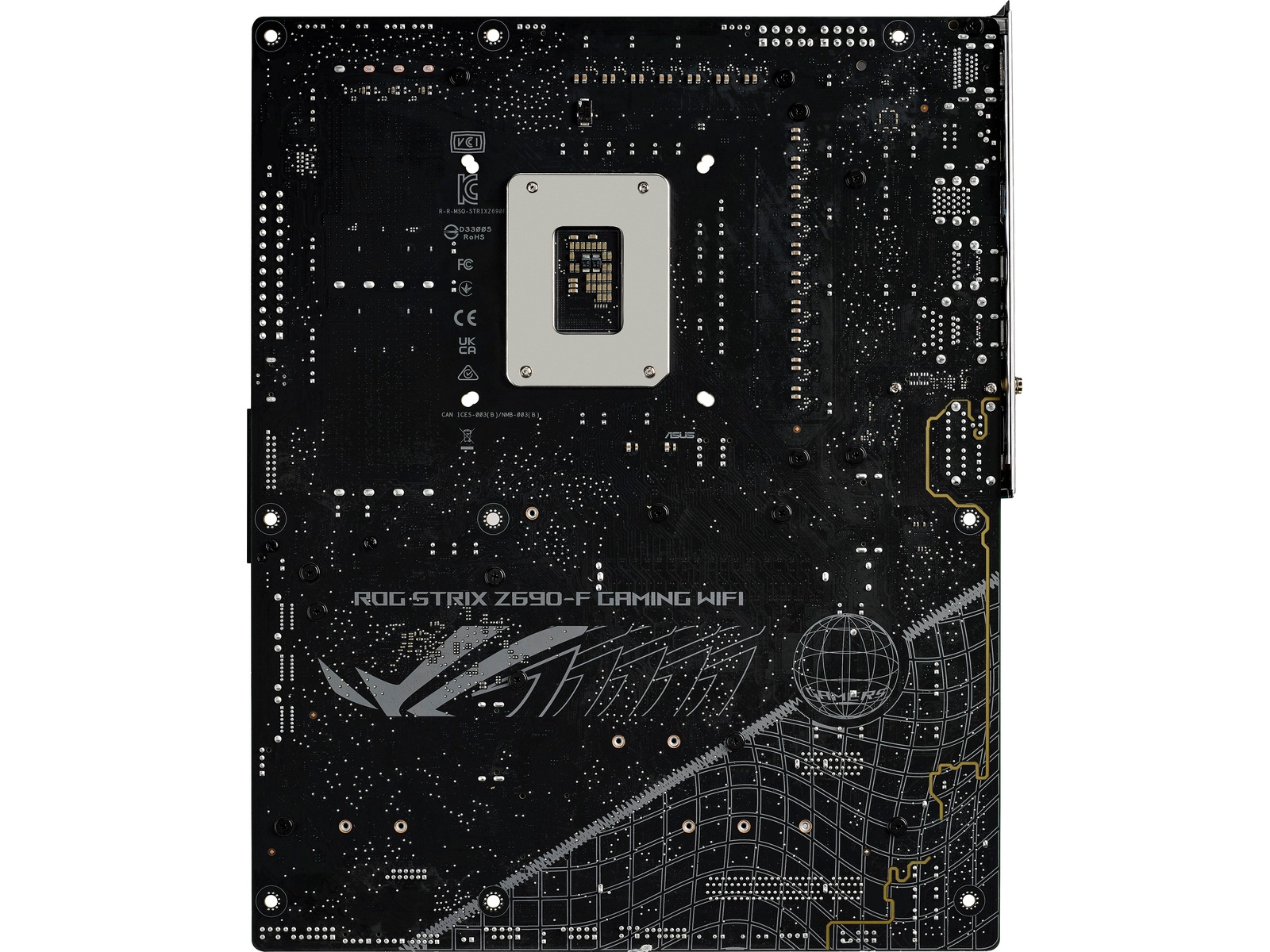

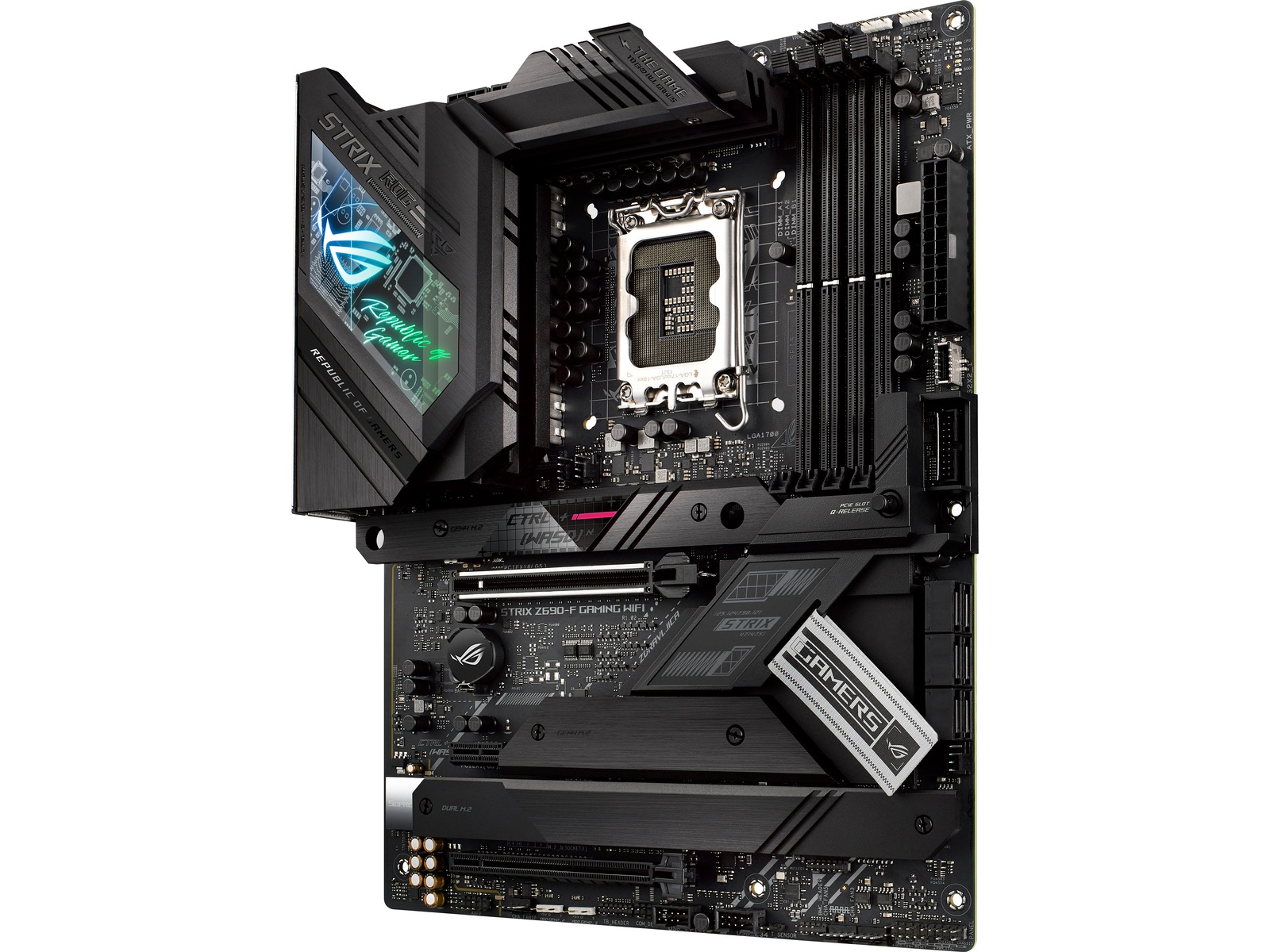

ASUS ROG STRIX Z690-F GAMING WIFI, LGA1700 Motherboard

ROG STRIX Z690-F GAMING WIFI
ROG Strix Z690-F Gaming WiFi offers premium-grade power delivery and cooling to unleash the full force of 12th Gen Intel® Core™ processors. Framerates and load times can be boosted even further by all-new support for DDR5 memory and PCIe® 5.0 video cards. Plus, ASUS-exclusive intelligent controls help optimize PC settings, while onboard WiFi 6E can bring lightning-fast data transfers to an endless variety of scenarios. On top of all that, DIY-friendly innovations help simplify the PC building process to get to you up and running smoothly.

ALL-AROUND PERFORMANCE - ROG Strix Z690-F Gaming WiFi is armed with all the essentials you need to create a gaming PC with top-tier performance. Heavy-duty power delivery and optimized cooling provide the weapons you need to push any gaming build to its limits. Intelligent controls enable easy management of overclocking, cooling and networking settings. And Two-Way AI Noise Cancelation helps ensure crystal-clear in-game communication.

• Ready for 12th Gen Intel® Core™, Pentium® Gold and Celeron® processors
• Optimal Power Solution: 16+1 power stages with 8+8 ProCool II power connectors, high-quality alloy chokes and durable capacitors to support multi-core processors
• Optimized Thermal Design: Integrated I/O cover and VRM heatsinks with high conductivity thermal pad, L-shaped heatpipe, four onboard M.2 heatsinks and M.2 backplate for the M.2_1 slot
• High-performance Networking: On-board Intel® WiFi 6E (802.11ax) and Intel® 2.5 Gb Ethernet with ASUS LANGuard
• Best Gaming Connectivity: Supports HDMI® 2.1 and DisplayPort™ 1.4 output, four M.2 slots, as well as USB 3.2 Gen 2x2 Type-C®
• Intelligent Control: ASUS-exclusive AI Overclocking, AI Cooling, AI Networking and Two-Way AI Noise Cancelation to simplify setup and improve performance
• DIY Friendly Design: PCIe® Slot Q-Release, M.2 Q-Latch, ROG Reusable Cable Organizer, pre-mounted I/O shield, BIOS FlashBack™ button, and Clr CMOS button
• Unmatched Personalization: ASUS-exclusive Aura Sync RGB lighting, including an RGB header and three addressable Gen 2 headers
• Industry-leading Gaming Audio: ALC4080 with Savitech SV3H712 amplifier, along with DTS® Sound Unbound and Sonic Studio III
• Renowned Software: Bundled AIDA64 Extreme 60 days free trial version and intuitive UEFI BIOS dashboard with integrated MemTest86

Allmänt
Modell	ROG STRIX Z690-F GAMING WIFI
Produktlinje	ASUS
Producentens garanti (månader)	36
EAN	4711081441762

Moderkort
Processor-socket	LGA1700-uttag
RAM-teknik som stöds	DDR5 SDRAM
Kretstyp	Intel Z690
RAM som stöds (registrerad eller buffrad)	Ej buffrad
RAM-kortplatser	4 DIMM-kortplatser
Formfaktor	ATX
Stöder Ram Integrity Check	Icke ECC
Strömkontakter	24-pin kontakt för huvudström, 2 x 8-stifts ATX12V-kontakter
RAM-hastighet som stöds	6000 MHz (O.C.), 5800 MHz (O.C.), 5200 MHz (O.C.), 6200 MHz (O.C.), 5600 MHz (O.C.), 4800 MHz, 5000 MHz (O.C.), 6400 MHz (O.C.), 5400 MHz (O.C.)

Moderkortegenskaper
BIOS-typ	AMI
BIOS-egenskaper	UEFI BIOS, ASUS EZ Flash 3, BIOS FlashBack
Hårdvaruegenskaper	SupremeFX Shielding-teknik, ASUS Aura Sync, CrashFree BIOS 3, Clear CMOS-knapp, Preboot eXecution Environment (PXE), ASUS ProCool II, ASUS Q-Design, Intel Turbo Boost Max Technology 3.0, Armoury Crate, ASUS EZ DIY, Sonic Radar III, Q-Slot, SafeDIMM, Sonic Studio III, Q-LED, FlexKey-knapp, Q-DIMM, ASUS TPU (TurboV Processing Unit), Intel Turbo Boost-teknologi 2.0, Förmonterat I/O-skydd, Gold Plated Audio Hardware, ASUS SafeSlot, GameFirst VI, Automatisk enhets-igenkänning, ASUS DIGI+ VRM, ASUS Fan Xpert 4, ASUS HYDRANODE, ASUS EPU (Energy Processing Unit), ASUS OptiMem II, Savitech SV3H712-förstärkare, ASUS Extreme Engine Digi+, M.2 Q-Latch, Detekteringsteknik för ljudjack
Viloläge/väckning	Wake on LAN (WOL), Wake on PME

Gränssnitt
RAID-egenskaper	Intel Rapid Storage Technology
Lagringsportar	6 x SATA-600 (RAID), 4 x M.2
USB/FireWire-portkonfiguration (sidhuvud)	1 x USB-C Gen 2x2 + 2 x USB 3.2 Gen 1 + 4 x USB 2.0
USB/FireWire-portkonfiguration (aktiv)	1 x USB-C Gen 2x2 + 1 x USB-C Gen 2 + 2 x USB 3.2 Gen 2 + 4 x USB 3.2 Gen 1 + 2 x USB 2.0
Lagring	M.2-uttag, Serial ATA-600 (RAID)
USB/FireWire	USB-C Gen2, USB 3.2 Gen 1, USB-C Gen 2x2, USB 3.2 Gen 2

RAM
Egenskaper	Minnesarkitektur med dubbel kanal

Videoutgång
Typ	Grafikadapter (CPU krävs)

Ljudutgång
Typ	Ljudkort
Ljud	High Definition Audio (8-kanalig)
Audio Codec	SupremeFX (ALC4080)
Standarder som följs	DTS Sound Unbound, HD-ljud

Kabeldetaljer
Medföljande kablar	4 x Seriell ATA-kabel

Diverse
Produkttyp	Moderkort
Inkluderade tillbehör	ASUS Wi-Fi rörlig antenn, 2 st. M.2-gummipaket, STRIX-märken, ROG-nyckelring, M.2 Q-Latch, ROG tackkort

Nätverk
Datalänkprotokoll	2.5 Gigabit Ethernet, Bluetooth 5.2, IEEE 802.11g, IEEE 802.11b, IEEE 802.11az (Wi-Fi 6E), IEEE 802.11a, IEEE 802.11n, IEEE 802.11ac, IEEE 802.11ax (Wi-Fi 6E)
Nätverk	802.11a/b/g/n/ac/ax/az, 2.5 Gigabit Ethernet, Bluetooth 5.2

Expansionsuttag
Expansionskortplatser	1 x PCIe 3.0 x1, 1 x CPU, 4 x DIMM 288-stift, 1 x PCIe 5.0 x16, 1 x PCIe 3.0 x16 (x4-läge)

Lagringsgränssnitt
Lagringsgränssnitt	SATA-600 / PCIe 4.0 -kontakter: 1 x M.2 - RAID 0 / RAID 1 / RAID 5, PCIe 4.0 -kontakter: 3 x M.2 - RAID 0 / RAID 1 / RAID 5, SATA-600 -kontakter: 6 x 7 pin seriell ATA - RAID 0 / RAID 1 / RAID 10 / RAID 5

Tillhandahållet gränssnitt

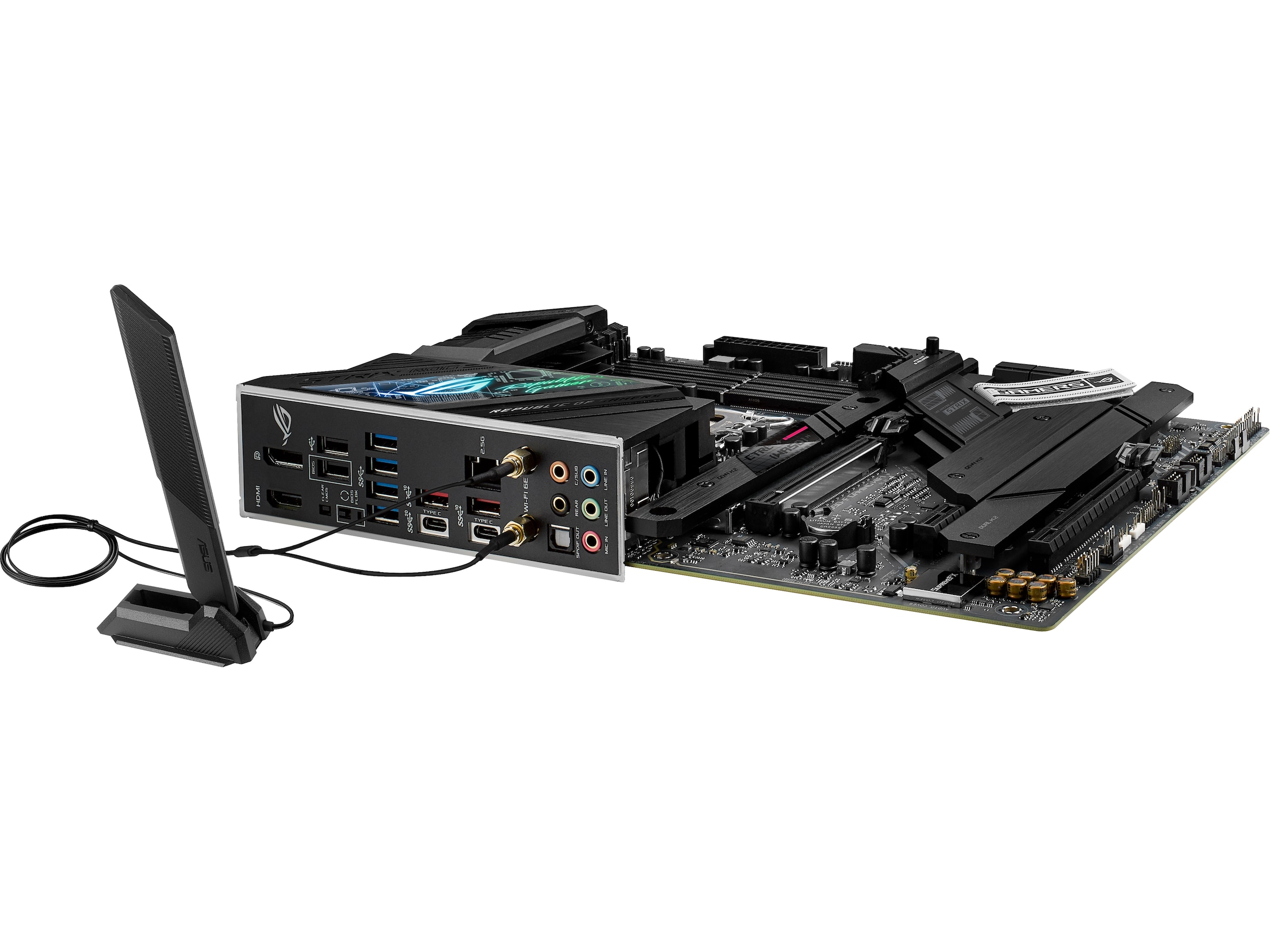

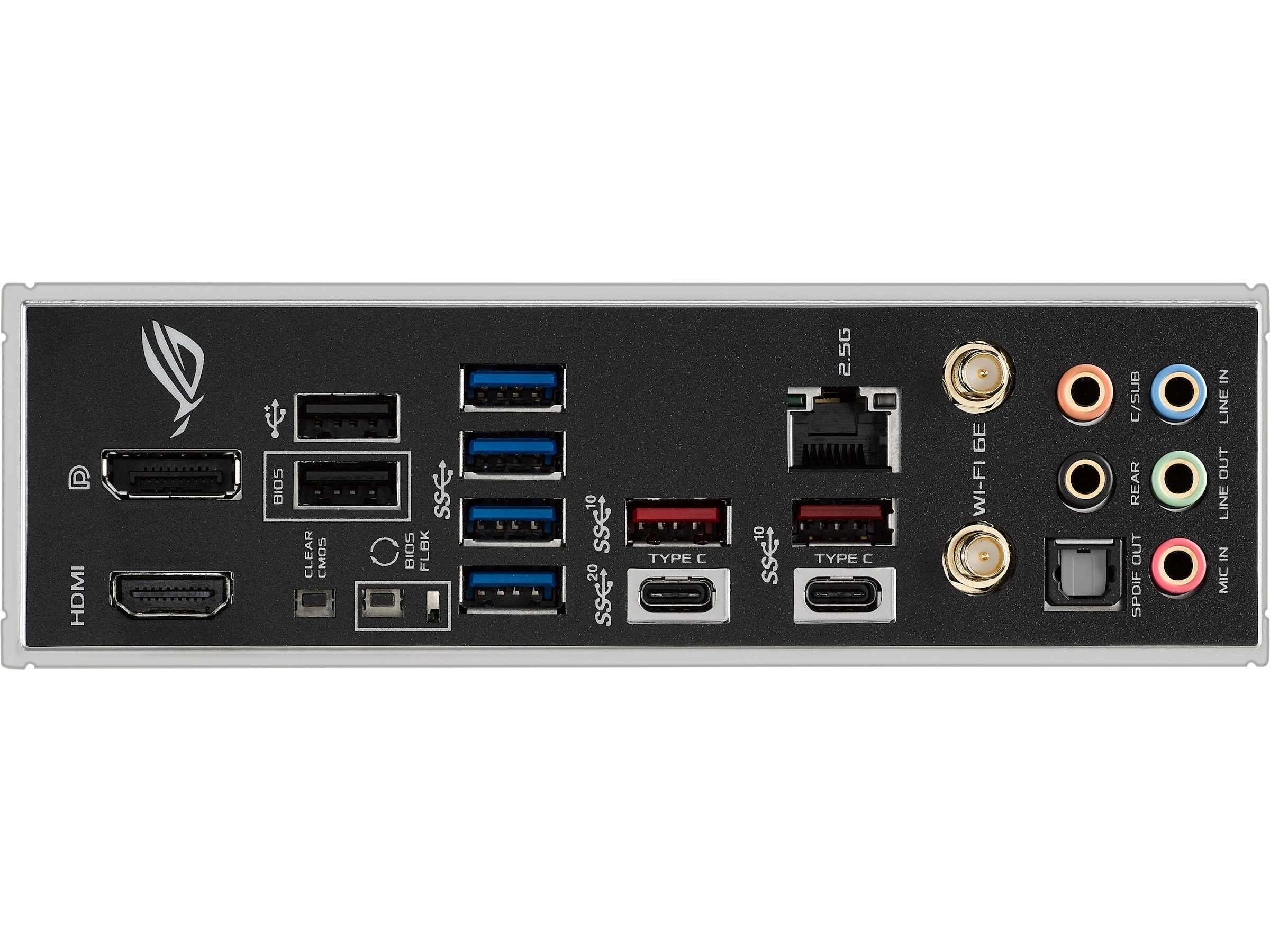

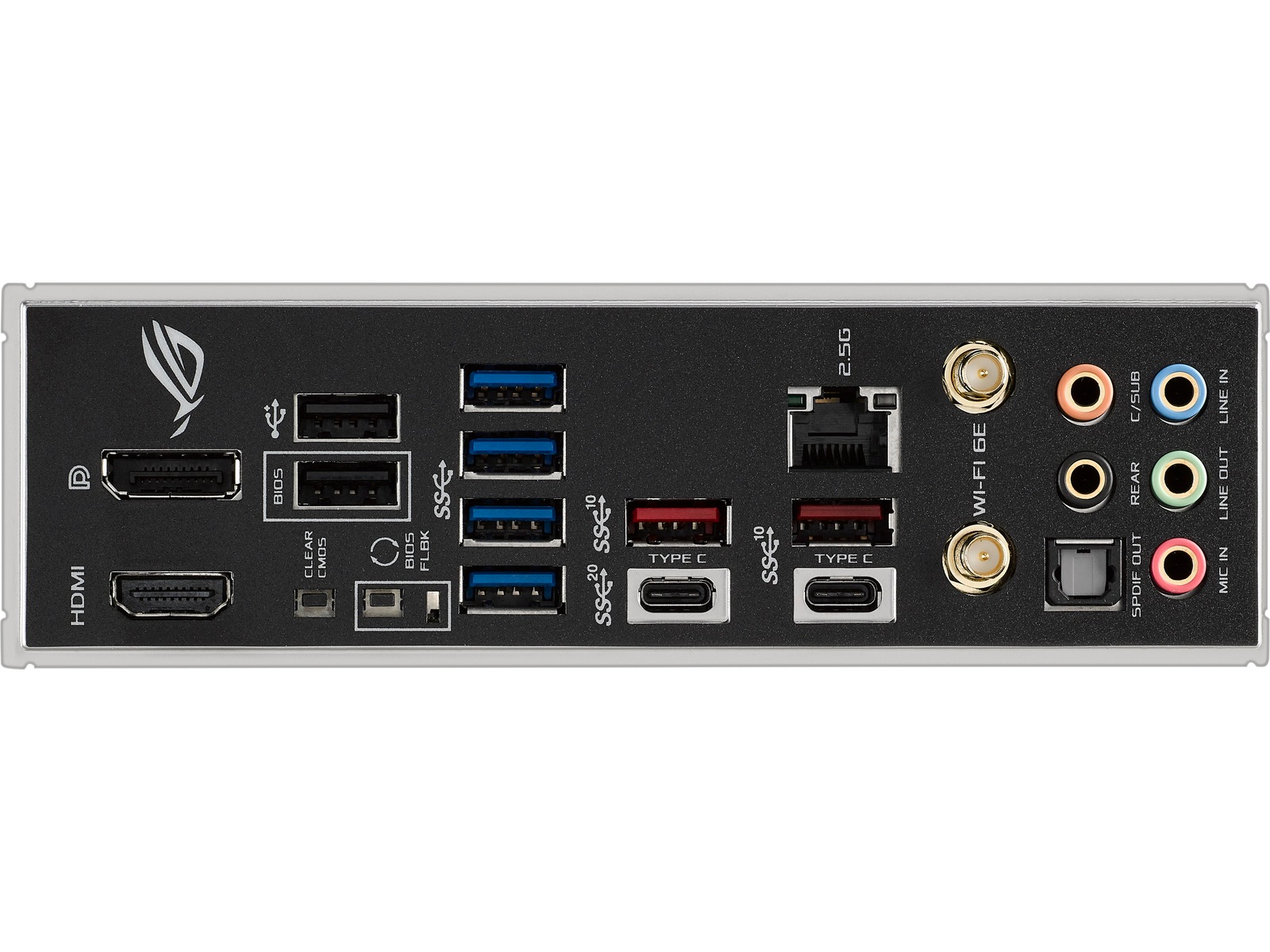

Gränssnitt	1 x ljudutgång (bakre) - mini-jack, 1 x HDMI, 4 x USB 3.2 Gen 1, 1 x ljudutgång (center/subwoofer) - mini-jack, 1 x ljudutgång - mini-jack, 1 x TOSLINK, 2 x USB 3.2 Gen 2, 1 x mikrofon - mini-jack, 1 x USB-C Gen2x2, 1 x USB-C Gen2, 1 x DisplayPort, 2 x USB 2.0, 1 x LAN (2.5Gigabit Ethernet), 1 x ljudingång - mini-jack

Interna gränssnitt
Interna gränssnitt	1 x Thunderbolt - header, 4 x USB 2.0 - header, 1 x USB-C Gen 2x2 - header, 1 x ljud - header, 2 x USB 3.2 Gen 1 - header

Programvara
Programvara inkluderad	WinRAR, MemTest86, Antivirus, AIDA64 Extreme (60 dagars testperiod), ASUS Turbo App, Sonic Studio Virtual Mixer, ASUS AI Suite III, ASUS AURA Creator, Drivrutiner och hjälpprogram, ROG CPU-Z
