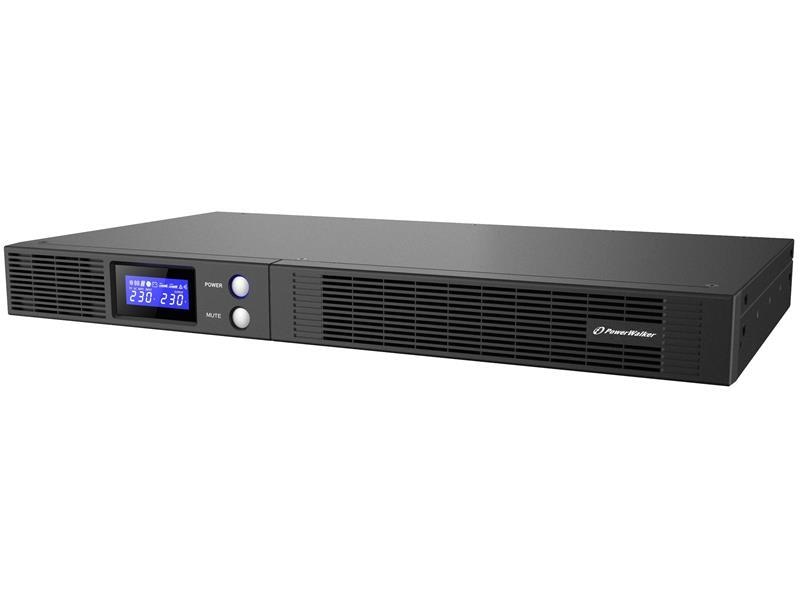

BlueWalker PowerWalker UPS VI 750 R1U
Line-Interactive, 750VA / 450W, HID, 4x IEC, USB, RS-232, EPO, C14
Of
BLUEWALKER
Artikelnummer:
1104062
/ Tillverkarens artikelnummer:
10121048
Produktinfo
PowerWalker VI 500 R1U
- Slim 1U design
- USB with Human Interface Device (HID) support and Intelligent Slot for communication cards
- Pure Sine Wave for wide range of applications and harsh environment
- Auto dimming screen (UPS is woken up with mute button)
PowerWalker VI R1U Series offers slim design, which is unique on the market. It occupies only 1U of rack cabinet, but what is more, it can be fitted into places never before available for UPSs. It could even fit under your TV table to protect your home theatre. Considering the fact that fan is completely switched off in normal operation and LCD dims automatically, neither noise nor LCD shine will disturb your experience. With pure sine wave output in battery mode it delivers high quality voltage for the equipment. HID support for USB port will allow communication with NAS without further compatibility issues.
Tekniska specifikationer
| Producentens garanti (månader) | 24 |
|---|---|
| Typ av enhet | UPS - kan monteras i rack |
| Höjd (U-format) | 1U |
| Stativstorlek | 19" |
| UPS-teknik | Interaktiv |
|---|---|
| Inspänning | AC 165-290 V |
| Tillhandahållen frekvens | ± 0.5Hz |
| Erforderlig frekvens | 45 - 55 Hz |
| Inmatningsanslutningar | 1 x ström IEC 60320 C14 |
| Kontaktdetaljer för uteffekt | 4 x ström IEC 60320 C13 |
| Utspänning | AC 230 V ± 10% |
| Effektkapacitet | 450 Watt / 750 VA |
| Utvågform | Sinusvåg |
| Spänningsavledning | Ja |
| PF (Power Factor) | 0.6 |
| Antal | 2 |
|---|---|
| Tillförd spänning | 6 V |
| Kapacitet | 9 Ah |
| Runtime (upp till) | 0.5 min vid full laddning 4.7 min vid 75 % laddning 10.9 min vid halv maskin 26 min vid 25 % laddning |
| Laddningstid | 5 timmar |
| Överväxlingstid | 4 ms |
| Gränssnitt för fjärradministration | RS-232, USB |
|---|

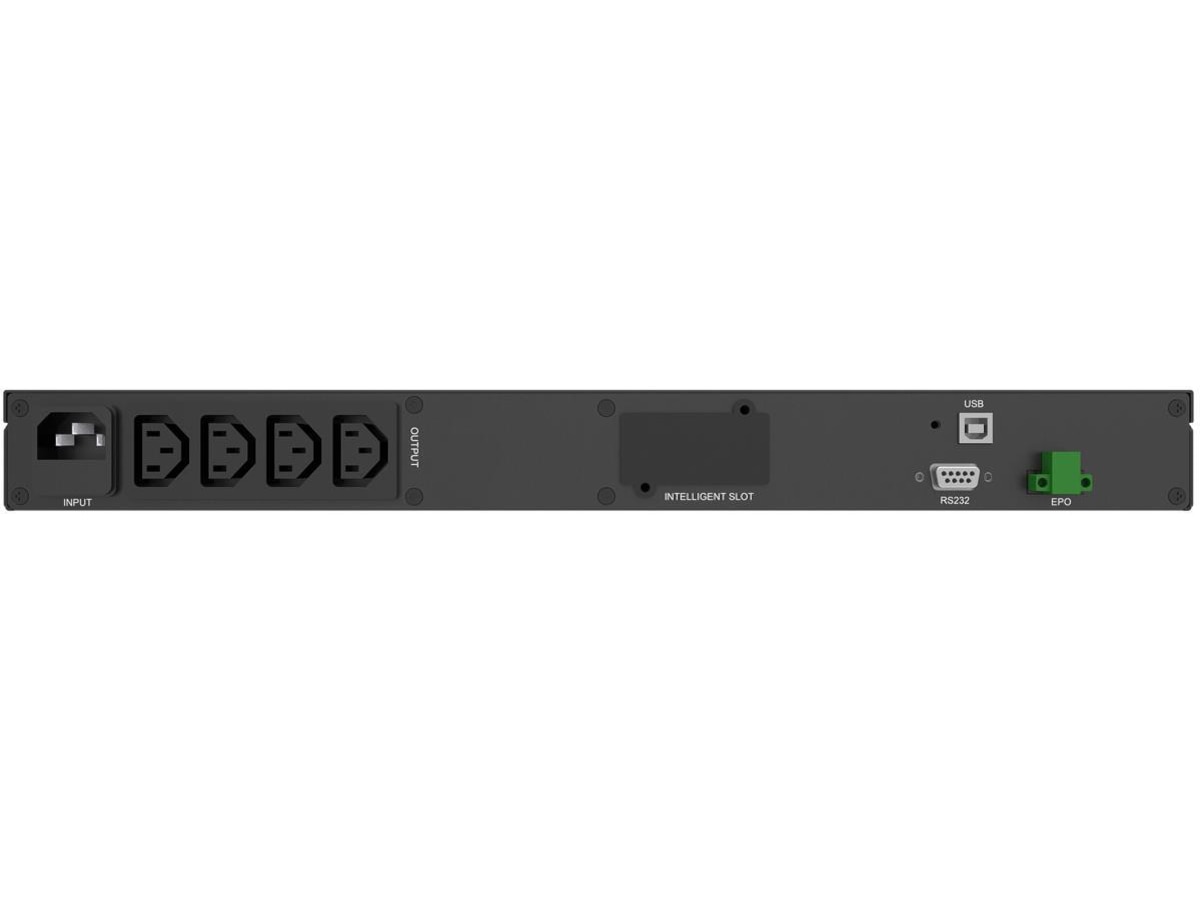

| Gränssnitt | 1 x hantering (USB) - 4-stifts USB typ B 1 x hantering (RS-232) - 9 pin D-Sub (DB-9) 1 x EPO (emergency power off) |
|---|---|
| Expansionskortplatser | 1 (totalt)/ 1 (ledig) x Intelligent Slot |
| Medföljande kablar | USB-kabel - extern Strömkabel - extern |
|---|---|
| Egenskaper | Nödavstängning, LCD-bildskärm, överbelastningsskydd |
| Medföljande programvara | PowerMaster |
|---|
| Min temperatur vid drift | 0 °C |
|---|---|
| Max temperatur vid drift | 40 °C |
| Luftfuktighet vid drift | 0 - 90 % (icke-kondenserande) |
| Bredd | 43.3 cm |
|---|---|
| Djup | 21.6 cm |
| Höjd | 4.4 cm |
| Vikt | 8.6 kg |
| Emballagets bredd | 53.7 cm |
|---|---|
| Emballagets djup | 31.7 cm |
| Emballagets höjd | 15 cm |
| Emballagets vikt | 9.8 kg |
