ASUS P11C-I, Socket-1151

Artikelnummer: 1118835 / Tillverkarens artikelnummer: P11C-I

More pictures from

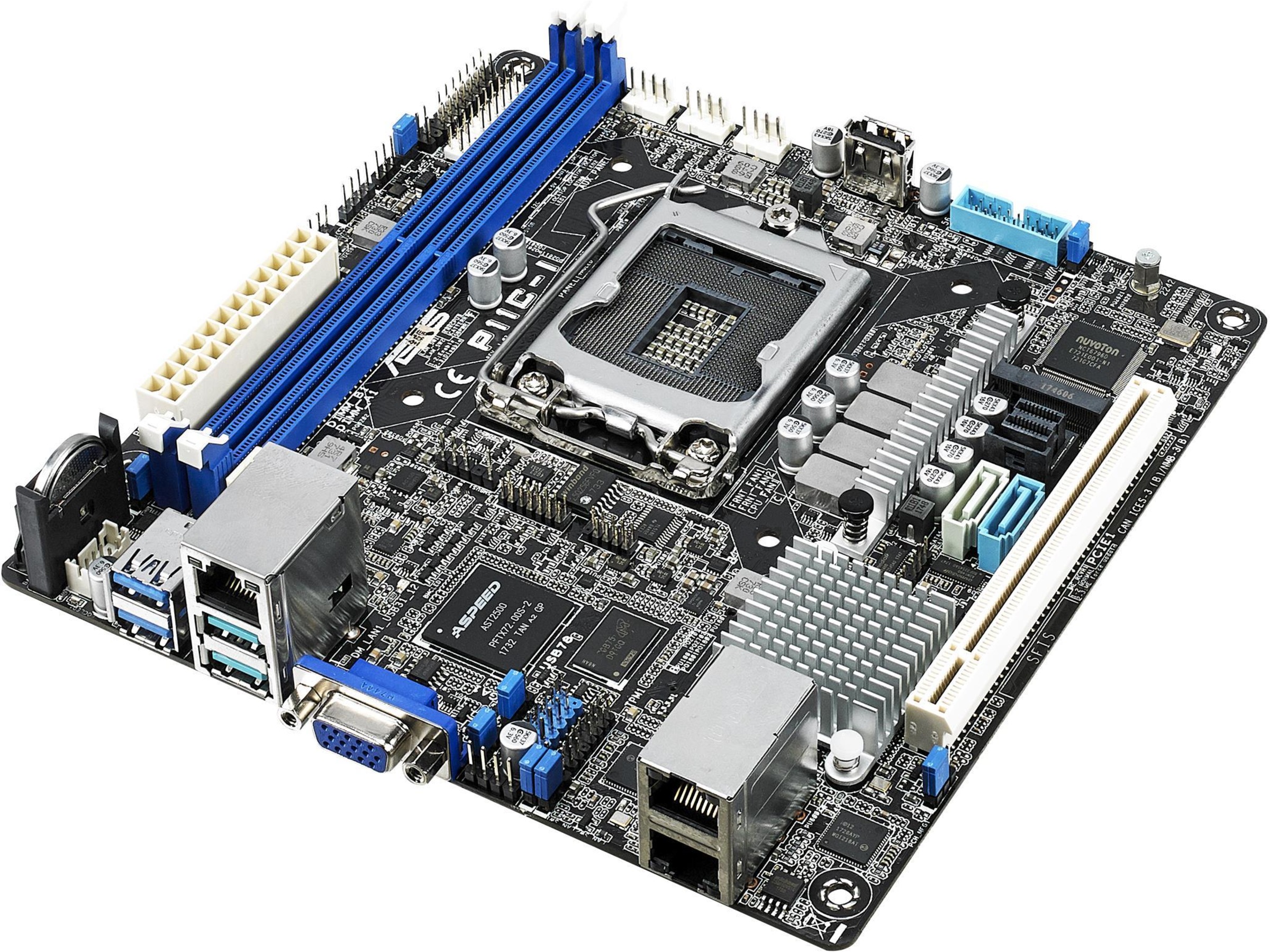

ASUS P11C-I Socket-1151

Intel® Xeon® E mini-ITX server motherboard with rack-optimized design and dual networking

  • Powered by the Intel®Xeon®E platform
  • 95W CPU and up to 32GB memory support (2 DIMMs)
  • Rack-optimized design maximizes cooling for excellent thermal efficiency
  • Flexible expandability with 6 SATA HDDs and 1 PCIe Gen3 slot
  • Dual Intel®Gigabit Ethernet with teaming support
  • Accelerated data-transfer speeds of up to 32Gbps with M.2
  • High-speed mini-SAS HD connections
  • TPM-M 2.0 support for enhanced platform integrity
  • Complete server management with ASUS Control Center
  • Optional ASMB9-iKVM module available for 24/7 remote monitoring and diagnostics

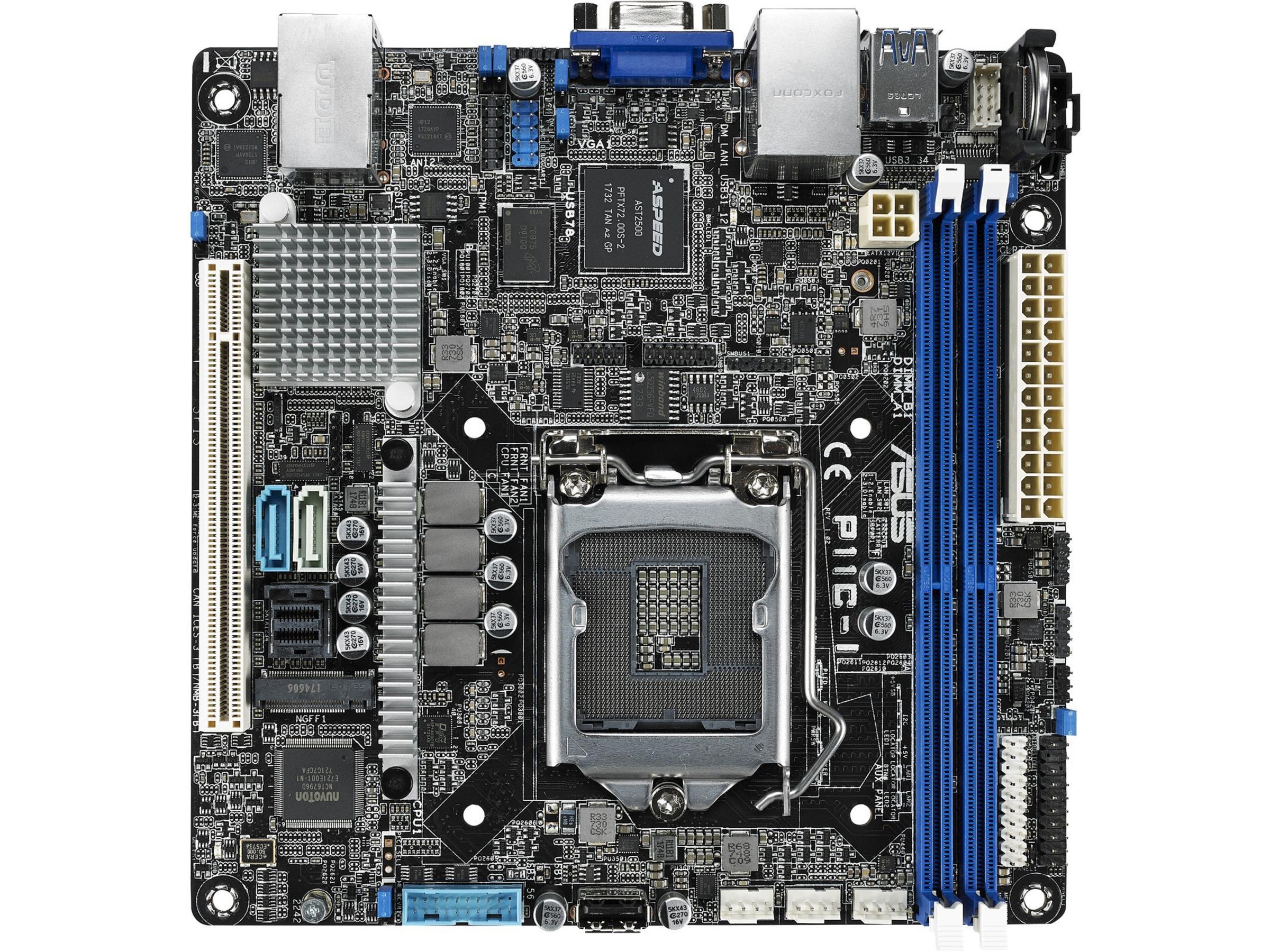

Mini-ITX compact server board with multiple expandability options

P11C-I is a server motherboard based on the Intel® Xeon® E platform and Intel® C242 chipset offering dual server-class Intel® Ethernet and flexible expandability with M.2, six SATA 6G. The 6.7” x 6.7” Mini-ITX form factor can be easily integrated in short-depth chassis to greatly increase rack compute density.

The layout is rack-optimized placement where the CPU and memory are placed in a parallel arrangement directly behind the fan inlet to promote maximum cooling for excellent thermal efficiency.

Accelerated data-transfer speeds of up to 32Gbps with M.2

With PCIe 3.0 bandwidth, one M.2 supports up to 32Gbps data-transfer speeds with native NVMe — that's up to 5.3X faster than traditional SSDs. P11C-I also supports the very latest 2.5-inch NVMe SSDs for quick and easy setup.

High-speed mini-SAS HD connections

P11C-I comes with a mini-SAS HD connector that support up to four SATA for 6Gb/s connectivity with external devices and cleaner cable routing. P11C-I also supports ASUS PIKE II 3000 series, the latest enterprise storage solution, featuring support for 12Gb/s SAS storage and integrated RAID data protection. With ASUS PIKE cards, you can immediately improve the storage capacity and performance of P11C-I, making it a great upgrade option.

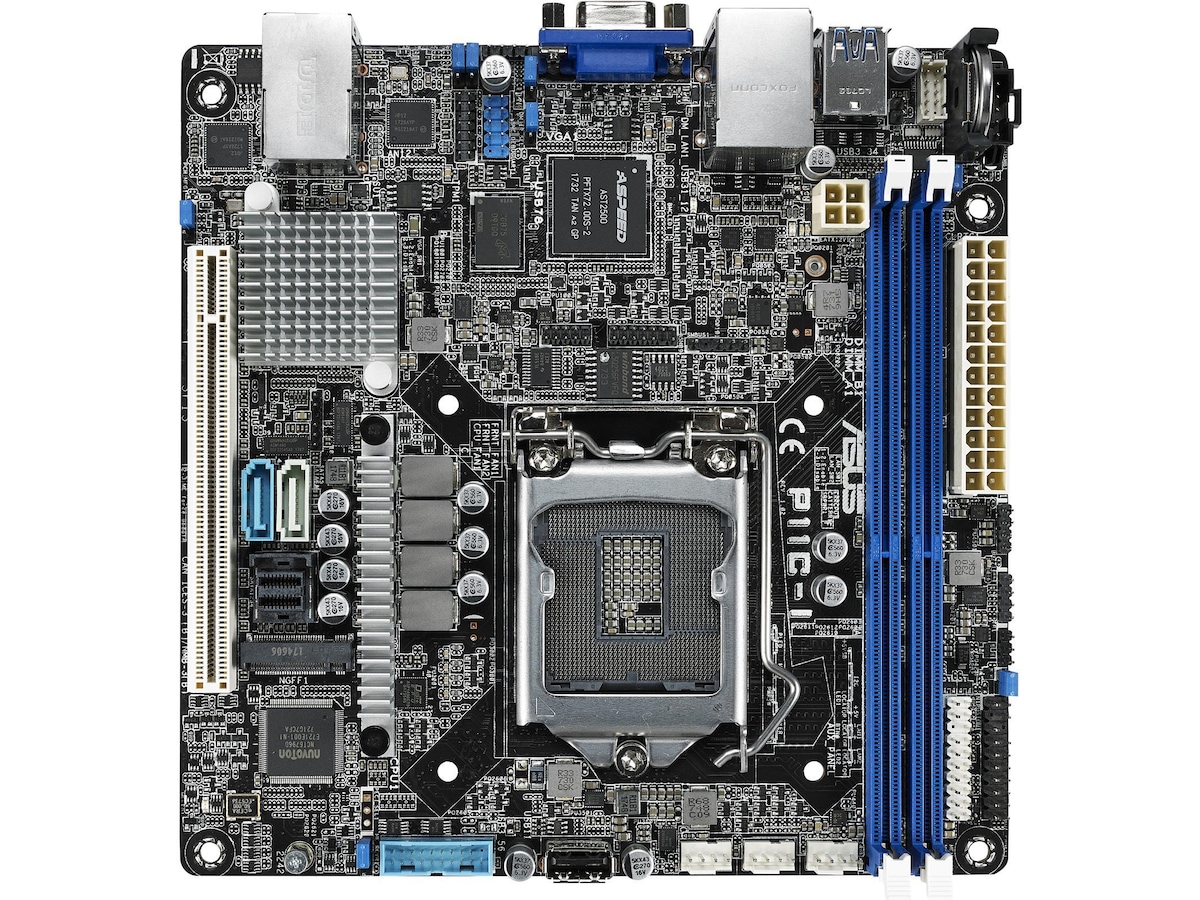

ASUS P11C-I

Dual Intel® I210AT Gigabit Ethernet

P11C-I features dual server-class Intel® Ethernet ports with the I210 controllers and teaming support that speed up the network bandwidth and the failover function ensures uninterrupted network connection. This suits virtualization applications perfectly which requires ultrafast and reliable network.

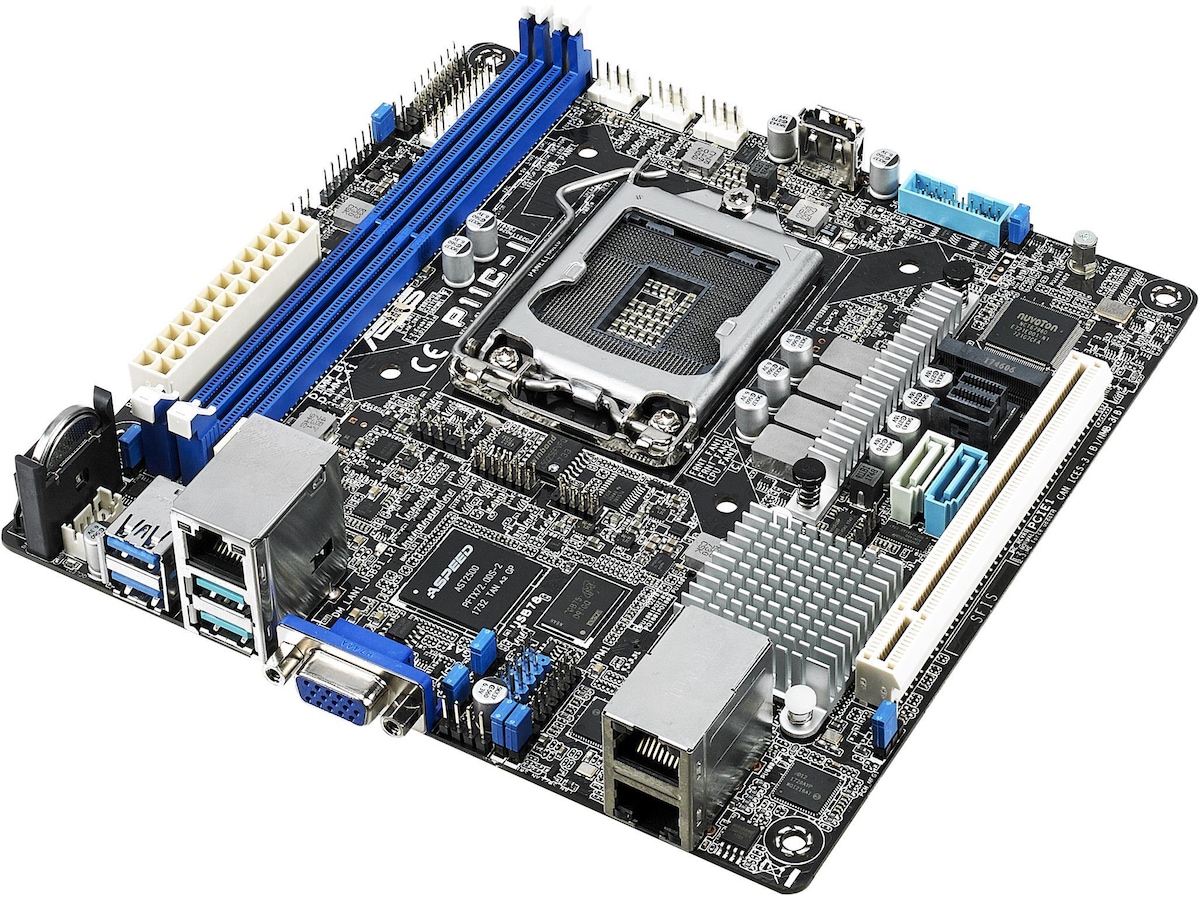

ASUS P11C-I

TPM-M 2.0 ready

P11C-I supports TPM-M 2.0 with a 14-1 TPM header to securely store keys, digital certificates, passwords and data. It helps to enhance network security, protect digital identities, and ensure platform integrity.

Allmänt
Producentens garanti (månader) 36
Typ av produkt Moderkort - mini ITX
Kretstyp Intel C242
Processor-socket LGA1151 Socket
Maximalt antal processorer 1
Kompatibla processorer Pentium, Celeron, Core i3, Xeon E3-2100 series (Maximalt TDP 95 Watt)
RAM som stöds
Maximal storlek 32 GB
Teknik DDR4
Bussklocka 2400 MHz, 2666 MHz
Stöder Ram Integrity Check Icke ECC, ECC
Registrerad eller buffrad Ej buffrad
Egenskaper Minnesarkitektur med dubbel kanal
Grafik
Grafikstyrenhet ASPEED AST2500
Dedicerat videominne 32 MB
LAN
Nätverksstyrenhet 2 x Intel I210AT
Nätverksgränssnitt 2 x Gigabit Ethernet
Expansion/Anslutning
Expansionskortplatser 1 x CPU
2 x DIMM 288-stift
1 x PCIe 3.0 x16
Lagringsgränssnitt SATA-600 -kontakter: 2 st. 7-stift SATA, 1 st. mini-SAS HD - 6 enheter - RAID 0 / RAID 1 / RAID 10 / RAID 5
SATA-600 / PCIe -kontakter: 1 x M.2
RAID-egenskaper Intel Rapid Storage Technology

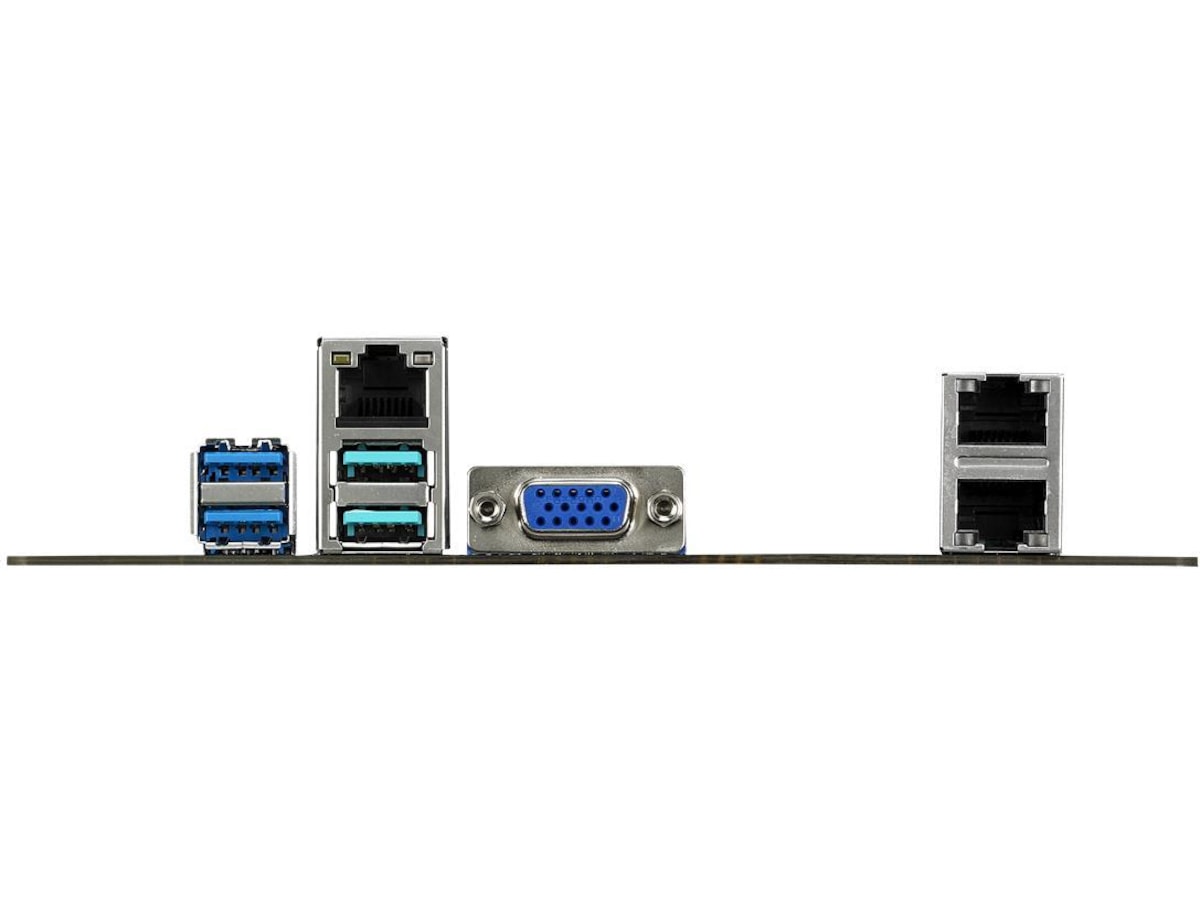

Gränssnitt 1 x ledning
2 x LAN (Gigabit Ethernet)
2 x USB 3.1 Gen 1
2 x USB 3.1 Gen 2
1 x VGA
Interna gränssnitt 1 x USB 3.0 - Type A
Strömkontakter 4-pin ATX12V-kontakt, 20-pin kontakt för huvudström
Egenskaper
Hårdvaruövervakning CPU kärntemperatur, varvräknare för CPU-fläkt
Hårdvaruegenskaper ProCool Power Connector, Rack Ready, TPM-M 2.0 färdig
Diverse
Bredd 17 cm
Djup 17 cm
