ICY BOX PCIe extension card

Artikelnummer: 1133800 / Tillverkarens artikelnummer: IB-PCI215M2-HSL

More pictures from

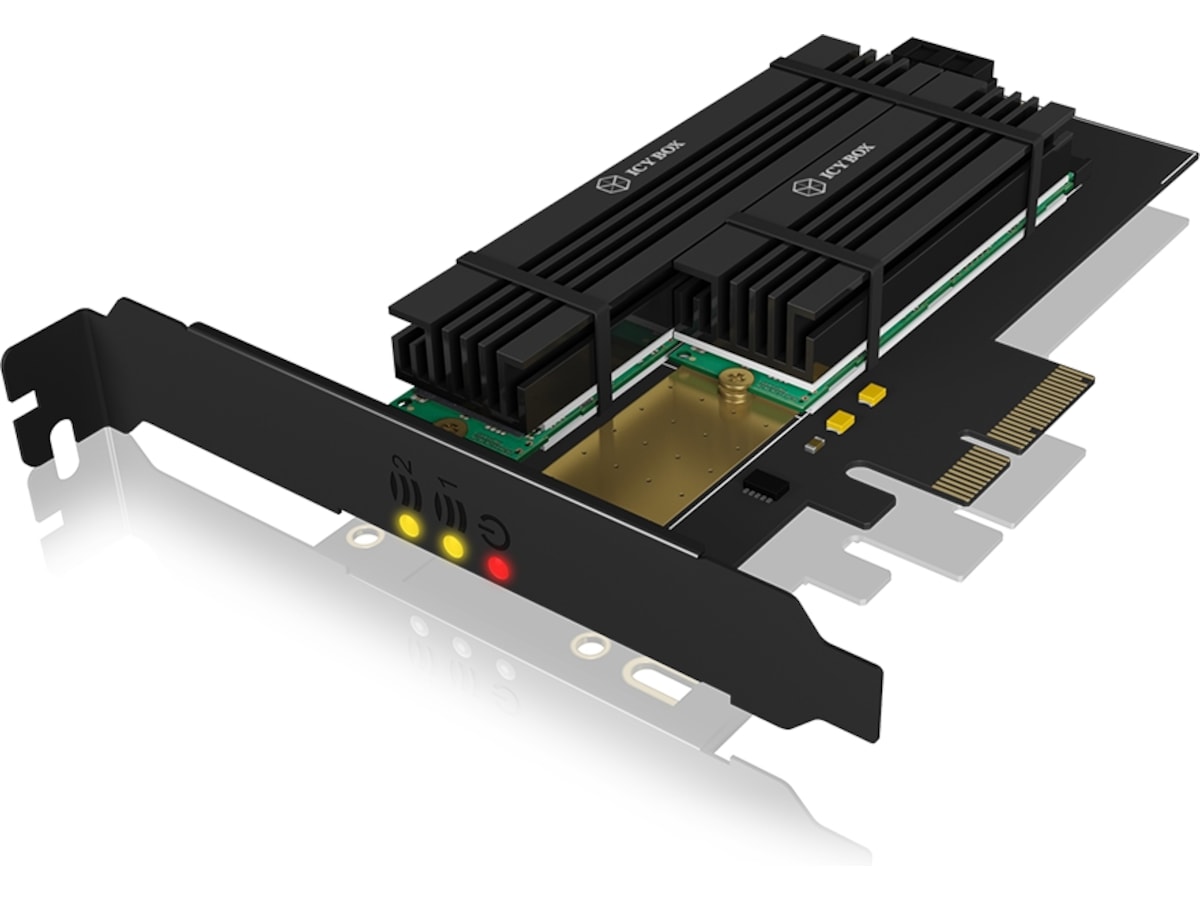

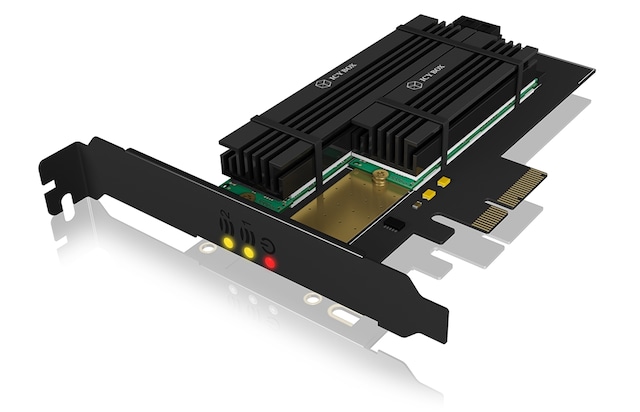

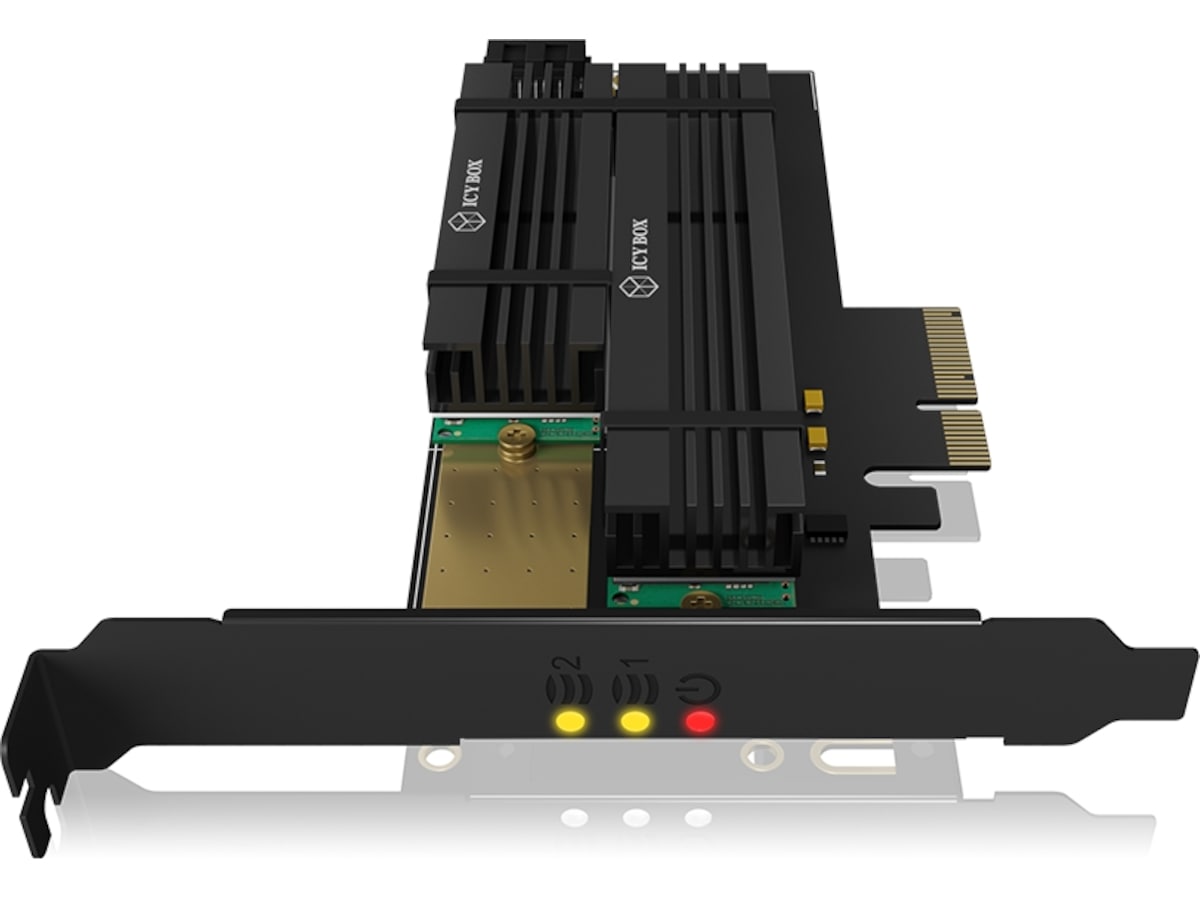

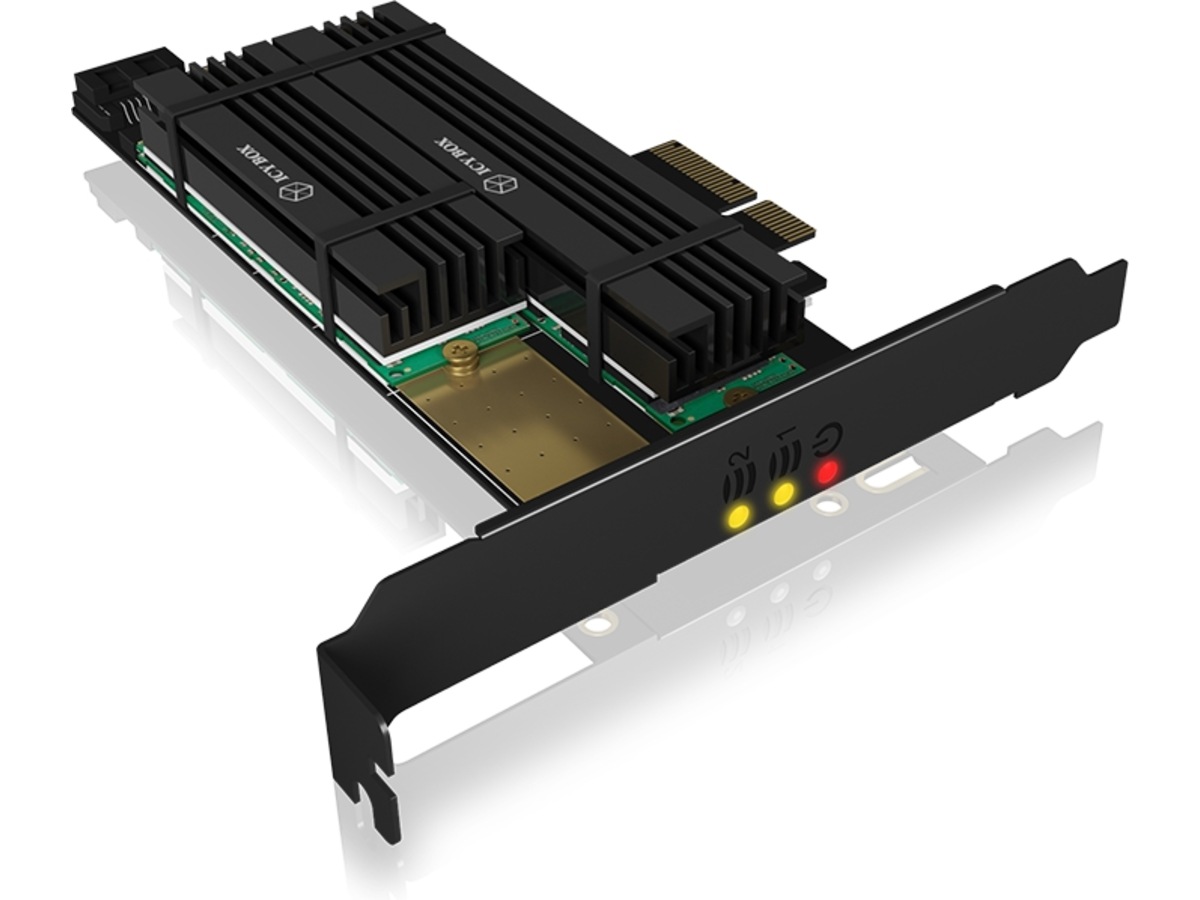

PCIe extension card for 2x M.2 SSDs incl. heat sinks


  • 1x M.2 B-Key for M.2 SATA (AHCI) SSD with B-Key or B+M-Key
  • SATA III data transfer rate up to 6 Gbit/s
  • 1x M.2 M-Key for M.2 PCIe (NVMe) SSD
  • PCIe 3.0 x4 data transfer rate up to 32 Gbit/s
  • Optional profile bracket sizes 80 and 120 mm
  • Supports M.2 SSD sizes of 22x30/42/60/80/110 mm
  • Including heat sinks for each one 2280 and 22110 M.2 SSD

Storage extension à la carte

The PCIe expansion card offer the possibility to easily add all possible types of M.2 SSDs. Whether via SATA or PCIe, AHCI or NVMe. With a free PCIe slot there are no more limits.

M.2 in all shapes and colours

The IB-PCI215M2-HSL allows you to upgrade your system with up to two SSDs of your choice. Whether particularly large or particularly powerful, every M.2 SSD gets a place here and is used in the best possible way.

Many possibilities thanks to high flexibility

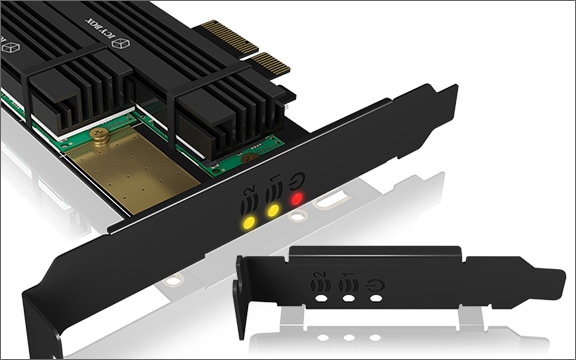

You want to integrate one or two M.2 SSDs into your system, but you have unusual requirements? No problem! Thanks to the modular slot brackets in half and full profile, the IB-PCI215M2-HSL can be used everywhere. Small and large systems can only benefit here.

Keeps a cool head at all times

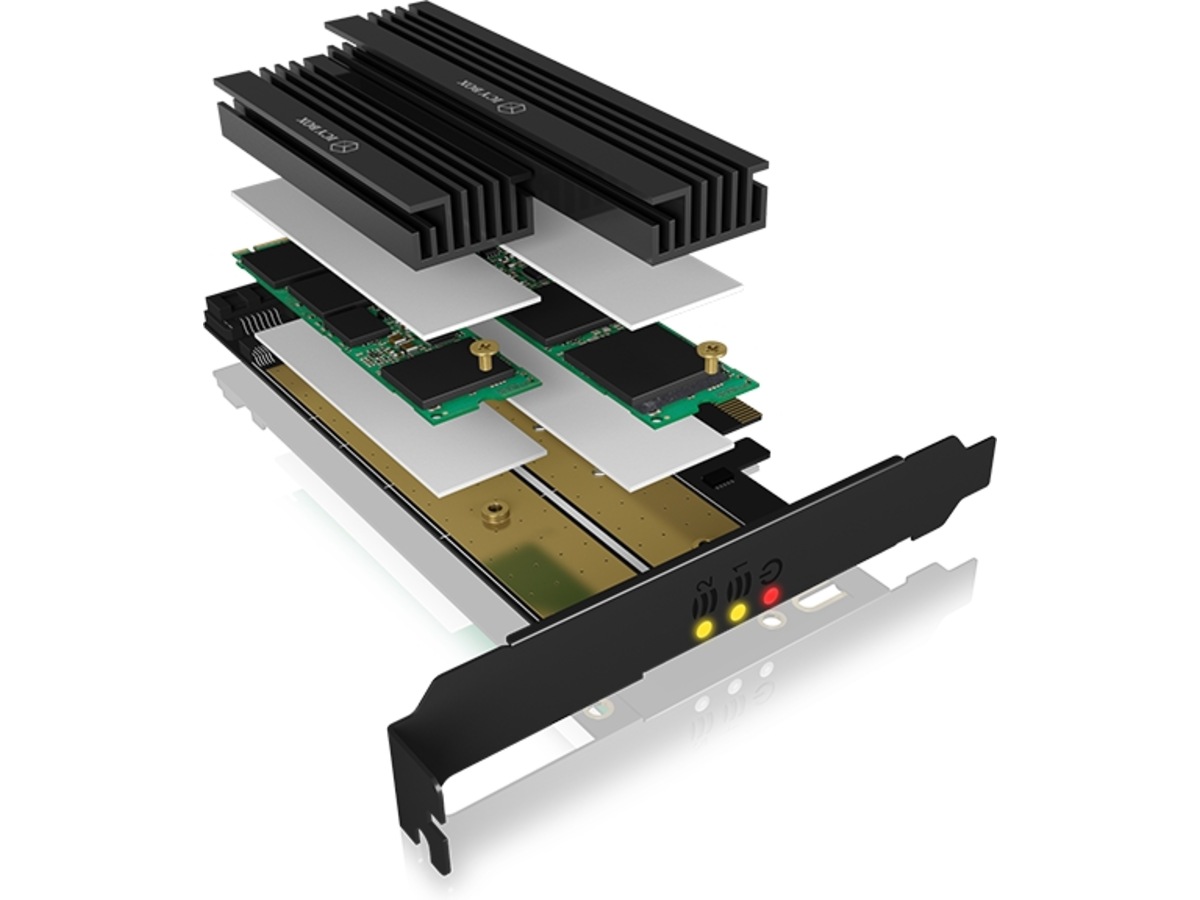

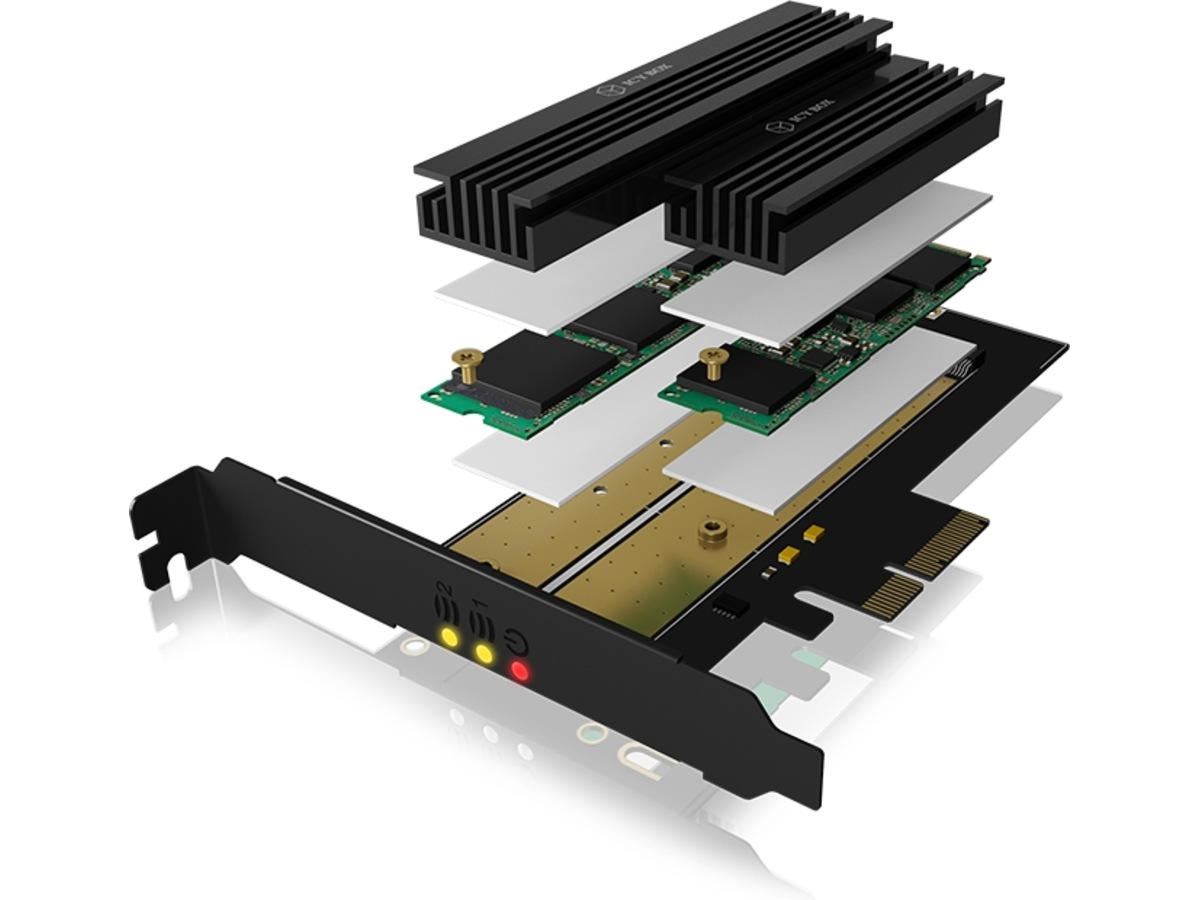

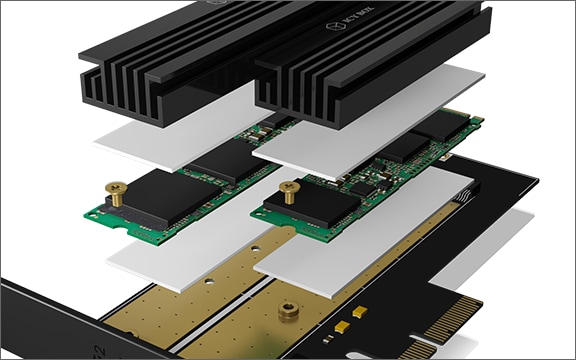

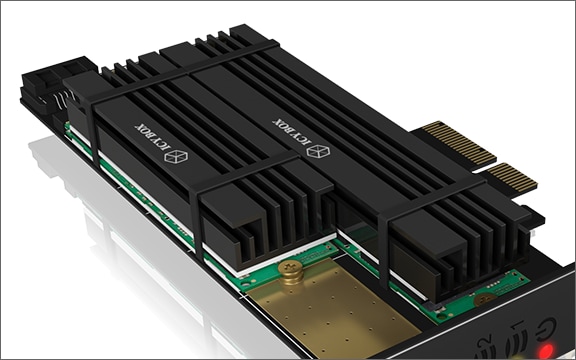

We have also thought about cooling. Thanks to the passive heat sinks supplied, even the fastest memory cards keep a cool head. One heat sink each for 80 mm and one for 110 mm long, as well as adaptable heat conduction pads for single-sided and double-sided memory modules are included in our package.

Producentens garanti (månader) 24
Typ av enhet Gränssnittsadapter - instickskort
Formfaktorkomptibilitet för hårddisk M.2
Värdbuss PCIe 3.0 x4
Produktmaterial Plast, metall
Färg Svart, antracit
EAN 4250078167921
Gränssnitt M.2 Card
Dataöverföringshastighet 32 Gbit/s
Enheter som stöds Halvledarenhet
Max antal enheter 2
Gränssnitt 1 x M.2 Card - M.2 B+M Key (intern)
1 x M.2 Card - M.2 B Key (intern)
Anslutningar 1 x PCIe 3.0 x4
Inkluderade tillbehör Skruvar, halvhögt fäste, hållare för full version, kylfläns, 3 st. värmeledande dynor (70 mm), 3 st. värmeledande dynor (100 mm), 4 st. silikonringar
Egenskaper Lysdiodindikator, passiv kylning
Mått och vikt
Bredd 28 cm
Djup 6.8 cm
Höjd 0.5 cm
Vikt 32 g
Mått och vikt (brutto)
Emballagets bredd 15.5 cm
Emballagets djup 20.5 cm
Emballagets höjd 2.8 cm
Emballagets vikt 253 g
