MSI Creator TRX40, Socket-sTRX4

Moderkort, EATX, TRX40, DDR4, 4x PCIe-x16, 3x M.2, SLI/CFX

Artikelnummer: 1146965 / Tillverkarens artikelnummer: CREATOR TRX40

More pictures from MSI Creator TRX40, Socket-sTRX4

8 599:-
Fri frakt
med ditt lagrade kort
med avgiftsfri faktura Se villkor för faktura
Inte i lager. 2 st. förväntas att skickas 3.maj.2021 (osäkert datum)
Rättningslinjer för produktrecensioner
oc3dtest Product test Product test

MSI Creator TRX40

Digital Power
Highest quality components with 16 phases 70A digital power and power stage make sure your system runs smoothly under the most extreme conditions.

PCIe Steel Armor
Protecting VGA cards against bending and EMI for better performance, stability and strength.

Core Boost Technology
Combining double 8 pin power connectors and premium layout design, the Creator is ready for unleashing the maximum performance.

Latest Wi-Fi 6 Solution
The latest wireless solution supports MU-MIMO and BSS color technology, delivering speeds up to 2400Mbps.

10G Super LAN
Next level network speed, secure networking with fastest data throughput to improve efficiency.

Lightning USB 20G
Powered by ASMedia ASM3242 USB 3.2 Gen2x2 controller, offers the fastest USB speeds with stability.

DDR4 Boost with Steel Armor
The Fully isolated and shielded DIMM slots to deliver pure data signals for the best performance.

Lightning Gen 4 Solution
The Lightning Gen 4 PCI-E and M.2 solution with up to 64GB/s bandwidth for maximum transfer speed.

Offers four extra Lightning Gen 4 M.2 Gen 4 x4 slots and features graphics card level thermal design to increase your storage capacity.

All Aluminum Design
All-metal extended heatsink cover ensures even high-end processors to run in full speed.

M.2 Shield Frozr
Exclusive Dual side M.2 thermal solution. Keeps M.2 SSDs safe while preventing throttling, making them run faster.

Extended Heat-Pipe
Enlarge the surface of heat dissipation, connecting from MOS heatsink to chipset heatsink.

Zero Frozr Technology
AI tuning system that auto-adjust fan speed by chipset temperature, even eliminates fan noise by stopping the fans in low-load situation.

Frozr Heatsink Design
Designed with the patented fan and double ball bearings to provide the best performance for creators and prosumers.

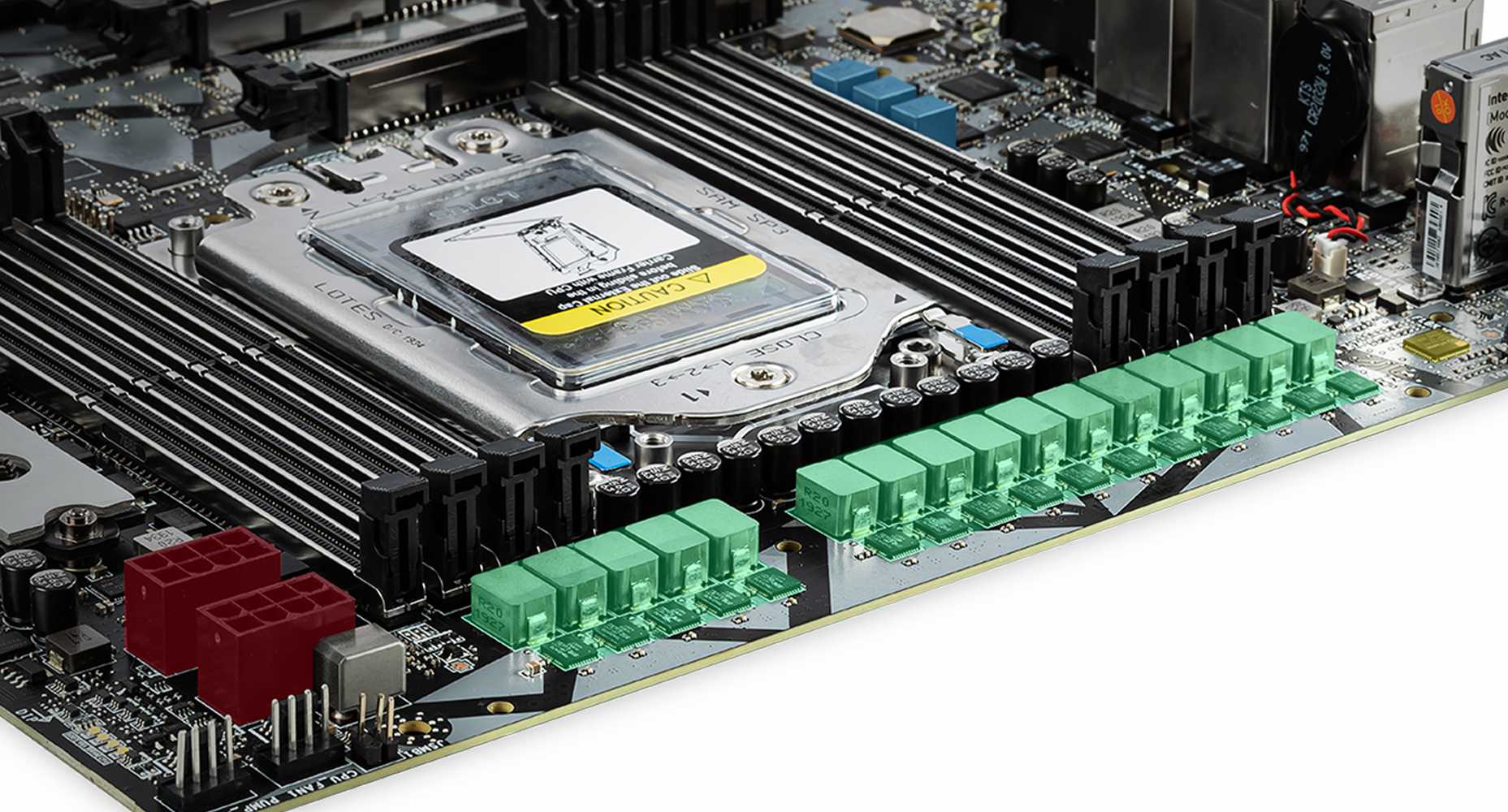

16+3 Phases Digital Power With All Aluminum Design

Providing a stable and reliable condition for designer is the most important thing. Creator TRX40 features incredible direct 16 phases 70A digital power to CPU for the heavy workload. Combining premium PCB design with Extended Heatsink Design to provide your system the best performance stably.

Core Boost

Core Boost technology combines MSI’s premium layout and digital power design which allows for faster and undistorted current delivery to the CPU at pin-point precision. Not only supporting multi-core CPU, but creating the perfect conditions for your CPU overclocking.

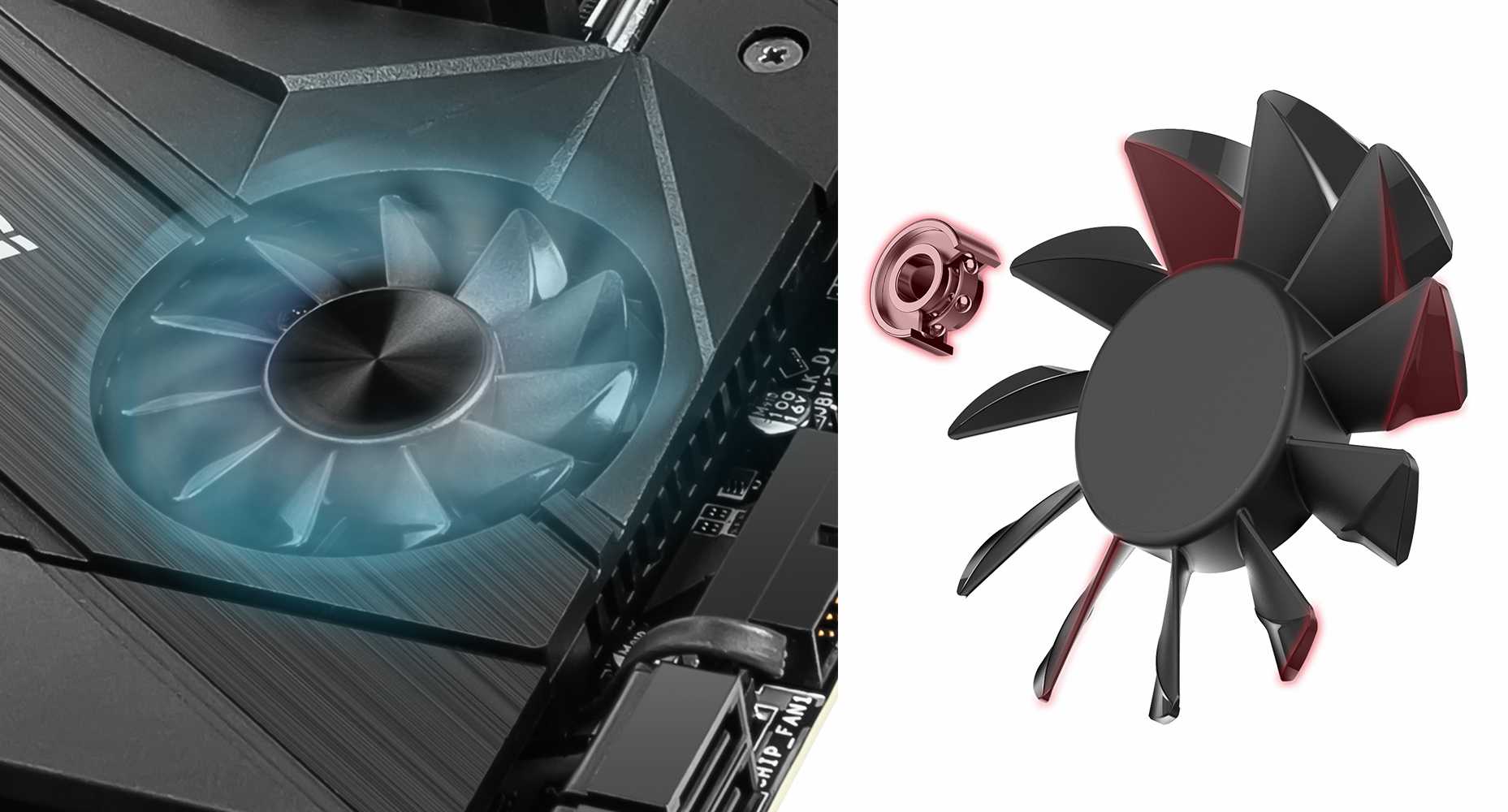

Frozr Heatsink

Higher performance generates more heat, especially for the latest Gen4 bandwidth. MSI motherboards feature the patented fan design to ensure the best performance for content creators and prosumers.
Propeller Blade Technology
Double Ball Bearings
Zero Frozr & Smart Fan Control

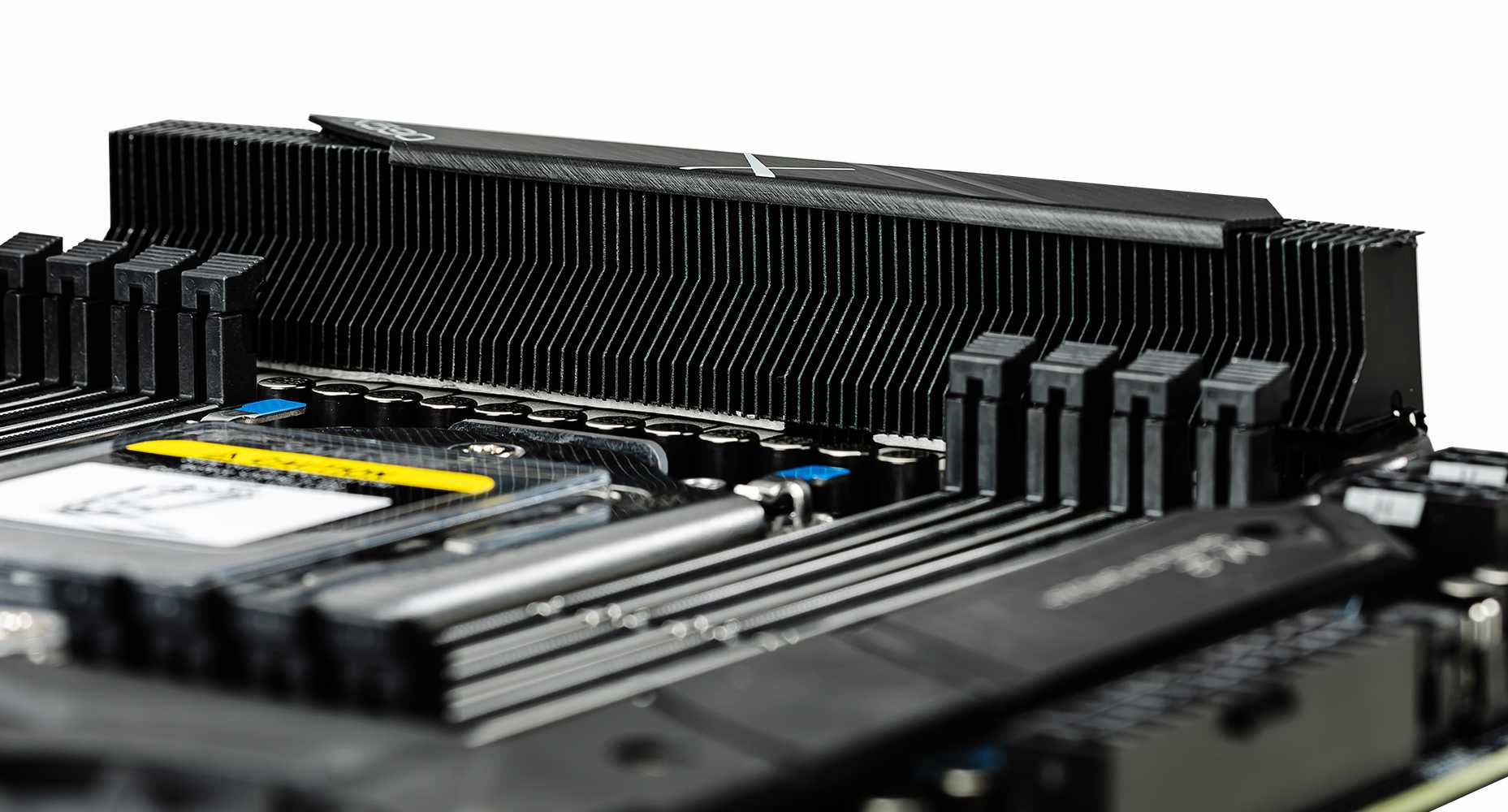

Stacked Fin Array

To maximize the heat dissipation effect, the Stacked Fin Array offers steady aircurrent and enlarge the radiating area. This design increases the heat conducting efficiency.

Producentens garanti (månader) 36
Typ av produkt Moderkort - utökad ATX
Kretstyp AMD TRX40
Processor-socket Socket sTRX4
Maximalt antal processorer 1
Kompatibla processorer Ryzen ThreadRipper (stöder 3:e generationens Ryzen ThreadRipper)
RAM som stöds
Maximal storlek 256 GB
Teknik DDR4
Bussklocka 2400 MHz, 2133 MHz, 2666 MHz, 3466 MHz (O.C.), 3733 MHz (O.C.), 3600 MHz (O.C.), 3866 MHz (O.C.), 4000 MHz (O.C.), 4400 MHz (O.C.), 4266 MHz (O.C.), 4600 MHz (O.C.), 3200 MHz, 4666 MHz (O.C.)
Stöder Ram Integrity Check Icke ECC, ECC
Registrerad eller buffrad Ej buffrad
Egenskaper Fyrdubbel kanalminnesarkitektur, A-XMP support
Typ HD-ljud (8 kanaler)
Audio Codec Realtek ALC1220 / Realtek ALC4050H
Standarder som följs HD-ljud
Nätverksstyrenhet Intel I211-AT / Aquantia AQC107 / Intel AX200
Nätverksgränssnitt Bluetooth, 10 Gigabit Ethernet, Gigabit Ethernet, 802.11a/b/g/n/ac/ax
Expansionskortplatser 1 x CPU
8 x DIMM 288-stift
4 x PCIe 4.0 x16 (x16/x8/x16/x8 mode)
Lagringsgränssnitt SATA-600 -kontakter: 6 x 7 pin seriell ATA - RAID 0 / RAID 1 / RAID 10
SATA-600 / PCIe 4.0 -kontakter: 3 x M.2
Gränssnitt 1 x USB-C Gen2x2
4 x USB 3.2 Gen 1
1 x ljudingång - mini-jack
1 x ljudutgång - mini-jack
1 x mikrofon - mini-jack
1 x ljudutgång (center/subwoofer) - mini-jack
1 x ljudutgång (bakre) - mini-jack
1 x LAN (Gigabit Ethernet)
1 x LAN (10Gigabit Ethernet)
5 x USB 3.2 Gen 2
Interna gränssnitt 4 x USB 2.0 - header
4 x USB 3.2 Gen 1 - header
1 x USB-C Gen2 - header
1 x ljud - header
Strömkontakter 24-pin kontakt för huvudström, 2 x 8-stifts ATX12V-kontakter
BIOS-egenskaper M-Flash, MSI ClickBIOS 5
Hårdvaruegenskaper NVIDIA 3-way SLI Technology Support, AMD 3-way CrossFireX-tekniksupport, OC Genie 4, Clear CMOS-knapp, Debug LED, MSI Mystic Light, MSI Steel Armor, MSI Audio Boost 4, M.2 Shield FROZR, förmonterat I/O-skydd, Nahimic 3 Sound Technology, MSI Core Boost, AMD StoreMI technology, Extended Heatsink Design, Zero Frozr-teknik, AMD Turbo USB 3.2 Gen 2, Secure Erase+, 16 Phase CPU Power Design, Frozr Heatsink Design
Inkluderade tillbehör MSI M.2 XPANDER-AERO GEN4
Medföljande kablar 4 x Seriell ATA-kabel
Bredd 30.4 cm
Djup 27.7 cm
