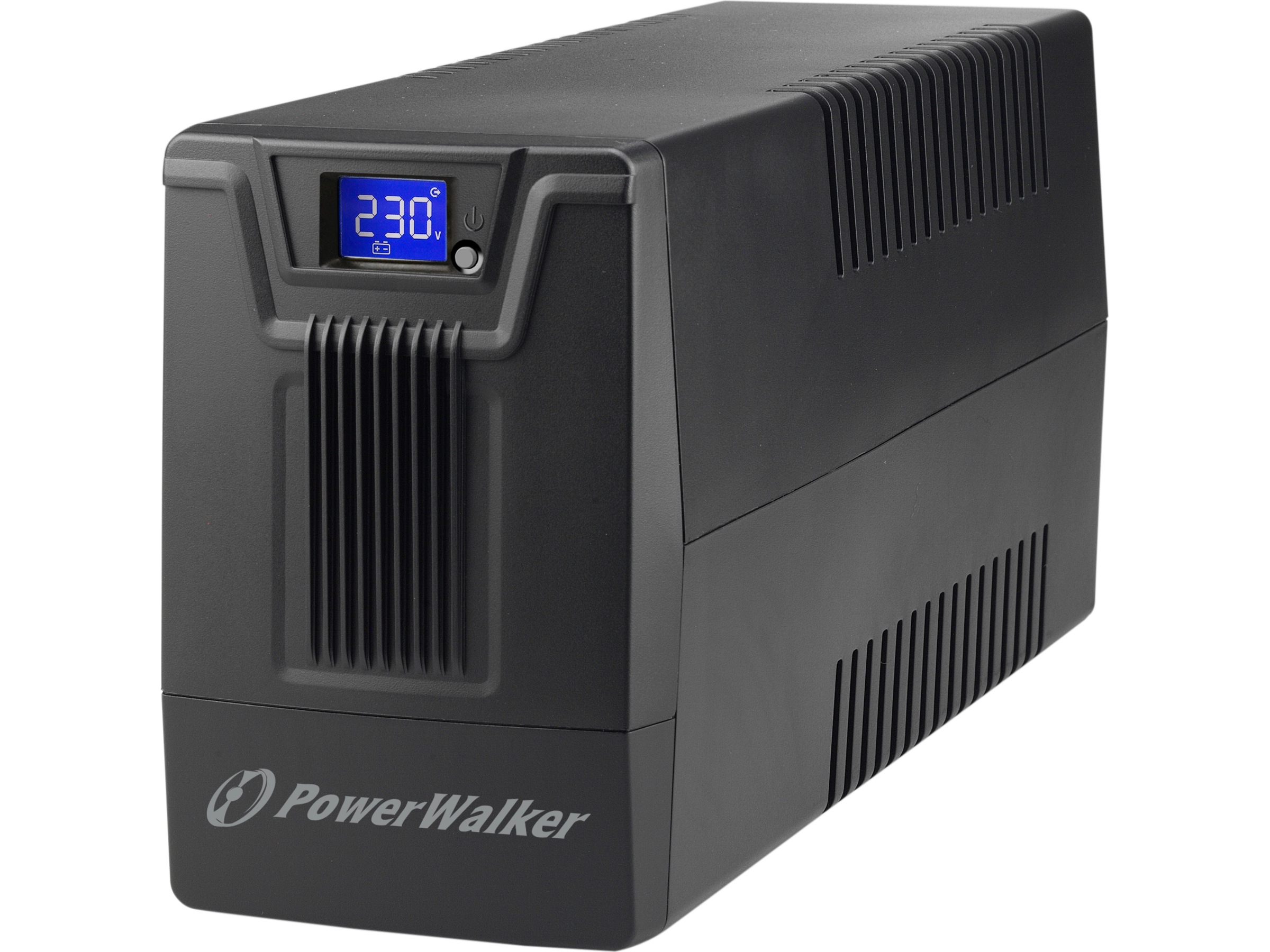

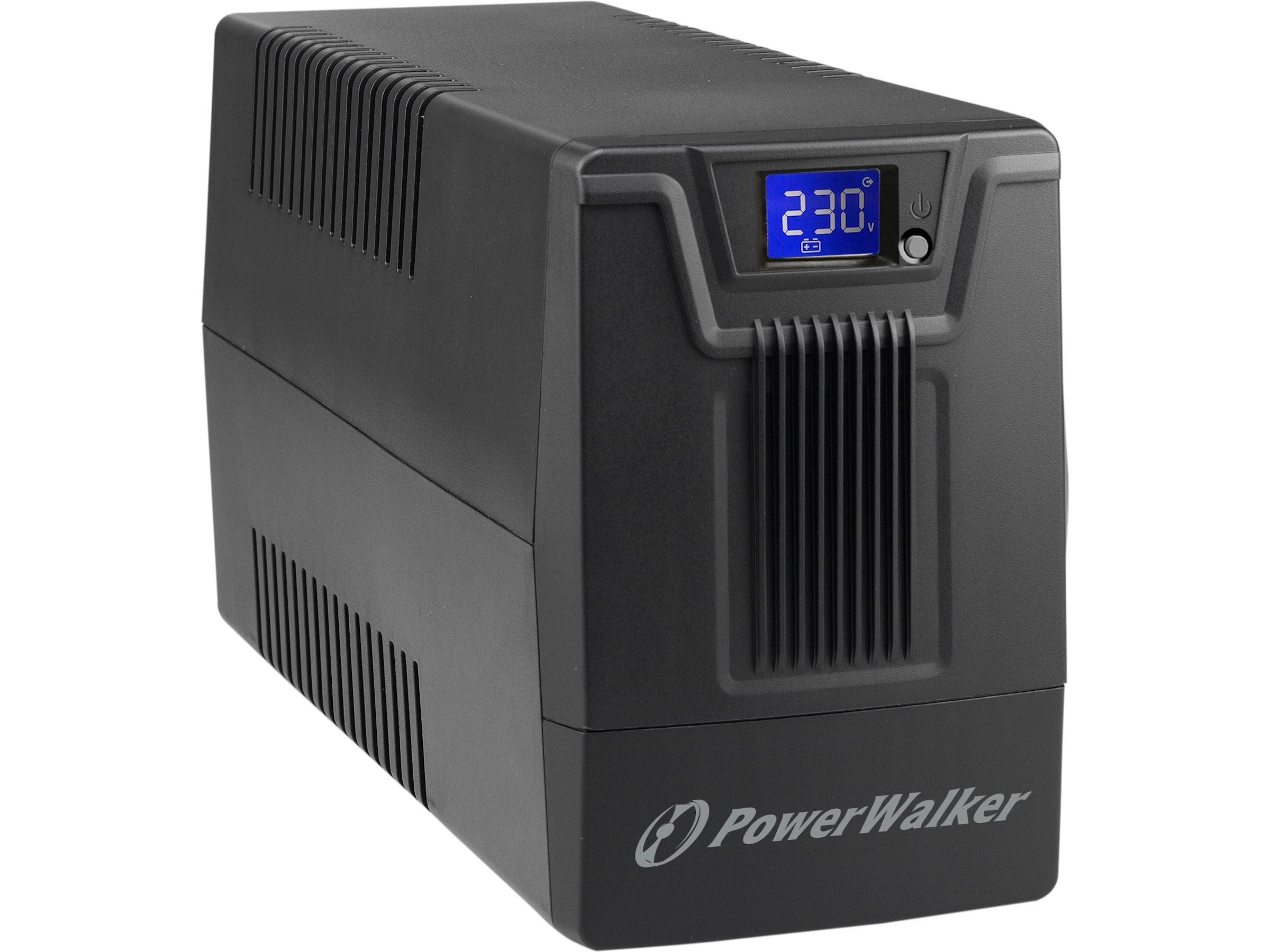

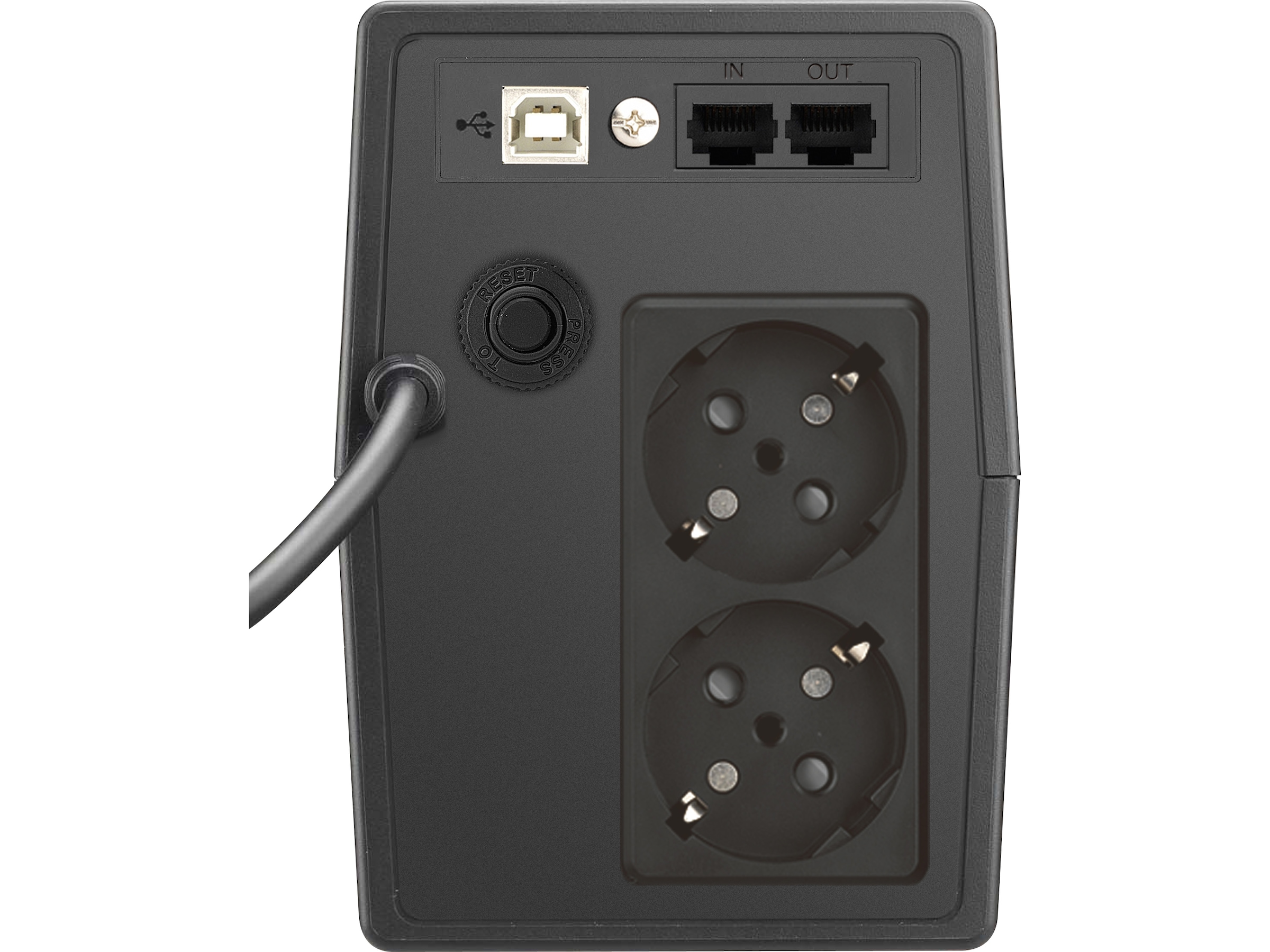

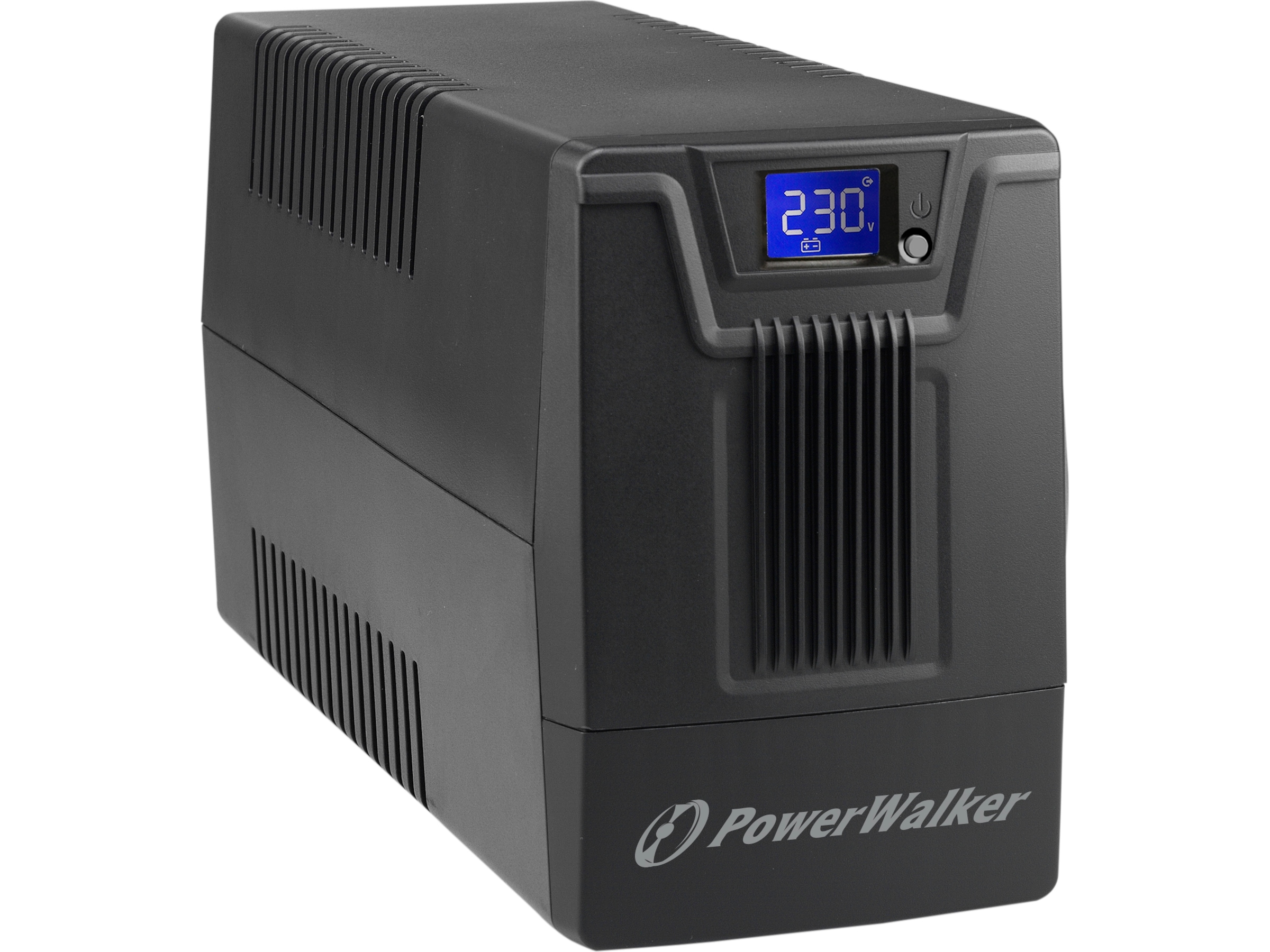

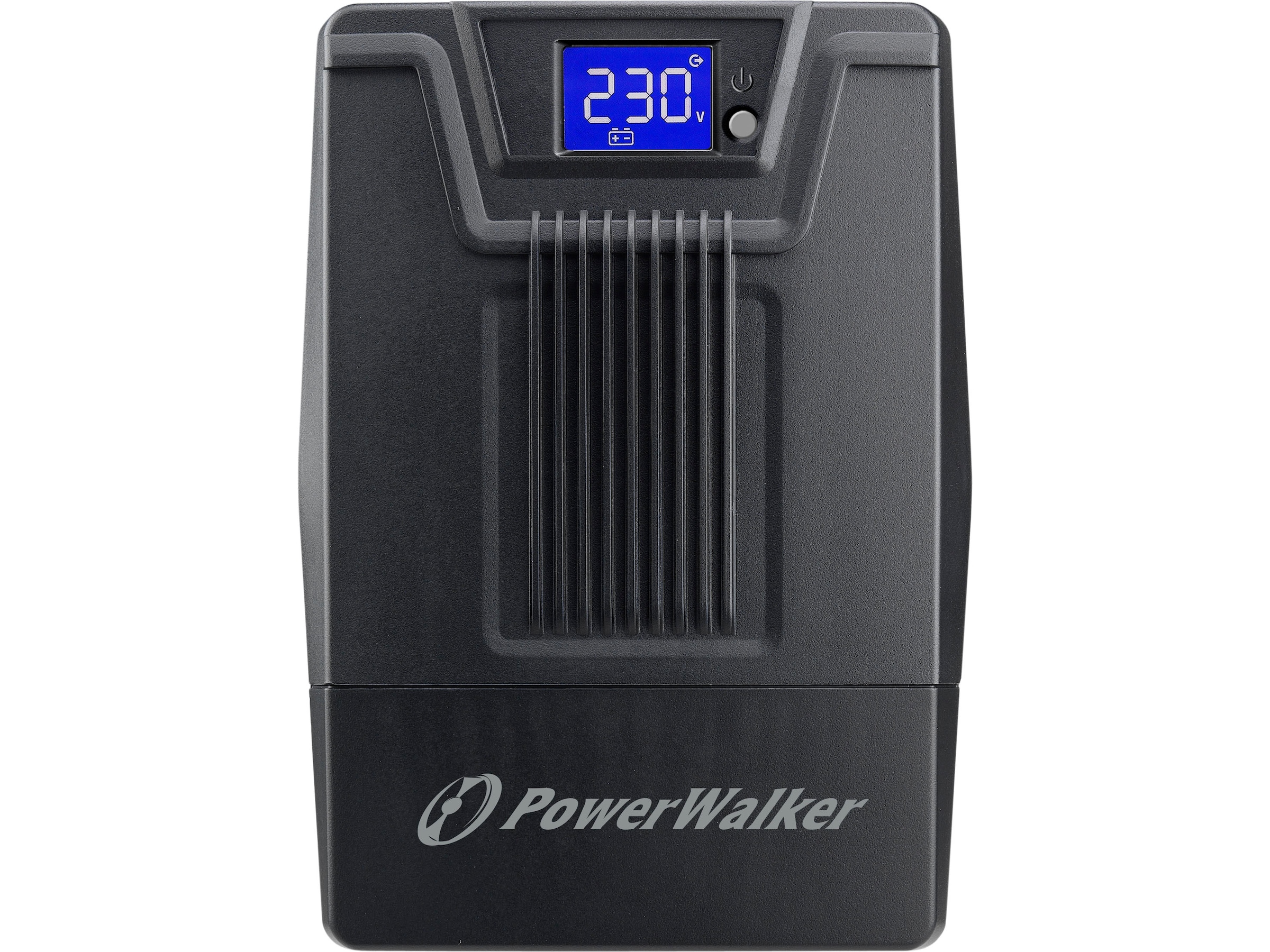

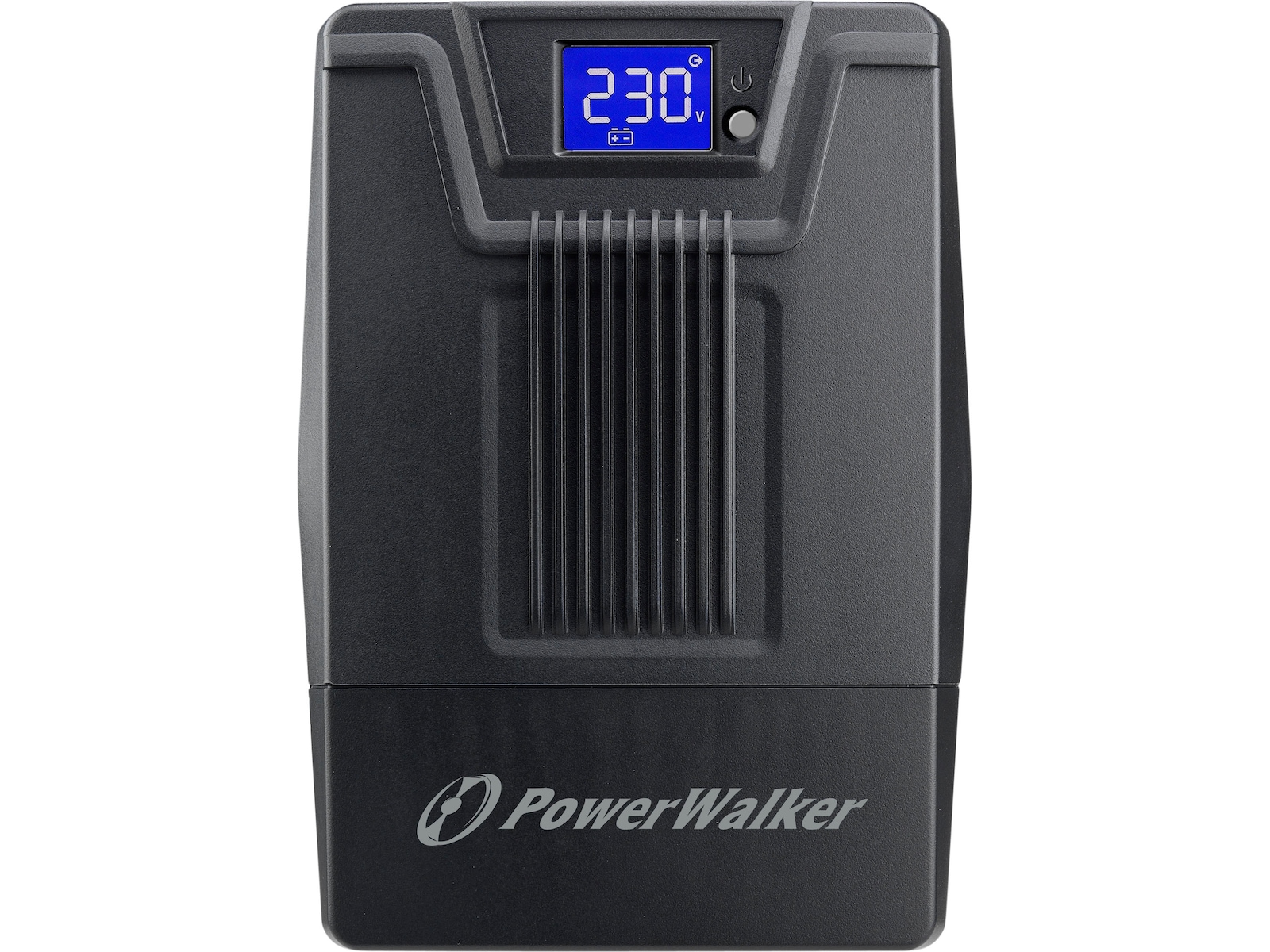

BlueWalker PowerWalker UPS VI 800 SCL
Line Interactive, 800VA 480W, 2x Schuko, Touch Display, HID Driver
Produktinfo
- Human Interface Device (HID) compatible USB connection (no additional drivers needed)
- Comprehensive display allows easy monitoring and access of UPS status
- Reliable and economic line-interactive series
- Compact size and high performance for home usage
- Reduced Environmental Impact: no CD, no USB cable in the box
The PowerWalker VI 600-3000 SCL series offers a simple yet effective solution for PCs and other home applications. It is available with Type F (CEE 7/3), Type E (CEE 7/5) and Type G (BS 1363) outlets and features a microprocessor-controlled Automatic Voltage Regulator, which stabilizes voltage within a safe limit by switching to boost and buck modes. The series offers convenient touch panel which allows to scroll through most useful monitored parameters.
All UPSs in this series can be turned on directly from battery (cold start function) and internal batteries can be charged in standby mode. This model comes with a USB port with HID support and can be monitored and controlled using the PowerWalker ViewPower software (available for download from our website) or directly using O/S' native drivers thanks to HID. To offer the best price-performance and to reduce environmental impact we provide the UPS without Software CD and USB cable.
Tekniska specifikationer
Producentens garanti (månader) | 24 |
---|---|
Typ av enhet | UPS - extern |
UPS-teknik | Interaktiv |
---|---|
Inspänning | Växelström 162 - 290 V |
Erforderlig frekvens | 50/60 Hz |
Inmatningsanslutningar | 1 x ström CEE 7/7 |
Kontaktdetaljer för uteffekt | 2 x ström typ F |
Utspänning | AC 230 V ± 10% |
Effektkapacitet | 480 Watt / 800 VA |
Överspänningsskydd | Nätverk/telefonlinje - RJ-45/RJ-11 - 1 inmatningsrad/1 utmatningsrad |
Utvågform | Sinusvåg |
PF (Power Factor) | 0.6 |
Antal | 1 |
---|---|
Tillförd spänning | 12 V |
Kapacitet | 9 Ah |
Laddningstid | 4 timmar |
Gränssnitt för fjärradministration | USB |
---|
Gränssnitt | 1 x hantering (USB) - 4-stifts USB typ B |
---|
Egenskaper | Automatisk spänningsreglering (AVR), överladdningsskydd, överbelastningsskydd, utan fläkt, urladdningsskydd, HID-stöd (Human Interface Device) |
---|
Medföljande programvara | ViewPower |
---|
Min temperatur vid drift | 0 °C |
---|---|
Max temperatur vid drift | 40 °C |
Luftfuktighet vid drift | 0 - 90 % (icke-kondenserande) |
Ljudnivå | 40 dB |
Bredd | 10.1 cm |
---|---|
Djup | 30 cm |
Höjd | 14.2 cm |
Vikt | 5 kg |
Emballagets bredd | 14 cm |
---|---|
Emballagets djup | 34.4 cm |
Emballagets höjd | 22 cm |
