MSI MPG B550 GAMING CARBON WIFI moderkort
AM4, ATX, B550, DDR4, 2x M.2, PCIe 4.0, WiFi 6
Of
MSI
Artikelnummer:
1161240
/ Tillverkarens artikelnummer:
MPG B550 GAMING CARBON WIFI
4719072731892
Produktinfo
AMD’s B550 chipset enables PCIe 4.0 compatibility for NVMe storage and graphics on mainstream motherboards, giving you confidence that your system won’t go obsolete before its time.
All motherboards with AMD’s 500 Series chipsets are built to support today’s advanced 3rd Gen Ryzen processors based on the ‘Zen 2’ architecture, but that’s not all. You’re also covered with planned support for future Ryzen processors based on the “Zen 3” architecture, so your system can keep you on the cutting edge with future upgrades.
MSI MPG B550 GAMING CARBON WIFI
The MPG series brings out the best in gamers by allowing full expression in color with advanced RGB lighting control and synchronization. Experiment on another level of personalization with a front LED strip that provides convenient in-game and real time notifications. With the MPG series, transform your equipment into the center of attention and top leaderboards in style.

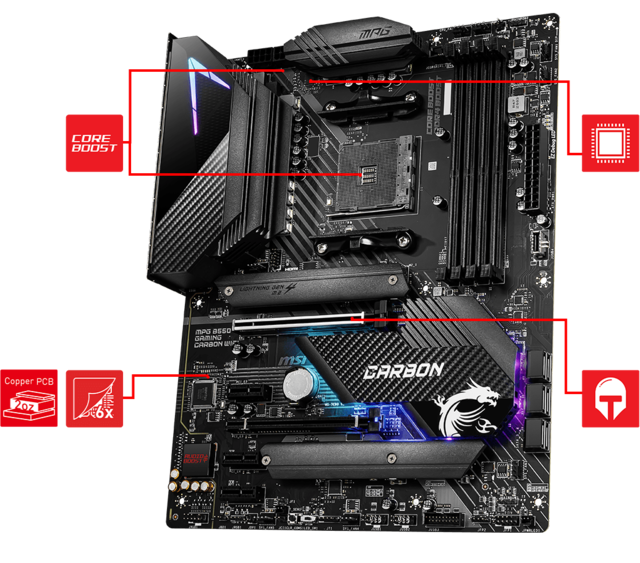

Core Boost Technology
Combining 8+4 pin power connectors and premium layout design, that is ready for unleashing the maximum performance.
6 layer PCB with 2oz Thickened Copper
6 layer PCB with 2oz thickened copper provides higher performance and long-lasting system stability without any compromise.
Digital PWM
Highest quality component digital power IC makes sure your system smoothly under the most extreme conditions.
PCIe Steel Armor
Protecting VGA cards agains bending and EMI for better performance, stability and strength.

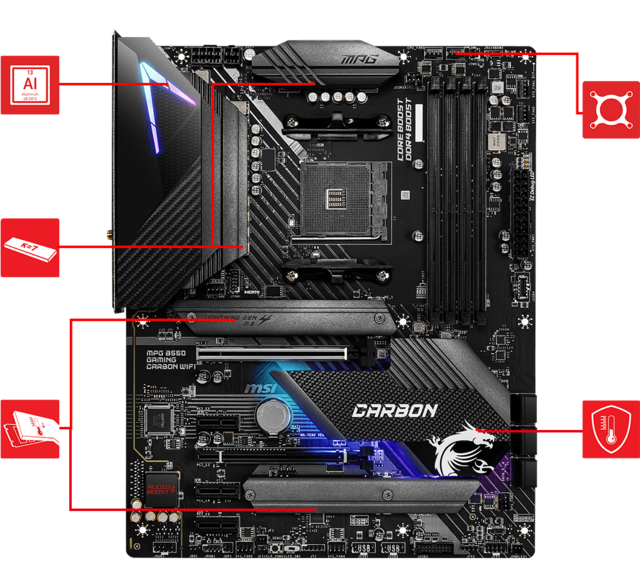

Aluminum Cover
All-metal extended heatsink cover enlarges the surface of heat dissipation, ensuring even high-end processors to run in full speed.
Heatsink with additional 7W/mK Choke Thermal Pad
7W/mK thermal pad provides better heat transfer to the heat.
M.2 Shield Frozr
Strengthened built-in M.2 thermal solution. Keeps M.2 SSDs safe while preventing throttling, making them run faster.
Pump Fan Support
Control watercooling pump speeds for best flow and noise control.
Enlarged Chipset Heatsink
Larger heatsink for chipset ensures better heat dissipation and cooling effects.

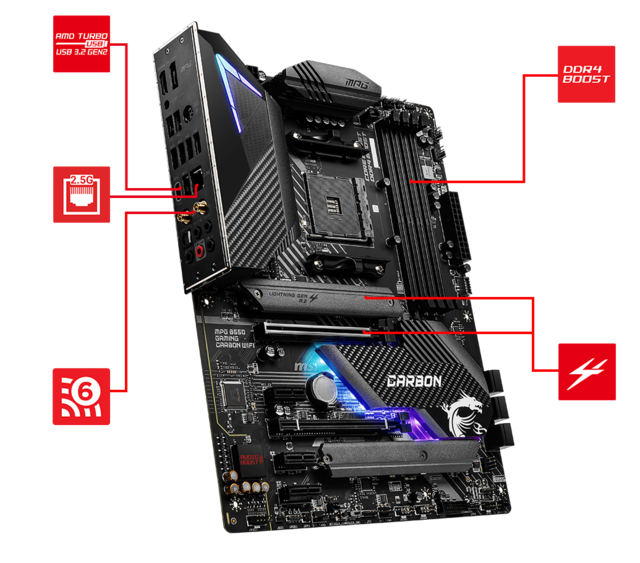

Turbo USB
Featuring the TURBO USB 3.2 Gen 2. 10Gbps with reversible Type-C connector.
2.5G LAN
Featuring 2.5G LAN with LAN manager delivers better network experience.
Intel Wi-Fi 6
The latest wireless solution support MU-MIMO and BSS color technology. Delivering speeds up to 2400Mbps.
DDR4 Boost
The fully isolated DDR circuit to deliver pure data signals for the best gaming and overcklocking performance.
Lightning Gen 4 Solution
The latest Gen 4 PCI-E and M.2 solution with up to 64GB/s bandwidth for maximum transfer speed.
Tekniska specifikationer
| Producentens garanti (månader) | 36 |
|---|---|
| Typ av produkt | Moderkort - ATX |
| Kretstyp | AMD B550 / Nuvoton NCT6687-R |
| Processor-socket | Socket AM4 |
| Maximalt antal processorer | 1 |
| Kompatibla processorer | Ryzen (stöder 3:e generationens Ryzen) |
| Maximal storlek | 128 GB |
|---|---|
| Teknik | DDR4 |
| Bussklocka | 2400 MHz, 1866 MHz, 2133 MHz, 2800 MHz, 3000 MHz, 2666 MHz, 2933 MHz, 3466 MHz (O.C.), 3733 MHz (O.C.), 3600 MHz (O.C.), 3866 MHz (O.C.), 4000 MHz (O.C.), 4133 MHz (O.C.), 4400 MHz (O.C.), 4266 MHz (O.C.), 4600 MHz (O.C.), 4533 MHz (O.C.), 4800 MHz (O.C.), 3200 MHz, 3066 MHz, 4733 MHz (O.C.), 4866 MHz (O.C.), 5000 MHz (O.C.), 5100 MHz (O.C.) |
| Stöder Ram Integrity Check | Icke ECC, ECC (kör i icke-ECC-läge) |
| Registrerad eller buffrad | Ej buffrad |
| Egenskaper | Minnesarkitektur med dubbel kanal, stödda ECC-moduler körs i icke-ECC-läge, A-XMP support |
| Max tilldelad RAM-storlek | 2 GB |
|---|
| Typ | HD-ljud (8 kanaler) |
|---|---|
| Audio Codec | Realtek ALC1200 |
| Standarder som följs | HD-ljud |
| Nätverksstyrenhet | Realtek RTL8125B / Intel AX200 |
|---|---|
| Nätverksgränssnitt | 2.5 Gigabit Ethernet, 802.11a/b/g/n/ac/ax, Bluetooth 5.1 |
| Expansionskortplatser | 1 x CPU 4 x DIMM 288-stift 1 x PCIe 4.0 x16 1 x PCIe 3.0 x16 (x4-läge (automatisk avstängning om M.2 är upptagen)) 3 x PCIe 3.0 x1 |
|---|---|
| Lagringsgränssnitt | SATA-600 -kontakter: 6 x 7 pin seriell ATA - RAID 0 / RAID 1 / RAID 10 SATA-600 / PCIe 4.0 -kontakter: 1 x M.2 - RAID 0 / RAID 1 PCIe 3.0 -kontakter: 1 x M.2 - RAID 0 / RAID 1 |
| Gränssnitt | 1 x LAN (2.5Gigabit Ethernet) 1 x ljudingång - mini-jack 1 x ljudutgång - mini-jack 1 x mikrofon - mini-jack 1 x TOSLINK 2 x USB 3.2 Gen 1 1 x USB 3.2 Gen 2 1 x ljudutgång (center/subwoofer) - mini-jack 1 x ljudutgång (bakre) - mini-jack 1 x USB-C Gen2 1 x PS/2-tangentbord/mus 4 x USB 2.0 1 x HDMI 1 x DisplayPort |
| Interna gränssnitt | 4 x USB 2.0 - header 2 x USB 3.2 Gen 1 - header 1 x USB-C Gen 1 - header 1 x ljud - header |
| Strömkontakter | 4-pin ATX12V-kontakt, 24-pin kontakt för huvudström, 8-pin ATX12V-kontakt |
| Hårdvaruövervakning | CPU kärntemperatur, chassistemperatur, varvräknare för CPU-fläkt, varvräknare för chassifläkt |
|---|---|
| Hårdvaruegenskaper | AMD CrossFireX-tekniksupport, MSI Audio Boost, Debug LED, 6 Layer PCB, MSI Mystic Light, MSI Steel Armor, Game Boost, Dubbelt ESD-skydd, 2oz Copper PCB, M.2 Shield FROZR, förmonterat I/O-skydd, MSI Core Boost, MSI PCIe Steel Slot, 12+2+1 Phase Power Design |
| Inkluderade tillbehör | Fodralemblem, termistorkabel, Rainbow RGB LED-förlängningskabel |
|---|---|
| Medföljande kablar | 2 x Seriell ATA-kabel |
| Medföljande programvara | Drivrutiner och hjälpprogram |
| Bredd | 30.4 cm |
| Djup | 24.4 cm |
