MSI MAG B550 TOMAHAWK moderkort

AM4, ATX, B550, DDR4, 2x M.2, PCIe 4.0

Artikelnummer: 1161252 / Tillverkarens artikelnummer: MAG B550 TOMAHAWK

More pictures from MSI MAG B550 TOMAHAWK moderkort

2 099:-
Fri frakt
eller
med ditt lagrade kort
med avgiftsfri faktura Se villkor för faktura
Inte i lager. 40 st. redo att skickas den 5.aug.2020
60 dagar öppet köp & fri retur
Fri frakt över 500 kr
Rättningslinjer för produktrecensioner
oc3dtest Vortez approved Kitguru test

AMD’s B550 chipset enables PCIe 4.0 compatibility for NVMe storage and graphics on mainstream motherboards, giving you confidence that your system won’t go obsolete before its time.

All motherboards with AMD’s 500 Series chipsets are built to support today’s advanced 3rd Gen Ryzen processors based on the ‘Zen 2’ architecture, but that’s not all. You’re also covered with planned support for future Ryzen processors based on the “Zen 3” architecture, so your system can keep you on the cutting edge with future upgrades.

B550

MSI MAG B550M MORTAR WIFI

The MAG series was born through rigorous quality testing and designed to be a symbol of sturdiness and durability. Focused on providing the best user experience, the MAG series has a simple installation process coupled with a friendly user interface making it the best choice for entry level gamers.

B550

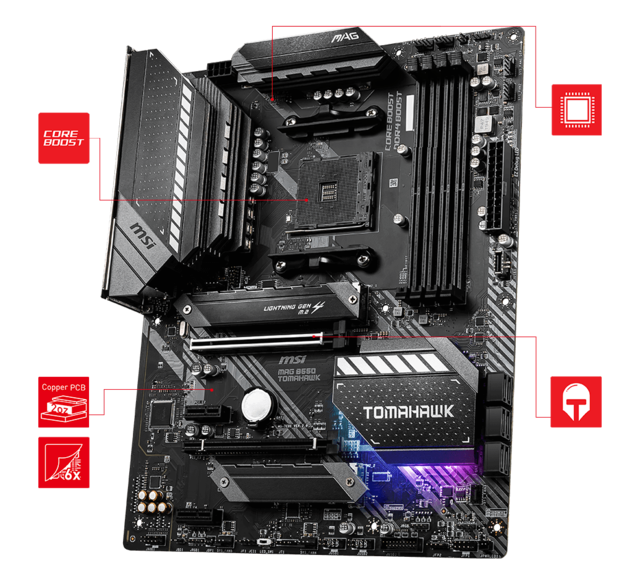

Core Boost Technology

With premium layout design, that is ready for unleashing the maximum performance.

6 layer PCB with 2oz Thickened Copper

6 layer PCB with 2oz thickened copper provides higher performance and long-lasting system stability without any compromise.

Digital PWM

Highest quality component digital power IC makes sure your system smoothly under the most extreme conditions.

PCIe Steel Armor

Protecting VGA cards agains bending and EMI for better performance, stability and strength.

Extended Heatsink

MSI extended heatsink and enhanced circuit design ensures even high-end processors to run in full speen

M.2 Shield Frozr

Strengthened built-in M.2 thermal solution. Keeps M.2 SSDs safe while preventing throttling, making them run faster.

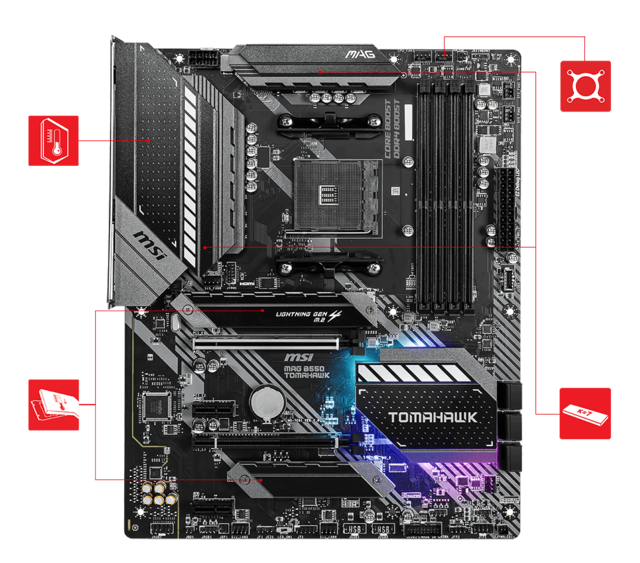

Pump Fan Support

Control watercooling pump speeds for best flow and noise control.

Heatsinks with 7W/mK Thermal Pad

7W/mK thermal pad provides better heat transfer to the heatsink.

2.5G LAN

Featuring 2.5G LAN with LAN manager delivers better network experience.

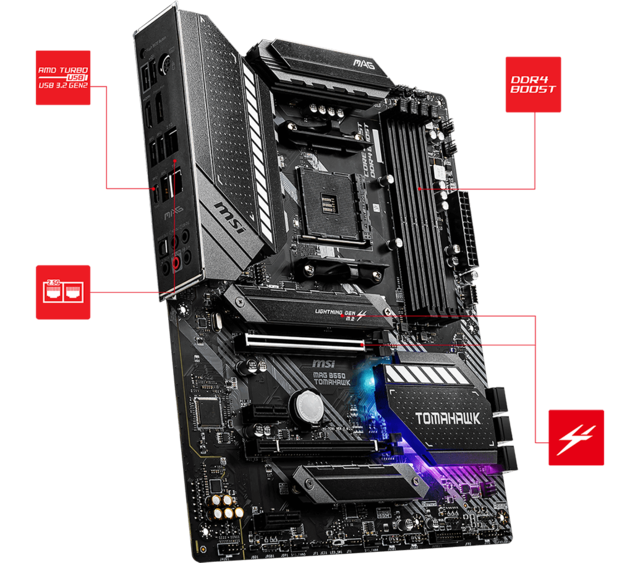

Turbo USB

Featuring the Turbo USB 3.2 Gen 2 10Gbps with reversible Type-C connector.

DDR4 Boost

The fully isolated DDR circuit to deliver pure data signals for the best gaming and overcklocking performance.

Lightning Gen 4 Solution

The latest Gen 4 PCI-E and M.2 solution with up to 64GB/s bandwidth for maximum transfer speed.

Allmänt
Producentens garanti (månader) 36
Typ av produkt Moderkort - ATX
Kretstyp AMD B550
Processor-socket Socket AM4
Maximalt antal processorer 1
Kompatibla processorer Ryzen (stöder 3:e generationens Ryzen och nya generationens Ryzen med Radeon Graphics)
RAM som stöds
Maximal storlek 128 GB
Teknik DDR4
Bussklocka 2400 MHz, 1866 MHz, 2133 MHz, 2800 MHz, 3000 MHz, 2666 MHz, 2933 MHz, 3466 MHz (O.C.), 3733 MHz (O.C.), 3600 MHz (O.C.), 3866 MHz (O.C.), 4000 MHz (O.C.), 4133 MHz (O.C.), 4400 MHz (O.C.), 4266 MHz (O.C.), 4600 MHz (O.C.), 4533 MHz (O.C.), 4800 MHz (O.C.), 3200 MHz, 3066 MHz, 4733 MHz (O.C.), 4866 MHz (O.C.), 5000 MHz (O.C.), 5100 MHz (O.C.)
Stöder Ram Integrity Check Icke ECC, ECC (kör i icke-ECC-läge)
Registrerad eller buffrad Ej buffrad
Egenskaper Minnesarkitektur med dubbel kanal, stödda ECC-moduler körs i icke-ECC-läge, A-XMP support
Ljud
Typ HD-ljud (8 kanaler)
Audio Codec Realtek ALC1200
Standarder som följs HD-ljud
LAN
Nätverksstyrenhet Realtek RTL8125B / RTL8111H
Nätverksgränssnitt Gigabit Ethernet, 2.5 Gigabit Ethernet
Expansion/Anslutning
Expansionskortplatser 1 x CPU
4 x DIMM 288-stift
1 x PCIe 4.0 x16
1 x PCIe 3.0 x16 (x4-läge)
2 x PCIe 3.0 x1
Lagringsgränssnitt SATA-600 -kontakter: 6 x 7 pin seriell ATA - RAID 0 / RAID 1 / RAID 10
SATA-600 / PCIe 4.0 -kontakter: 1 x M.2 - RAID 0 / RAID 1
PCIe 3.0 -kontakter: 1 x M.2 - RAID 0 / RAID 1
Gränssnitt 1 x LAN (Gigabit Ethernet)
1 x ljudingång - mini-jack
1 x ljudutgång - mini-jack
1 x mikrofon - mini-jack
1 x TOSLINK
2 x USB 3.2 Gen 1
1 x USB 3.2 Gen 2
1 x ljudutgång (center/subwoofer) - mini-jack
1 x ljudutgång (bakre) - mini-jack
1 x USB-C Gen2
1 x PS/2-tangentbord/mus
2 x USB 2.0
1 x HDMI
1 x DisplayPort
1 x LAN (2.5Gigabit Ethernet)
Interna gränssnitt 4 x USB 2.0 - header
2 x USB 3.2 Gen 1 - header
1 x USB-C Gen 1 - header
1 x ljud - header
Strömkontakter 24-pin kontakt för huvudström, 8-pin ATX12V-kontakt
Egenskaper
Hårdvaruegenskaper AMD CrossFireX-tekniksupport, MSI Audio Boost, MSI Mystic Light, M.2 Shield FROZR, förmonterat I/O-skydd, MSI Core Boost, MSI PCIe Steel Slot, 10+2+1 faskraftsdesign
Diverse
Inkluderade tillbehör Fodralemblem
Medföljande kablar 2 x Seriell ATA-kabel
Medföljande programvara Drivrutiner och hjälpprogram
Bredd 30.5 cm
Djup 24.4 cm
