ASUS ROG STRIX Z690-F GAMING WIFI Moderkort

LGA 1700, ATX, DDR5, 1 x PCIe 5.0 x16, 4x m.2, 7xUSB 3.2, WIFI 6E, BT

Of ASUS
Artikelnummer: 1198161 / Tillverkarens artikelnummer: 90MB18M0-M0EAY0

Highlights

  • LGA 1700 för 12:e generationens Intel CPU!
  • Stöd för PCIe 5.0 och DDR5
  • WiFi 6 och Intel 2.5G Ethernet
  • Fyra M.2-spår!

More pictures from ASUS ROG STRIX Z690-F GAMING WIFI Moderkort

(10)
Se alla produkter från ASUS
4 299:-
Fri frakt
Köp nu - betala om 3 månader!
Delbetala från 208:- per mån se priser
23 st i lager (1-3 dagar leveranstid)

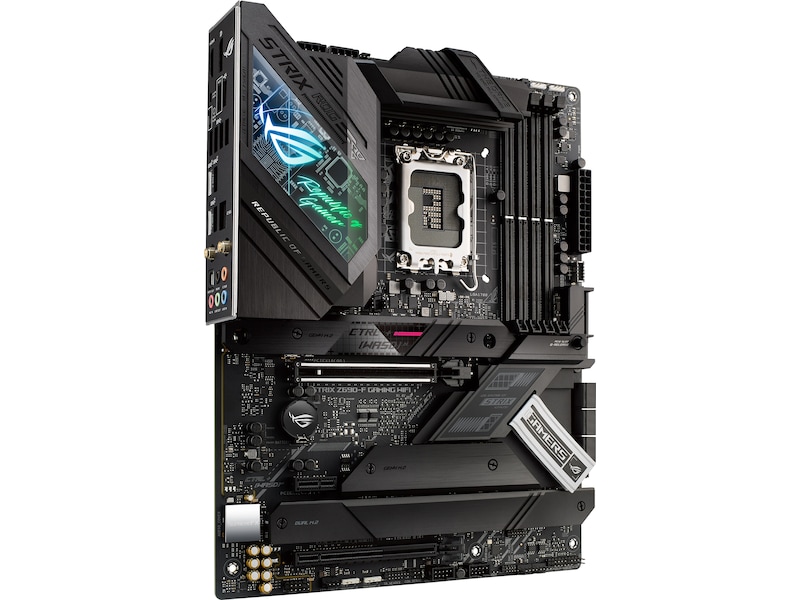

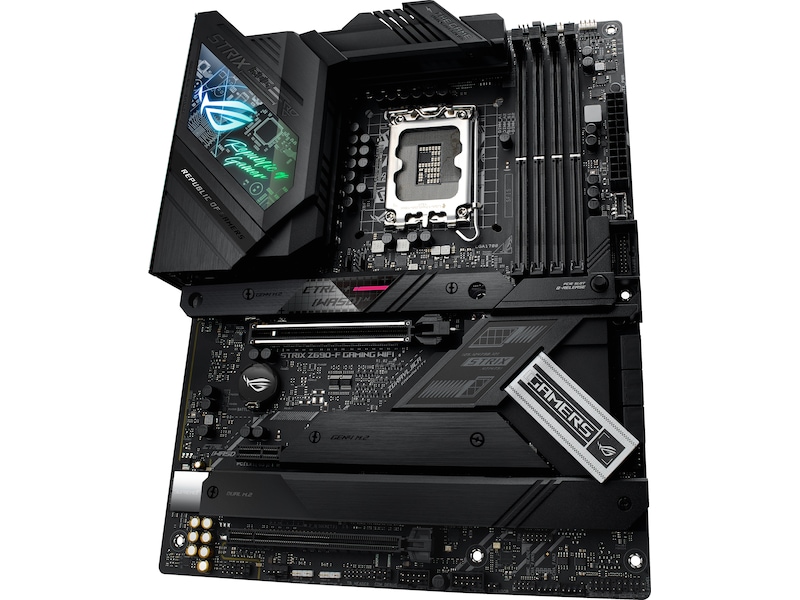

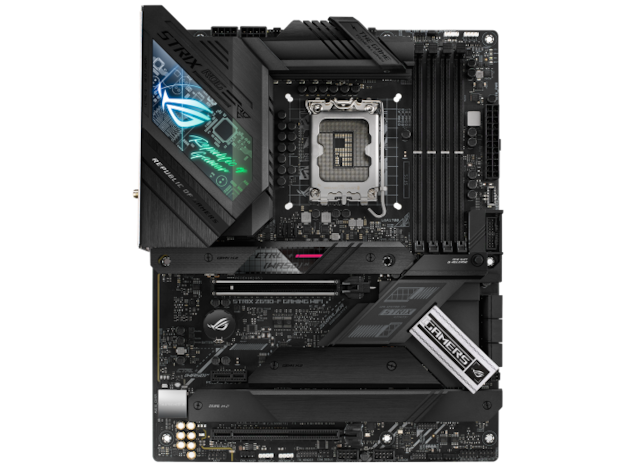

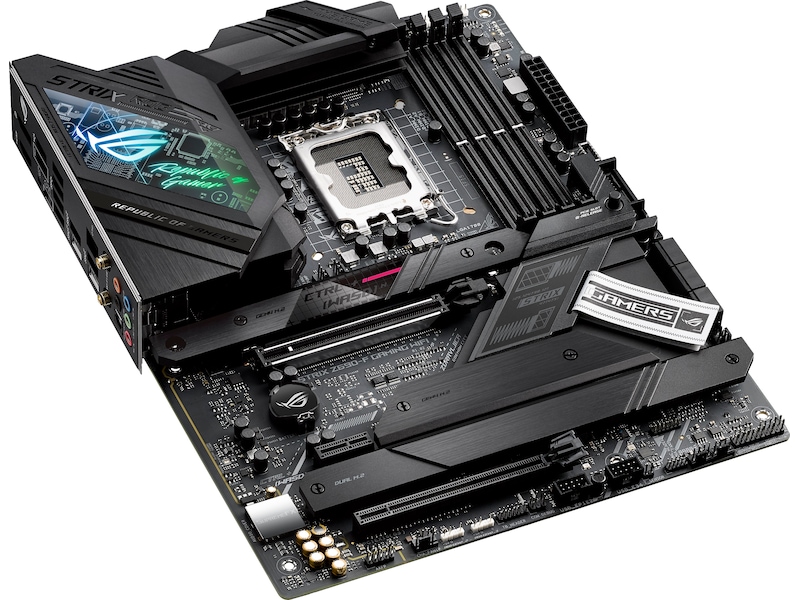

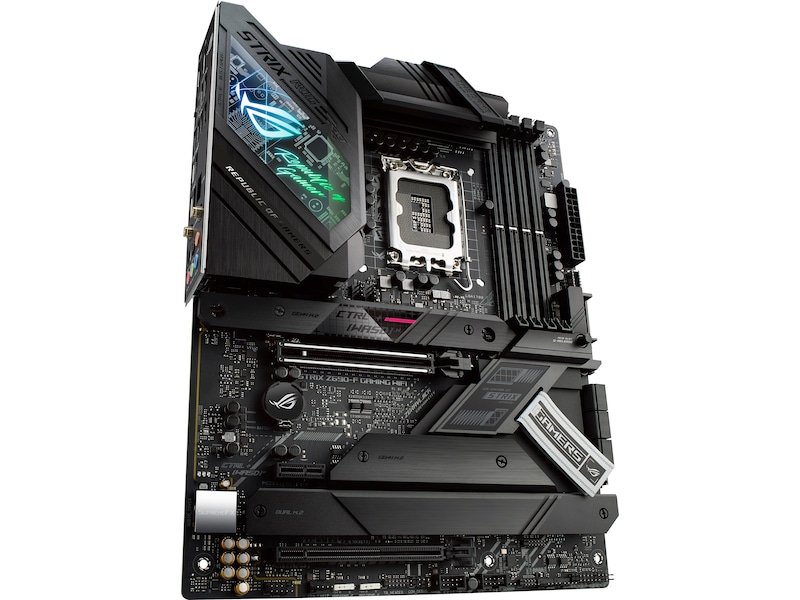

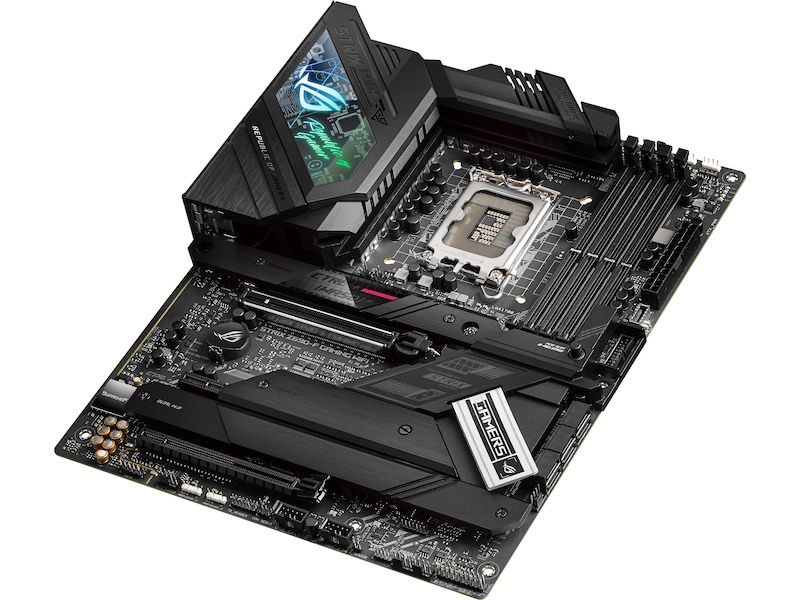

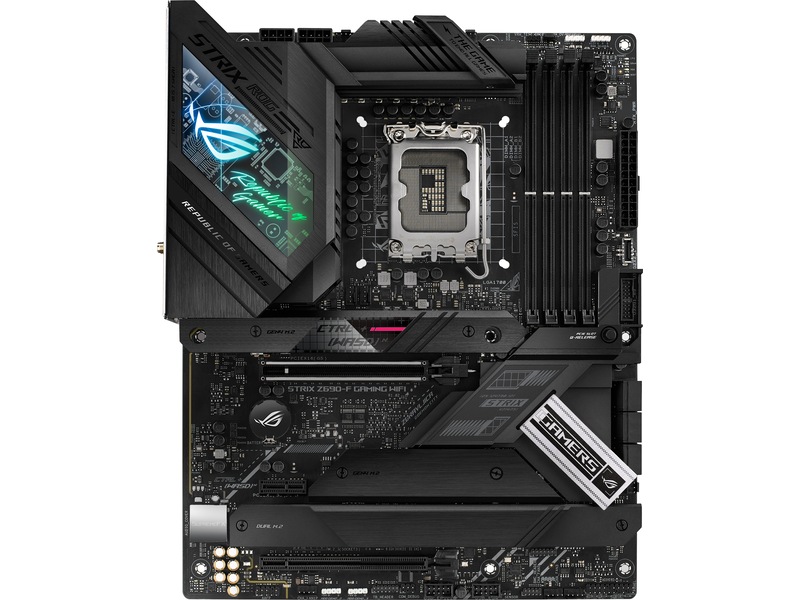

ASUS ROG STRIX Z690-F GAMING WIFI, LGA1700 Motherboard

ROG STRIX Z690-F GAMING WIFI
ROG Strix Z690-F Gaming WiFi offers premium-grade power delivery and cooling to unleash the full force of 12th Gen Intel® Core™ processors. Framerates and load times can be boosted even further by all-new support for DDR5 memory and PCIe® 5.0 video cards. Plus, ASUS-exclusive intelligent controls help optimize PC settings, while onboard WiFi 6E can bring lightning-fast data transfers to an endless variety of scenarios. On top of all that, DIY-friendly innovations help simplify the PC building process to get to you up and running smoothly.

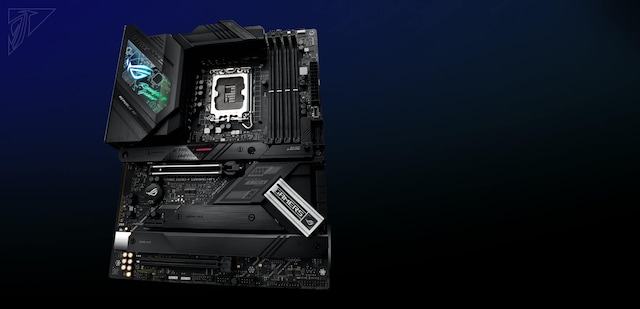

ALL-AROUND PERFORMANCE - ROG Strix Z690-F Gaming WiFi is armed with all the essentials you need to create a gaming PC with top-tier performance. Heavy-duty power delivery and optimized cooling provide the weapons you need to push any gaming build to its limits. Intelligent controls enable easy management of overclocking, cooling and networking settings. And Two-Way AI Noise Cancelation helps ensure crystal-clear in-game communication.

• Ready for 12th Gen Intel® Core™, Pentium® Gold and Celeron® processors
• Optimal Power Solution: 16+1 power stages with 8+8 ProCool II power connectors, high-quality alloy chokes and durable capacitors to support multi-core processors
• Optimized Thermal Design: Integrated I/O cover and VRM heatsinks with high conductivity thermal pad, L-shaped heatpipe, four onboard M.2 heatsinks and M.2 backplate for the M.2_1 slot
• High-performance Networking: On-board Intel® WiFi 6E (802.11ax) and Intel® 2.5 Gb Ethernet with ASUS LANGuard
• Best Gaming Connectivity: Supports HDMI® 2.1 and DisplayPort™ 1.4 output, four M.2 slots, as well as USB 3.2 Gen 2x2 Type-C®
• Intelligent Control: ASUS-exclusive AI Overclocking, AI Cooling, AI Networking and Two-Way AI Noise Cancelation to simplify setup and improve performance
• DIY Friendly Design: PCIe® Slot Q-Release, M.2 Q-Latch, ROG Reusable Cable Organizer, pre-mounted I/O shield, BIOS FlashBack™ button, and Clr CMOS button
• Unmatched Personalization: ASUS-exclusive Aura Sync RGB lighting, including an RGB header and three addressable Gen 2 headers
• Industry-leading Gaming Audio: ALC4080 with Savitech SV3H712 amplifier, along with DTS® Sound Unbound and Sonic Studio III
• Renowned Software: Bundled AIDA64 Extreme 60 days free trial version and intuitive UEFI BIOS dashboard with integrated MemTest86

Allmänt
Producentens garanti (månader) 36
Typ av produkt Moderkort - ATX
Kretstyp Intel Z690
Processor-socket LGA1700-uttag
Maximalt antal processorer 1
EAN 4711081441762
RAM som stöds
Maximal storlek 128 GB
Teknik DDR5
Bussklocka 5000 MHz (O.C.), 5200 MHz (O.C.), 5400 MHz (O.C.), 5600 MHz (O.C.), 5800 MHz (O.C.), 6000 MHz (O.C.), 4800 MHz, 6200 MHz (O.C.), 6400 MHz (O.C.)
Stöder Ram Integrity Check Icke ECC
Registrerad eller buffrad Ej buffrad
Egenskaper Minnesarkitektur med dubbel kanal
Ljud
Typ HD-ljud (8 kanaler)
Audio Codec SupremeFX (ALC4080)
Standarder som följs HD-ljud, DTS Sound Unbound
LAN
Nätverksgränssnitt 2.5 Gigabit Ethernet, Bluetooth 5.2, 802.11a/b/g/n/ac/ax/az
Expansion/Anslutning
Expansionskortplatser 1 x CPU
4 x DIMM 288-stift
1 x PCIe 5.0 x16
1 x PCIe 3.0 x16 (x4-läge)
1 x PCIe 3.0 x1
Lagringsgränssnitt SATA-600 -kontakter: 6 x 7 pin seriell ATA - RAID 0 / RAID 1 / RAID 10 / RAID 5
PCIe 4.0 -kontakter: 3 x M.2 - RAID 0 / RAID 1 / RAID 5
SATA-600 / PCIe 4.0 -kontakter: 1 x M.2 - RAID 0 / RAID 1 / RAID 5
RAID-egenskaper Intel Rapid Storage Technology

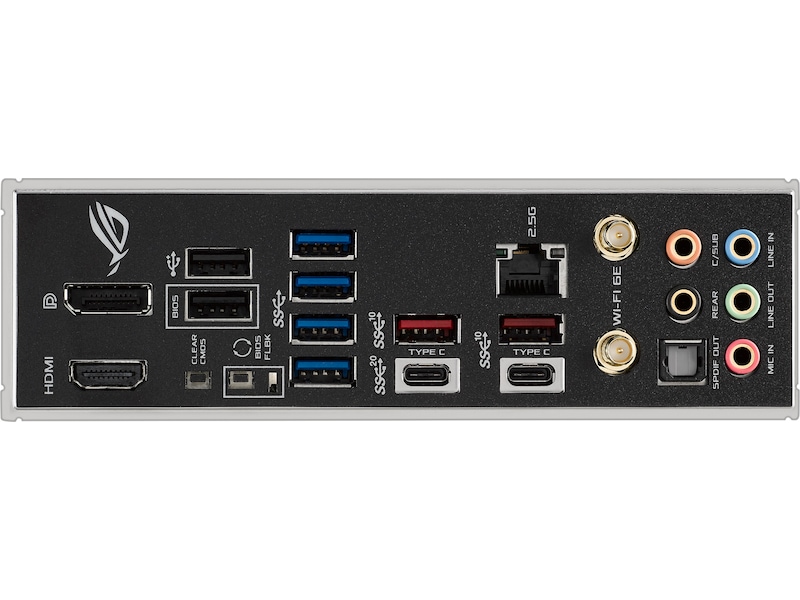

Gränssnitt 1 x DisplayPort
1 x HDMI
1 x USB-C Gen2x2
2 x USB 3.2 Gen 2
1 x USB-C Gen2
1 x ljudingång - mini-jack
1 x ljudutgång (center/subwoofer) - mini-jack
1 x ljudutgång (bakre) - mini-jack
1 x ljudutgång - mini-jack
1 x mikrofon - mini-jack
1 x TOSLINK
2 x USB 2.0
1 x LAN (2.5Gigabit Ethernet)
4 x USB 3.2 Gen 1
Interna gränssnitt 4 x USB 2.0 - header
1 x USB-C Gen 2x2 - header
2 x USB 3.2 Gen 1 - header
1 x ljud - header
1 x Thunderbolt - header
Strömkontakter 24-pin kontakt för huvudström, 2 x 8-stifts ATX12V-kontakter
Egenskaper
BIOS-typ AMI
BIOS-egenskaper BIOS FlashBack, UEFI BIOS, ASUS EZ Flash 3
Viloläge/väckning Wake on LAN (WOL), wake on PME
Hårdvaruegenskaper Automatisk enhets-igenkänning, ASUS Q-Design, Q-DIMM, ASUS EZ DIY, Q-LED, Q-Slot, ASUS Extreme Engine Digi+, CrashFree BIOS 3, detekteringsteknik för ljudjack, ASUS EPU (Energy Processing Unit), Intel Turbo Boost-teknologi 2.0, ASUS TPU (TurboV Processing Unit), ASUS DIGI+ VRM, SupremeFX Shielding-teknik, Gold Plated Audio Hardware, Preboot eXecution Environment (PXE), Clear CMOS-knapp, ASUS Fan Xpert 4, ASUS SafeSlot, Sonic Radar III, Sonic Studio III, förmonterat I/O-skydd, Intel Turbo Boost Max Technology 3.0, ASUS Aura Sync, ASUS OptiMem II, Armoury Crate, FlexKey-knapp, ASUS ProCool II, GameFirst VI, Savitech SV3H712-förstärkare, ASUS HYDRANODE, M.2 Q-Latch, SafeDIMM
Diverse
Inkluderade tillbehör STRIX-märken, ROG tackkort, ROG-nyckelring, ASUS Wi-Fi rörlig antenn, M.2 Q-Latch, 2 st. M.2-gummipaket
Medföljande kablar 4 x Seriell ATA-kabel
Medföljande programvara Drivrutiner och hjälpprogram, ROG CPU-Z, ASUS AI Suite III, ASUS Turbo App, Antivirus, WinRAR, Sonic Studio Virtual Mixer, AIDA64 Extreme (60 dagars testperiod), MemTest86, ASUS AURA Creator
Bredd 30.5 cm
Djup 24.4 cm
