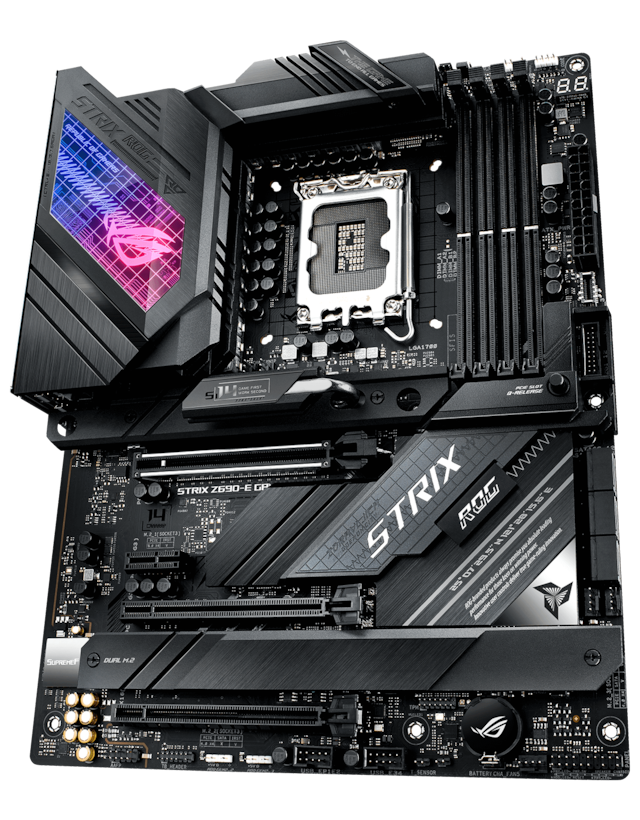

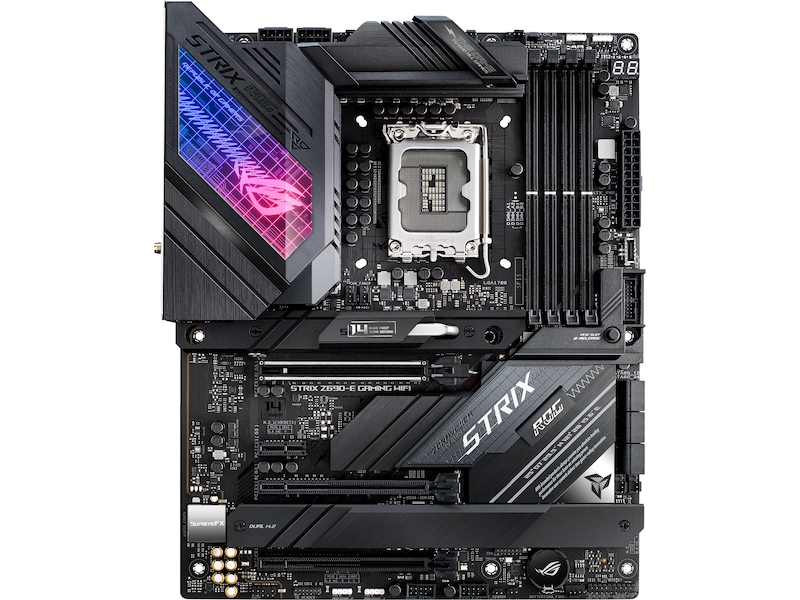

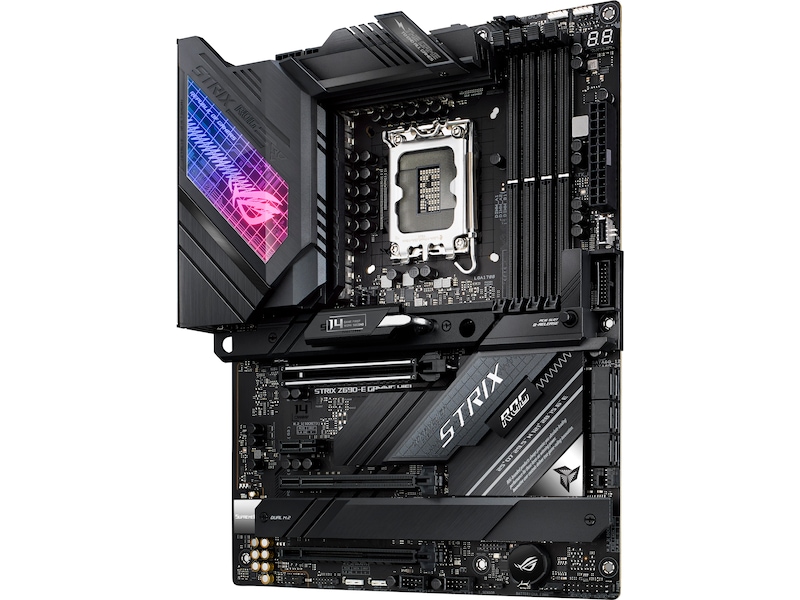

ASUS ROG STRIX Z690-E GAMING WIFI Moderkort

LGA 1700, ATX, DDR5, 1 x PCIe 5.0 x16, 5x m.2, 8xUSB 3.2, WIFI 6E, BT

Artikelnummer: 1198163 / Tillverkarens artikelnummer: ROG STRIX Z690-E GAMING WIFI

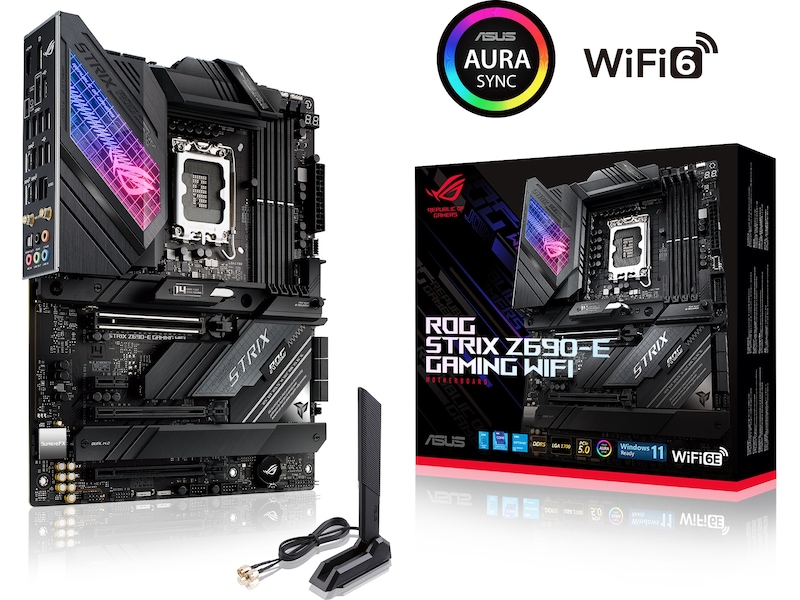

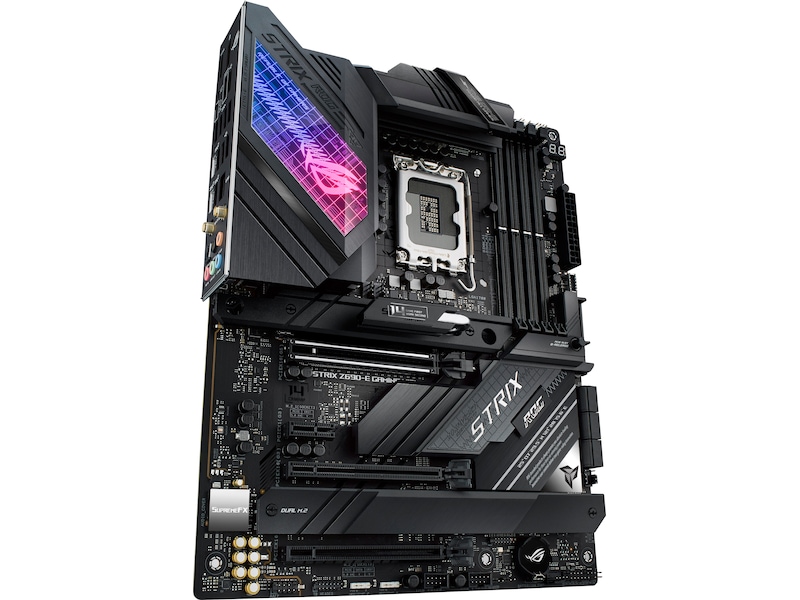

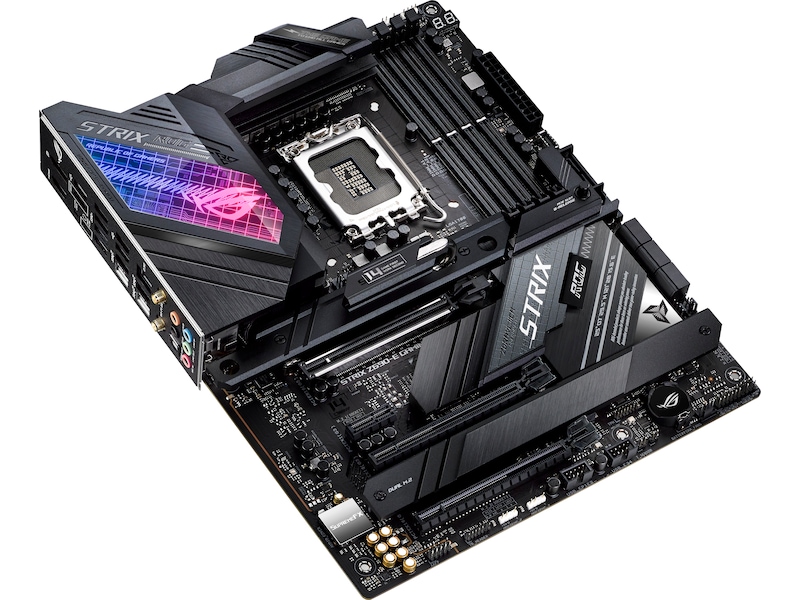

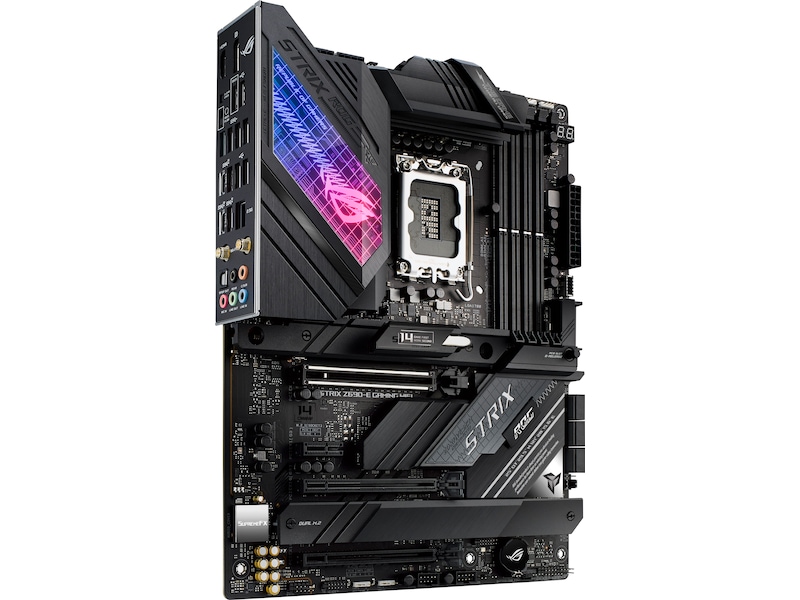

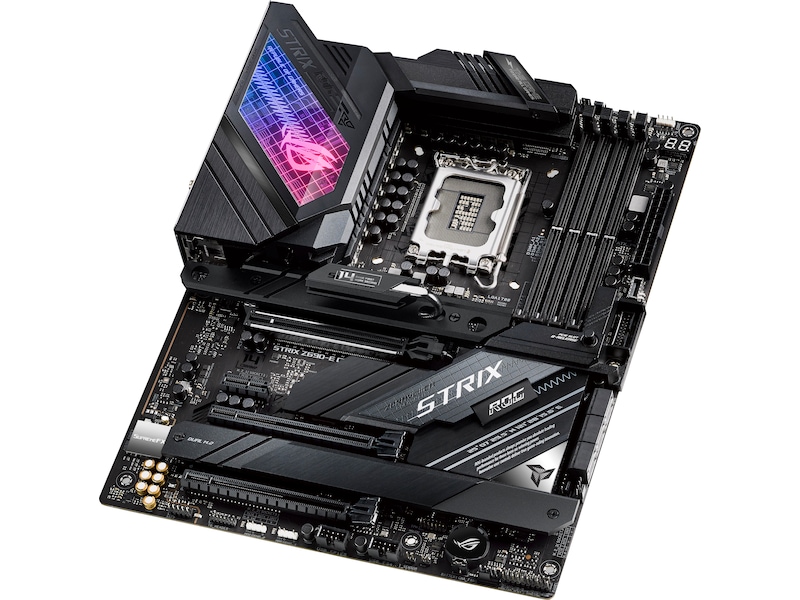

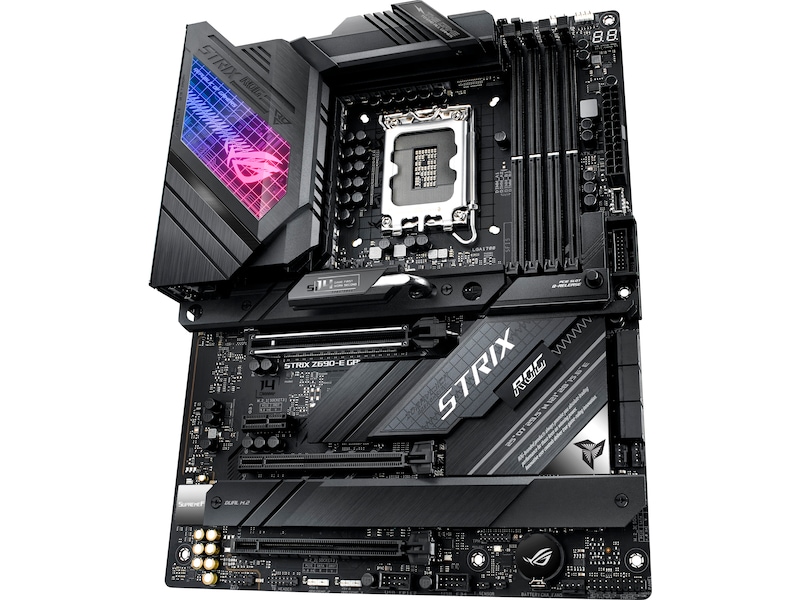

More pictures from ASUS ROG STRIX Z690-E GAMING WIFI Moderkort

6 599:-
Fri frakt
Köp nu - betala om 3 månader!
Delbetala från 294:- per mån se priser
2 st i lager (2-3 vardagar leveranstid)
Vortez approved

ASUS ROG STRIX Z690-E GAMING WIFI, LGA1700 Motherboard


ROG STRIX Z690-E GAMING WIFI
ROG Strix Z690-E Gaming WiFi puts 12th Gen Intel® Core™ processors at center stage, with beefed-up power delivery, cooling, cutting-edge connectivity options, and a range of accoutrements that effortlessly propel builds to maximum performance. This series flagship is your ticket to next-level gaming.

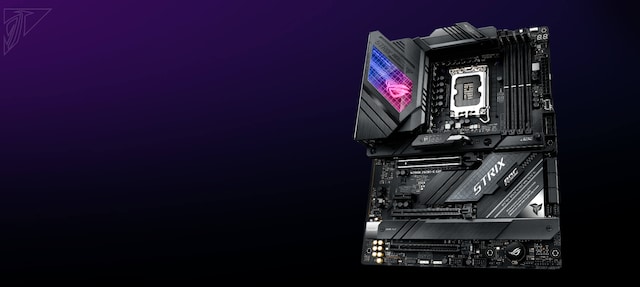

ALL-ROUND PERFORMANCE
ROG Strix Z690-E Gaming WiFi is armed with all the essentials you need to create a gaming PC with top-tier performance. Heavy-duty power delivery and optimized cooling provide the weapons you need to push any gaming build to its limits. Intelligent controls enable easy management of overclocking, cooling and networking settings. And Two-Way AI Noise Cancelation helps ensure crystal-clear in-game communication.

• Ready for 12th Gen Intel® Core™, Pentium® Gold and Celeron® processors
• Optimal Power Solution: 18+1 power stages with 8+8 ProCool II power connectors, high-quality alloy chokes and durable capacitors to support multi-core processors
• Optimized Thermal Design: Integrated I/O cover and VRM heatsinks with high conductivity thermal pad, L-shaped heatpipe, an M.2 Combo-sink for PCIe® 5.0 M.2 slot and M.2 heatsinks for two M.2 slots
• High-performance Networking: On-board Intel® WiFi 6E (802.11ax) and Intel® 2.5 Gb Ethernet with ASUS LANGuard
• Best Gaming Connectivity: Supports HDMI® 2.1 and DisplayPort™ 1.4 output, five M.2 slots (including two on the bundled ROG Hyper M.2 card) plus USB 3.2 Gen 2x2 Type-C®
• Intelligent Control: ASUS-exclusive AI Overclocking, AI Cooling, AI Networking and Two-Way AI Noise Cancelation to simplify setup and improve performance
• DIY Friendly Design: PCIe® Slot Q-Release, M.2 Q-Latch, pre-mounted I/O shield, BIOS FlashBack™ button, and Clr CMOS button
• Unmatched Personalization: ASUS-exclusive Aura Sync RGB lighting, including a RGB header and three addressable Gen 2 headers
• Industry-leading Gaming Audio: ALC4080 with Savitech SV3H712 amplifier, along with DTS® Sound Unbound and Sonic Studio III
• Renowned Software: Bundled AIDA64 Extreme 60 days free trial version and intuitive UEFI BIOS dashboard with integrated MemTest86

Allmänt
Producentens garanti (månader) 36
Typ av produkt Moderkort - ATX
Kretstyp Intel Z690
Processor-socket LGA1700-uttag
Maximalt antal processorer 1
Kompatibla processorer (stöder 12:e generationens Intel Core/Pentium Gold/Celeron)
EAN 4711081494638
RAM som stöds
Maximal storlek 128 GB
Teknik DDR5
Bussklocka 5000 MHz (O.C.), 5200 MHz (O.C.), 5400 MHz (O.C.), 5600 MHz (O.C.), 5800 MHz (O.C.), 6000 MHz (O.C.), 4800 MHz, 6200 MHz (O.C.), 6400 MHz (O.C.)
Stöder Ram Integrity Check Icke ECC
Registrerad eller buffrad Ej buffrad
Egenskaper Minnesarkitektur med dubbel kanal
Ljud
Typ HD-ljud (8 kanaler)
Audio Codec SupremeFX (ALC4080)
Standarder som följs HD-ljud, DTS Sound Unbound
LAN
Nätverksgränssnitt 2.5 Gigabit Ethernet, Bluetooth 5.2, 802.11a/b/g/n/ac/ax/az
Expansion/Anslutning
Expansionskortplatser 1 x CPU
4 x DIMM 288-stift
1 x PCIe 5.0 x16
1 x PCIe 4.0 x16 (x4-läge)
1 x PCIe 3.0 x1
1 x PCIe 3.0 x16 (x4-läge)
Lagringsgränssnitt SATA-600 -kontakter: 4 x 7 pin Seriell ATA - RAID 0 / RAID 1 / RAID 10 / RAID 5
PCIe 4.0 -kontakter: 1 x M.2 - RAID 0 / RAID 1 / RAID 5
SATA-600 / PCIe 4.0 -kontakter: 1 x M.2 - RAID 0 / RAID 1 / RAID 5
SATA-600 -kontakter: 2 x 7 pin seriell ATA
PCIe 5.0 -kontakter: 1 x M.2 - RAID 0 / RAID 1 / RAID 5
RAID-egenskaper Intel Rapid Storage Technology

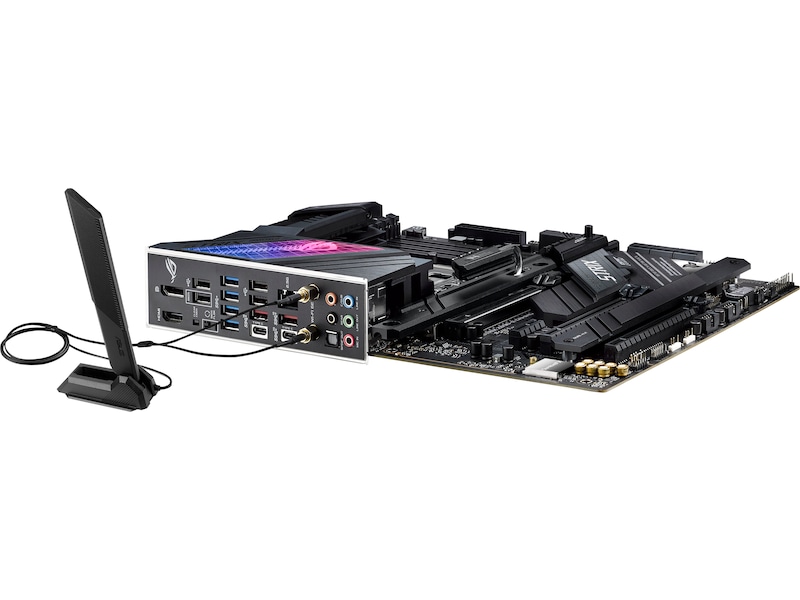

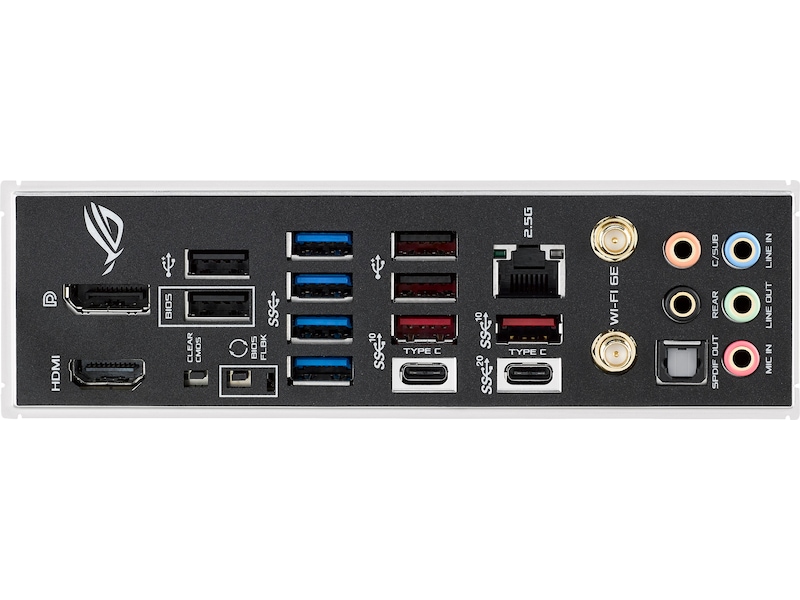

Gränssnitt 1 x DisplayPort
1 x HDMI
1 x USB-C Gen2x2
2 x USB 3.2 Gen 2
1 x USB-C Gen2
1 x ljudingång - mini-jack
1 x ljudutgång (center/subwoofer) - mini-jack
1 x ljudutgång (bakre) - mini-jack
1 x ljudutgång - mini-jack
1 x mikrofon - mini-jack
1 x TOSLINK
4 x USB 2.0
1 x LAN (2.5Gigabit Ethernet)
4 x USB 3.2 Gen 1
Interna gränssnitt 4 x USB 2.0 - header
1 x USB-C Gen 2x2 - header
2 x USB 3.2 Gen 1 - header
1 x ljud - header
1 x Thunderbolt - header
Strömkontakter 24-pin kontakt för huvudström, 2 x 8-stifts ATX12V-kontakter
Egenskaper
BIOS-typ AMI
BIOS-egenskaper BIOS FlashBack, UEFI BIOS, ASUS EZ Flash 3, MemTest86
Viloläge/väckning Wake on LAN (WOL), wake on PME
Hårdvaruegenskaper Automatisk enhets-igenkänning, ASUS Q-Design, Q-DIMM, ASUS EZ DIY, Q-LED, Q-Slot, ASUS Extreme Engine Digi+, CrashFree BIOS 3, detekteringsteknik för ljudjack, ASUS EPU (Energy Processing Unit), Intel Turbo Boost-teknologi 2.0, ASUS TPU (TurboV Processing Unit), ASUS DIGI+ VRM, SupremeFX Shielding-teknik, Gold Plated Audio Hardware, Preboot eXecution Environment (PXE), Clear CMOS-knapp, LANGuard, ASUS SafeSlot, Sonic Studio III, M.2 kylfläns, förmonterat I/O-skydd, Intel Turbo Boost Max Technology 3.0, ASUS Aura Sync, ASUS OptiMem II, DIY Friendly Design, FlexKey-knapp, ASUS ProCool II, 18+1 Phase Power Design, Savitech SV3H712-förstärkare, ASUS HYDRANODE, M.2 Q-Latch, SafeDIMM, Windows 11-kompatibel
Diverse
Inkluderade tillbehör Kabelband, 2 x M.2-skruvar, ROG VGA-hållare, STRIX-märken, ROG tackkort, ROG-nyckelring, ASUS Wi-Fi rörlig antenn, 1 st. M.2-gummipaket, M.2 Q-Latch, ROG HYPER M.2 CARD
Medföljande kablar 4 x Seriell ATA-kabel
Medföljande programvara Drivrutiner och hjälpprogram, ROG CPU-Z, ASUS AI Suite III, ASUS Turbo App, Antivirus, WinRAR, Sonic Studio Virtual Mixer, ROG GameFirst VI, AIDA64 Extreme (60 dagars testperiod), ASUS AURA Creator, MyAsus
Bredd 30.5 cm
Djup 24.4 cm
