ASUS PRIME Z690-A Moderkort

LGA 1700, ATX, DDR5, 1 x PCIe 5.0/4.0/3.0 x16, 4x m.2, 4xUSB 3.2,

Artikelnummer: 1198172 / Tillverkarens artikelnummer: PRIME Z690-A

More pictures from ASUS PRIME Z690-A Moderkort

3 549:-
Fri frakt
Köp nu - betala om 3 månader!
Delbetala från 180:- per mån se priser
Inte i lager. 18 st. förväntas att skickas 1 juni 2022 (osäkert datum)
Riktlinjer för produktrecensioner

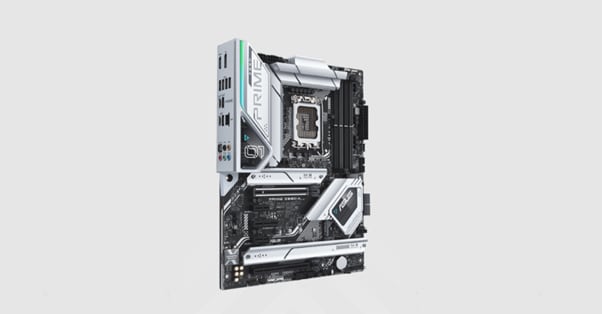

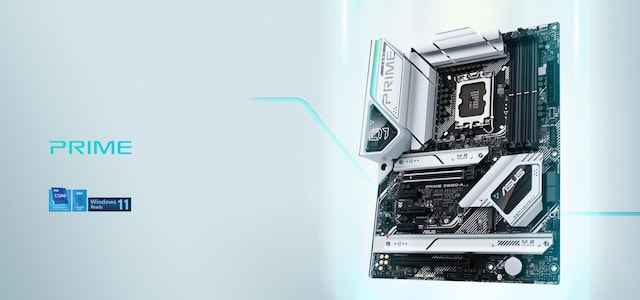

ASUS PRIME Z690-A, LGA1700 Motherboard


PRIME Z690-A
ASUS Prime series motherboards are expertly engineered to unleash the full potential of 12th Generation Intel® processors. Boasting a robust power design, comprehensive cooling solutions and intelligent tuning options, Prime Z690-A provides users and PC DIY builders a range of performance tuning options via intuitive software and firmware features. ASUS Prime Z690-A offers a sleek, futuristic-looking build with a black and white finish, space-shuttle-inspired design elements, metallic nameplate and PCB cover.

DDR5 Performance Enhancement
Prime Z690-A enhances DDR5 performance by providing overclocking options for not only high-speed kits, but even entry-level memory modules that have a locked power management IC (PMIC).

  • A dedicated circuit on the motherboard safely circumvents DDR5 memory PMIC restrictions, allowing you to step past the default 1.1-volt limit and push frequency and timings to the max.
  • Ordinarily, a restricted PMIC that has been unlocked requires the system to be fully power-cycled each time memory voltage is adjusted. Prime Z690-A leverages onboard hardware and firmware to cleverly work around this irksome limitation, enabling voltage adjustments to be applied through the same soft system-reset process employed for previous generations of DDR memory.

For users new to memory overclocking, Prime Z690-A includes the exclusive ASUS Enhanced Memory Profile (AEMP) firmware feature for PMIC-restricted memory modules. AEMP automatically detects the memory chips on your kit and then presents optimized frequency, timing and voltage profiles that you can effortlessly apply to unleash performance.

• Intel® LGA 1700 socket: Ready for 12th Gen Intel processors
• Enhanced power solution: 16+1 DrMOS, ProCool sockets, alloy chokes and durable capacitors for stable power delivery
• AI Overclocking: Optimizes performance based on CPU and cooler loads to achieve results that are extremely close to manual tuning by experts
• AI Cooling: Manages and controls all motherboard fans, automatically optimizing settings based on current system load and temperature
• Two-Way AI Noise-Cancelation: Reduces background noise from the microphone and audio output for crystal-clear communication in games or video conferences
• Comprehensive cooling: Large VRM heatsinks, M.2 heatsinks, M.2 backplate with Q-Latch, hybrid fan headers and Fan Xpert 4
• Next-gen connectivity: DDR5 memory, PCIe® 5.0, Intel 2.5 Gb Ethernet, USB 3.2 Gen2x2 Type-C®, front panel USB 3.2 Gen 2 Type-C®, Thunderbolt™ 4 header support, 4 PCIe® 4.0 M.2

Allmänt
Producentens garanti (månader) 36
Typ av produkt Moderkort - ATX
Kretstyp Intel Z690
Processor-socket LGA1700-uttag
Maximalt antal processorer 1
Kompatibla processorer (stöder 12:e generationens Intel Core/Pentium Gold/Celeron)
EAN 4711081447320
RAM som stöds
Maximal storlek 128 GB
Teknik DDR5
Bussklocka 5000 MHz (O.C.), 5200 MHz (O.C.), 5400 MHz (O.C.), 5600 MHz (O.C.), 5800 MHz (O.C.), 6000 MHz (O.C.), 4800 MHz
Stöder Ram Integrity Check Icke ECC
Registrerad eller buffrad Ej buffrad
Egenskaper Minnesarkitektur med dubbel kanal, Intel Extreme Memory Profiles (XMP)
Ljud
Typ HD-ljud (8 kanaler)
Audio Codec Realtek ALCS1220A
Standarder som följs HD-ljud, DTS:X Ultra
LAN
Nätverksgränssnitt 2.5 Gigabit Ethernet
Expansion/Anslutning
Expansionskortplatser 1 x CPU
4 x DIMM 288-stift
1 x PCIe 5.0 x16
1 x PCIe 3.0 x16 (x4-läge)
1 x PCIe 3.0 x4
2 x PCIe 3.0 x1
Lagringsgränssnitt SATA-600 -kontakter: 4 x 7 pin Seriell ATA - RAID 0 / RAID 1 / RAID 10 / RAID 5
PCIe 4.0 -kontakter: 3 x M.2 - RAID 0 / RAID 1 / RAID 5
SATA-600 / PCIe 4.0 -kontakter: 1 x M.2 - RAID 0 / RAID 1 / RAID 5
RAID-egenskaper Intel Rapid Storage Technology
Gränssnitt 1 x DisplayPort
1 x HDMI
1 x USB-C Gen2x2
2 x USB 3.2 Gen 2
4 x USB 3.2 Gen 1
1 x USB-C Gen2
1 x ljudutgång (center/subwoofer) - mini-jack
1 x ljudutgång (bakre) - mini-jack
1 x ljudutgång - mini-jack
1 x mikrofon - mini-jack
1 x TOSLINK
1 x ljudingång - mini-jack
1 x LAN (2.5Gigabit Ethernet)
Interna gränssnitt 4 x USB 2.0 - header
1 x USB-C Gen2 - header
2 x USB 3.2 Gen 1 - header
1 x ljud - header
1 x Thunderbolt - header
1 x seriell - header
Strömkontakter 24-pin kontakt för huvudström, 2 x 8-stifts ATX12V-kontakter
Egenskaper
BIOS-typ AMI
BIOS-egenskaper UEFI BIOS, ASUS EZ Flash 3, MemTest86
Viloläge/väckning Wake on LAN (WOL), wake on PME
Hårdvaruegenskaper Automatisk enhets-igenkänning, ASUS Q-Design, ESD Guards, ASUS TurboV EVO, Q-DIMM, ASUS EZ DIY, Q-LED, Q-Slot, CrashFree BIOS 3, ASUS Q-Connector, detekteringsteknik för ljudjack, ASUS EPU (Energy Processing Unit), Intel Turbo Boost-teknologi 2.0, ASUS DIGI+ VRM, ASUS Enhanced DRAM överspänningsskydd, Preboot eXecution Environment (PXE), Clear CMOS-knapp, ASUS Stainless Steel Back I/O, anti-pop-funktion, LANGuard, ASUS överspänningsskydd, ASUS Fan Xpert 4, ASUS SafeSlot, Intel Optane Memory Ready, ASUS 5X Protection III, ASUS ProCool, förmonterat I/O-skydd, Intel Turbo Boost Max Technology 3.0, ASUS Aura Sync, ASUS OptiMem II, Armoury Crate, FlexKey-knapp, M.2 Q-Latch
Diverse
Inkluderade tillbehör Q-Connector, 1 st. M.2-gummipaket, M.2 Q-Latch
Medföljande kablar 2 x Seriell ATA-kabel
Medföljande programvara Drivrutiner och hjälpprogram, ASUS CPU-Z, ASUS AI Suite III, ASUS Turbo App, WinRAR, Norton AntiVirus (Trial), ASUS AURA Creator
Standarder som följs DisplayPort 1.4
Bredd 30.5 cm
Djup 24.4 cm
