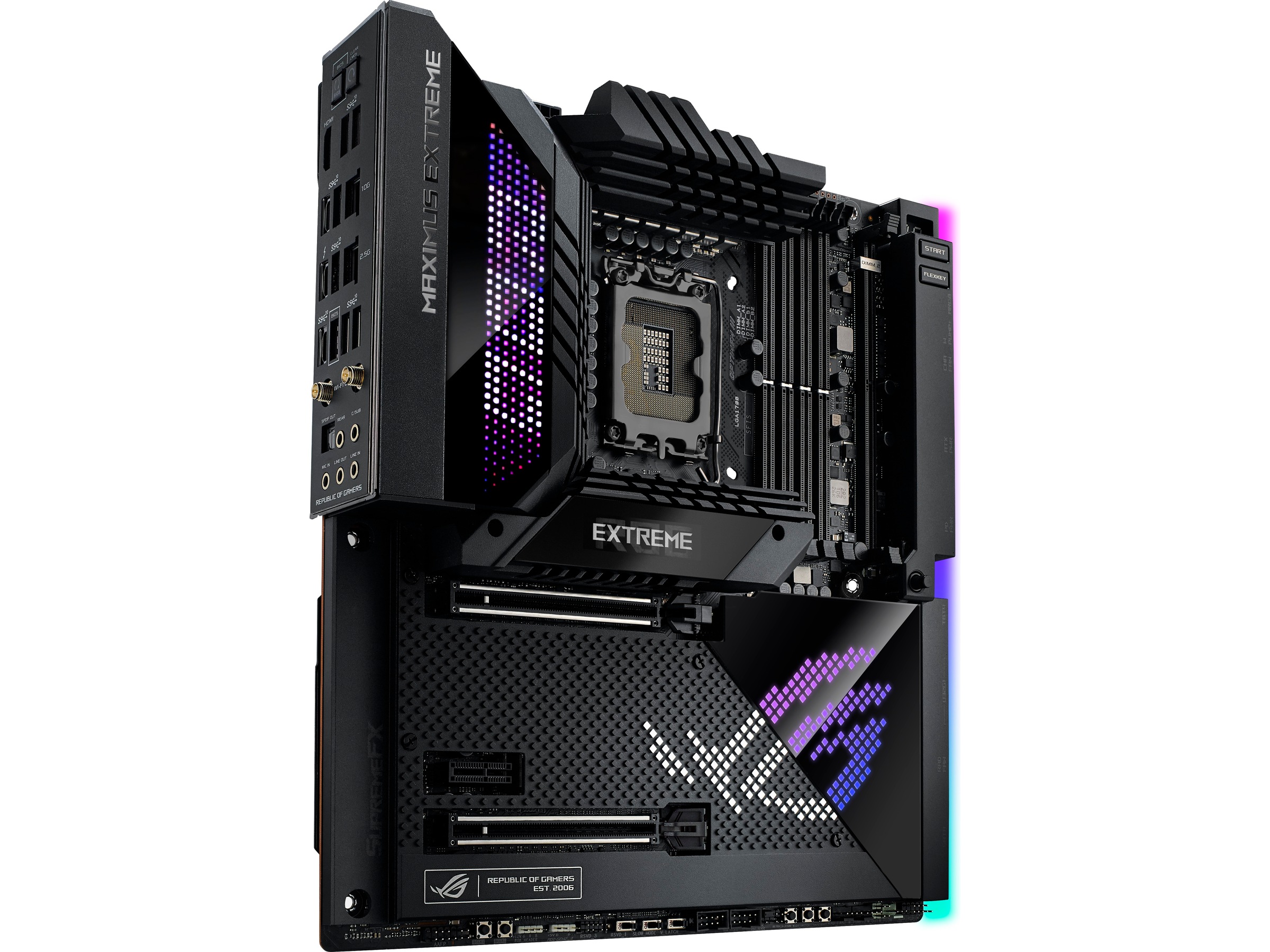

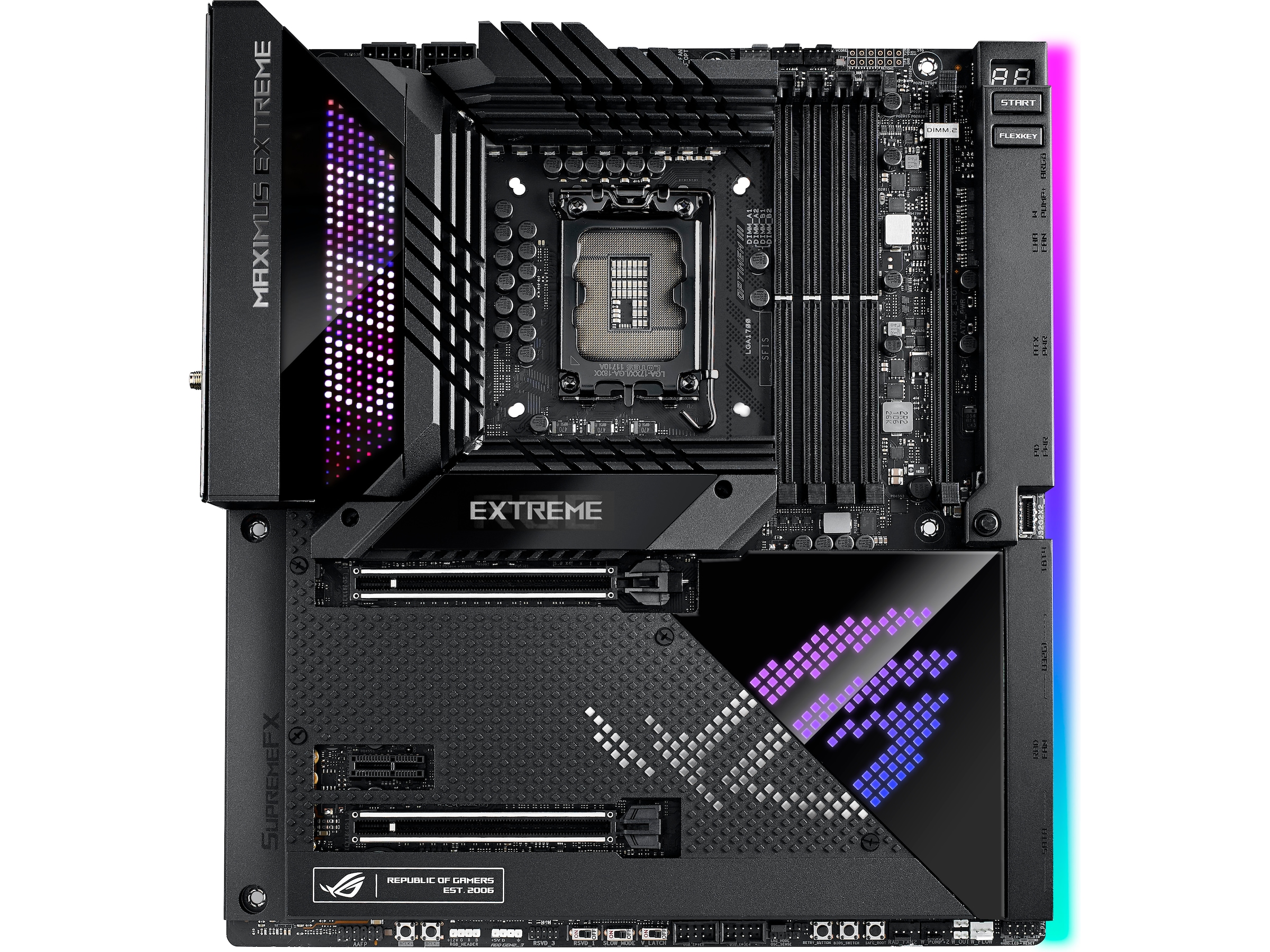

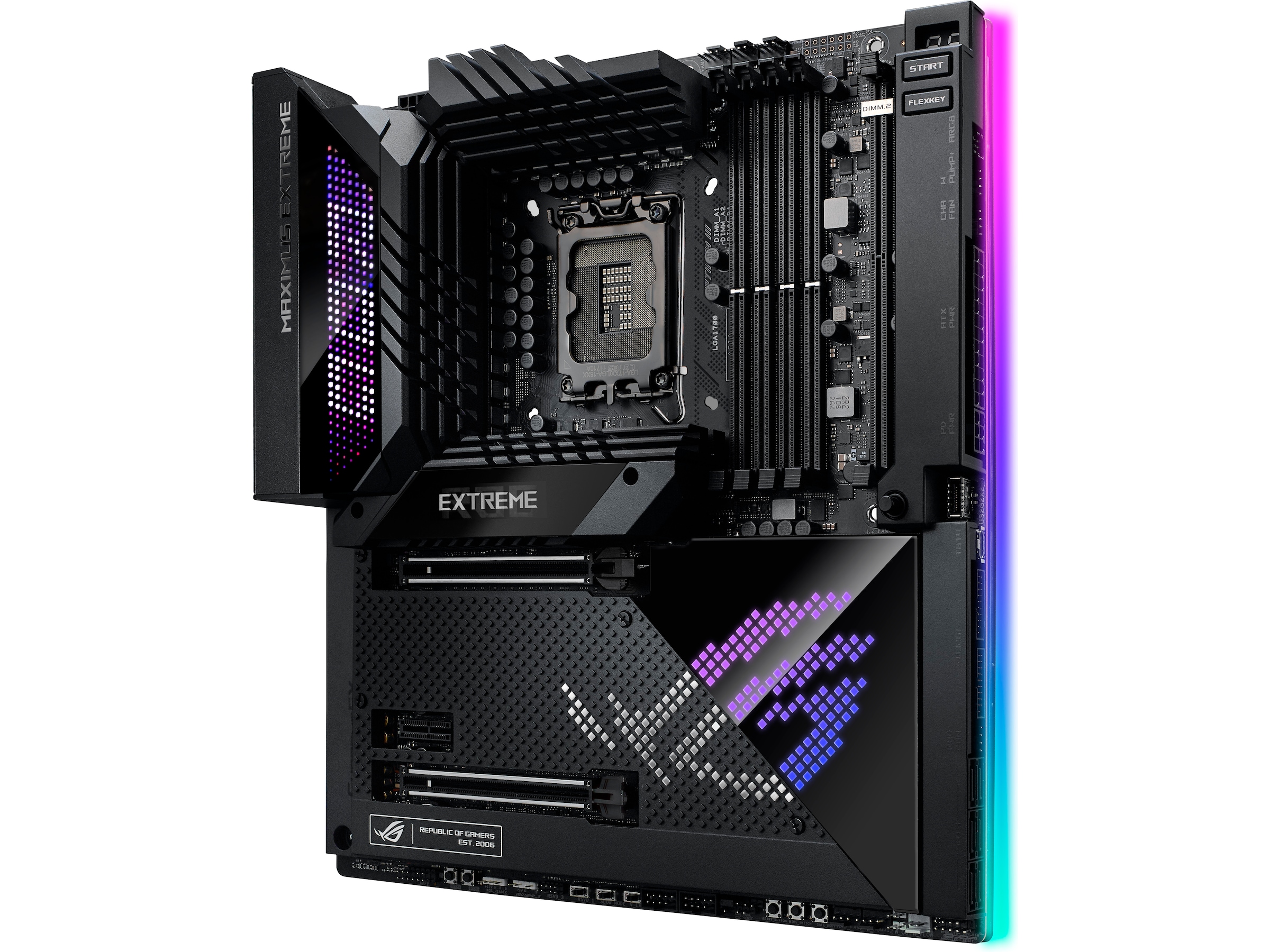

ASUS ROG MAXIMUS Z690 EXTREME, LGA1700 motherboard

ROG Maximus Z690Extreme
ROG Maximus Z690 Extreme represents the ultimate in enthusiast motherboard design for those who want the best possible option that excels at both air and liquid cooling for 12th Gen Intel® Core™ CPUs. And this platform is packed with the most features that you will find on a ROG Z690 motherboard, including heavy-duty 24+1 power stages, ASUS Enhanced Memory Profiles for top-notch DDR5 speeds, multiple PCIe 5.0 slots, and the exclusive AniMe Matrix™ LED Display.

INTELLIGENT MOTHERBOARD - Intelligent software solutions help ensure that your system performs at its best. The latest ASUS AI-powered enhancements span four pillars of performance, including overclocking, cooling, networking, and onboard audio, making advanced tweaks and optimization accessible to new recruits and savvy PC DIY veterans alike.

PERFORMANCE - ROG Maximus Z690 Extreme is the kind of motherboard that uses stock clock speeds merely as a reference point. With its piles of teamed power stages working alongside high-grade capacitors and chokes, you get performance that can take high-powered processors like a 12th Gen Intel Alder Lake CPU and leave all competition in the dust.

COOLING - ROG Maximus Z690 Extreme features unparalleled flexibility for either air or liquid cooling, thanks to a diverse array of heavyweight heat dissipation that keeps power delivery, M.2 drives and onboard components running cool under load, regardless of the available airflow.

CONNECTIVITY - ROG Maximus Z690 Extreme features the latest and greatest in connectivity, including the fastest GPU and storage device transfer speeds with PCIe® 5.0, the smoothest online gameplay with WiFi 6E and 10 Gb Ethernet, a host of rapid-fire file transfers with Thunderbolt™ 4.

OPTIMIZATION - ROG Maximus Z690 Extreme features best-in-class automatic and interactive performance optimization, including the TurboV Processing Unit, digitally controlled voltage regulators, Fan Xpert 4 and core-specific application assignment.

PERSONALIZATION - In addition to Aura Sync RGB customization, the ROG Maximus Z690 Extreme’s VRMs and I/O cover are graced with a new ASUS-exclusive design known as the AniMe Matrix Display, while a 2-inch OLED LiveDash can show live system information or user-customizable graphics.

• Socket LGA1700 for 12th Gen Intel® Core™, Pentium® Gold and Celeron® Processors
• Intelligent Control: ASUS-exclusive tools including AI Overclocking, AI Cooling, AI Networking and Two-Way AI Noise-Cancelation for easy configuration
• Robust Power Solution: 24+1 teamed power stages rated for 105 A, ProCool II power connectors, MicroFine alloy chokes and premium metallic capacitors
• Optimized Thermal Design: Cold forged heatsink, enlarged VRM heatsinks plus integrated aluminum I/O cover, high-conductivity thermal pad, penta M.2 heatsinks and dual with embedded backplates and ROG Water-Cooling Zone
• High Performance Networking: Onboard Wi-Fi 6E, Marvell® AQtion 10Gb, Intel® 2.5Gb Ethernet, and ASUS LANGuard
• Fastest Gaming Connectivity: PCIe® 5.0, Gen 5 M.2 slots, USB 3.2 Gen 2x2 front-panel connector with Thunderbolt™ 4 support, rear triple USB Type-C® ports
• Industry Leading Immersive Audio: ROG SupremeFX ALC4082 codec with ESS® ES9018Q2C DAC for high-fidelity audio
• Unmatched Personalization: AniMe Matrix™ LED display, 2” LiveDash OLED, ASUS-exclusive Aura Sync RGB lighting, including one RGB header and three addressable Gen 2 RGB headers
• DIY Friendly Design: Pre-mounted I/O shield, PCIe slot Q-release, V-Latch switch, BIOS FlashBack™, Q-Code, FlexKey, Q-Connector, M.2 Q-Latch, SafeSlot, ROG Glavis and ROG graphics card holder
• Renowned Software: Bundled 1-year AIDA64 Extreme subscription and intuitive UEFI BIOS dashboard with integrated MemTest86

Allmänt
Modell	ROG MAXIMUS Z690 EXTREME
Produktlinje	ASUS
Producentens garanti (månader)	36
EAN	4711081462743

Moderkort
Processor-socket	LGA1700-uttag
RAM-kortplatser	4 DIMM-kortplatser
Stöder Ram Integrity Check	Icke ECC
RAM-teknik som stöds	DDR5 SDRAM
Kompatibla processorkommentarer	Stöder 12:e generationens Intel Core/Pentium Gold/Celeron
RAM som stöds (registrerad eller buffrad)	Ej buffrad
Kretstyp	Intel Z690
Formfaktor	Utökad ATX
Strömkontakter	24-pin kontakt för huvudström, 6-stifts ATX12V-kontakt, 2 x 8-stifts ATX12V-kontakter
RAM-hastighet som stöds	5200 MHz (O.C.), 6400 MHz (O.C.), 6000 MHz (O.C.), 5400 MHz (O.C.), 5000 MHz (O.C.), 5600 MHz (O.C.), 4800 MHz, 5800 MHz (O.C.), 6200 MHz (O.C.)

Moderkortegenskaper
BIOS-typ	AMI
Viloläge/väckning	Wake on LAN (WOL), Wake on PME
BIOS-egenskaper	BIOS FlashBack, ASUS EZ Flash 3, MemTest86, Dual BIOS, UEFI BIOS
Hårdvaruegenskaper	Q-LED, FlexKey-knapp, Q-DIMM, ASUS 2" LiveDash OLED, Quick Charge 4+, ASUS Extreme Engine Digi+, ASUS TPU (TurboV Processing Unit), ASUS OptiMem III, PCIe Slot Q-Release, ASUS Aura Sync, DIY Friendly Design, LANGuard, M.2 Q-Latch, Sonic Radar III, ASUS Q-Connector, ASUS ProCool II, Preboot eXecution Environment (PXE), AniMe Matrix LED-skärm, ReTry-knapp, CrashFree BIOS 3, SafeDIMM, CPU-uttagsskydd, Förmonterat I/O-skydd, ASUS Q-Design, Q-Code, Detekteringsteknik för ljudjack, Startknapp, Automatisk enhets-igenkänning, ASUS DIGI+ VRM, ASUS Fan Xpert 4, ASUS SafeSlot, Sonic Studio III, ASUS HYDRANODE, Säker bootknapp, ASUS EZ DIY, Clear CMOS-knapp, ESS SABRE9018Q2C DAC/AMP, ASUS EPU (Energy Processing Unit), Q-Slot, 24 + 1 strömsteg, M.2 kylfläns, Armoury Crate, Intel Turbo Boost Max Technology 3.0, GameFirst VI, ASUS DIGI+ Power Control, Intel Turbo Boost-teknologi 2.0

Gränssnitt
Lagringsportar	4 x SATA-600 (RAID), 2 x SATA-600, 5 x M.2
USB/FireWire-portkonfiguration (sidhuvud)	1 x USB4 + 1 x USB-C Gen 2x2 + 4 x USB 3.2 Gen 1 + 4 x USB 2.0
RAID-egenskaper	Intel Rapid Storage Technology
USB/FireWire-portkonfiguration (aktiv)	1 x USB4 + 1 x USB-C Gen 2x2 + 1 x USB-C Gen 2 + 7 x USB 3.2 Gen 2
Lagring	Serial ATA-600, M.2-uttag, Serial ATA-600 (RAID)
USB/FireWire	USB 3.2 Gen 1, USB 3.2 Gen 2, USB-C Gen2, USB-C Gen 2x2, USB4

RAM
Egenskaper	Minnesarkitektur med dubbel kanal

Videoutgång
Typ	Grafikadapter (CPU krävs)

Ljudutgång
Typ	Ljudkort
Audio Codec	SupremeFX (ALC4082)
Ljud	High Definition Audio (8-kanalig)
Standarder som följs	DTS Sound Unbound, HD-ljud

Kabeldetaljer
Medföljande kablar	7 x Seriell ATA-kabel

Diverse
Produkttyp	Moderkort

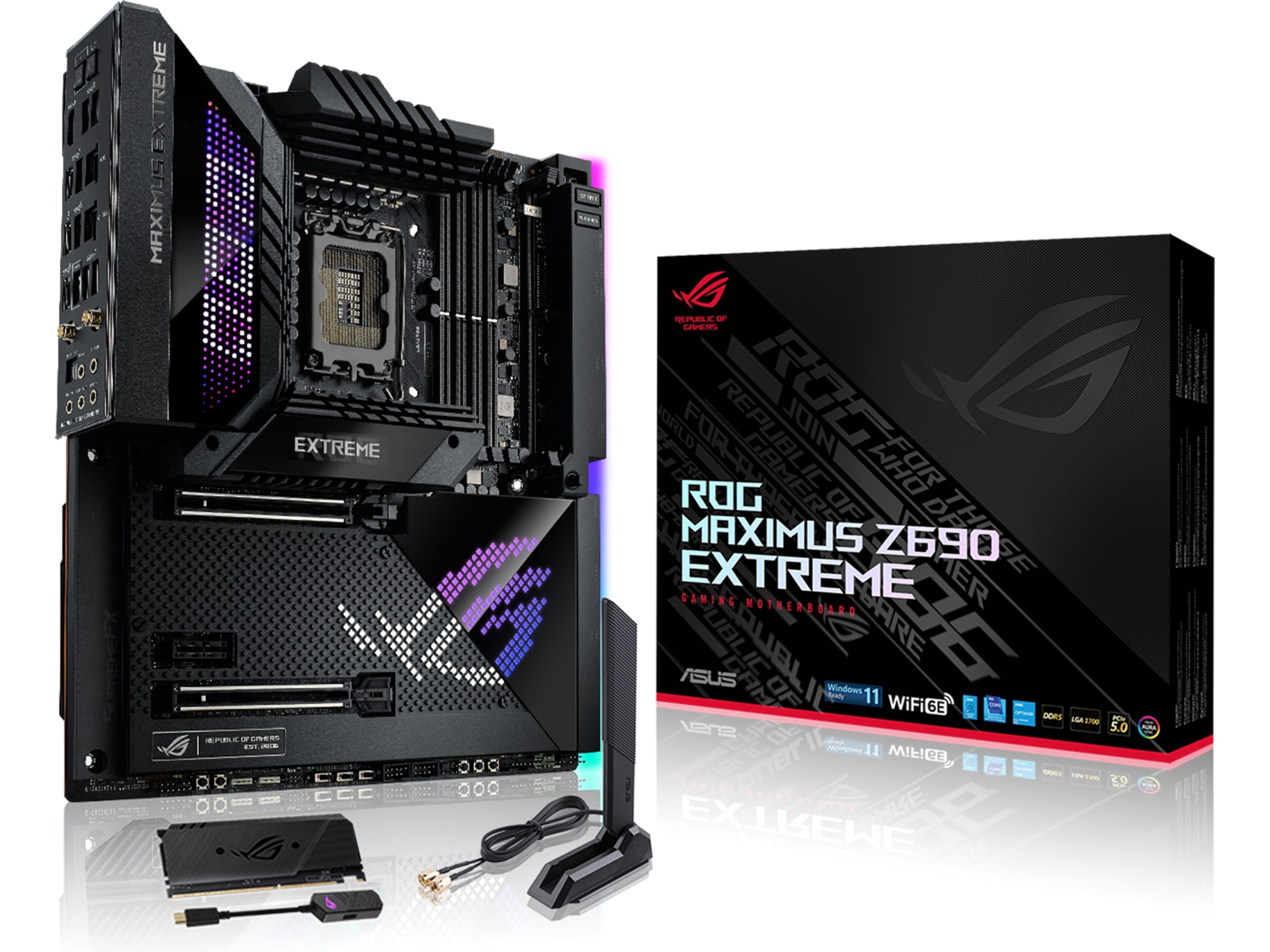

Inkluderade tillbehör	RGB (RGBW) förlängningskabel till LED-remsa, ROG fläktklistermärken, 3-i-1 termistorkabelpaket, Skruvmejsel, ROG-nyckelring, ROG DIMM.2 expansionskort med heatsink, Q-Connector, 2 x 1 till 4, fläktdelningskabel, ROG True Voltician, 1 till 3 ARGB LED-delarkabel, 1 till 2 ARGB LED-delarkabel, ASUS Wi-Fi rörlig antenn, ROG tackkort, ROG VGA-hållare, ROG CLAVIS DAC, Termisk platta fär M.2 SSD, ROG Fan Controller, 1 x M.2 skruv

Nätverk
Nätverk	Bluetooth 5.2, 2.5 Gigabit Ethernet, 802.11a/b/g/n/ac/ax, 10 Gigabit Ethernet
Datalänkprotokoll	IEEE 802.11b, IEEE 802.11ax (Wi-Fi 6E), Bluetooth 5.2, IEEE 802.11n, 2.5 Gigabit Ethernet, IEEE 802.11g, IEEE 802.11a, IEEE 802.11ac, 10 Gigabit Ethernet

Expansionsuttag
Expansionskortplatser	2 x PCIe 5.0 x16 (dubbelt x8-läge, enkelt kort: x16-läge), 1 x CPU, 4 x DIMM 288-stift, 1 x PCIe 3.0 x1

Lagringsgränssnitt
Lagringsgränssnitt	PCIe 5.0 -kontakter: 1 x M.2 - RAID 0 / RAID 1 / RAID 5, SATA-600 -kontakter: 4 x 7 pin Seriell ATA - RAID 0 / RAID 1 / RAID 10 / RAID 5, PCIe 4.0 -kontakter: 3 x M.2 - RAID 0 / RAID 1 / RAID 5, SATA-600 / PCIe 4.0 -kontakter: 1 x M.2 - RAID 0 / RAID 1 / RAID 5, SATA-600 -kontakter: 2 x 7 pin seriell ATA

Tillhandahållet gränssnitt
Gränssnitt	1 x ljudutgång - mini-jack, 1 x LAN (2.5Gigabit Ethernet), 1 x LAN (10Gigabit Ethernet), 1 x USB-C Gen2x2, 7 x USB 3.2 Gen 2, 1 x USB-C Gen2, 1 x Thunderbolt 4/USB4, 1 x mikrofon - mini-jack, 1 x ljudutgång (bakre) - mini-jack, 1 x ljudingång - mini-jack, 1 x TOSLINK, 1 x ljudutgång (center/subwoofer) - mini-jack, 1 x HDMI

Interna gränssnitt
Interna gränssnitt	1 x Thunderbolt 4 - header, 4 x USB 2.0 - header, 1 x USB-C Gen 2x2 - header, 1 x ljud - header, 4 x USB 3.2 Gen 1 - header

Programvara
Programvara inkluderad	BullGuard Internet Security (1 års licens), MyAsus, ASUS AURA Creator, Sonic Studio Virtual Mixer, AIDA64 Extreme (1 års licens), Sonic Suite Companion, ASUS AI Suite III, ASUS Turbo App, ROG True Voltician, ROG CPU-Z, ROG GameFirst VI, WinRAR, Drivrutiner och hjälpprogram
