Artikelnummer: 1252764 / Tillverkarens artikelnummer: 11324-01-20G

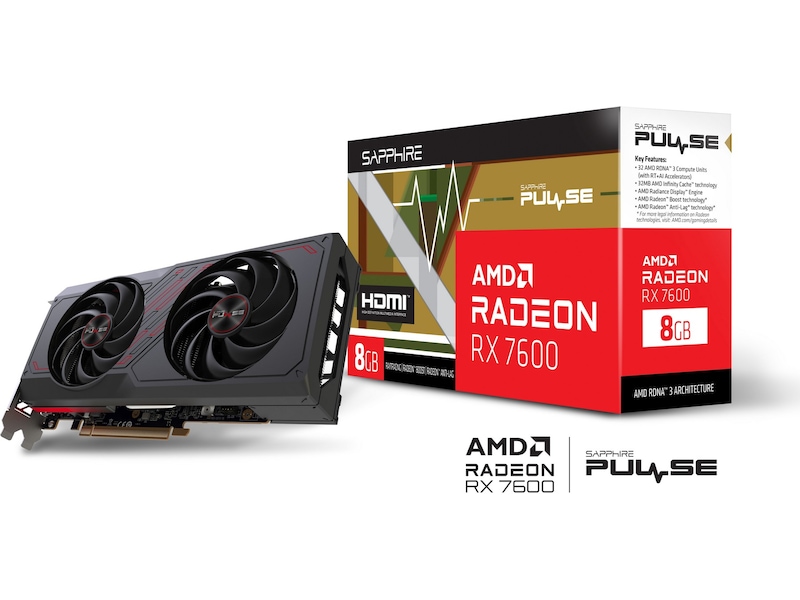

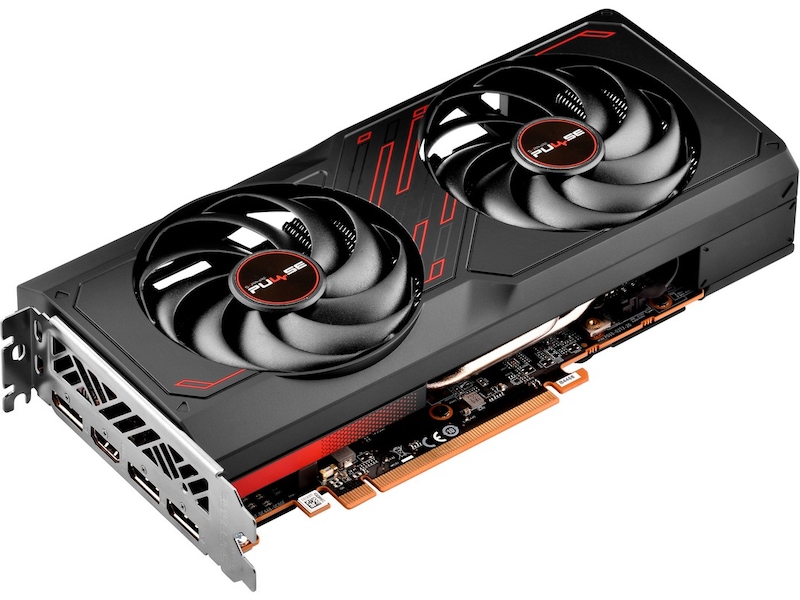

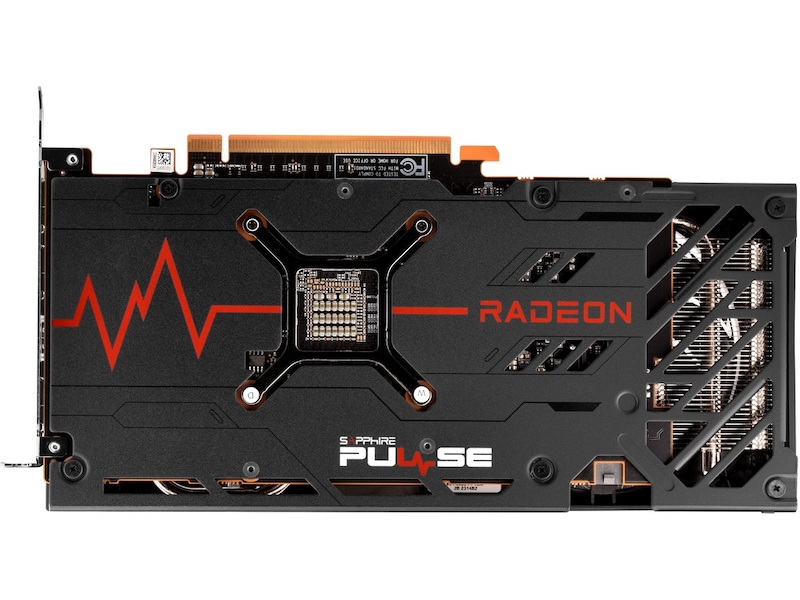

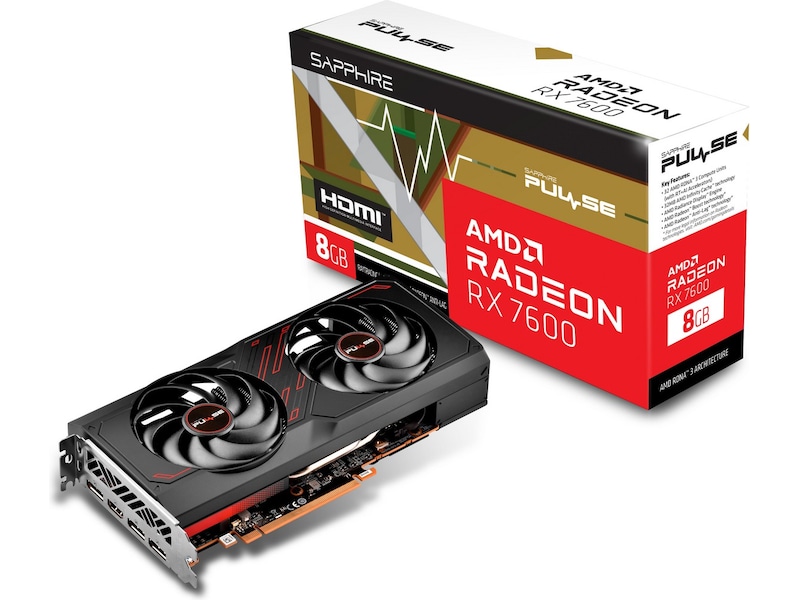

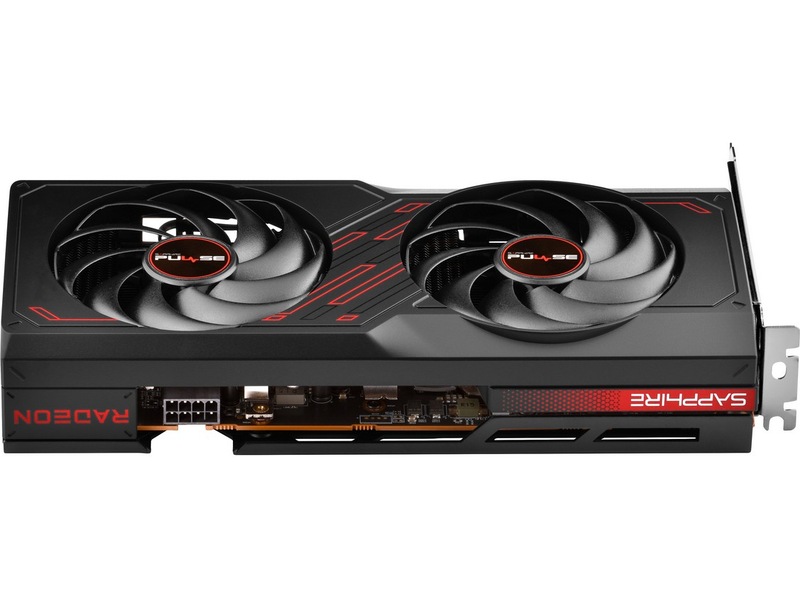

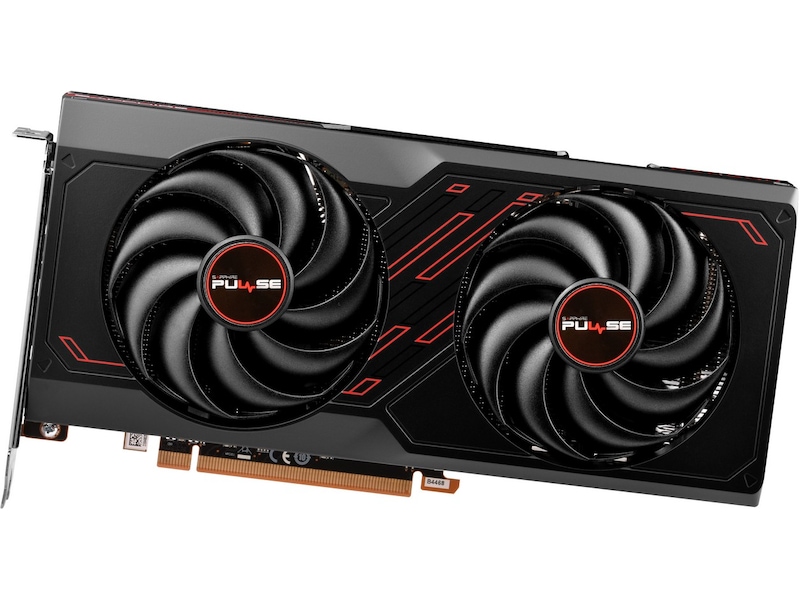

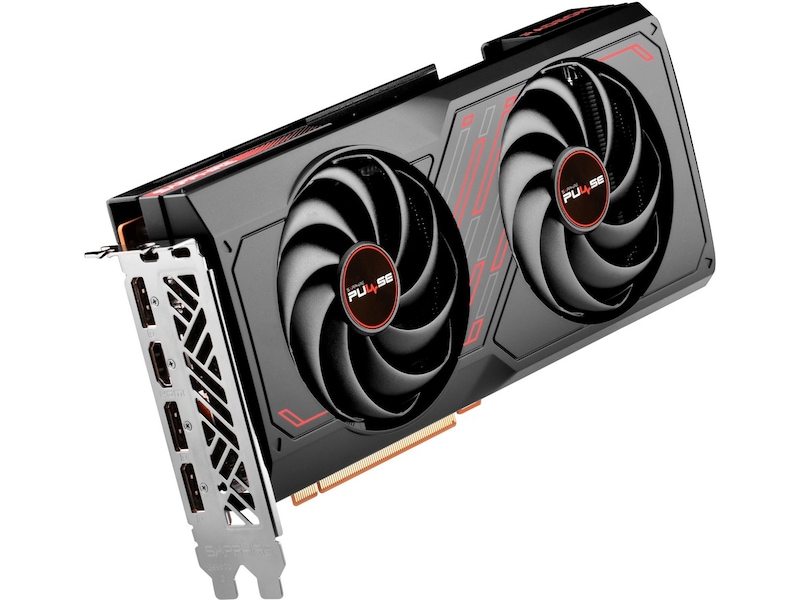

Sapphire PULSE AMD Radeon RX 7600

Grafikkort, PCI-Express 4.0, 8GB GDDR6

More pictures from Sapphire PULSE AMD Radeon RX 7600

3 587:-
Trygghetsavtal från 11:-/mån
eller
Kreditavtal 35 mån, kostnad 655:-, totalt 4 242:- (Eff. ränta 11.53%).
Byt produkt efter 24 mån, om du vill. LÄS MER
50+ st i lager (1-3 dagar leveranstid)

Sapphire PULSE AMD Radeon RX 7000 Series

Digital Power Design

SAPPHIRE NITRO+ & PULSE AMD Radeon™ RX 7700 Series are designed with digital power which provides accurate power control and excellent power efficiency

Ultra High Performance Conductive Polymer Aluminum Capacitor

The Ultra High Performance Conductive Polymer Aluminum Capacitor has a small PCB foot print but high volumetric capacitance that makes 14-phase power possible on the RX 7700 series graphics card. The capacitor offers stable capacitance at a high frequency and temperature with very low signal noise, ensuring the stability and reliability of the product.

High TG Copper PCB

The GPU is mounted on to the high-density 14 layer 2oz Copper and high TG PCB to match the rapid speed, high current and increased power requirement of the GPU and memory to guarantee high stability of the PCB during operation.

Angular Velocity Fan Blade

The Angular Velocity Fan Blade  provides a double layer of downward air pressure which alongside the air pressure on the outer ring of the Axial fan, results in up to 44% more downward air pressure and up to 19% more airflow for a quieter and cooler operation when compared to the previous generations.

Optimized Composite Heatpipe

The composite heatpipes are fine-tuned for each individual cooling design with optimal heat flow, efficiently and evenly spreading out the heat to the entire cooling module.

Fuse Protection

In order to protect your card, the SAPPHIRE cards have fuse protection built into the circuit of the external PCI-E power connector to keep the components safe.

Two-Ball Bearing

These feature Dual Ball bearing fans, which have an approximately 85% longer lifespan than sleeve bearings in our tests. The improvements to the fan blades means the solution is up to 10% quieter than the previous generation.

Allmänt
Produktlinje Sapphire Pulse Radeon
Modell RX 7600
Producentens garanti (månader) 36
EAN 4895106293618
Videoutgång
Typ Grafikkort
API-stöd DirectX 12 Ultimate
VR-förberedd Ja
Grafikprocessortillverkare AMD
Maximal extern upplösning 7680 x 4320
Typ av gränssnitt PCI Express 4.0 x8
Antal strömprocessorer 2048
Grafikprocessor AMD Radeon RX 7600
Max antal bildskärmar som stöds 4
Snabb klockhastighet 2755 MHz
Utgångsportar (kompaktlista) HDMI, 3 x DisplayPort
Egenskaper för videoadapter AMD FidelityFX Super Resolution 2 (FSR), Sapphire Dual-X Cooling Technology, 32 strålföljningsacceleratorer, Intelligent Fan Control (IFC), UEFI BIOS, TriXX Boost, AMD Radeon Boost Technology, AMD smart åtkomstminnesteknik, AMD Infinity Cache, AMD Radeon Anti Lag Technology, Säkringsskydd, Fläktar med dubbla kullager, 2-slot Fan Cooler, Dual Fan Design, Precision Fan Control, Videostreaming upp till 8K, 32 dataenheter, Optimerade speldrivrutiner, Radeon bildskärpning, FreeSync Technology, AMD VR Ready Premium, Radeon Super Resolution (RSR), RDNA 3 gamingarkitektur, TriXX Supported, Bakre aluminiumplåt, Kompositvärmerör
Videosignal som stöds DisplayPort, HDMI
Videominne
Bussbredd 128-bit
Installerad storlek 8 GB
Minnehastighet 18 Gbps
Teknik GDDR6 SDRAM
Nätdel
Energiförbrukning vid drift 185 Watt
Systemkrav
Min RAM-storlek 8 GB
Extra krav 8-stifts PCI Express-strömkontakt
Erforderligt nätaggregat 550 W
Operativsystem erfordras Linux (64-bitars), Windows 10 (64-bit), Windows 11
Diverse
Standarder som följs DisplayPort 1.4
Färgkategori Svart, Röd
Mått och vikt
Bredd 4.407 cm
Djup 24 cm
Höjd 10.71 cm
Interfaces Details
Interfaces Details HDMI, 3 x DisplayPort (Display Stream Compression (DSC))
Programvara
Typ Sapphire TriXX, AMD Radeon Software Adrenalin Edition
