Artikelnummer: 1313304 / Tillverkarens artikelnummer: 90MB1IW0-M0EAY0

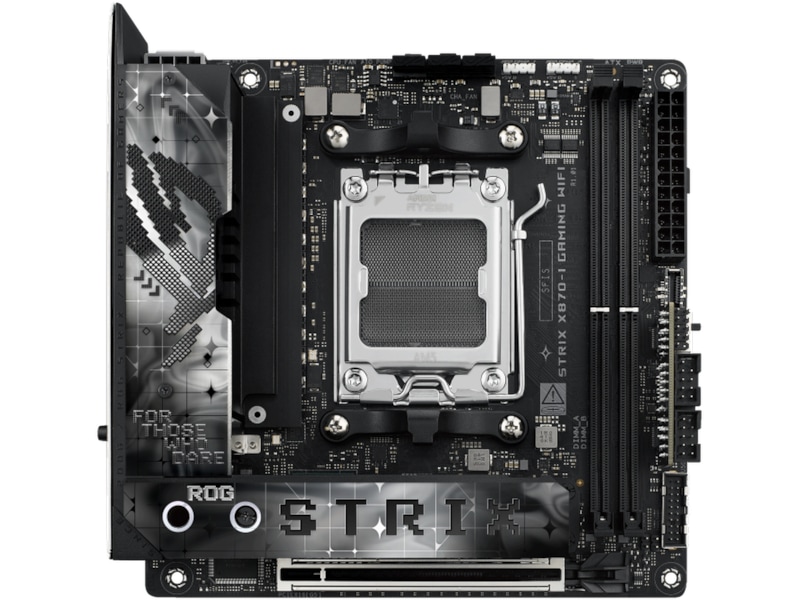

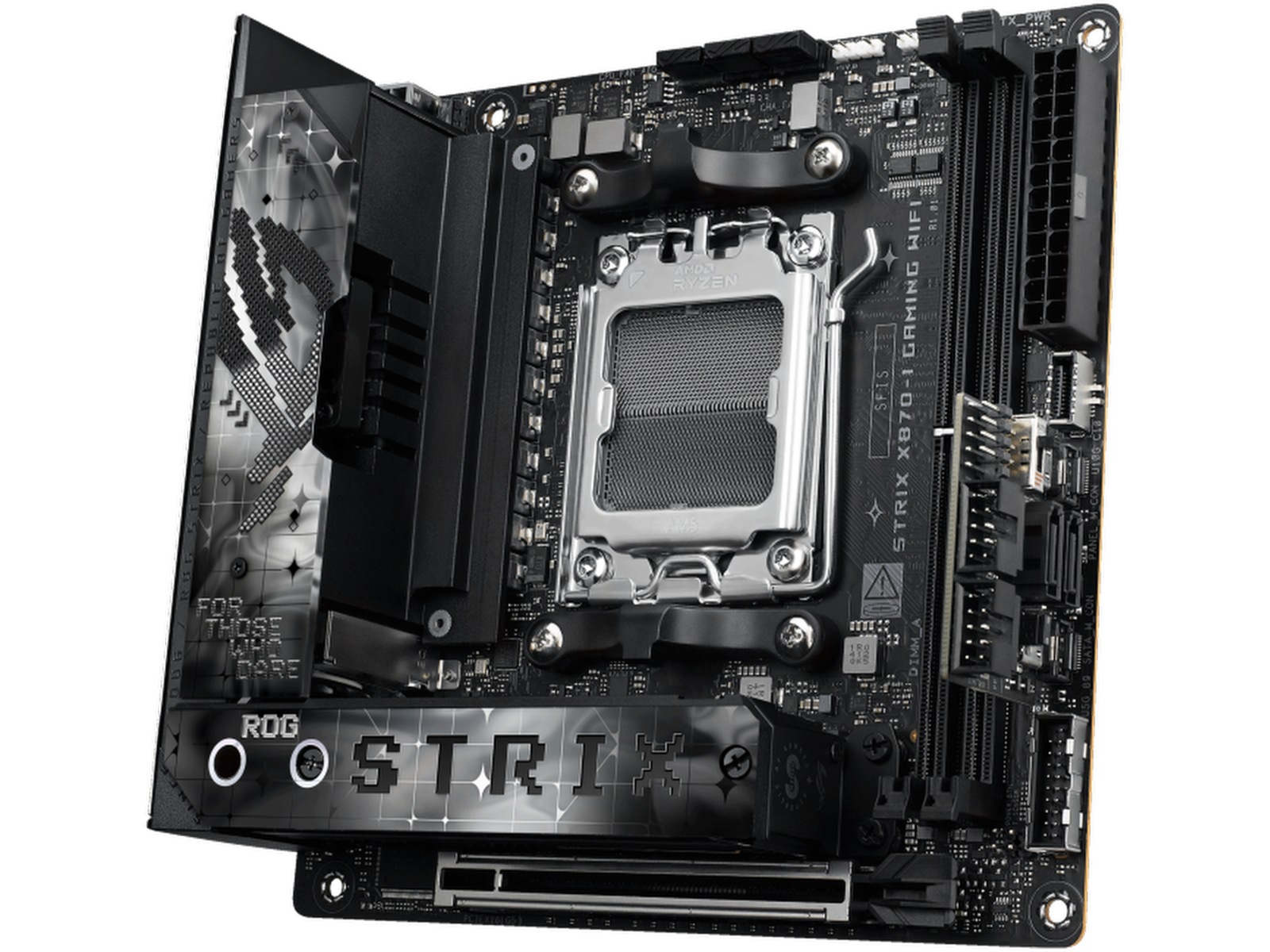

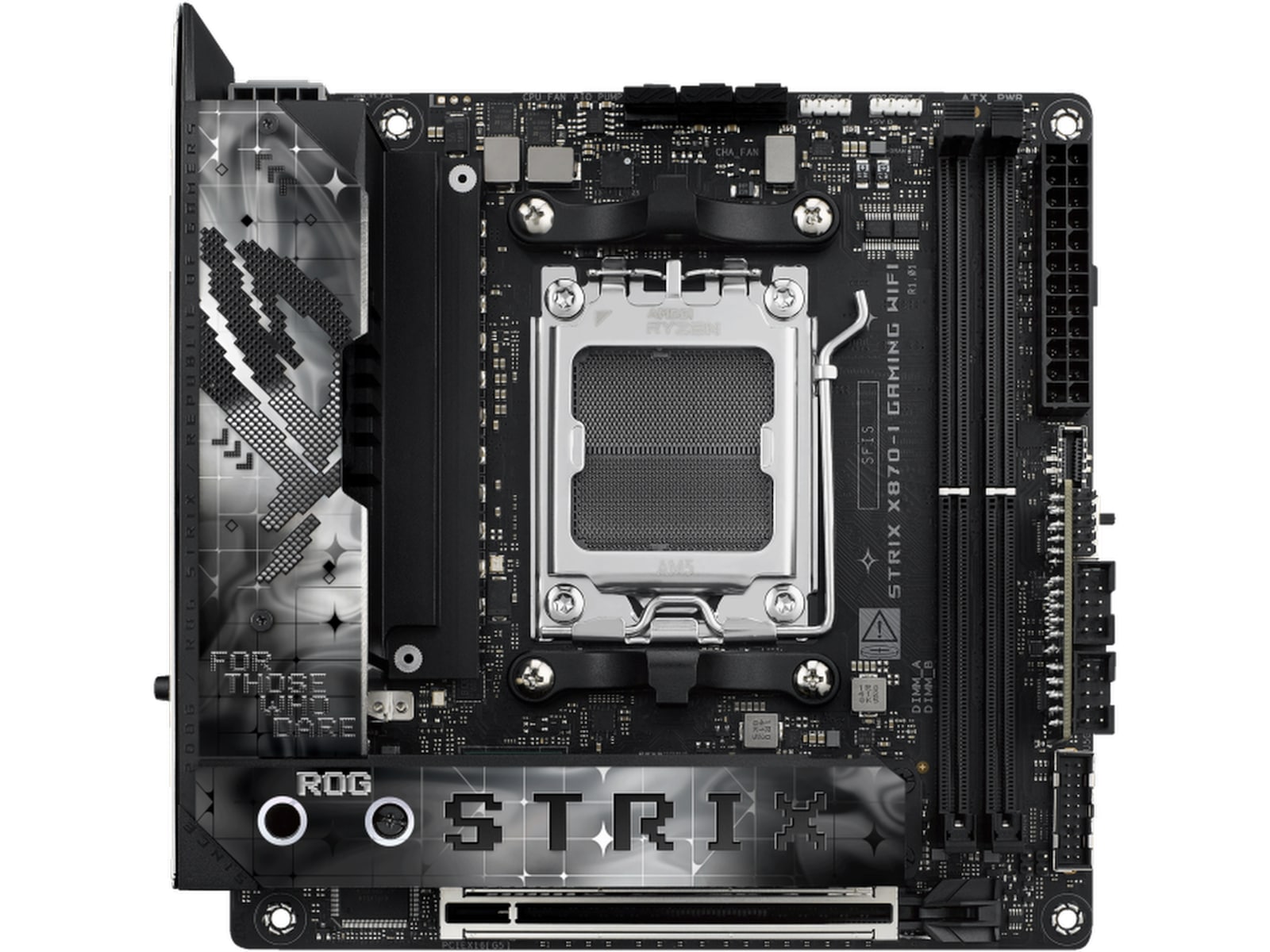

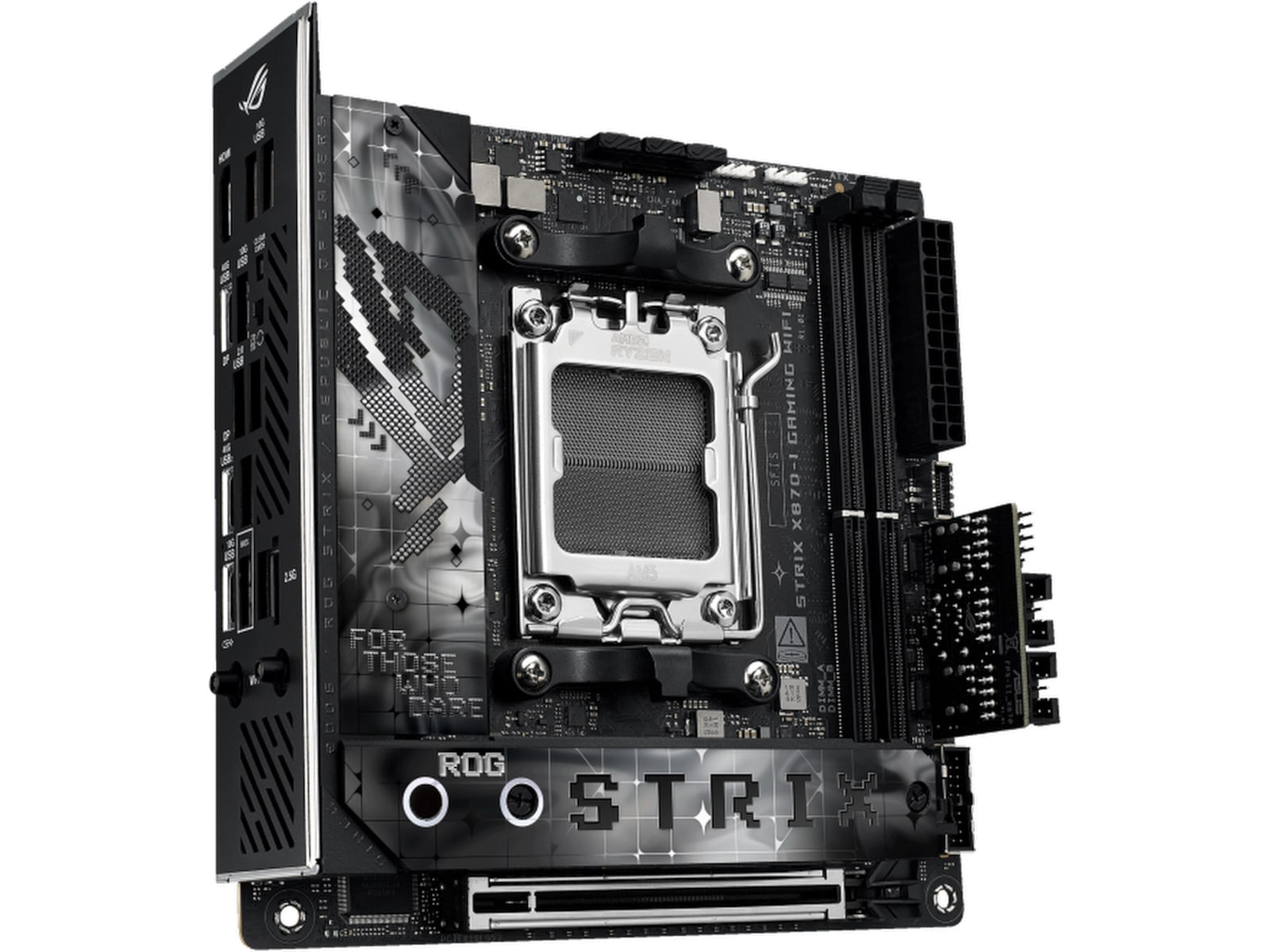

ASUS ROG Strix X870-I GAMING WIFI Moderkort

Socket-AM5, mini-ITX, DDR5, 2xUSB4, 1xPCie 5.0,Wi-Fi7, 2,5G LAN

More pictures from ASUS ROG Strix X870-I GAMING WIFI Moderkort

6 290:-
14 st i lager (1-3 dagar leveranstid)

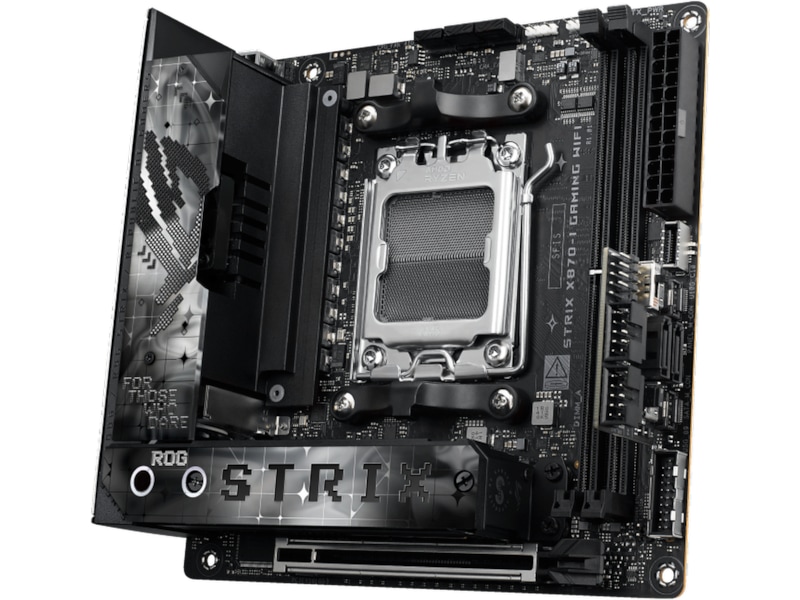

ASUS ROG Strix X870-I GAMING WIFI

The ROG Strix X870-I Gaming WiFi integrates cutting-edge technology into a sleek mini-ITX form factor, enhanced by the ROG Strix Hive II for streamlined control. It features PCIe 5.0 slots for graphics and storage, dual-channel DDR5 slots and robust power delivery for top-tier gaming and heavy workloads. Meanwhile, advanced cooling solutions maintain peak performance, and WiFi 7 ensures ultra-fast connectivity. This platform delivers the power and connectivity that advanced AI PC applications demand.

AI OVERCLOCKING

ASUS AI Overclocking profiles the CPU and cooling to predict the optimal configuration and push the system to its limits. Predicted values can be engaged automatically or used as a launching ground for further experimentation.

AI COOLING II

Balance the thermals and acoustics of any build with a single click. A proprietary ASUS algorithm slashes unnecessary noise while running a quick stress test, and then monitors CPU temperatures to dynamically adjust fans to optimal speeds.

AI NETWORKING II

AI Networking II combines intelligent technologies to continuously optimize network performance, provide trustworthy and seamless connectivity, and unleash the full speed of WiFi 7*.

*Features may vary by model.

Dynamic OC Switcher

Dynamic OC Switcher maximizes CPU performance by letting you set current and temperature thresholds to automatically switch between a manual overlock for heavy multithreaded workloads and Precision Boost Overdrive for single-threaded tasks. The latest Overclocking Load Guard has an enhanced instantaneous current protection mechanism to prevent users from experiencing system crashes during overclocking.

Core Flex

Core Flex empowers you to smash limits farther than ever before by letting you control clock, power, and thermals in creative new ways. In its simplest form, you can maximize base clock during lighter loads and set breakpoints to gradually reduce CPU core frequency as temperature or current increases. But the system is extremely adaptable, supporting multiple user-controlled functions that can manipulate power, current, and temperature limits independently so that you can bend CPU performance to your will.

PBO ENHANCEMENT

AMD Precision Boost Overdrive (PBO) pushes the CPU current and voltage budget to opportunistically increase performance. By aggressively tuning the PBO parameters, AMD's algorithm can leverage the motherboard's robust power solution to ramp up performance even higher.

DDR5 Strength

For those who want to fly past stock DDR5 speeds, the Strix X870-I is primed and ready for enthusiast-grade kits, courtesy of vast AMD Extended Profiles for Overclocking (EXPO) support. Seasoned veterans can further tweak performance via the extensive array of settings in the UEFI.

AEMP

ASUS Enhanced Memory Profile (AEMP) is an exclusive firmware feature for PMIC-restricted memory modules. AEMP automatically detects the memory chips on your kit and then presents optimized frequency, timing and voltage profiles that you can effortlessly apply to unleash performance.

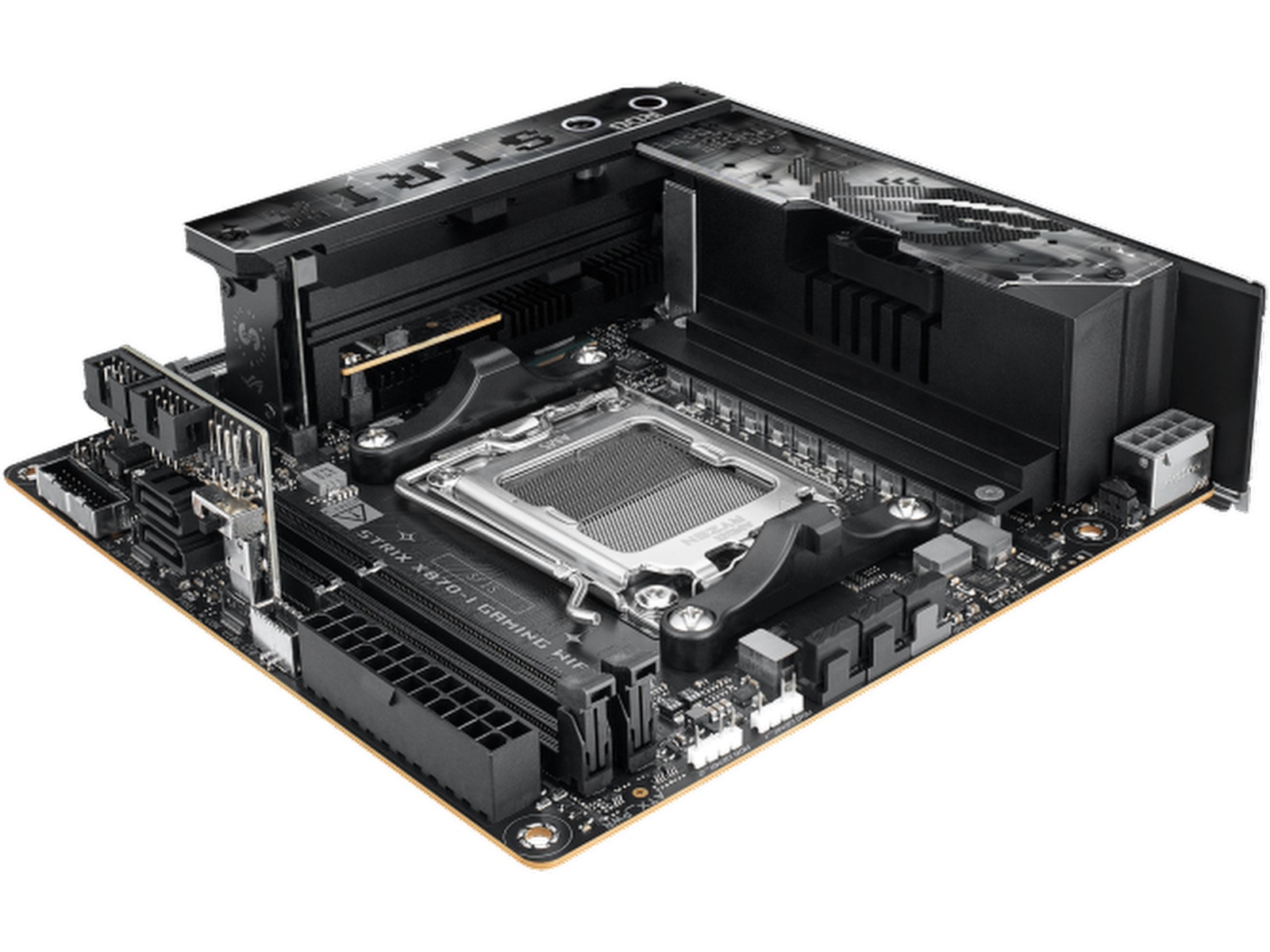

M.2 AND CHIPSET HEATSINKS

To save space, both on-board M.2 slots and heatsinks are stacked together over the chipset. And to keep the thermals of installed high-performance drives in check, the entire array is cooled by an embedded fan.

VRM HEATSINK ARRAY

Two thick VRM heatsinks are connected by a heatpipe, sharing cooling capacity across VRMs and providing ample surface area and mass to handle the power needs of high-performance AMD Ryzen™ 9000 Series processors.

High-conductivity Thermal Pads

High-quality thermal pads are utilized between power stages and heatsinks, helping to improve heat transfer and reduce VRM operating temperatures.

CPU FAN HEADERS

A dedicated pair of PWM/DC fan headers provides easy access to CPU coolers.

AIO PUMP FAN HEADER

A dedicated PWM/DC header connects self-contained water-cooling setups.

WIFI 7

The revolutionary WiFi 7 is up to 4.8X times faster than standard WiFi 6*, thanks to tech like 320 MHz channels** on the 6GHz band and 4K QAM*. Multi-Link Operation (MLO) provides a more stable WiFi connection and lower latency, unlocking the realms of the unknown in gaming, streaming and industrial IoT.

* WiFi 7 features require onboard WiFi chipset, WiFi AP, and WiFi 7-supported operating systems to support the corresponding features. 320 MHz channels in the 6 GHz band may be unavailable in some regions/countries due to regulatory restrictions.
** Specifications vary by model.

Intel 2.5Gb Ethernet

Onboard Intel® 2.5Gb Ethernet gives your wired connection a boost, with speeds that are 2.5 times faster than standard Ethernet connections for speedy file transfers, low-latency gaming, and high-res video streaming.

PCIE 5.0

Fully embracing the new standard, the Strix X870-I offers end-to-end PCIe 5.0 support. The topmost x16 expansion slot is Gen 5-ready, and is protected with a SafeSlot retention bracket to bear the weight of the latest graphics cards. One of the onboard M.2 slots is geared for blistering 16 Gb/s read and write speeds thanks to its PCIe 5.0 interface, while all the rest can deliver still-impressive 8 Gb/s transfers. Every M.2 slot is covered with substantial heatsinks to dispatch the heat of next-gen drives.​

Allmänt
Modell ROG STRIX X870-I GAMING WIFI
Produktlinje ASUS
Producentens garanti (månader) 24
EAN 4711387740309
Moderkort
RAM som stöds (registrerad eller buffrad) Ej buffrad
Processor-socket Socket AM5
RAM-kortplatser 2 DIMM-kortplatser
Kompatibla processorkommentarer Stöder Ryzen 7000/8000/9000-serien
Kretstyp AMD X870
RAM-teknik som stöds DDR5 SDRAM
Formfaktor Mini ITX
Stöder Ram Integrity Check ECC, Icke ECC, On-die ECC
Strömkontakter 8-pin ATX12V-kontakt, 24-pin kontakt för huvudström
RAM-hastighet som stöds 4300 MHz (O.C.), 4000 MHz (O.C.), 4200 MHz (O.C.)
Moderkortegenskaper
BIOS-typ AMI
Hårdvaruegenskaper ASUS Enhanced Memory Profile (AEMP), PCIe Slot Q-Release, ASUS SafeSlot, Q-Slot, Core Flex-teknik, Bakre aluminiumplåt, Q-Release Slim, Preboot eXecution Environment (PXE), BIOS FlashBack LED, M.2 Q-Latch, Q-DIMM, Q-Antenna, AI Nätverk II, Clear CMOS-knapp, ASUS EZ DIY, ASUS SafeDIMM, AI Cooling II, CrashFree BIOS 3, ASUS Q-Design, AMD Precision Boost Overdrive (PBO), ASUS ProCool II, ASUS Aura Sync, AI Överklockning, Q-LED, 10+2+1 faskraftsdesign, BIOS FlashBack-knapp, Förmonterat I/O-skydd, M.2 kylfläns
Viloläge/väckning Wake on LAN (WOL), Wake on PME
BIOS-egenskaper UEFI BIOS, ASUS EZ Flash 3, ASUS UEFI BIOS EZ-läge
Gränssnitt
Lagringsportar 2 x M.2
USB/FireWire-portkonfiguration (aktiv) 2 x USB4 + 2 x USB 3.2 Gen 2 + 3 x USB 3.2 Gen 1 + 4 x USB 2.0
Lagring M.2-uttag
USB/FireWire-portkonfiguration (sidhuvud) 1 x USB-C 3.2 Gen 2x2 + 1 x USB-C + 2 x USB 3.2 Gen 1 + 4 x USB 2.0
RAID-egenskaper AMD RAID Xpert2-teknik
USB/FireWire USB 3.2 Gen 1, USB4, USB-C 3.2 Gen2, USB 3.2 Gen 2
Videoutgång
Typ Grafikadapter (CPU krävs)
Ljudutgång
Ljud High Definition Audio (8-kanalig)
Audio Codec ESS SABRE9260Q
Typ Ljudkort
Standarder som följs HD-ljud, Dolby Atmos
Diverse
Standarder som följs DisplayPort 1.4a
Produkttyp Moderkort

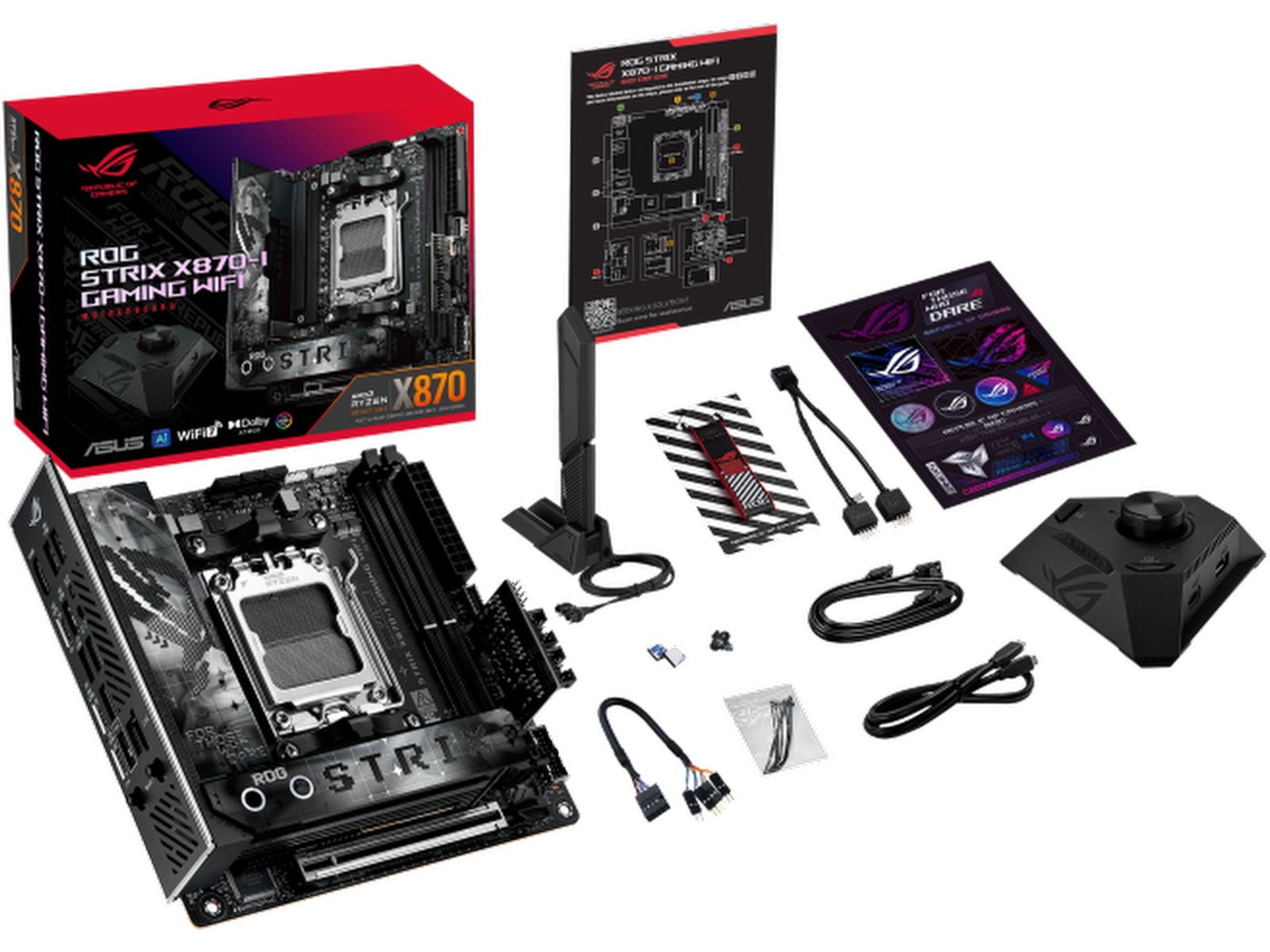

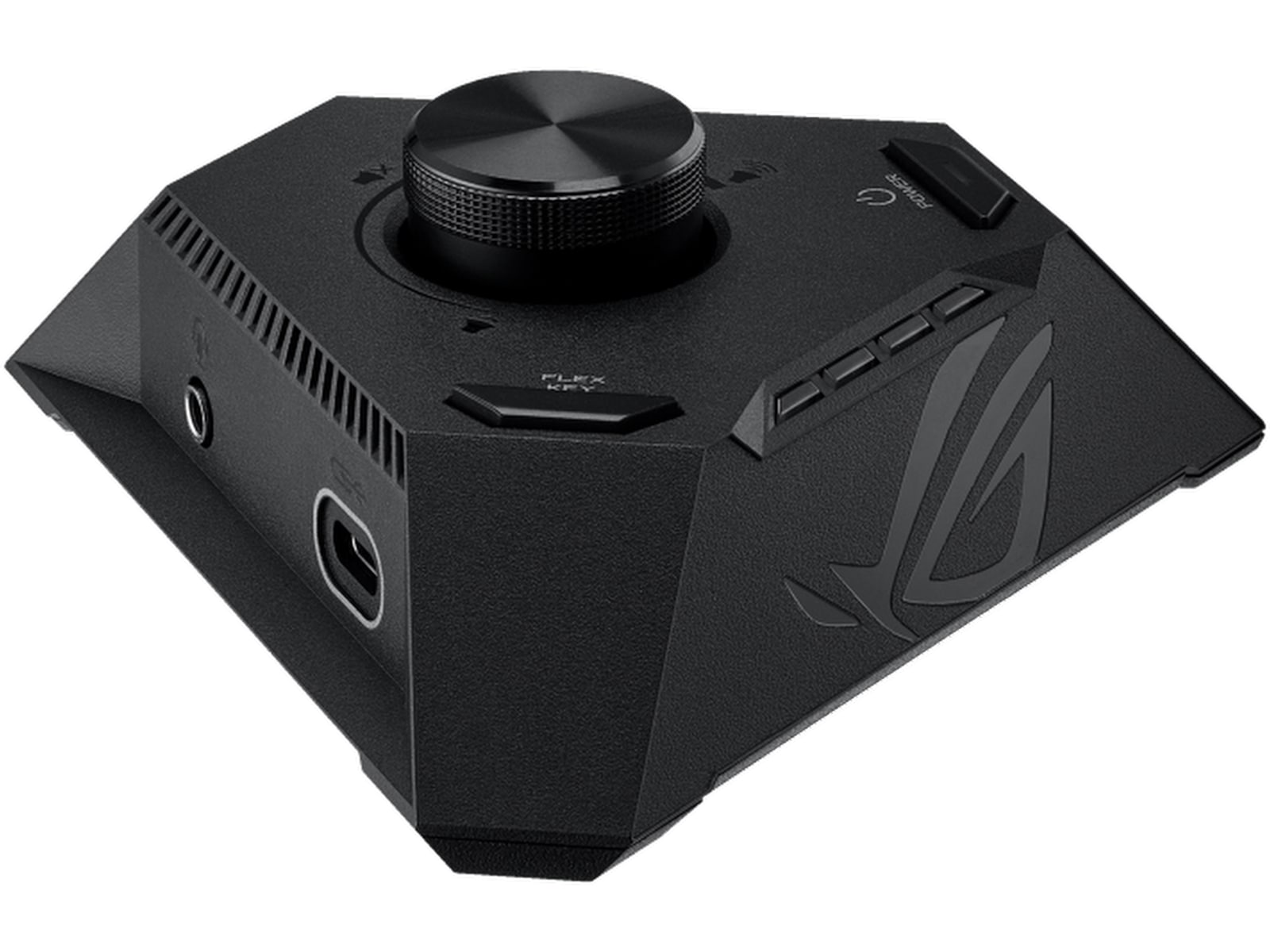

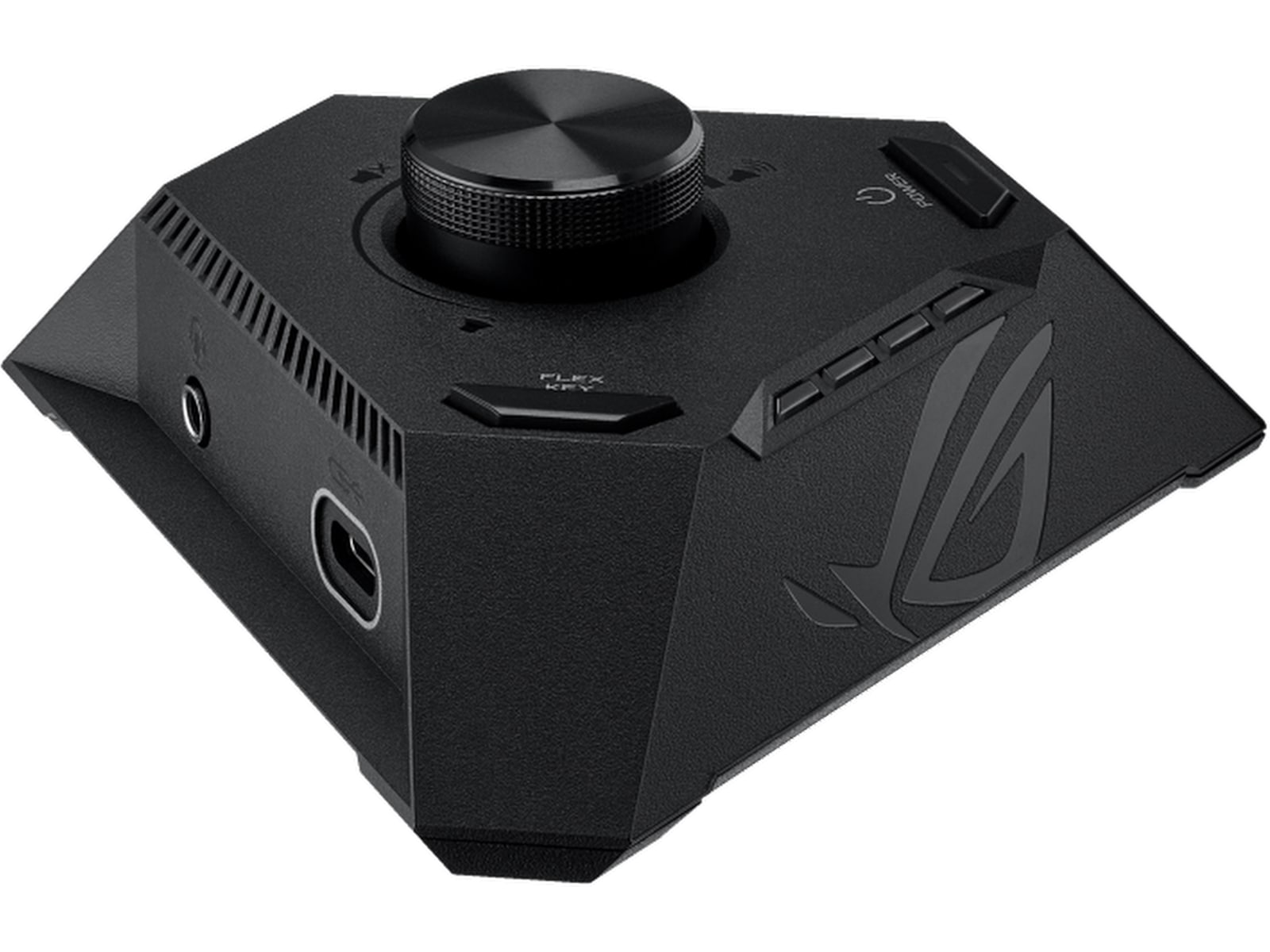

Inkluderade tillbehör ROG-nyckelring, Panelkabel, ASUS Wi-Fi Q-antenna, M.2 Q-Latch, ROG STRIX HIVE II, ROG FPS-kort, M.2 bakre plåt gummipaket, Kabelband, ROG Strix klistermärke
RAM
Egenskaper AMD EXPO-teknik, Minnesarkitektur med dubbel kanal
Nätverk
Nätverk 2.5 Gigabit Ethernet, Bluetooth 5.4, 802.11a/b/g/n/ac/ax/be (Wi-Fi 7)
Datalänkprotokoll Fast Ethernet, Gigabit Ethernet, Bluetooth 5.4, Ethernet, IEEE 802.11b, IEEE 802.11be (Wi-Fi 7), IEEE 802.11ax (Wi-Fi 6E), 2.5 Gigabit Ethernet, IEEE 802.11g, IEEE 802.11n, IEEE 802.11ac, IEEE 802.11a
Expansionsuttag
Expansionskortplatser 2 x DIMM 288-stift, 1 x CPU, 1 x PCIe 5.0 x16, 1 x M.2 socket (2280 M.2, nyckel M-kortplats), 1 x M.2 socket (2242/2260/2280 M.2 Key M-plats)
Lagringsgränssnitt
Lagringsgränssnitt PCIe 5.0 -kontakter: 1 x M.2 - RAID 0 / RAID 1 / RAID 10, PCIe 4.0 -kontakter: 1 x M.2 - RAID 0 / RAID 1 / RAID 10
Tillhandahållet gränssnitt

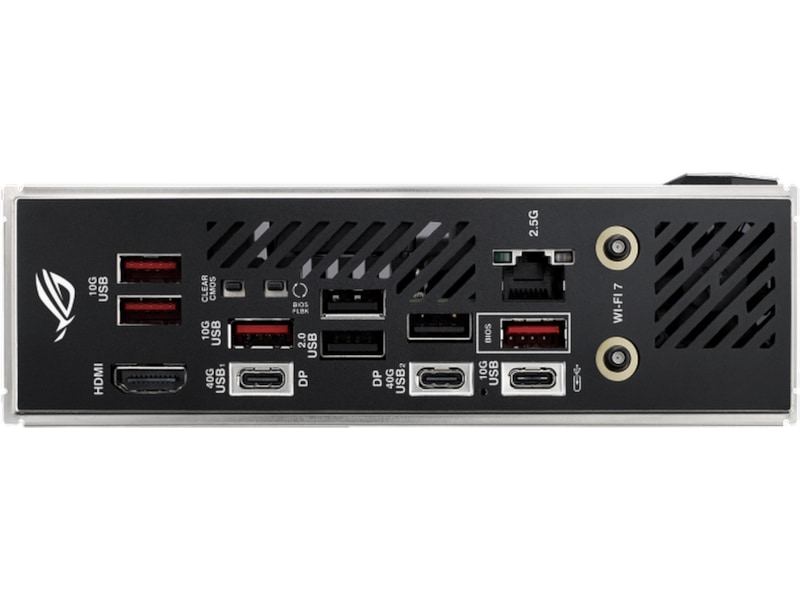

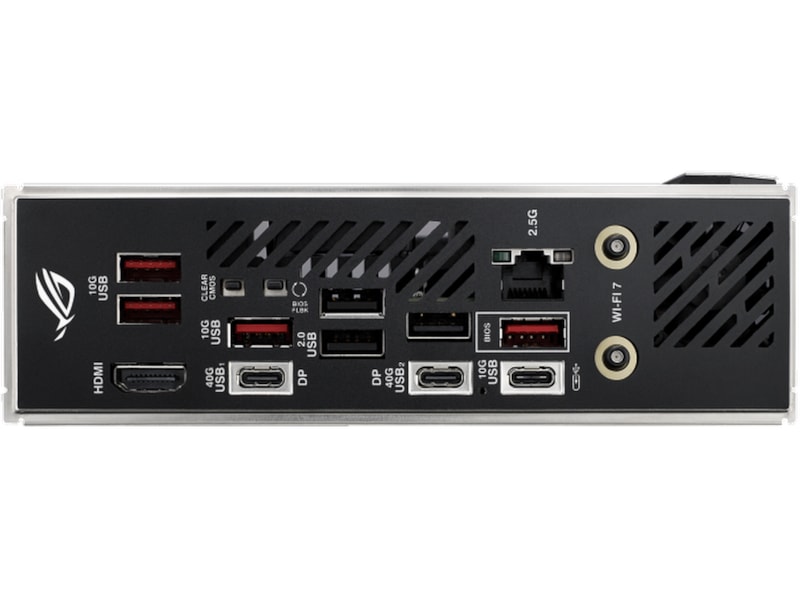

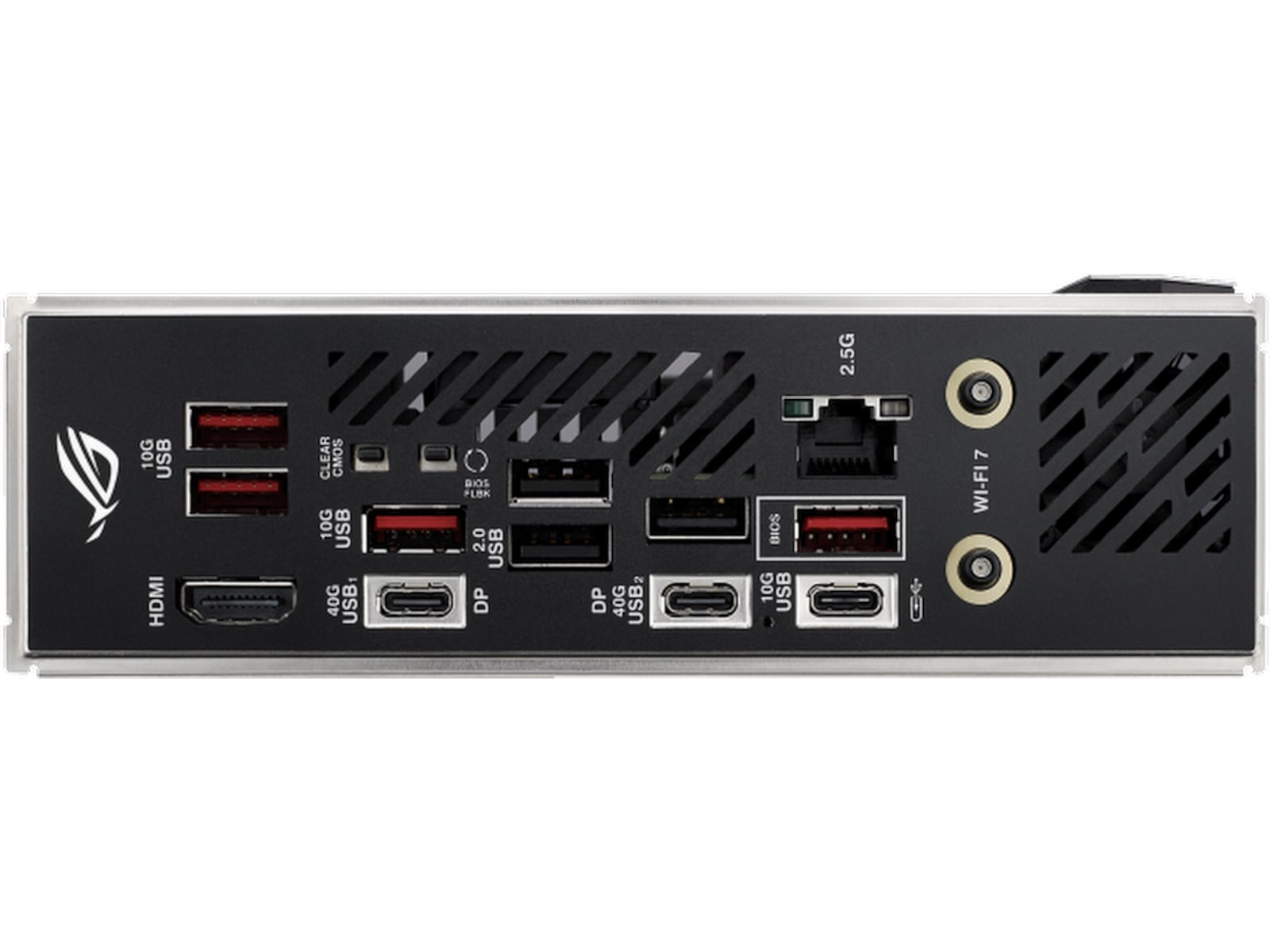

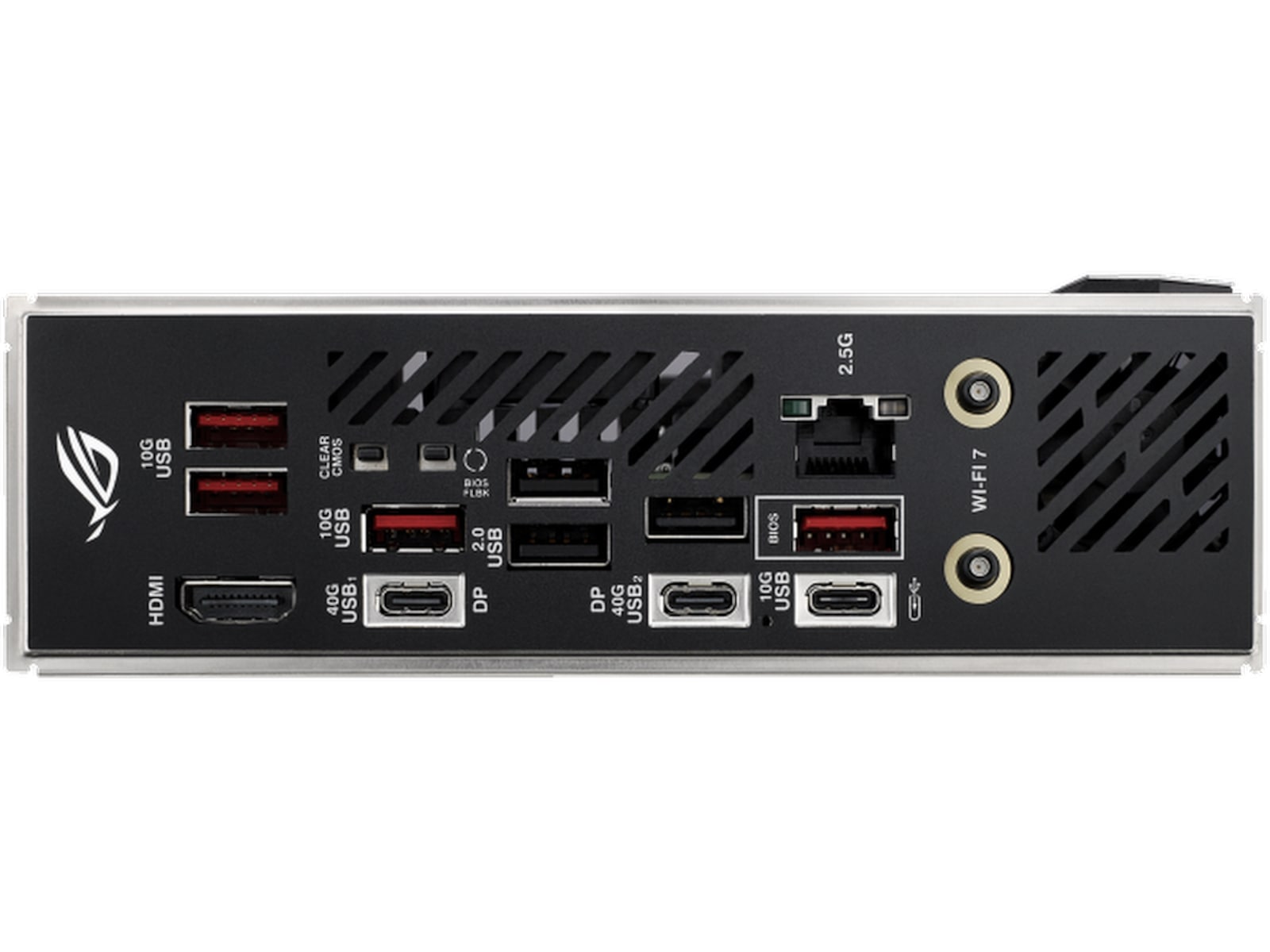

Gränssnitt 4 x USB 3.2 Gen 2, 2 x Thunderbolt 4/DisplayPort/USB4, 2 x antenn, 1 x LAN (2.5Gigabit Ethernet), 1 x USB-C 3.2 Gen 2, 1 x HDMI
Interna gränssnitt

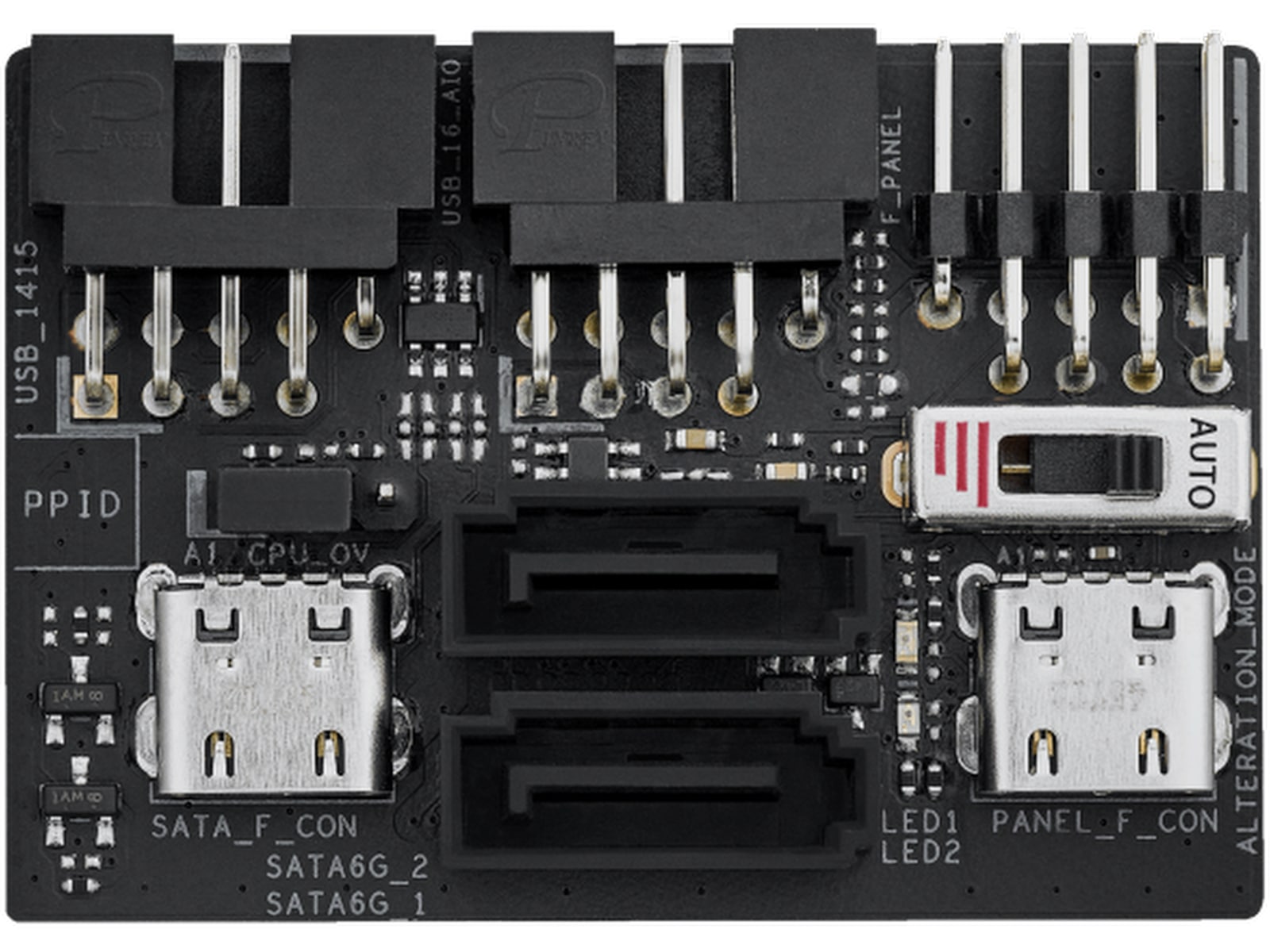

Interna gränssnitt 1 x USB-C 3.2 Gen 2x2 - header, 2 x USB 3.2 Gen 1 - header
Kabeldetaljer
Medföljande kablar 1 x USB 2.0-delningskabel, 2 x SATA expresskabel, 1 x USB-C till USB-C-kabel
Programvara
Programvara inkluderad AIDA64 Extreme (60 dagars testperiod), ASUS GlideX, ROG GameFirst Utility, ASUS Fan Xpert 4, Adobe Creative Cloud (kostnadsfri provperiod), ASUS AURA Creator, HWiNFO, ROG CPU-Z, ASUS DriverHub, WinRAR (40 days trial), Norton 360 för gamers (60 dagars provperiod)
