Prismatch*Prismatch*
Artikelnummer: 618132 / Tillverkarens artikelnummer: TL-SG1024D

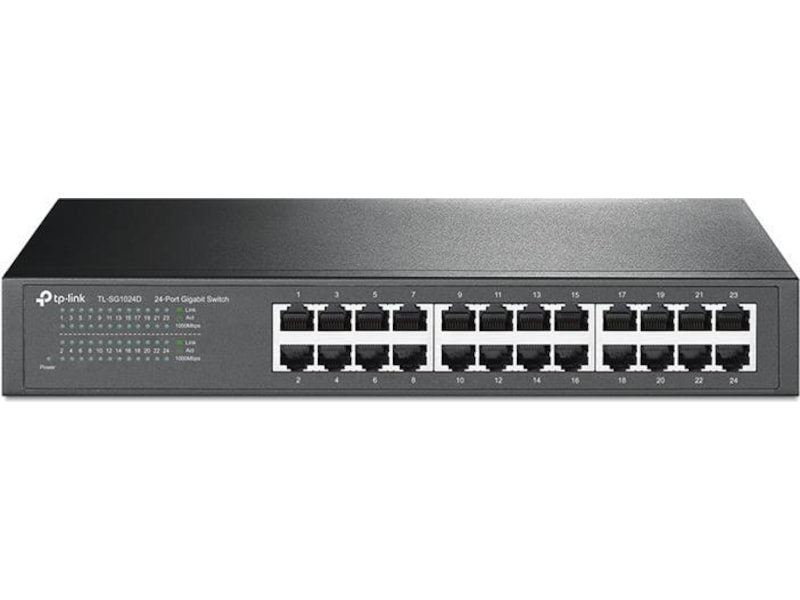

TP-LINK TL-SG1024D Switch

24 port, Unmanaged, Gigabit, Rackmount

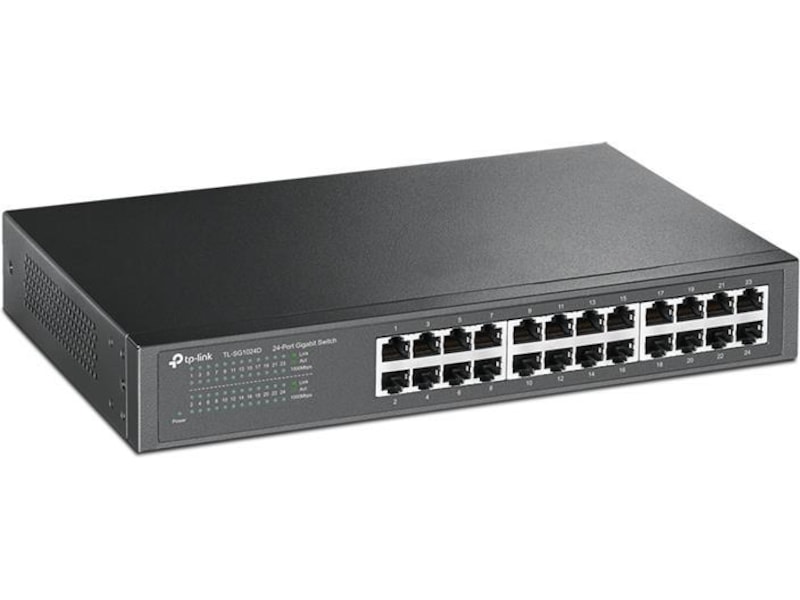

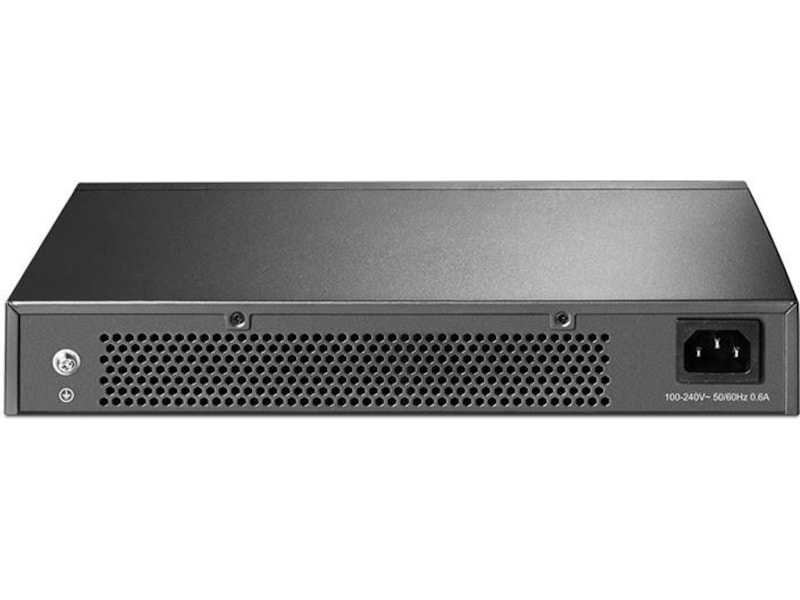

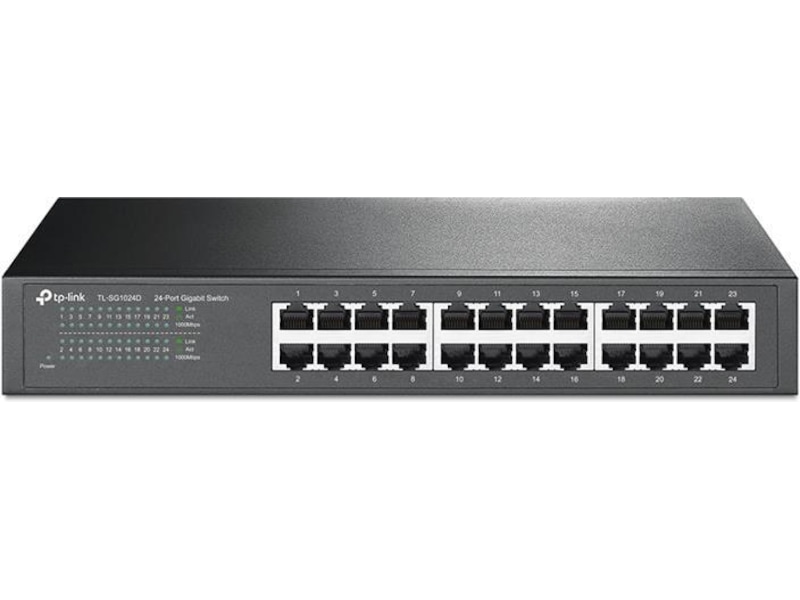

More pictures from TP-LINK TL-SG1024D Switch

Antal portar:
24-port
1 299:-
Inte i lager. 28 st. förväntas i lager den 21 maj 2024

24-Port Gigabit Desktop/Rackmount Switch TL-SG1024D


Highlights:

  • 24 10/100/1000Mbps ports
  • Innovative energy-efficient technology saves power up to 20%
  • Supports MAC address self-learning, Auto MDI/MDIX and Auto negotiation
  • Plug & play design


What This Product Does
The TL-SG1024D 24-Port Gigabit desktop/rack-mount switch provides an easy way to make the transition to Gigabit Ethernet. All 24 ports support auto MDI/MDIX, no need to worry about the cable type, simply plug and play. Moreover, with the innovative energy-efficient technology, the TL-SG1024D can save up to 20%* of the power consumption, making it an eco-friendly solution for your business network.



Gigabit Switch
Featured with 24 10/100/1000Mbps ports, TL-SG1024D greatly expands your network capacity, enabling instant large files transferring. So,power users in the home, office, workgroup, or creative production environment can now move large, bandwidth-intensive files faster. Transfer graphics, CGI, CAD, or multimedia files across the network instantly.


Go Green With Your Ethernet
You now have the choice to go green when upgrading to a gigabit network! This new generation TL-SG1024D 24-Port Gigabit desktop/rack-mount Switch features the latest innovative energy-efficient technologies that can greatly expand your network capacity with much less power. It automatically adjusts power consumption according to the link status and cable length to limit the carbon footprint of your network.


Power down Idle Ports
When a computer or network equipment is off, the corresponding port of a traditional switch will continue to consume considerable amounts of power. The TL-SG1024D can automatically detect the link status of each port and reduce the power consumption of ports that are idle.


Power Budget According to Cable Length
Ideally, shorter cables would use less power because of less power degradation over their length; this is not the case with most devices as they will use the same amount of power across the cable regardless of whether it is 10 or 50 meters in length. TL-SG1024D analyzes the length of the Ethernet cable connected and adjusts the power usage accordingly, rather than keeping the power consumption in a conventional solution.


Easy to Use
The auto features of this gigabit switch make installation plug and play and hassle-free. No configuring is required. Auto MDI/MDIX eliminates the need for crossover cables. Auto-negotiation on each port senses the link speed of a network device (either 10, 100 Mbps or 1000 Mbps) and intelligently adjusts for compatibility and optimal performance.

* Maximum power savings when compared to a TP-LINK conventional switch, the real saving rate may vary based on the usage condition.


Allmänt
Modell TL-SG1024D
Produktlinje TP-Link
Producentens garanti (månader) 36
EAN 6935364020620
Nätverk
Undertyp Gigabit Ethernet
Typ Switch
Jumbo Frame-support 10KB
MAC Address Table Size 8K poster
Antal portar 24
Underkategori Nätverkshubbar och switchar
Standarder som följs IEEE 802.3ab, IEEE 802.3, IEEE 802.3i, IEEE 802.3x, IEEE 802.3u
Funktioner Lagra och vidarebefordra, Auto-uplink (auto MDI/MDI-X), Full duplex, Fläktlös, Auto-negotiation, Flödeskontroll
Formfaktor Rackmonterbar, Skrivbordsmodell
Statusindikatorer Länk/akvititet, Strömförsörjning, 100M-enhet ansluten, 1000M-enhet ansluten
Portar
Typ 10/100/1000
Kvantitet 24
Tillhandahållet gränssnitt
Gränssnitt 24 x 1000Base-T RJ-45
Nätdel
Typ Extern strömadapter
Erforderlig frekvens 50/60 Hz
Diverse
Höjd (U-format) 1
Inkluderade tillbehör Gummifötter
Rackmonteringssats Inkluderat
Färgkategori Grå
Standarder som följs FCC, RoHS
Mått och vikt
Djup 18 cm
Bredd 44 cm
Höjd 4.4 cm
Miljöparametrar
Luftfuktighet vid lagring 5 - 90 % (icke-kondenserande)
Min temperatur vid förvaring -40 °C
Luftfuktighet vid drift 10 - 90 % (icke-kondenserade)
Max temperatur vid förvaring 70 °C
Min temperatur vid drift 0 °C
Max temperatur vid drift 40 °C
Prestanda
Prestanda Avsändningsprestanda: 35.7 Mpps, Växlingskapacitet: 48 Gbps
Average rating (5 reviews)
Riktlinjer för produktrecensioner

Arbeidshest

By Henning Fjeld 2023-12-30

Står fint i racket her hjemme. Bruker 22 av 24 porter, aldri noe trøbbel. Stått på 24/7 i to år nå. Läs mer

Tycker du denna recension är informativ?

Nok porter for en stund

By JKH 2022-05-11

Med dette beistet har man nok lan porter for ekspansjoner fremover. Läs mer

Tycker du denna recension är informativ?

Fungerer som planlagt

By HP 2021-08-11

Har ikke tenkt på denne siden den ble installert. Med andre ord fungerer den smertefritt til mitt enkle bruk som kablet kobling mellom 3 nettverksnoder samt ulike smarthus-huber. Fungerer akkurat slik den var tiltenkt. Läs mer

Tycker du denna recension är informativ?
