Noctua NH-L9i CPU Kylare

1150/1151/1155/1156, 1800~2500 RPM, 40,8~57,5 m³/h, 14.8~23.6 dBA, 3-Pin

Artikelnummer: 770812 / Tillverkarens artikelnummer: NH-L9I

More pictures from Noctua NH-L9i CPU Kylare

Fri frakt
Inte i lager. 32 st. förväntas att skickas 17 augusti 2022 (osäkert datum)
Testlogo funkyit recommended Testlogo globetrotters Testlogo Hardwareslave recommended

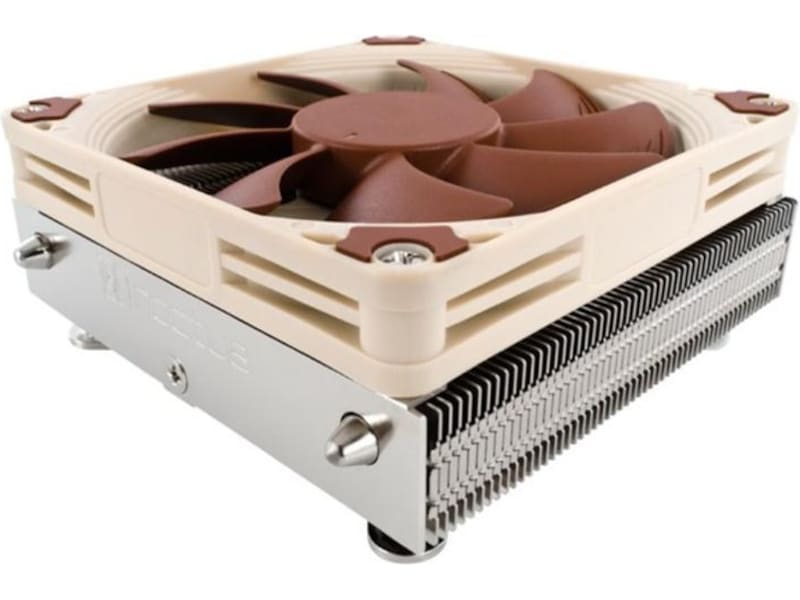

Noctua NH-L9i CPU Cooler. The NH-L9i is a premium quality quiet CPU cooler for Intel LGA115x based HTPCs and Small Form Factor systems. At a super-low profile of only 37mm, the NH-L9i is ideal for extremely slim cases and due to its 95x95mm footprint, it provides full compatibility with tall RAM modules and VGA cards on mini-ITX mainboards.

37mm low profile.

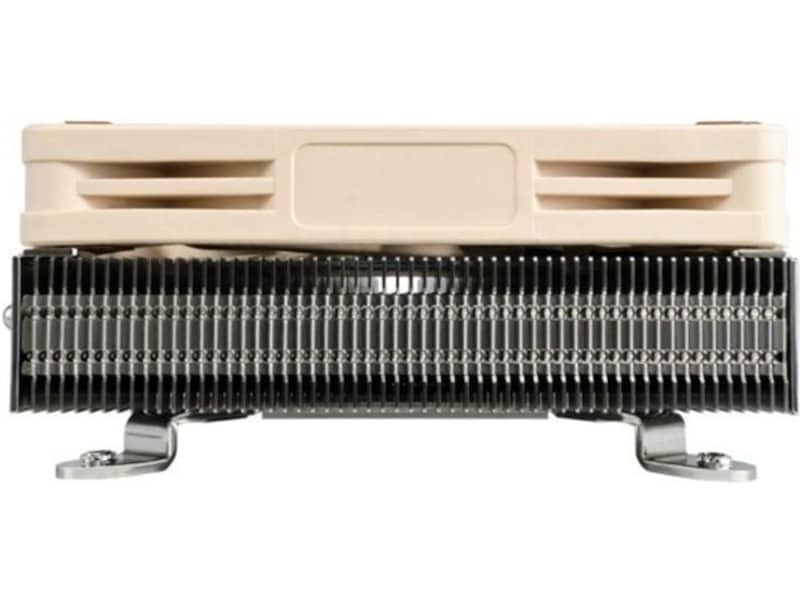

Due to the slim 23mm heatsink and the NF-A9x14 low profile fan that measures only 14mm in thickness, the NH-L9 stands a mere 37mm tall, which makes it ideal for use in compact HTPCs or Small Form Factor cases that offer minimum clearance for CPU coolers.
100% RAM compatibility.
The NH-L9i has a 95x95mm footprint that complies exactly to the Intel LGA115x socket keep-out zone. This means that it won’t cause issues with chipset coolers and doesn’t overhang the RAM slots, so it’s fully compatible with tall memory modules.
100% compatibility with PCIe cards on mini-ITX.
Most Intel LGA115x based mini-ITX mainboards have the PCIe slot sitting right next to the 95x95mm socket zone. While larger coolers that exceed this zone are likely to block the PCIe slot, the 95x95xmm sized NH-L9i provides full compatibility with PCIe cards.
NF-A9x14 PWM premium fan.
The highly optimised NF-A9x14 premium fan features Noctua’s proprietary AAO frame as well as sophisticated aerodynamic design measures. Supporting PWM for fully automatic speed control, the NF-A9x14 allows the NH-L9i to stay remarkably quiet
Low-Noise Adaptor.
Allowing to reduce the maximum speed of the NF-A9x14 fan from 2500 to 1800rpm, the included Low-Noise Adaptor (L.N.A.) makes it possible to achieve near-silent setups using CPUs with less than 65W TDP.
Custom-designed SecuFirm2™ mounting for LGA115x.
The NH-L9i bundles a custom-designed, backplate-less SecuFirm2™ mounting system for LGA115x that offers extended compatibility with mini-ITX boards and makes installation easier than ever, all while maintaining the trusted SecuFirm2™ quality.
NT-H1 thermal compound.
Noctua’s much-acclaimed NT-H1 is a well proven pro-grade TIM solution that provides minimum thermal resistance, excellent ease-of-use and outstanding reliability.
6 years manufacturer’s warranty.
Noctua products are renowned for their impeccable quality and outstanding longevity. Like all Noctua fans, the supplied NF-A9x14 features an MTBF rating of more than 150.000 hours and the entire NH-L9i package comes with a full 6 years manufacturer’s warranty.

Producentens garanti (månader) 60
Produkttyp Processorkylare

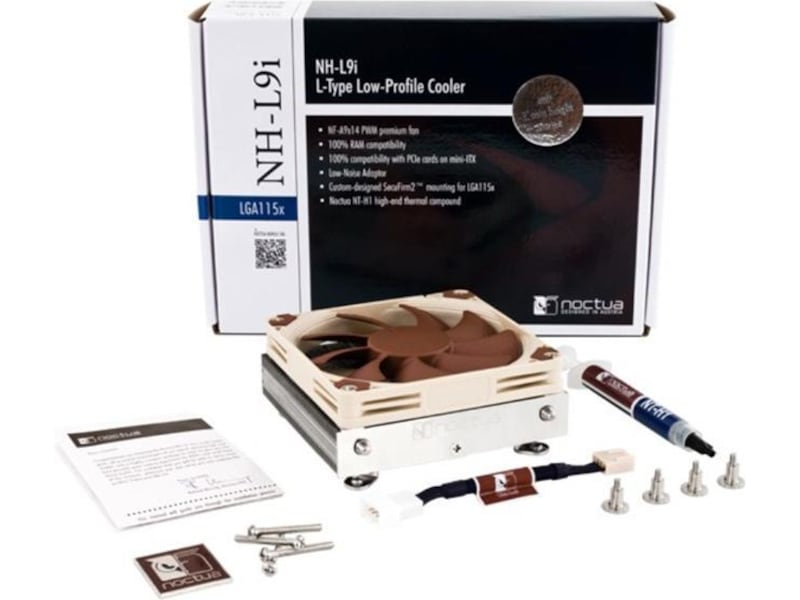

Förpackningens innehåll Termisk pasta, skruvar, Low-Noise Adaptor (L.N.A.), metallfodralemblem
Bredd 9.5 cm
Djup 9.5 cm
Höjd 3.7 cm
Vikt 420 g
EAN 4716123314875
Kylfläns och fläkt
Kompatibel med LGA1156 Socket, LGA1155 Socket, LGA1150 Socket, LGA1151 Socket, LGA1200 Socket
Kylarmaterial Aluminium med nickelpläterad kopparbas
Kylardimensioner 95 mm x 95 mm x 23 mm
Fläktdiameter 92 mm
Fläkthöjd 14 mm
Fläktlager SSO2-lager
Rotationshastighet 300-2 500 vpm
Luftflöde 40,8-57,5 cfm
Lufttryck 1.06- 2.11 mm
Bullernivå 14.8-23.6 dBA
Märkspänning 12 V
Strömkonsumtion 2,52 W
Egenskaper Stöd för PVM (Pulse-width modulation)
Monteringssats Inkluderat
MTBF (genomsnittstid mellan fel) 150,000 timme/timmar
