Cooler Master CM Force 500 Midi Tower

Artikelnummer: 775801 / Tillverkarens artikelnummer: FOR-500-KKN1

More pictures from

Cooler Master CM Force 500 Svart Midi Tower Chassi

Classy, yet affordable cases

First in a new series of all black, classy, yet affordable cases. Thanks to its top mounted PSU design its compatible with virtually all Power Supplies. Supports the latest ATX and micro-ATX motherboards and all HighEnd VGAs!

First in a new series

CM Force 500 is the first in a new series of all black, classy, yet affordable cases. Thanks to its top mounted PSU design its compatible with virtually all Power Supplies. It supports the latest ATX and micro-ATX motherboards and all HighEnd VGAs.

Charging your smart phone and tablet

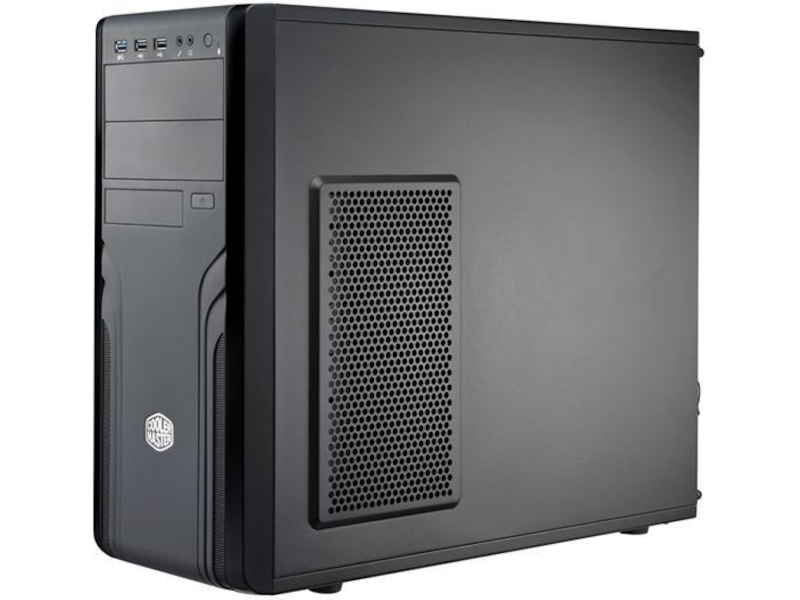

It features two tool-free ODD and HDD slots, plus an additional 6 standard HDD slots. Both side panels feature large vents to cool VGAs and HDDs, and can be equipped with additional 120mm fans. And thanks to its USB 3.0 Super Speed port it enables swift data transfers and faster smart phone/tablet charging (~1A).

Features

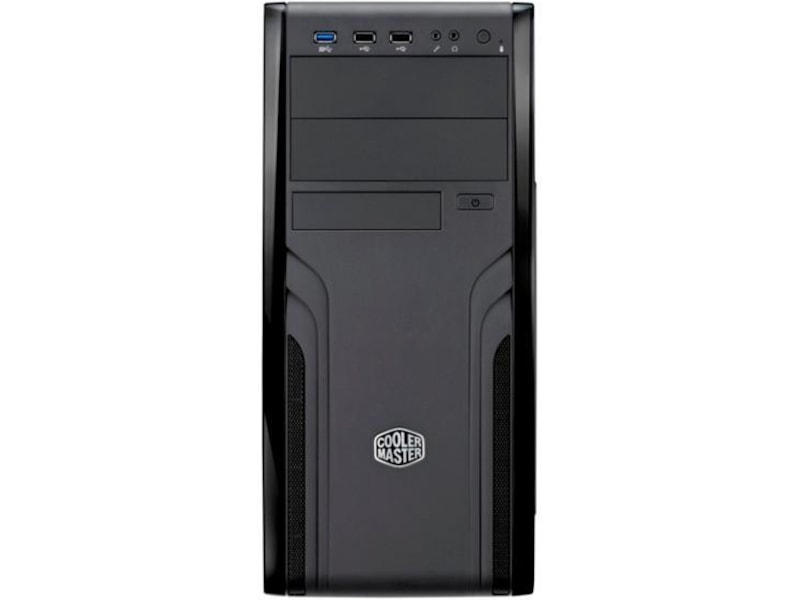

  • Classy and simplistic front panel design
  • USB 3.0 super speed port (internal)
  • Top mounted PSU slot for best PSU compatibility
  • Large tray cut-out for easy CPU cooler installation
  • Supports all High-End VGAs
  • Tool-free system for ODDs, card reader and HDDs
  • VGA cooling vent with 120/140 mm fan support

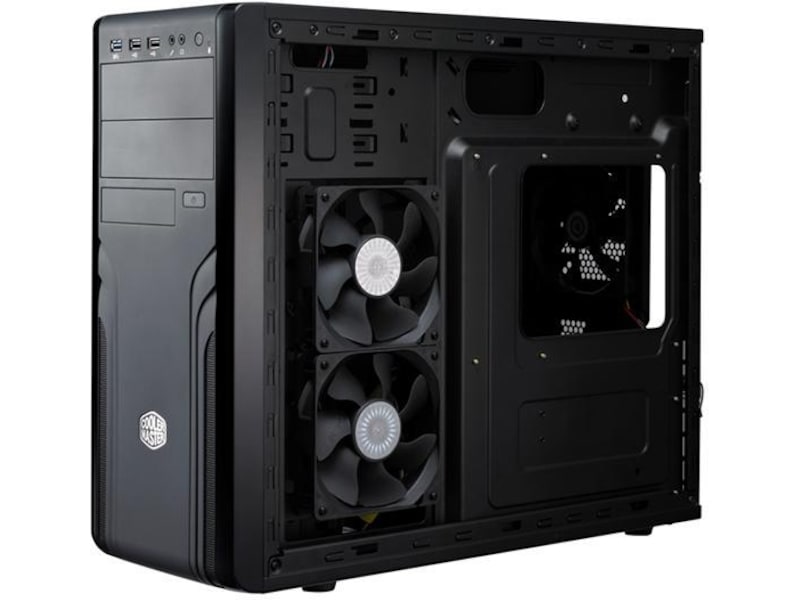

  • HDD cooling vent with 2x120mm fan support
  • Supports up to 6 fans in total (1 pre-installed)

Cooling system

  • Front: 140mm fan x 1 (optional), or 120mm fan x 2 (optional)

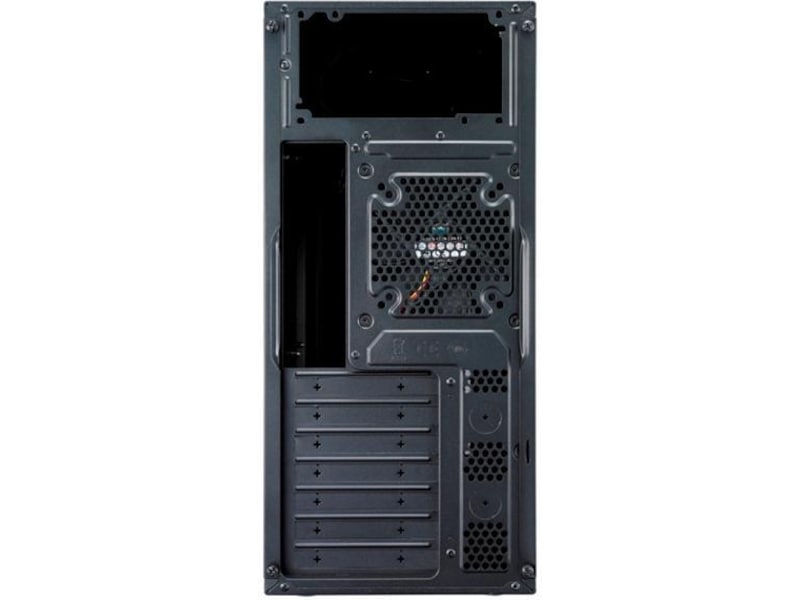

  • Rear: 120mm Black fan x1, 1200 RPM, 17 dBA.
  • Side (left): 120/140mm fan x 1 (optional)
  • Side (right): 120mm fan x 2 (optional)
  • CPU cooler height: 163.9mm

Water cooling compatibility

  • Side Right: 120/240mm radiator x 1 (optional)
  • Rear: 120mm radiator x 1 (optional)

Specifications

  • Mother Board Support: Micro ATX, ATX
  • Power Supply Type: ATX PS2
  • VGA card length: 320mm (with HDD cage)
  • Size (LxWxH)575 x 280 x 565mm
Allmänt
Producentens garanti (månader) 24
Formfaktor Miditower
Maxstorlek för moderkort ATX
Moderkort som stöds ATX, microATX
Specifikationer ATX / PS/2
Antal interna fack 7
Antal fack på framsidan 3
Färg Svart
Kylsystem Front: fläktmontering x 2 / stöd för 1 x 140 mm eller 2 x 120 mm fläkt
Bakre: 120 mm fläkt x 1
Sida: fläktmontering x 1 / stöd för 1 x 120/140 mm fläkt
Sida: fläktmontering x 2 / stöd för 2 x 120 mm fläkt
Expansion/Anslutning
Expansionsfack 2 (totalt)/ 2 (ledig) x åtkomligt framifrån - 5.25" x 1/2H
7 (totalt)/ 7 (ledig) x intern - 3.5" x 1/3H
1 (totalt)/ 1 (ledig) x åtkomligt framifrån - 3.5" x 1/3H
Expansionskortplatser 8 x expansionskortplats
Gränssnitt 2 x USB 2.0
1 x USB 3.0
1 x ljudutgång - mini-jack
1 x mikrofon - mini-jack
Strömtillförsel
Nätdel Inget nätaggregat
Mått och vikt
Bredd 19 cm
Djup 49.5 cm
Höjd 42.6 cm
Vikt 5.23 kg
