Prismatch*Prismatch*
Artikelnummer: 779001 / Tillverkarens artikelnummer: NH-U12S

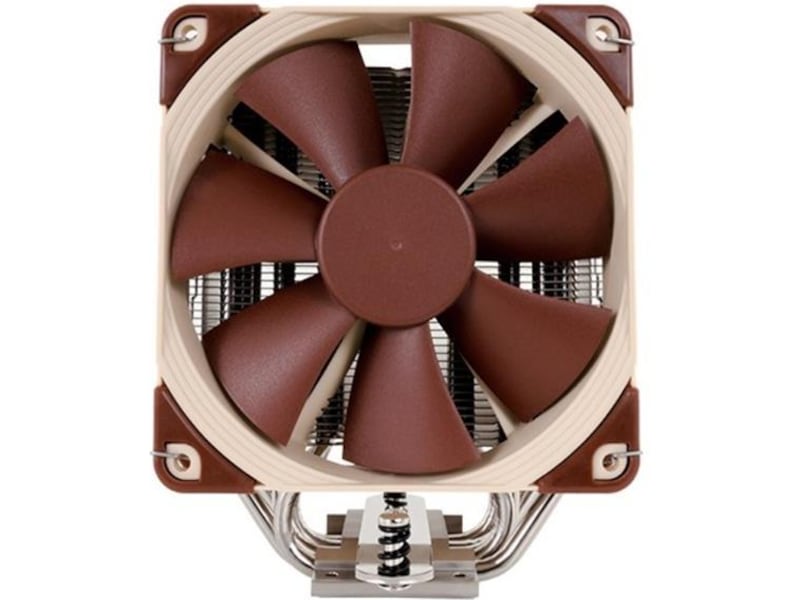

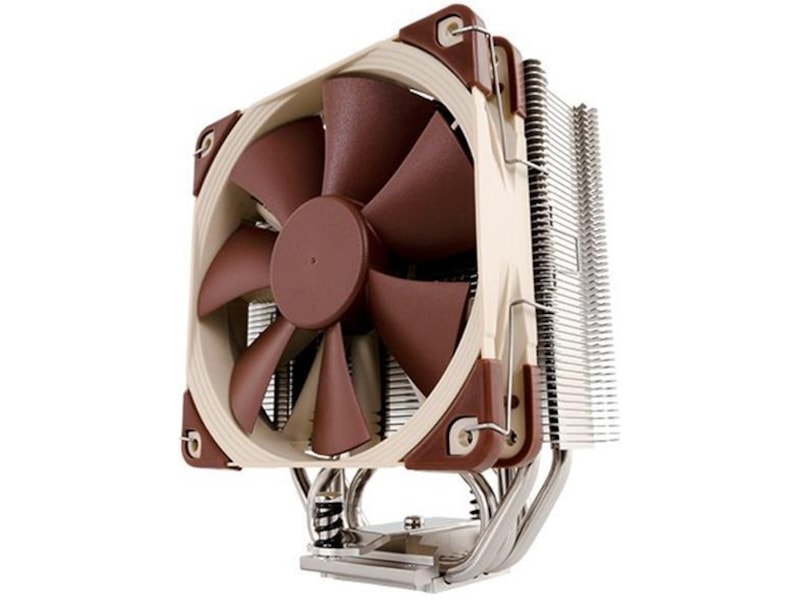

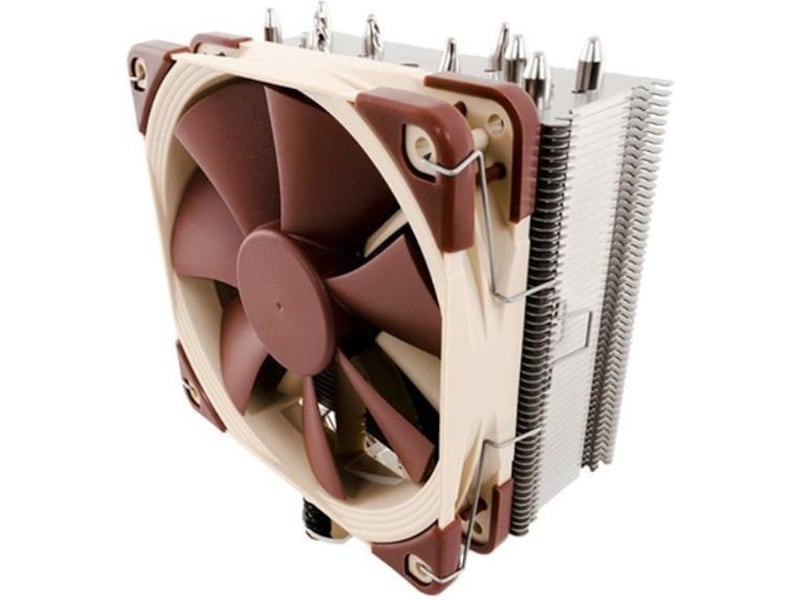

Noctua NH-U12S CPU Kylare

LGA1851/1700/1200/1156, AM4/AM5, 300~1500 RPM, 93,4 m³, 13~ 22.4 dBA

More pictures from Noctua NH-U12S CPU Kylare

929:-
Redo att skickas 12 november 2024 (11 st)
Product test container description

Noctua NH-U12S CPU Cooler. The NH-U12S is the latest 12cm model of Noctua’s classic U-series single tower CPU coolers, which have received more than 400 awards and recommendations from the international press. The S-version’s 45mm slim shape guarantees 100% compatibility with tall RAM modules and at the same time, its fine-tuned design and the class-leading NF-F12 FocusedFlow™ fanwith PWM support for fully automatic speed control allow it to further improve its predecessor’s renowned quiet cooling performance.


Award-winning NH-U12 series.
The NH-U12S is the latest version of Noctua’s award-winning NH-U12 coolers. First introduced in 2005, the NH-U series has become a standard choice for premium quality quiet CPU coolers and won more than 400 awards and recommendations from leading international hardware websites and magazines.
100% RAM compatibility.
Thanks to its slim design with only 45mm fin depth, the NH-U12S will not overhang the RAM slots even with two fans installed. This gives the user full access to the memory modules on all current CPU sockets and guarantees 100% compatibility with tall heatspreaders or optional memory fans.
Classic 120mm tower size for excellent overall compatibility.
Standing 158mm tall, the NH-U12S is short enough to fit most modern mid- or high-end tower cases. Measuring 125mm wide (including fan and fan clips), the cooler stays clear of the top PCIe slot on standard ATX or Micro-ATX motherboards, ensuring best compatibility with SLI and CrossFire setups.
NF-F12 120mm Focused Flow™ fan.
Recommended by more than 150 hardware publications and thousands of enthusiasts world-wide, the Noctua’s premium quality NF-F12 Focused Flow™ 120mm fan is renowned to combine superb static pressure, excellent heatsink performance and surprising quietness of operation.
PWM support and Low-Noise Adaptor.
The NF-F12 120mm fan supplied with the NH-U12S supports PWM for convenient automatic speed control through the mainboard. In addition, the maximum fan speed can be reduced from 1500 to 1200rpm using the supplied Low-Noise Adaptor for even quieter operation.
Anti-vibration pads and fan-clips for second NF-F12 (optional).
For users who want to achieve even better performance by adding a second, optional NF-F12 fan to create a push/pull setup, the NH-U12S includes fan clips and an extra set of custom-designed anti-vibration pads that allow to off-set the rear fan by 5mm to improve acoustics in dual-fan mode.
SecuFirm2™ mounting system.
Noctua’s SecuFirm2™ mounting systems have become synonymous with quality, safety and ease of use. Supporting Intel LGA115x (LGA1150, LGA1155, LGA1156), LGA2011 and AMD (AM3+, AM2+, FM1, FM2), the SecuFirm2™ mounting included with the NH-U12S guarantees perfect contact pressure and maximum convenience on all current sockets.
Compatibility with past and future sockets.
Complying with the open SecuFirm™ standard, the NH-U12S can be made compatible with the older LGA1366 and LGA775 sockets using the optional NM-I3 mounting kit, which is provided by Noctua free of charge. If technically possible, Noctua will also provide upgrade kits for future sockets.
NT-H1 thermal compound.
Having received more than 100 awards and recommendations from hardware journalists around the world, Noctua’s NT-H1 is a proven professional grade TIM solution that provides minimum thermal resistance, excellent ease of use and outstanding reliability.
6 years warranty.
Noctua products are renowned for their impeccable quality and outstanding longevity. Like all Noctua fans, the supplied NF-F12 features an MTBF rating of more than 150.000 hours and the entire NH-U12S package comes with a full 6 years manufacturer’s warranty.



Allmänt
Modell NH-U12S
Produktlinje Noctua
Produkttyp Processorkylare
Producentens garanti (månader) 60
Tillbehörskategori Tillbehör för stationär dator och server, Kylning och fläktar

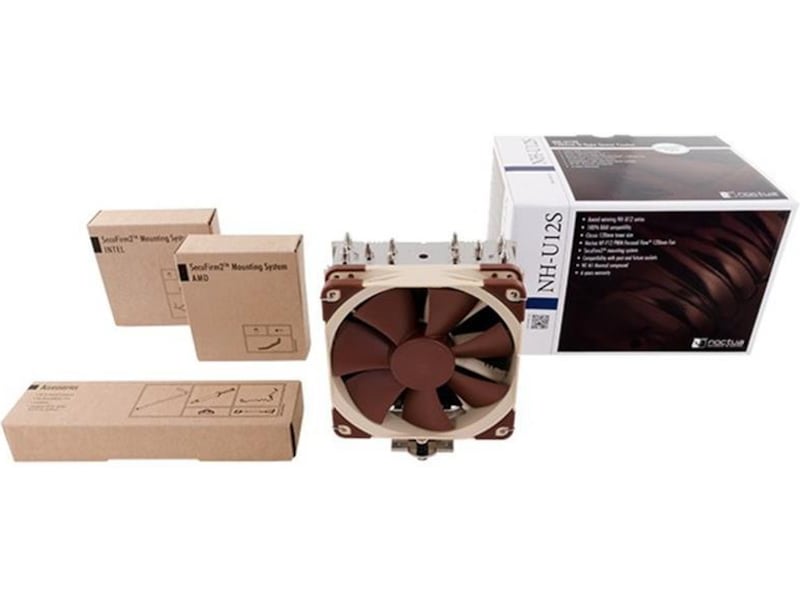

Förpackningsinnehåll Low-Noise Adaptor (L.N.A.), Termisk pasta, SecuFirm2 Mounting Kit
EAN 4716123314943
Diverse
MTBF (genomsnittstid mellan fel) 150,000 timme/timmar
Kylfläns och fläkt
Luftflöde 43.7 cfm
Märkspänning 12 V
Egenskaper Stöd för PVM (Pulse-width modulation)
Kylardimensioner 158 mm x 125 mm x 45 mm
Kylarmaterial Aluminium och koppar
Fläktlager SSO2-lager
Fläkthöjd 25 mm
Luftflöde (metriskt) 74.3 m³/h
Rotationshastighet 300-1500 rpm
Fläktdiameter 120 mm
Starkströmskontakt 4-stifts fläktkontakt
Bullernivå 22.4 dBA
Kompatibel med Socket AM3, LGA1155 Socket, Socket AM2, LGA1156 Socket, Socket AM3+, Socket FM2, Socket AM4, LGA2011 Socket, Socket AM2+, LGA1151 Socket, LGA1200 Socket, Socket FM1, LGA1150 Socket
Mått och vikt
Bredd 12.5 cm
Vikt 755 g
Höjd 15.8 cm
Djup 7.1 cm
