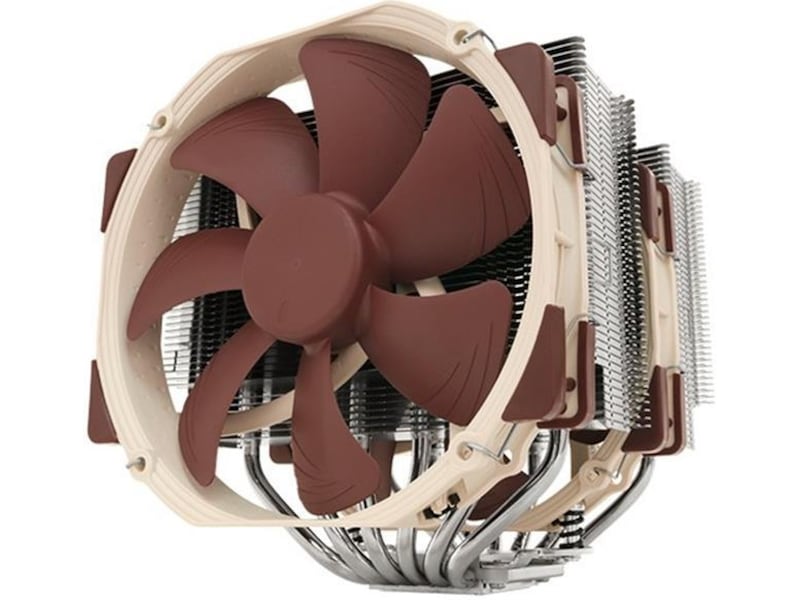

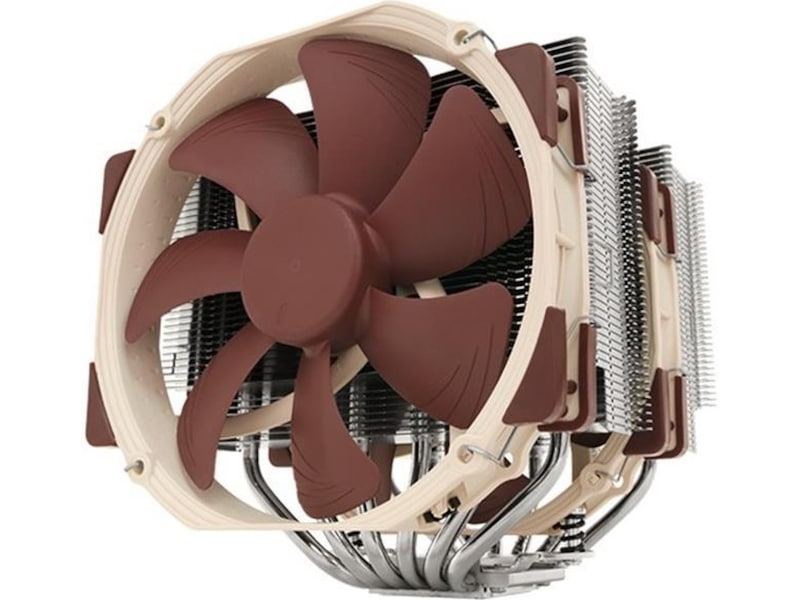

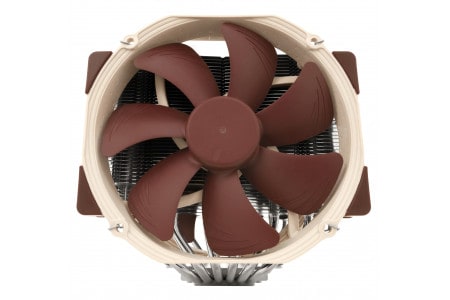

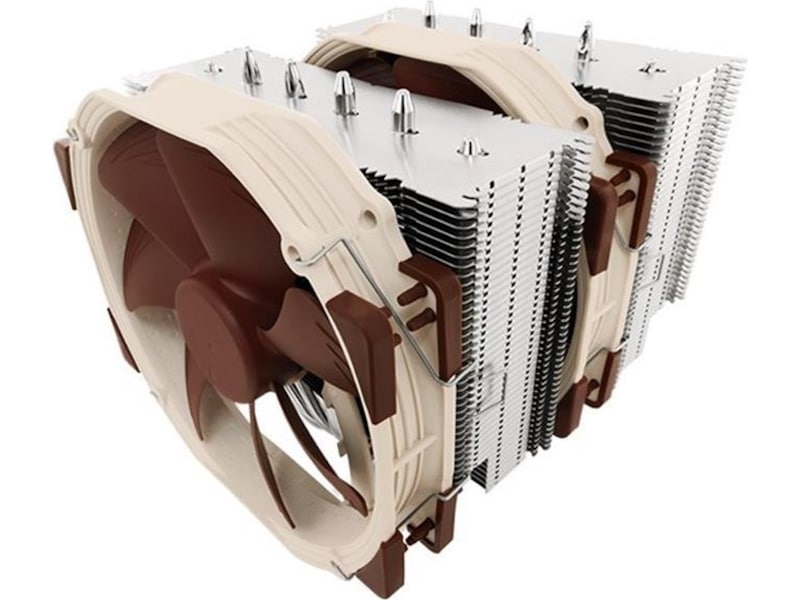

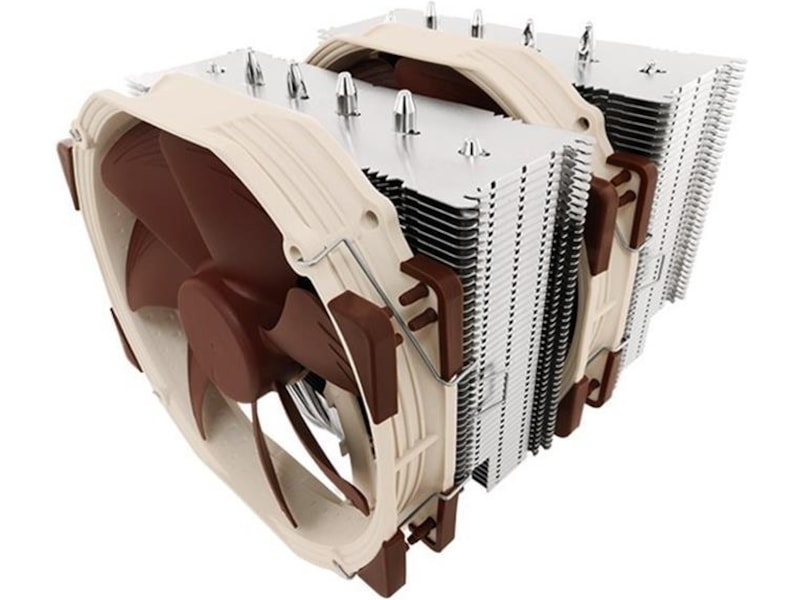

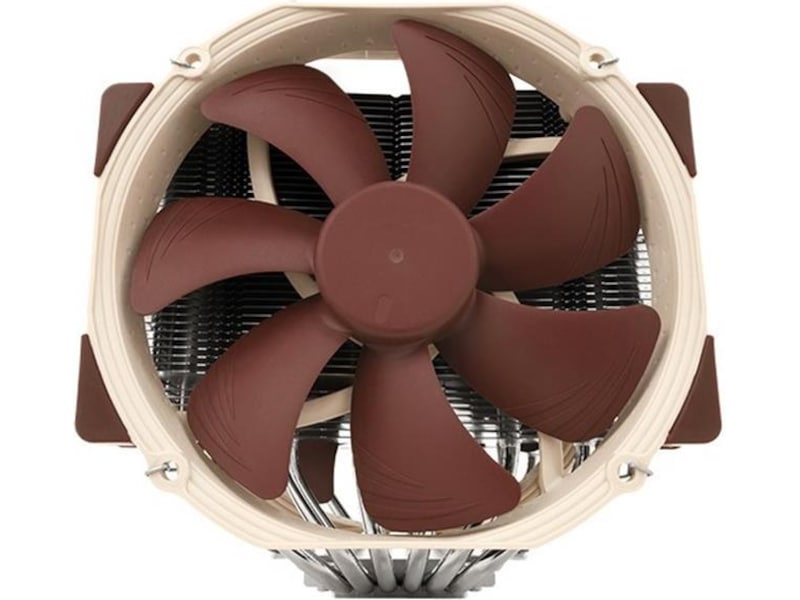

Noctua NH-D15 CPU Kylare

LGA1851/1700/1200/115x, AM4/AM5, 300~1500 RPM, 140,2 m³/h, 19 ~24 dBA

Artikelnummer: 815299 / Tillverkarens artikelnummer: NH-D15

More pictures from Noctua NH-D15 CPU Kylare

1 299:-
1 st i lager (1-3 dagar leveranstid)
sweclockers Techspot metascore 91 EHA Community Awards 2016

Built on the basis of the legendary NH-D14 and carrying on its quest for ultimate quiet cooling performance, Noctua’s flagship model NH-D15 is an elite-class dual tower cooler for the highest demands. Its expanded heatpipe layout and two premium grade NF-A15 140mm fans with PWM support for automatic speed control allow it to further improve the NH-D14’s award-winning efficiency. Topped off with the trusted, pro-grade SecuFirm2™ multi-socket mounting system, Noctua’s proven NT-H1 thermal compound and full 6 years manufacturer’s warranty, the NH-D15 forms a complete premium quality solution that represents a deluxe choice for overclockers and silent-enthusiasts alike.

Based on the award-winning NH-D14


Noctua's NH-D14 has received more than 350 awards and recommendations from leading international hardware websites and magazines, making it one of the most successful premium heatsinks ever built. With its expanded layout and dual NF-A15 fans, the NH-D15 further improves the D14's much acclaimed quiet cooling performance.

High RAM compatibility in single fan mode


Thanks to its recessed lower fins, the NH-D15 provides 64mm clearance for tall memory heatsinks in single fan mode, making it compatible with most high end RAM modules on the market. In dual fan mode, the NH-D15 should be used with standard height RAM (up to 32mm).

PWM support and Low-Noise Adaptors


The NF-A15 premium fans supplied with the NH-D15 support PWM for convenient automatic speed control through the motherboard. In addition, the maximum fan speed can be reduced from 1500 to 1200rpm using the supplied Low-Noise Adaptors for even quieter operation.

Excellent component cooling


Extending below the fin-stacks, the large NF-A15 fans not only contribute to the NH-D15's superb CPU cooling capabilities but also provide massive airflow over surrounding motherboard components and heatsinks, thus ensuring excellent component cooling performance.

6-year manufacturer’s warranty


Noctua products are renowned for their impeccable quality and outstanding longevity. Like all Noctua fans, the supplied NF-A15's feature an MTTF rating of more than 150.000 hours and the entire NH-D15 package comes with a full 6-year manufacturer's warranty.

Allmänt
Produktlinje Noctua
Modell NH-D15
Produkttyp Processorkylare
Tillbehörskategori Kylning och fläktar
Producentens garanti (månader) 60

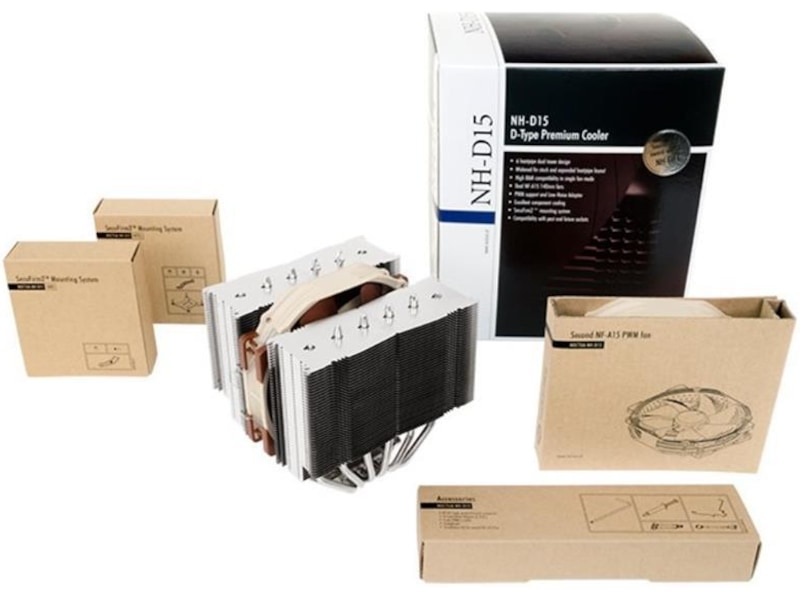

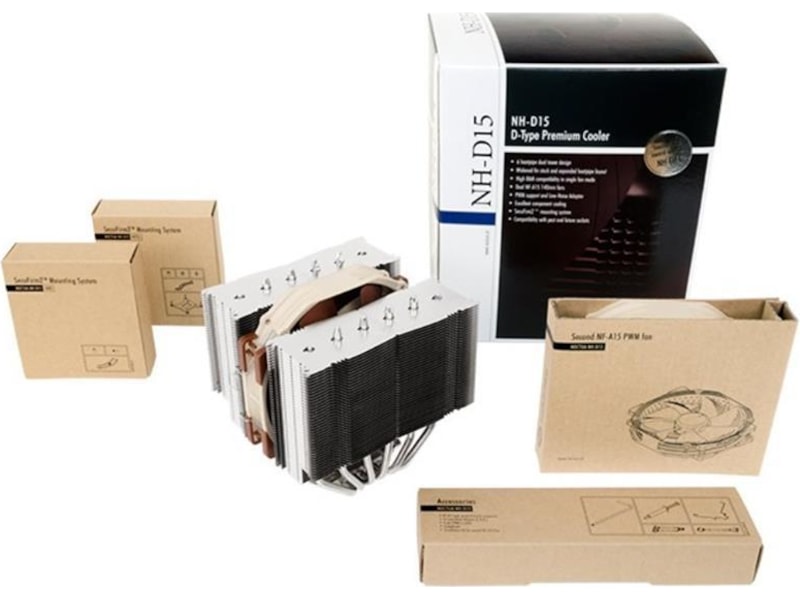

Förpackningsinnehåll Y-delad kabel, Metallfodralemblem, 2 Low-Noise Adaptor (L.N.A.), SecuFirm2 Mounting Kit, 2x NF-A15 PWM premiumfläkt, NT-H1 termisk pasta
EAN 4716123315360
Diverse
Monteringssats Inkluderat
MTBF (genomsnittstid mellan fel) 150,000 timme/timmar
Kylfläns och fläkt
Strömkonsumtion 1.56 W
Luftflöde (metriskt) 116-141 m³/h
Fläktlager SSO2-lager
Luftflöde 68 - 82,7 cfm
Fläkthöjd 25 mm
Fläktdiameter 140 mm
Kylarmaterial Aluminium med kopparbas
Bullernivå 19.2 - 24.6 dBA
Starkströmskontakt 4-stifts fläktkontakt
Startspänning 12 V
Lufttryck 1.51-2.08 mm
Antal fläktar 2
Rotationshastighet 300-1500 rpm
Egenskaper 6 kopparvärmerör, Stöd för PVM (Pulse-width modulation), Värmerörsteknik, Soldered joints
Kompatibel med LGA1156 Socket, LGA2011-3 (Square ILM) Socket, LGA1200 Socket, LGA1155 Socket, Socket FM2, LGA1150 Socket, Socket AM3, Socket AM3+, LGA1151 Socket, Socket AM2, Socket AM4, Socket FM1, Socket AM2+, LGA2066 Socket, LGA2011 Socket, Socket FM2+
Mått och vikt
Djup 16.1 cm
Höjd 16.5 cm
Bredd 15 cm
Vikt 1.32 kg
Service och support
Typ 6 års garanti
Service och support (specifikationer)
Service och support Begränsad garanti: - 6 år
Buller- och prestandainformation
Buller- och prestandainformation 24.6 dBA / 82,7 cfm vid 1500 rpm, 19.2 dBA / 68 cfm vid 1200 rpm
Average rating (62 reviews)
Riktlinjer för produktrecensioner

Ytelsen passer størrelsen

By Halvorsen 2023-12-27

10/10 kjøleferdighet til vifta men den er stor. kunne bare bruke 1 av de 2 viftene den kommer med siden det var ikkje plass. men CPUen var kald under tung load. Läs mer

Tycker du denna recension är informativ?

Helt RÅ!

By Leif Gunnar Toth 2023-11-05

Etter å ha slitt med original kjøler på ett HK med AM4 socket men med LG115x hull for kjøler, måtte jeg bare oppgradere. Satset på at denne ville funke, enda det var vanskelig å få til. Lite plass i kabinettet, men når en går ned over 30 grader på idle, så funker den kanon! Super fornøyd, og ekstremt stillegående. Med i pakken følger det kjølepasta, så du trenger ikke kjøpe det utenom ( noe jeg gjorde ). Det følger også med "noice reduction kit" i form av kabler som bare reduserer strømmen inn til viftene så de går litt saktere og dermed roligere. Jeg bruker disse, og hører ikke viftene engang. Läs mer

Tycker du denna recension är informativ?

Meget stillegående

By Emil 2023-06-30

Kjøleren er kjempebra, og veldig stillegående. OBS: Det følger med kjølepasta så man trenger ikke ekstra. Läs mer

Tycker du denna recension är informativ?
