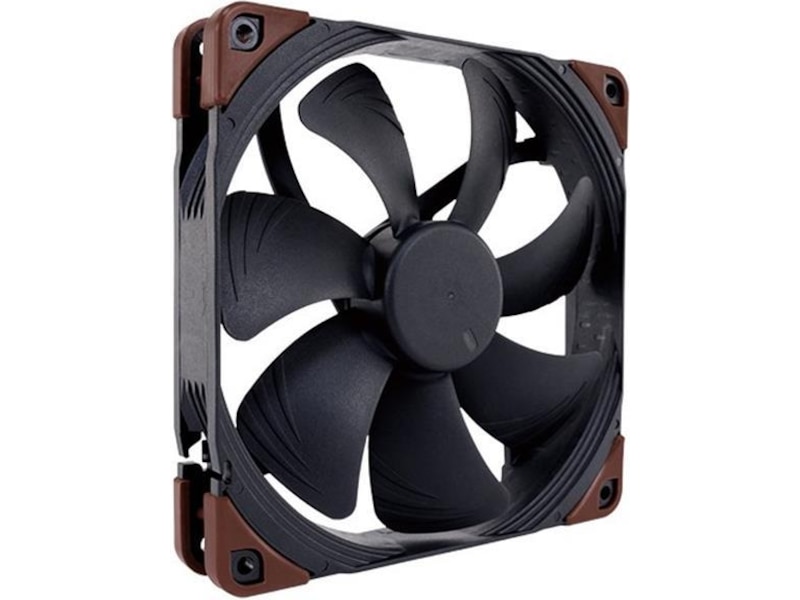

Noctua NF-A14 iPPC-3000 PWM 140mm Fläkt

140 x 140 x 25 mm, 800~3000 RPM, ~269.3 m³/h, ~41.3 dBA, 4-Pin PWM

Artikelnummer: 816910 / Tillverkarens artikelnummer: NF-A14 IPPC-3000 PWM

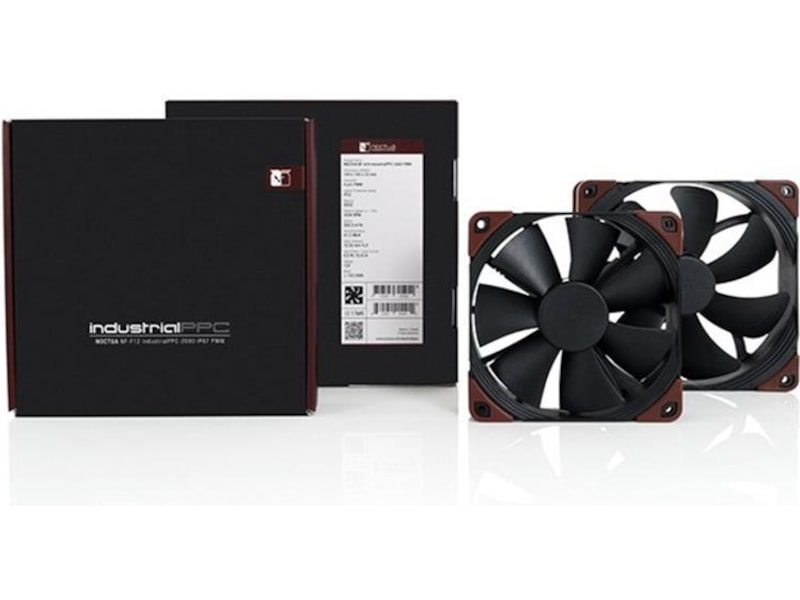

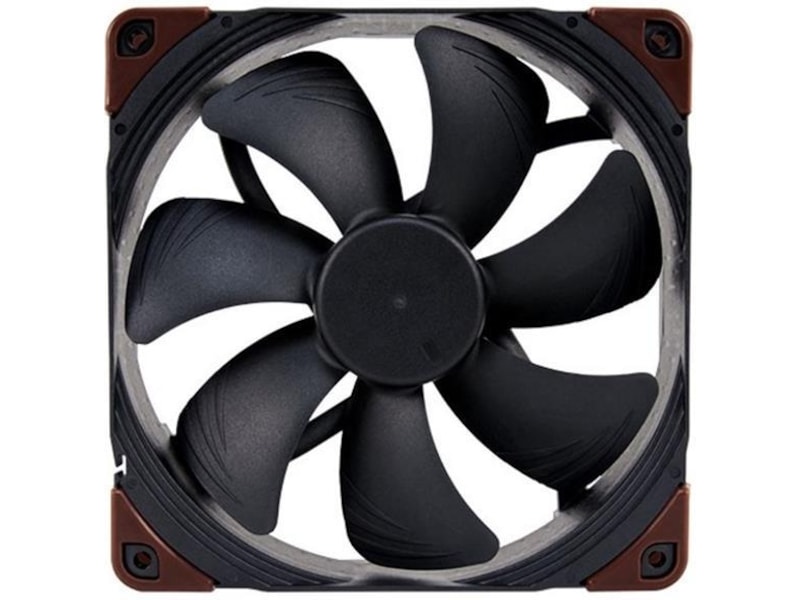

More pictures from Noctua NF-A14 iPPC-3000 PWM 140mm Fläkt

+ frakt från 19:-
27 st på väg in. Obekräftad 19 augusti 2022
Logo Logo

Noctua NF-A14 industrialPPC-3000 PWM.

Conceived for industrial heavy duty applications that require enhanced cooling performance and advanced ingress protection, the NF-A14 industrialPPC (Protected Performance Cooling) is a ruggedised high-speed version of the award-winning retail model. Thanks to the outstanding aerodynamic efficiency of the NF-A14 design and the use of a novel three-phase motor, the industrialPPC version provides superior airflow and pressure capacity while keeping noise levels and power consumption moderate as against comparable high-speed fans. While its fibre-glass reinforced polyamide construction and certified water and dust protection make the NF-A14 industrialPPC suitable for operation in challenging environments, the renowned SSO2 bearing technology guarantees an MTBF of over 150.000hrs. Topped off with Noctua’s trusted reliability and 6 years manufacturer’s warranty, the NF-A14 industrialPPC is an ideal choice for highly demanding applications that require superior flow rates and ultimate dependability.

Award-winning NF-A14 design .

Having received more than 100 awards and recommendations from the international press, Noctua’s NF-A14 has become a proven premium choice for 140mm cooling needs. Its renowned efficiency has convinced tens of thousands of customers all over the world.

2000rpm industrialPPC version.

Thanks to its elevated 2000rpm top speed, the NF-A14 industrialPPC-2000 provides a significant performance boost over the 1500rpm retail version. Combined with the industrialPPC series’ robust polyamide construction and advanced protection features, this makes the fan ideal for challenging industrial applications.

Three-phase motor design.

While most axial fans use single-phase motors with 4 slots, Noctua’s industrialPPC fans feature a three-phase design with 6 slots, which provides smoother transitions between the slots and thus allows for even higher running smoothness, further reduced vibrations and unprecedented energy efficiency.

Class-leading energy efficiency

While the standard NF-A14 is one of the most energy efficient 1500rpm 140mm fans on the market, the industrialPPC version’s three-phase motor provides a further 10% reduction in power consumption when compared at 2000rpm.

Fibre-glass reinforced polyamide construction

Both the impeller and the frame of Noctua’s industrialPPC fans are made entirely from fibre-glass reinforced polyamide. This material can withstand temperatures up to 140°C and makes the fans even more robust and break-proof than Noctua’s standard fibre-glass reinforced PBT fans.

Certified IP52 water- and dust protection

Thanks to a special varnish coating that covers the motor and PCB, the NF-A14 industrialPPC complies with the ingress protection rating IP52. This means that it is not only highly dust resistant but also withstands dripping water equivalent to 3mm rainfall per minute.

Flow Acceleration Channels

Designed for pressure demanding applications such as heatsinks and radiators, the Focused Flow™ frame features eleven stator guide vanes that straighten, channel and focus the airflow, which allows the NF-A14 to rival the performance of conventional fans running at much faster speeds.

AAO Frame

Noctua’s AAO (Advanced Acoustic Optimisation) frames feature integrated anti-vibration pads as well as Noctua’s proprietary Stepped Inlet Design and Inner Surface Microstructures, both of which further refine the fan’s performance/noise efficiency.

Integrated Anti-Vibration Pads

Integrated Anti-Vibration Pads made from extra-soft silicone minimise the transmission of minute vibrations while maintaining full compatibility with all standard mounting systems and fan clips used on heatsinks

SSO2 Bearing

The NF-A14 industrialPPC features the further optimised second generation of Noctua’s renowned, time-tested SSO bearing. With SSO2, the rear magnet is placed closer to the axis to provide even better stabilisation, precision and durability.

Custom designed PWM IC with SCD

Supporting fully automatic PWM speed control, the NF-A14 industrialPPC uses Noctua’s custom designed NE-FD2 PWM IC for three-phase motors. The NE-FD2 integrates Noctua’s proprietary Smooth Commutation Drive (SCD) technology, which suppresses PWM switching noises and thus makes the fan quieter at lower speeds.

6 years manufacturer’s warranty

Noctua fans are renowned for their impeccable quality and outstanding longevity. Like all Noctua fans, the NF-A14 industrialPPC features an MTBF rating of more than 150.000 hours and comes with a full 6 years manufacturer’s warranty.

Customisable for industry clients

For industry clients, various features, certificates, packaging options and accessories can be customised on requests. For example, we can provide 24V versions, different connectors and speeds, different cable length or UL and TÜV certification. Please feel free to contact us for customised offers!

Producentens garanti (månader) 60
Produkttyp Lådfläkt
Produktmaterial Fiberglasförstärkt polyamid
Bredd 14 cm
Djup 14 cm
Höjd 2.5 cm
Finish Lackerad
EAN 4716123315452
Kylfläns och fläkt
Fläktdiameter 140 mm
Fläkthöjd 25 mm
Fläktlager SSO2-lager
Rotationshastighet 800-3 000 vpm
Luftflöde 156,5 cfm
Lufttryck 10.52 mm
Bullernivå 41.3 dBA
Starkströmskontakt 4-stifts fläktkontakt
Märkspänning 12 V
Märkt strömstyrka 0.55 A
Strömkonsumtion 6.6 W
Egenskaper Stöd för PVM (Pulse-width modulation), Advanced Acoustic Optimisation (AAO), flödesaccelerationskanaler, inbyggda antivibrationsdynor
Monteringssats Inkluderat
MTBF (genomsnittstid mellan fel) 150,000 timme/timmar
Egenskaper Vattentät, dammresistent
Standarder som följs IP52
