More pictures from ASRock Intel Arc B580 Steel Legend OC
1 / 8

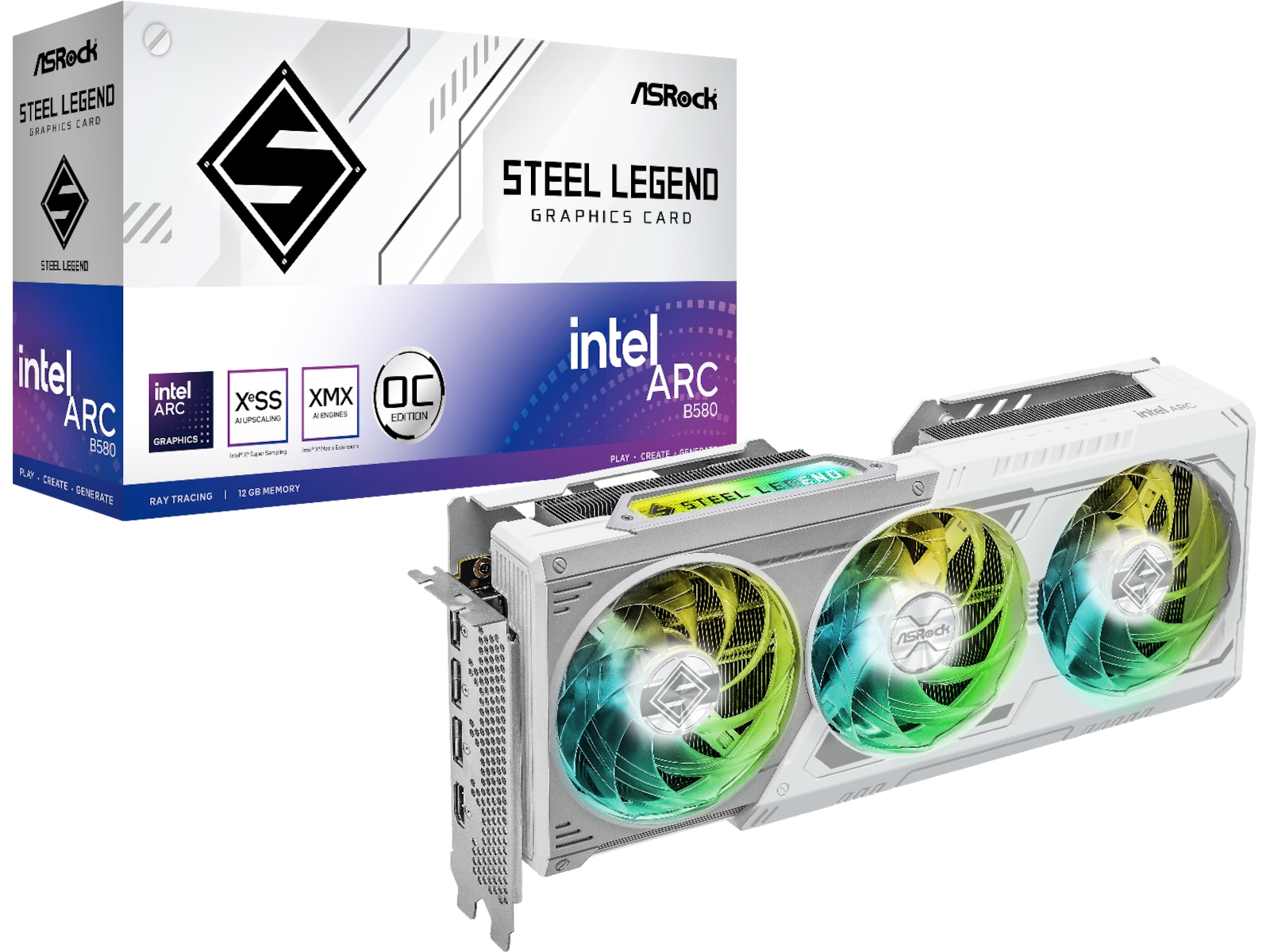

ASRock Intel Arc B580 Steel Legend OC
1317265
1317265
4711581490024
90-GA5CZZ-00UANF
ASRock Intel Arc B580 Steel Legend OC
Polychrome SYNC
Create your own unique colorful light effects.
With the integrated ARGB LEDs, you can create your own unique colorful light effects which can also be switched on and off. It can also be synchronized with your ASRock motherboards that support Polychrome SYNC.
LED Switch
Switch on/off as you want.
You can switch LED on or off depends on the scenarios or your need.
ARGB Header
More ARGB, More Fancy.
With the ARGB header, it can connect ARGB strips/devices to make the lighting effects more rich and vivid.

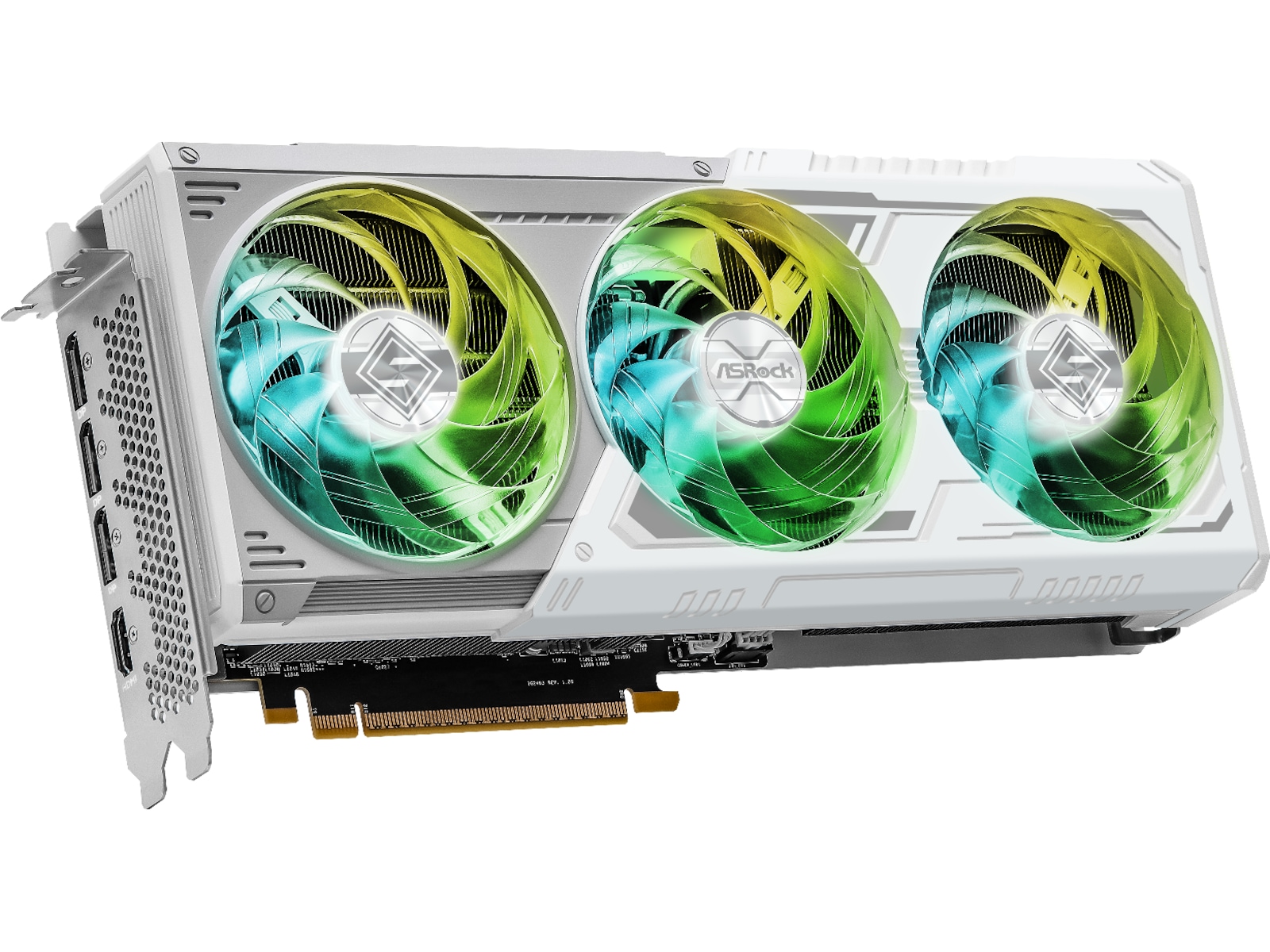

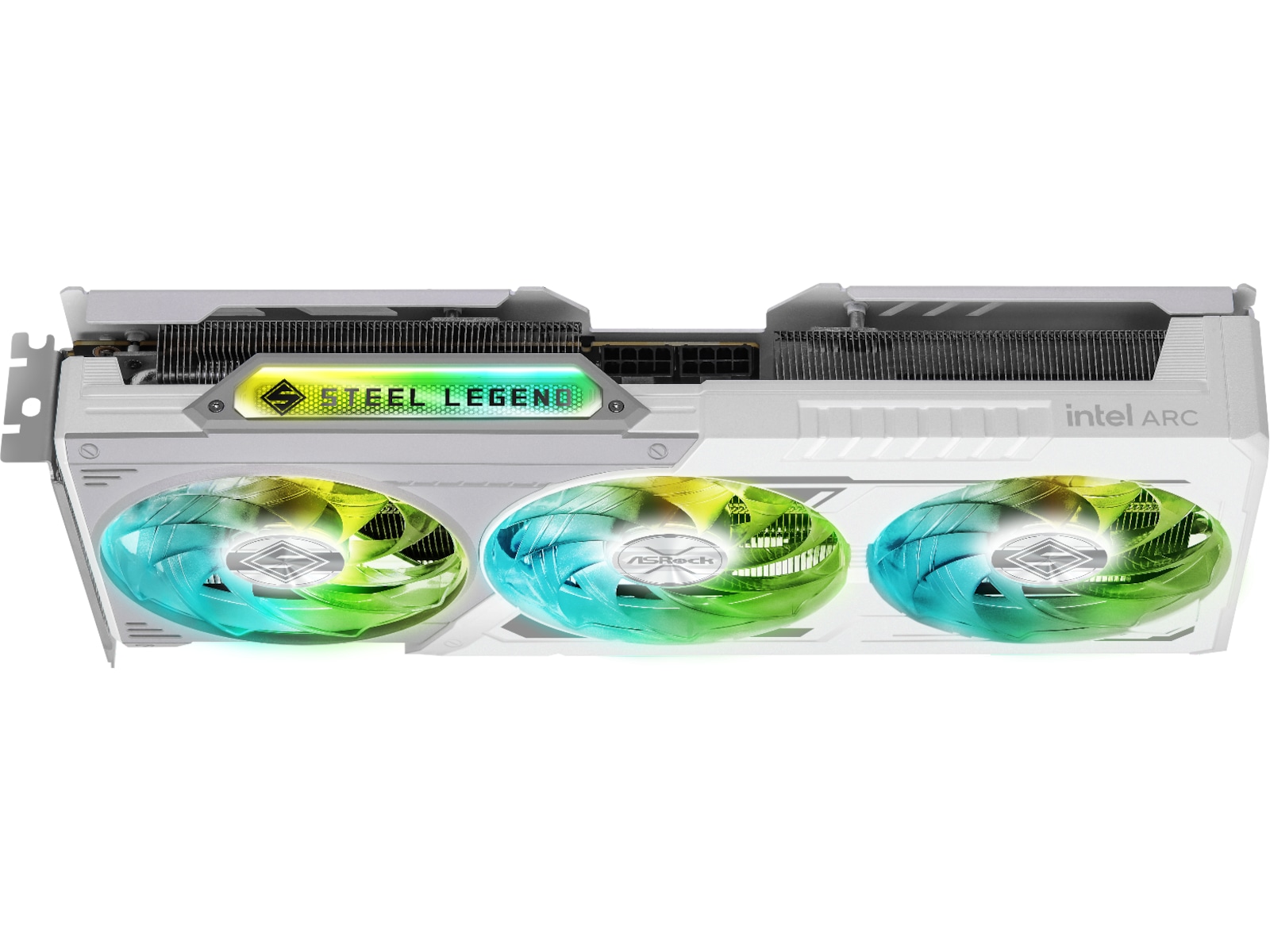

Triple Fan Design
Triple fan design helps to optimize system cooling to reduce the operating temperature.
0dB Silent Cooling
Spin For Cooling, Stop For Silence.
The fan spins when the temperature goes high for the optimal cooling, and stops when the temperature goes low for the complete silence.

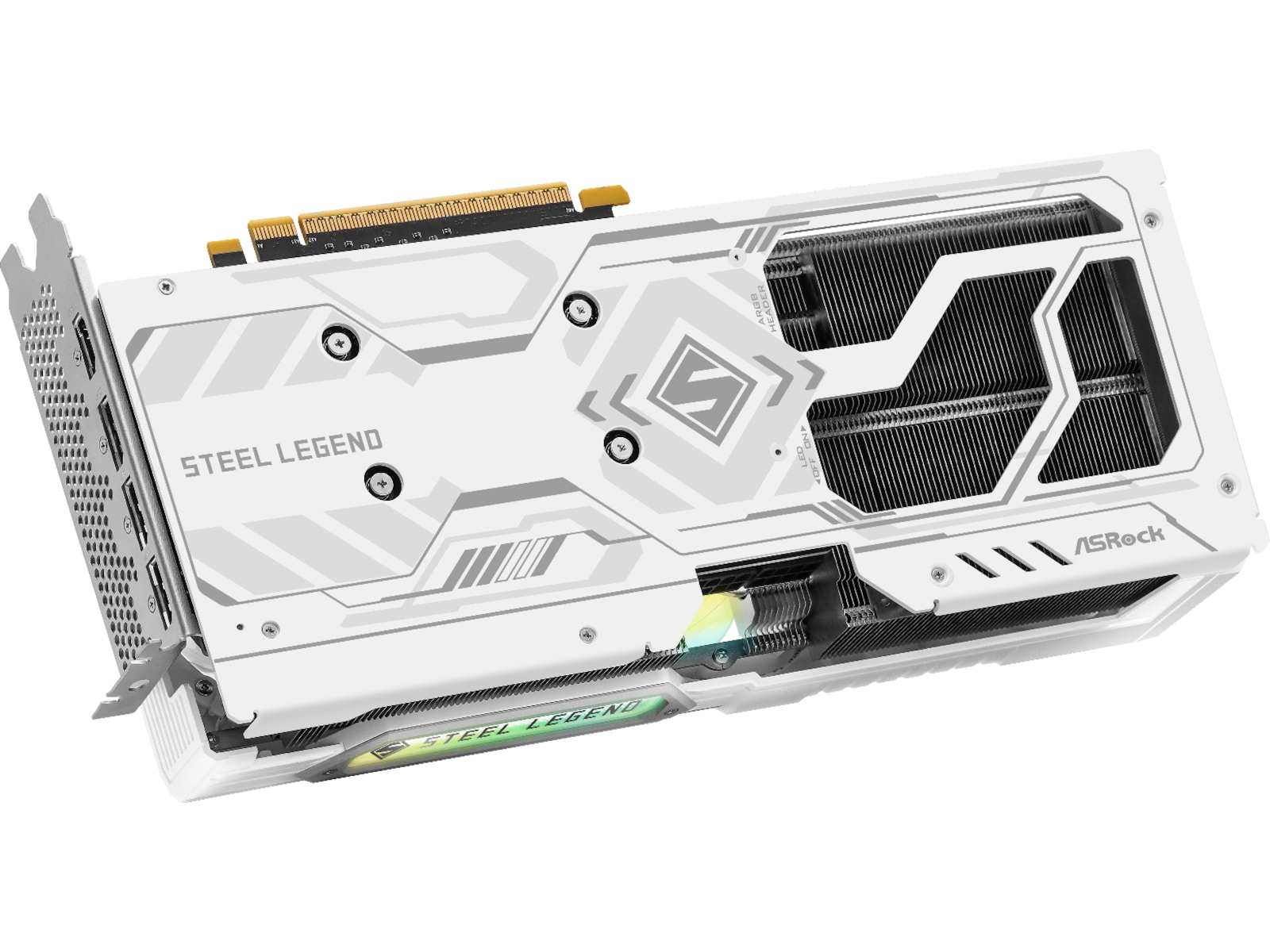

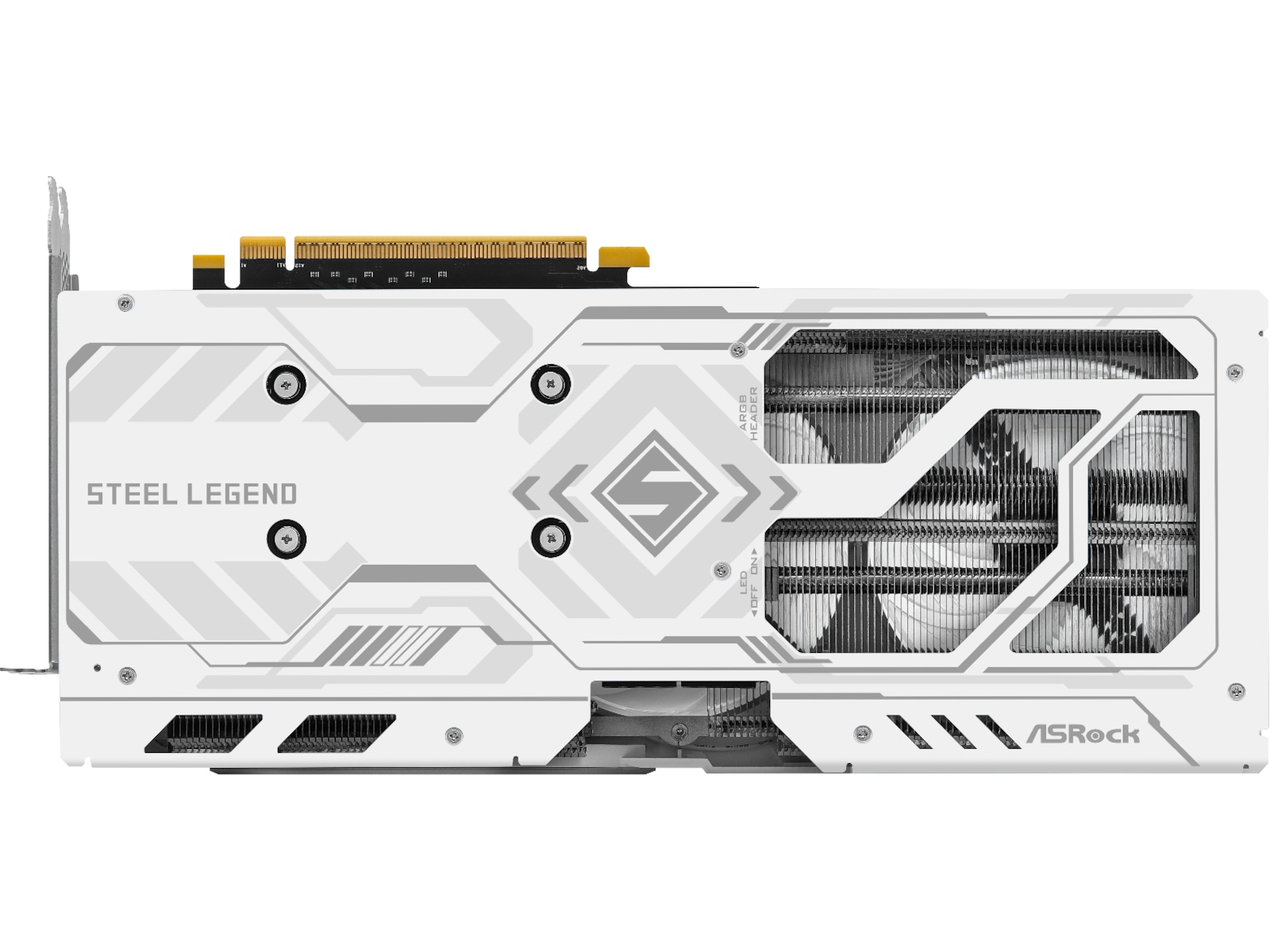

Stylish Metal Backplate
Solid, Refined, Cool.
Designed to avoid PCB bending. The white-themed outlook makes the graphic card more simple and purified in visual.

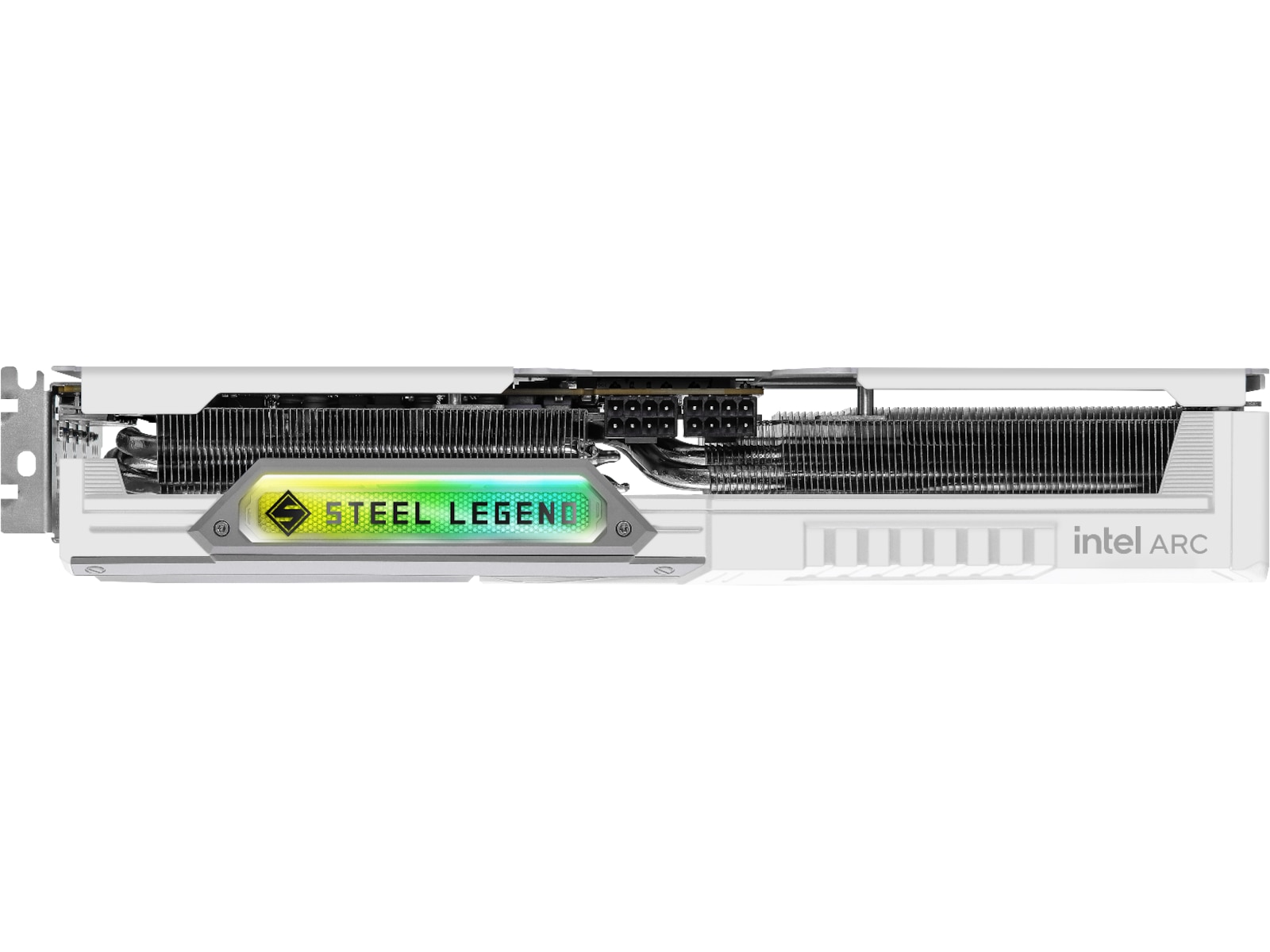

Air Deflecting Fin
Guide Airflow to Go Through Regularly & Quickly.
Guide the airflow to go more regularly and quickly to enhance the cooling efficiency by the V-shaped cutting fins and the V-shaped air vents.
Nickel-plated Copper Base
Maximize GPU Contact Area.
With premium copper base heatsink design, the direct contact area to the GPU would be maximized to improve thermal transfer effectively.
Allmänt
Modell
Intel Arc B580 12GB OC
Produktlinje
ASRock Steel Legend
Producentens garanti (månader)
36
EAN
4711581490024
Videoutgång
Maximalt antal skärmar
4
Typ av gränssnitt
PCI Express 4.0 x8
Klockhastighet
2800 MHz
Grafikprocessortillverkare
Intel
HDCP-kompatibel
Ja
Typ
Grafikkort
Grafikprocessor
Intel Arc B580
Maximal extern upplösning
7680 x 4320
API-stöd
OpenGL 4.6, DirectX 12 Ultimate

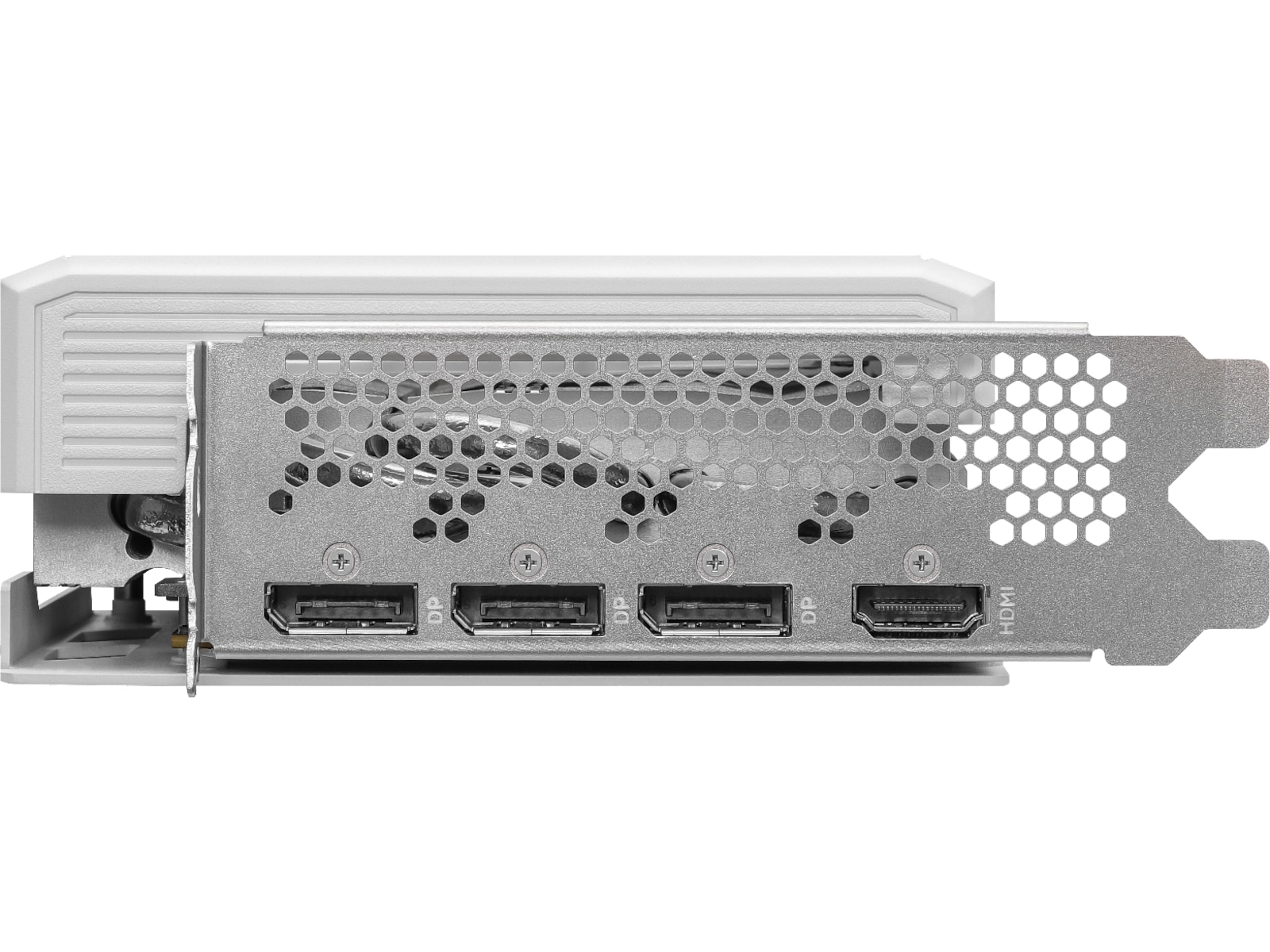

Utgångsportar (kompaktlista)
HDMI, 3 x DisplayPort
Videosignal som stöds
DisplayPort, HDMI
Egenskaper för videoadapter
Bakre metalplåt, Intel Xe Super Sampling 2 (XeSS 2), Nickelpläterad kopparbas, Glastextil-PCB med hög densitet, Premium Power Choke, LED på/av-knapp, Trehövdad fläktdesign, Japanese SP-Cap, Intel Xe2 HPG Architecture, Intel Xe Matrix eXtensions (XMX), ARGB Lighting, Super Alloy Power-teknik, ARGB stifthuvud, Nanovärmepasta, 160 Intel XMX-motorer, 56,5 g koppar-PCB, DrMOS, Ultrafit-värmerör, Matt svart PCB, Luftavböjande fläns, 2,6-facks kylfläkt, 0dB Technology, Striped Ring Fan, Polychrome SYNC
Videominne
Minnehastighet
19 Gbps
Teknik
GDDR6 SDRAM
Bussbredd
192-bit
Installerad storlek
12 GB
Systemkrav
Erforderligt nätaggregat
650 W
Extra krav
2 x 8 stifts PCI Express-strömkontakt
Diverse
Färgkategori
Vit
Standarder som följs
Ultra High Bit Rate 13.5 (UHBR13.5), Ultra High Bit Rate 10 (UHBR10), DisplayPort 2.1
Mått och vikt
Djup
29.8 cm
Bredd
5.1 cm
Höjd
13.1 cm
Vikt
959 g
Gränssnittsdetaljer
Gränssnittsdetaljer
HDMI, 3 x DisplayPort
(1)5
