Artikelnummer: 804610 / Tillverkarens artikelnummer: 10120505

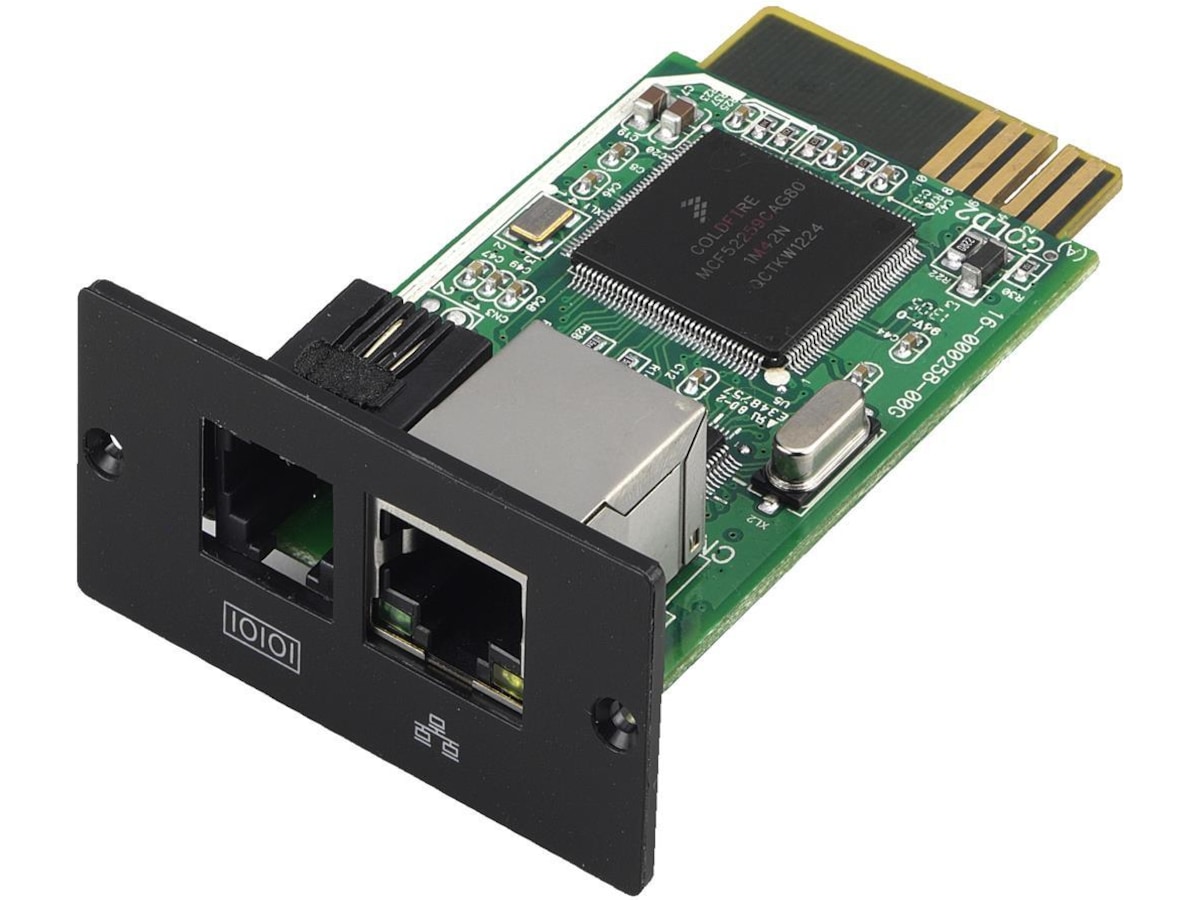

BlueWalker PW SNMP Manager Card

SNMP Card offer IP Adress and WebInterface for most convinient monitoring

More pictures from BlueWalker PW SNMP Manager Card

1 495:-
13 st i lager (1-3 dagar leveranstid)

BlueWalker PW SNMP Manager

PowerWalker SNMP manager is a communication solution for UPS monitoring and control. This SNMP manager card allows remote monitor and manage multiple UPSs from anywhere with internet access. Integrated web access will leverage internet capability of SNMP manager to remotely program or shut down UPSs. Equipped with SNMP manager, power conditions of all UPSs can be monitored anytime/anywhere even though the UPS units are located in different floors. Besides, this card also come equipped with easy-to-update firmware feature. Whenever the updated firmware is released, system manager can download it and simply upgrade all with one click.

Product Features:

  • Allows controlling and monitoring of multiple UPSs through RJ45 network connection
  • Real-time dynamic graphs of UPS data
  • Warning notifications via audible alarm, broadcast, mobile messenger, e-mail and SNMP traps
  • Historic data log stored in centralized PC database
  • Simple firmware upgrade with one click
  • Password security protection and remote access management
  • ViewPower Pro software offers another enhanced communication solution for UPS monitoring and control.

Supports following models:

VFI 1000, 1500, 2000, 3000 LCD VFI 1000C, 2000C, 3000C, 6000C, 10000C LCD VFI 1000RM, 1500RM, 2000RM, 3000RM, 6000R, 10000R LCD VFI 10000, 15000, 20000, 30000 CP 3/3

Allmänt
Modell SNMP Manager
Produktlinje PowerWalker
Producentens garanti (månader) 12
EAN 4260074974034
Processor
Klockfrekvens 48 MHz
Installerat antal 1
Tillverkare Freescale
Typ MCF52254
Flash-minne
Installerad storlek 512 KB
Nätverk
Anslutningsteknik Kabelansluten
Formfaktor Insticksmodul
Typ Adapter för administration på distans
Protokoll för administration på distans SNMP
Datalänkprotokoll Fast Ethernet, Ethernet
Typ av kablage Ethernet 10Base-T, Ethernet 100Base-TX
Statusindikatorer Portstatus, Portöverföringshastighet
Kortplats som krävs
Kompatibla kortplatser 1 x expansionskortplats
Programvara
Typ ViewPower Pro
Mått och vikt
Höjd 1.5 cm
Vikt 35 g
Bredd 4.7 cm
Djup 2.3 cm
Miljöparametrar
Min temperatur vid drift 0 °C
Max temperatur vid drift 40 °C
Luftfuktighet vid drift 0 - 95 % (icke-kondenserande)
Kompatibilitet
Specifikationer PowerWalker VFI 1000 LCD, VFI 10000C LCD, VFI 10000R LCD, VFI 1000RM LCD, VFI 100K CPG PF1 3/3 BX, VFI 1500 LCD, VFI 1500RM LCD, VFI 180K CPG PF1 3/3 BX, VFI 2000 LCD, VFI 2000RM LCD, VFI 3000 LCD, VFI 3000RM LCD, VFI 6000C LCD, VFI 6000R LCD
Beskrivning PowerWalker VFI 100, VFI 1000, VFI 10000, VFI 1500, VFI 180, VFI 2000, VFI 3000, VFI 6000
Tillhandahållet gränssnitt

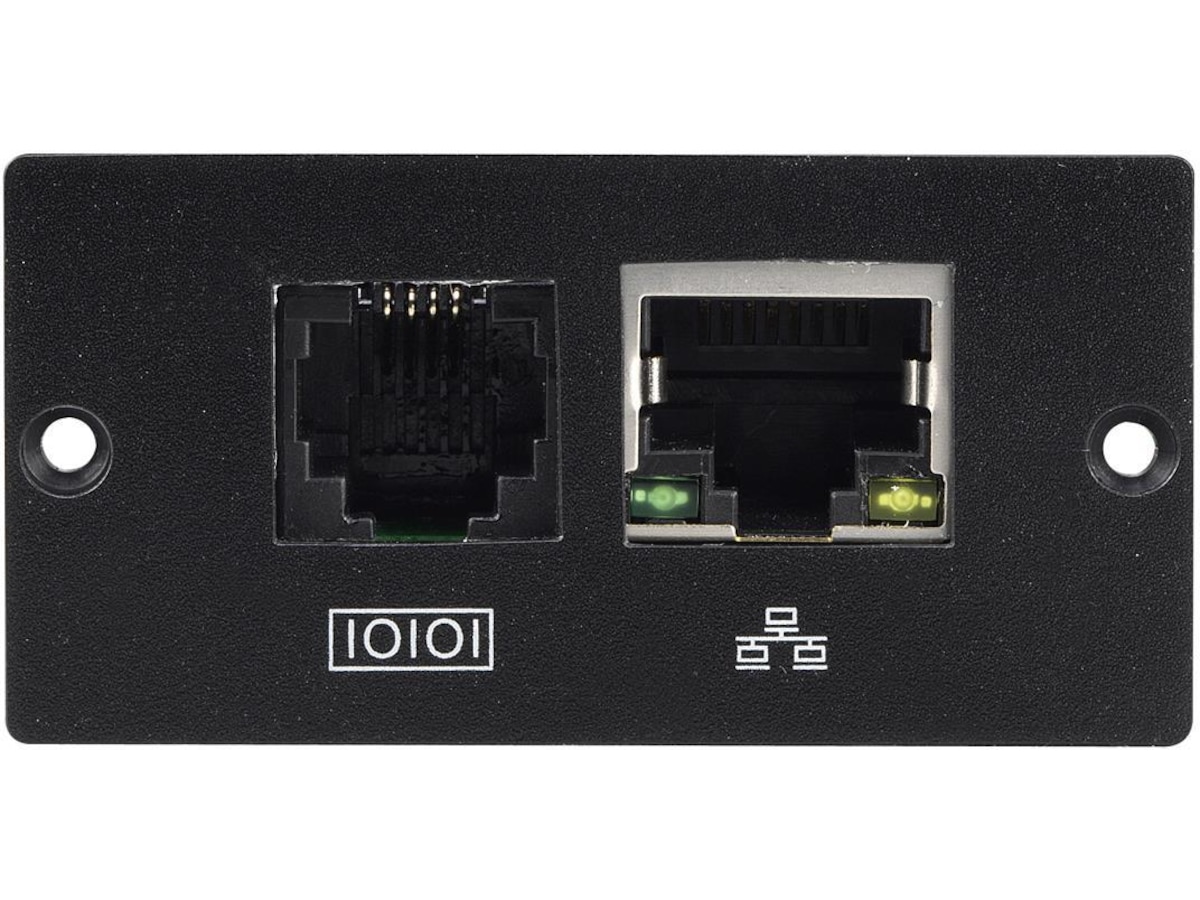

Gränssnitt 1 x 100Base-TX x nätverk - Ethernet 10Base-T/100Base-TX - RJ-45, 1 x kringutrustning - RJ-45
